Introduction
Silicon nitride ceramics (Si₃N₄) are advanced materials recognized for their toughness, thermal shock resistance, and corrosion resistance. Available in grades such as Gas Pressure Sintered (GPS) Si₃N₄ and Hot-Pressed Silicon Nitride (HPSN Si₃N₄), these ceramics are ideal for applications in automotive, aerospace, industrial, and medical sectors. This article explores the sector-specific applications of silicon nitride ceramics, supported by a table linking properties to their uses.
Sector-Specific Applications of Silicon Nitride Ceramics
Silicon nitride ceramics are applied across various sectors due to their unique properties. Below are their key uses:
- Turbocharger Rotors (Automotive): Handle temperature fluctuations in engines.
- Exhaust Valves (Automotive): Resist corrosion from exhaust gases.
- Turbine Bearings (Aerospace): Support high loads in jet engine turbines.
- Avionics Insulators (Aerospace): Provide reliable insulation for flight electronics.
- Cutting Tools (Industrial): Ensure durability in high-speed machining.
- Pump Seals (Industrial): Manage harsh fluids in chemical processing.
- Spinal Implants (Medical): Offer strength and biocompatibility for orthopedic use.
- Dental Implants (Medical): Ensure safety and durability in oral applications.
Performance Highlights of Silicon Nitride Ceramics Across Industries
The table below links key properties of silicon nitride ceramics to their applications across various sectors.
Application | Sector | Key Property | Typical Value | Why It’s Important |
Turbocharger Rotors | Automotive | Thermal Shock Resistance | 800°C (HPSN Si₃N₄) | Endures rapid temperature changes in engines. |
Exhaust Valves | Automotive | Corrosion Resistance | Weight Loss (H₂SO₄): 0.1 mg/cm² | Withstands corrosive exhaust gases in cars. |
Turbine Bearings | Aerospace | Compressive Strength | 3500 MPa (HPSN Si₃N₄) | Resists high loads in jet engine turbines. |
Avionics Insulators | Aerospace | Electrical Insulation | Volume Resistivity: >10¹⁴ ohm-cm | Ensures safety in aerospace electronics. |
Cutting Tools | Industrial | Hardness | 16 GPa (HPSN Si₃N₄) | Maintains durability in high-speed machining. |
Pump Seals | Industrial | Corrosion Resistance | Weight Loss (NaOH): 0.2 mg/cm² | Performs reliably with aggressive chemicals. |
Spinal Implants | Medical | Compressive Strength | 3500 MPa (HPSN Si₃N₄) | Handles load-bearing in orthopedic implants. |
Dental Implants | Medical | Biocompatibility | Inert in Body | Safe for long-term use in oral applications. |
Table Notes:
Values reflect typical silicon nitride properties.
Properties such as hardness and corrosion resistance ensure performance across sectors.
Conclusion
Silicon nitride ceramics, with their excellent toughness, thermal stability, and biocompatibility, play a vital role in automotive, aerospace, industrial, and medical sectors. Their adaptability ensures robust performance across diverse applications.

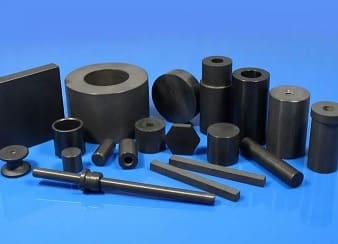

Heeger Materials is a leading manufacturer and supplier of high-quality silicon nitride ceramic products in forms of plates, sheets, rods, tubes, crucibles, substrates, and customized parts, offering customized solutions for various industrial and research applications.
