Thermal Management With Aluminum Oxide Ceramics In Electronics

Thermal Management With Aluminum Oxide Ceramics In Electronics

As electronic devices become smaller, more powerful, and increasingly complex, managing heat effectively has become a critical challenge in design and manufacturing. Excess heat can degrade performance, shorten device lifespan, and cause premature failure. Aluminum oxide ceramics, also known as alumina (Al₂O₃), play a crucial role in thermal management due to their excellent thermal conductivity combined with electrical insulation and mechanical stability. This article dives deep into why aluminum oxide ceramics are preferred materials in electronics thermal control, their key properties, typical applications, and how they compare to other ceramic materials.

At Heeger Materials Inc., we specialize in high-quality alumina ceramic, ensuring optimal performance for industrial and scientific applications.

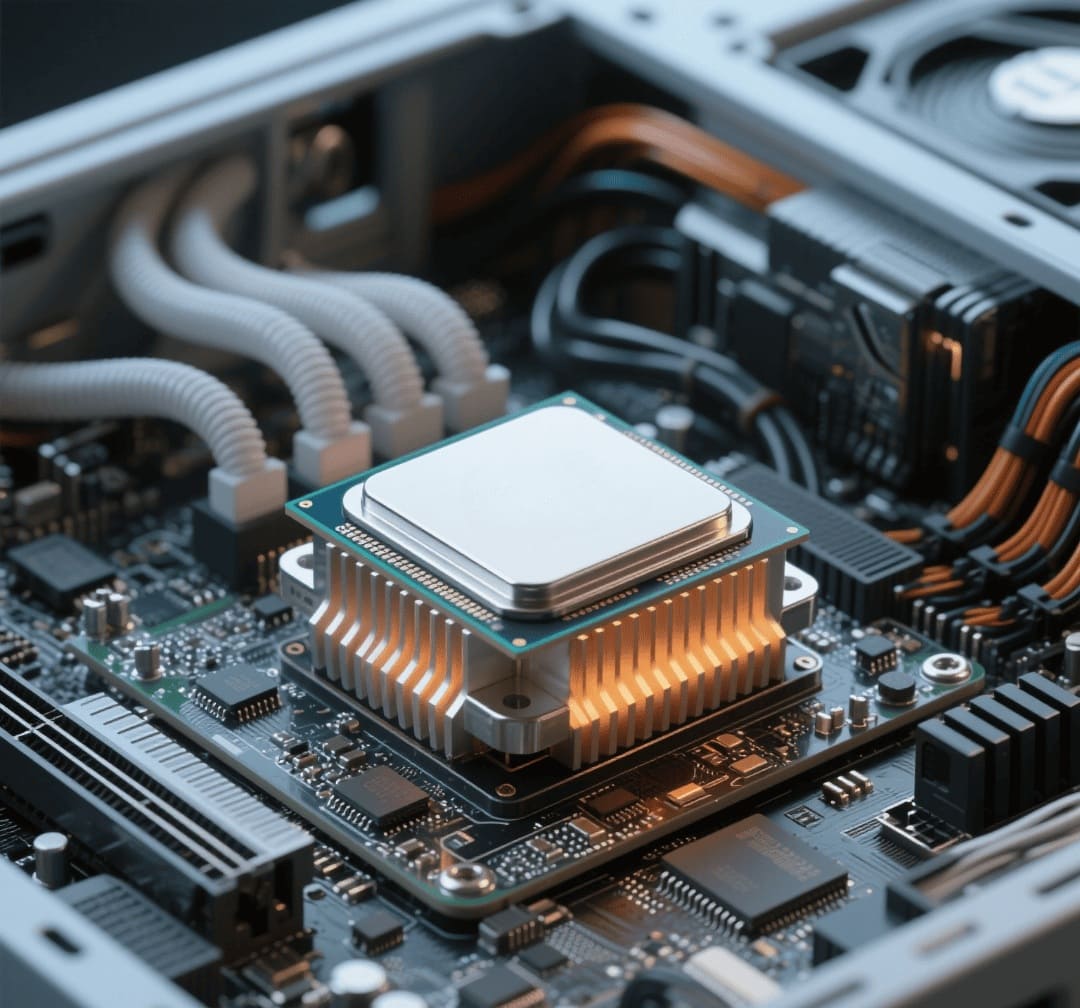

 Thermal Management With Aluminum Oxide Ceramics In Electronics

Why Are Aluminum Oxide Ceramics Suitable For Thermal Management?

Aluminum oxide ceramics feature a stable α-Al₂O₃ crystal structure, offering a unique combination of thermal and electrical properties. They exhibit moderate thermal conductivity that helps dissipate heat while providing outstanding electrical insulation, making them ideal substrates and packaging materials in electronic components.

Property

Typical Value

Purity (%)

95–99.9%

Thermal Conductivity

20–35 W/m·K

Electrical Resistivity

≥10¹⁴ Ω·cm

Dielectric Strength

>13 kV/mm

Melting Point

~2050°C

Hardness (Vickers HV)

>1200

 The ceramic's high melting point and hardness also contribute to excellent mechanical and thermal stability under demanding operating conditions.

Explore our high-quality alumina ceramics.

How Do Aluminum Oxide Mechanical Properties Complement Thermal Performance?

Besides thermal conductivity, alumina ceramics offer excellent hardness and strength, which help withstand mechanical stress and thermal cycling.

Material

Unit

95%
Al2O3

96%
Al2O3

99%
Al2O3

99.5%
Al2O3

99.7%
Al2O3

99.95%
Al2O3

Density

g/cm3

3.7

3.7

3.85

3.9

3.95

3.98

Bending Strength (20℃)

Mpa

300

300

330

360

380

500-600

Compressive Strength (20℃)

Mpa

2000

2000

2000

2350

2000

3500

Young’s Modulus (20℃)

Gpa

270

275

370

370

380

400

Fracture Toughness (20℃)

MPam½

3.5

3.5

4

4

4

4.5

Poisson’s Ratio(20℃)

0.2

0.22

0.22

0.23

0.23

Mohs Hardness(20℃)

HRA

8.0-8.5

8.0-8.5

8.5-9.0

9.0

9.0-9.5

9.0-9.5

Vickers Hardness (HV1)

kg/mm2

1600

1600

1600

1650

1750

1800

These properties ensure long-term reliability even in harsh environments.

How Do The Thermal Properties Of Aluminum Oxide Help Electronics Cooling?

Alumina ceramics efficiently transfer heat away from sensitive components like CPUs, LEDs, and power transistors. Their thermal conductivity (20–35 W/m·K) is sufficient to reduce hotspots and maintain operational temperatures within safe limits, all while providing electrical insulation to prevent short circuits.

Material

Unit

95%
Al2O3

96%
Al2O3

99%
Al2O3

99.5%
Al2O3

99.7%
Al2O3

99.95%
Al2O3

Thermal Expansion Coefficient (25-300 ℃)

10-6K-1

6.5

6.5

7.6

7.2

7.2

7.5

Thermal Conductivity (20℃)

W/mk

20

25

27.5

32

32

45

Thermal Shock Resistance

△T·℃

200

200

200

250

400

Specific Heat Capacity

J/g·k

0.79

0.78

0.79

0.80

Max Operating Temperature (Oxygen Condition)

1600

1600

1650

1650

1700

1750

This balance of thermal conduction and electrical insulation makes alumina ceramics a key material for heat sinks, substrates, and packaging in electronics, where thermal management is vital.

Why Is Effective Heat Management Critical In Electronics?

Proper heat dissipation is essential to preserve device reliability and performance. Without it, components face thermal degradation, mechanical failure, and reduced efficiency.

Failure Mode

Cause

Effect

Thermal Degradation

High junction temperatures

Shortened device lifespan, color shifts in LEDs

Solder Joint Fatigue

Repeated thermal cycling

Mechanical failure and detachment

Hot Spot Formation

Uneven heat distribution

Localized overheating and damage

In cutting-edge fields such as 5G communications, automotive electronics, and high-power semiconductors, efficient thermal management is a design priority to ensure safety and longevity.

Where Are Aluminum Oxide Ceramics Used In Electronics?

Alumina ceramics appear in many parts of electronic systems beyond heat management, including substrates, insulators, and structural components.

Application Area

Role of Alumina Ceramic

LED Substrates

Heat dissipation and electrical insulation

Power Semiconductor Modules

Thermal conduction and mechanical support

RF/Microwave Components

Stability at high frequencies and temperatures

Multilayer Ceramic Boards

Electrical insulation with heat conduction

Electrical Feedthroughs

Insulation under high voltage conditions

These applications leverage alumina's unique properties to improve system performance and durability.

How Does Aluminum Oxide Compare To Other Ceramic Materials?

While alumina is widely used, other ceramics such as aluminum nitride (AlN) and beryllium oxide (BeO) offer higher thermal conductivities but with trade-offs.

Property

Alumina (Al₂O₃)

Aluminum Nitride (AlN)

Beryllium Oxide (BeO)

Thermal Conductivity

20–35 W/m·K

140–170 W/m·K

~250 W/m·K

Electrical Insulation

Excellent

Excellent

Excellent

Toxicity

Non-toxic

Non-toxic

Toxic

Cost

Moderate

High

Very High

Aluminum nitride provides superior heat conduction but at a higher cost, while beryllium oxide offers the best conductivity but poses toxicity and handling challenges. Alumina strikes a balance between performance, safety, and affordability.

What Grades Of Aluminum Oxide Are Suitable For Electronics?

Aluminum oxide ceramics come in various purity grades, each offering a balance between cost, mechanical strength, electrical insulation, and thermal performance. Understanding these grades helps in selecting the right alumina for your electronic application.

Higher purity alumina improves dielectric properties and mechanical strength, which are critical for advanced electronics. However, thermal conductivity generally stabilizes above 99% purity.

Alumina Purity

Chemical Composition

Typical Applications

Key Characteristics

95%

Al2O3 95%

General consumer electronics substrates

Cost-effective, basic insulation, moderate strength

96%

Al2O3 96%

Consumer electronics, low-to-mid power devices

Slightly improved mechanical strength and insulation

99%

Al2O3 99%

LED modules, power electronics

Better dielectric and mechanical properties

99.5%

Al2O3 99.5%

High-power LEDs, industrial electronics

High purity for improved performance and reliability

99.7%

Al2O3 99.7%

Aerospace, medical devices, precision electronics

Superior strength and insulation, used in critical applications

99.95%

Al2O3 99.95%

Advanced semiconductor substrates, high-frequency devices

Maximum dielectric strength and mechanical integrity

Key Points:

  • Alumina purity directly influences dielectric strength and mechanical hardness.
  • Thermal conductivity plateaus near 99%, so increasing purity beyond that mainly improves other physical properties.
  • Cost increases significantly with purity, so choosing the right grade depends on balancing performance needs with budget.

Request a custom quote for high-quality alumina ceramics.

How To Choose Aluminum Oxide Ceramics For Electronics?

Selecting the right aluminum oxide ceramic grade depends on your specific application requirements, balancing factors like thermal performance, mechanical strength, electrical insulation, and budget.

Consider these key points when choosing alumina ceramics:

  • Purity LevelHigher purity (99% and above) offers better dielectric properties and mechanical strength, suitable for demanding power electronics or aerospace applications. For general consumer electronics, 95% purity is usually sufficient and more cost-effective.
  • Thermal Conductivity NeedsIf your device generates moderate heat, standard alumina (20–35 W/m·K) performs well. For higher heat flux, you may consider complementary materials like aluminum nitride, but alumina remains a cost-efficient choice.
  • Mechanical Strength & DurabilityApplications exposed to mechanical stress or thermal cycling benefit from alumina’s high hardness and thermal shock resistance. Choose higher-grade alumina for enhanced reliability.
  • Electrical InsulationAlumina’s excellent electrical resistivity (>10¹⁴ Ω·cm) ensures safe isolation in sensitive circuits. Purity influences insulation, so select accordingly.
  • Cost vs. PerformanceBalancing budget with performance requirements is essential. Higher-purity alumina costs more but offers incremental benefits mostly in advanced or high-frequency electronics.

Application Type

Recommended Alumina Purity

Key Considerations

Consumer Electronics

95%

Cost-effective, basic insulation

Power Electronics & LEDs

99%

Improved strength & insulation

Aerospace, Medical, High-Frequency

99.7%+

Maximum reliability & precision

By carefully evaluating your device’s thermal, electrical, and mechanical needs, you can select the most suitable aluminum oxide ceramic to optimize performance and cost.

FAQ

Question

Answer

Why choose alumina over metal-core PCBs?

Alumina offers better electrical insulation with good thermal conduction.

Is alumina safe for consumer electronics?

Yes, it is chemically stable, non-toxic, and widely used.

Does higher purity alumina always mean better thermal performance?

Not necessarily; benefits plateau after 99% purity.

Can alumina be used in flexible electronics?

No, alumina is a rigid ceramic, not suited for flexible designs.

Which industries rely most on alumina ceramics?

Power electronics, LED lighting, medical devices, aerospace.

Conclusion

Aluminum oxide ceramics provide an excellent balance of thermal conductivity, electrical insulation, mechanical strength, and thermal stability, making them indispensable for modern electronics thermal management. Their applications range from LED substrates to power modules and RF components, enhancing device performance and reliability. Selecting the right grade and incorporating alumina ceramics effectively into electronic designs can dramatically improve heat dissipation and component longevity. Heeger Materials (HM) delivers high-quality aluminum oxide ceramic solutions with customizable specifications to meet advanced electronic manufacturing needs.
