Electrical resistivity is a fundamental property of materials that determines their ability to resist the flow of electric current, making it a critical factor in applications ranging from electronics to high-voltage insulation. Ceramics, renowned for their high resistivity, are widely utilized as insulators in industries where electrical isolation is crucial. Among these ceramics, alumina (Al₂O₃) stands out due to its exceptional combination of electrical, mechanical, and thermal properties. This blog post aims to explore how alumina’s electrical resistivity compares to other ceramics, such as zirconia, silicon carbide, boron nitride, and silicon nitride. By examining their properties, applications, and performance under various conditions, we will uncover why alumina is a preferred choice in many scenarios and how it stacks up against its ceramic counterparts.
The significance of electrical resistivity in ceramics lies in their ability to prevent unwanted electrical conduction, ensuring safety and efficiency in devices like circuit boards, spark plugs, and power transmission systems. Alumina, a versatile and cost-effective ceramic, is often the material of choice for such applications. However, other ceramics offer unique advantages that may make them more suitable in specific contexts. This article will delve into the science behind resistivity, provide detailed comparisons
At Heeger Materials Inc., we specialize in high-quality alumina ceramic products with various forms and specifications, ensuring optimal performance for industrial and scientific applications.
Understanding Electrical Resistivity in Ceramics
Electrical resistivity, measured in ohm-centimeters (Ω·cm), quantifies how strongly a material opposes the flow of electric current. In ceramics, high resistivity is desirable for applications requiring insulation, as it prevents leakage currents that could lead to system failures or energy loss. Ceramics are typically non-conductive due to their ionic or covalent bonding, which restricts the movement of free electrons. However, resistivity can vary significantly based on factors such as material composition, crystal structure, impurities, and temperature.
Classification of Ceramics Based on Resistivity
Ceramics can be broadly categorized into:
Type | Resistivity Range (Ω·m) | Examples | Applications |
Insulators | 10⁸ – 10¹⁷ | Al₂O₃, SiO₂, MgO | Electrical insulation, substrates |
Semiconductors | 10⁻⁵ – 10⁶ | SiC, ZnO, BaTiO₃ (doped) | Sensors, varistors, thermistors |
Conductors | 10⁻⁸ – 10⁻⁵ | LaNiO₃, RuO₂, some borides | Electrodes, conductive coatings |
Superconductors | Near 0 (below Tc) | YBa₂Cu₃O₇ (YBCO) | Magnets, power transmission |
Factors Affecting Resistivity in Ceramics
✅ Composition & Bonding
- Ionic/Covalent Bonds: Most ceramics have strong ionic/covalent bonds, leading to high resistivity (insulators).
- Doping: Adding impurities (e.g., Y₂O₃ in ZrO₂) introduces charge carriers, reducing resistivity.
- Non-stoichiometry: Oxygen vacancies (e.g., in TiO₂ or ZnO) increase conductivity.
✅ Microstructure
- Grain Boundaries: Act as barriers to electron/ion movement, increasing resistivity.
- Porosity: Air voids decrease effective conduction pathways, raising resistivity.
✅ Temperature Dependence
- Insulators: Resistivity decreases with temperature (thermally activated conduction).
- Semiconductors: Follow Arrhenius behavior:
ρ=ρ0exp(Ea/kT)
where Ea=activation energy, k=Boltzmann constant.
- Superconductors: Zero resistivity below critical temperature (Tc).
✅ Frequency (AC vs. DC)
- Dielectric ceramics (e.g., BaTiO₃) show frequency-dependent resistivity due to polarization effects.
Ceramics are widely used as insulators because their high resistivity ensures minimal current flow, making them ideal for applications in electronics, power systems, and high-temperature environments. Understanding these factors is crucial for comparing alumina’s performance to other ceramics.
Looking for high-quality alumina ceramic products? Explore Heeger Materials' selection.
Properties of Alumina (Al₂O₃)
Alumina, or aluminum oxide (Al₂O₃), is one of the most widely used ceramics due to its excellent electrical, thermal, and mechanical properties. Composed of aluminum and oxygen in a crystalline structure, alumina is renowned for its high electrical resistivity, typically around 10¹⁴ Ω·cm at room temperature. This makes it an exceptional insulator, ideal for applications requiring minimal electrical conduction. Alumina’s resistivity decreases with increasing temperature, but it remains highly insulating even at elevated temperatures (e.g., 10¹⁰ Ω·cm at 500°C).
✅ General Overview
- Chemical Formula: Al₂O₃
- Crystal Structure: Primarily α-Al₂O₃ (corundum, hexagonal) – most stable phase.
- Other Phases: γ-Al₂O₃ (cubic, metastable), θ-Al₂O₃ (transition phase).
- Density: ~3.95 g/cm³ (theoretical for pure α-Al₂O₃).
✅ Mechanical Properties
Property | Value / Description |
Hardness | 9 Mohs (~2000 HV, comparable to sapphire) |
Flexural Strength | 300–400 MPa (can reach 600+ MPa with high purity) |
Compressive Strength | 2–4 GPa |
Young’s Modulus | 300–400 GPa (very stiff) |
Fracture Toughness (KIC) | 3–4 MPa·m<sup>1/2</sup> (brittle, but can be improved with ZrO₂ toughening) |
Wear Resistance | Excellent (used in cutting tools, bearings) |
✅ Thermal Properties
Property | Value / Description |
Melting Point | ~2072°C (high-temperature stability) |
Thermal Conductivity | 20–30 W/m·K (depends on purity & porosity) |
Thermal Expansion | 8–9 × 10⁻⁶ /K (matches well with metals for sealing) |
Thermal Shock Resistance | Moderate (better than most ceramics but lower than SiC or ZrO₂) |
✅ Electrical & Dielectric Properties
Property | Value / Description |
Electrical Resistivity | >10¹⁴ Ω·cm (excellent insulator) |
Dielectric Strength | 10–35 kV/mm (high-voltage insulation) |
Dielectric Constant (εr) | ~9–10 (at 1 MHz) |
Loss Tangent (tan δ) | <0.0001 (low loss at RF/microwave frequencies) |
These properties make alumina a go-to material for components like insulators in electronic circuits, substrates for integrated circuits, and spark plug insulators. However, its resistivity can be influenced by impurities (e.g., alkali metals) or manufacturing processes, which may introduce slight conductivity.
Explore our optimized alumina ceramic products.
Comparison of Alumina Electrical Resistivity with Other Ceramics
To understand alumina’s position among ceramics, we compare its electrical resistivity with other commonly used ceramics: zirconia (ZrO₂), silicon carbide (SiC), boron nitride (BN), and silicon nitride (Si₃N₄). Each ceramic has unique properties that influence its resistivity and suitability for specific applications.
✅ Zirconia (ZrO₂): Zirconia has a resistivity similar to alumina, typically around 10¹³–10¹⁴ Ω·cm at room temperature. Its resistivity is highly dependent on its phase (e.g., cubic or tetragonal) and doping (e.g., yttria-stabilized zirconia). Zirconia is often used in oxygen sensors and fuel cells, where its ionic conductivity at high temperatures is beneficial, unlike alumina’s purely insulating behavior.
✅ Silicon Carbide (SiC): SiC is a semiconductor with significantly lower resistivity (10²–10⁶ Ω·cm), making it less insulating than alumina. Its resistivity varies with doping and temperature, and it is widely used in power electronics and high-temperature applications where controlled conductivity is needed.
✅ Boron Nitride (BN): BN, particularly in its hexagonal form, has a high resistivity (10¹⁴ Ω·cm), comparable to alumina. Its unique combination of high resistivity and thermal conductivity makes it ideal for thermal management in electronics, though it is less mechanically robust than alumina.
✅ Silicon Nitride (Si₃N₄): Si₃N₄ has a resistivity of 10¹²–10¹⁴ Ω·cm, slightly lower than alumina in some cases. It excels in high-temperature applications like turbine blades due to its thermal shock resistance, but its resistivity is more sensitive to impurities.
Material | Resistivity Range (Ω·m) | Temperature Dependence | Conduction Mechanism | Key Influencing Factors | Key Applications |
Al₂O₃ | 10¹⁴ – 10¹⁶ | Slight increase at high temp | Electronic insulator | Purity (99.5% > 96%), porosity | Insulators, substrates, and spark plugs |
10⁶ – 10¹² | Sharp decrease at high temp (ionic conduction) | Oxygen vacancy ionic conduction | Y₂O₃ doping level, oxygen vacancy concentration | Oxygen sensors, fuel cells | |
10⁻¹ – 10⁶ | Decreases with temperature (semiconductor behavior) | Electron/hole conduction | Doping (Al/N), polytype (4H/6H) | Power electronics, heating elements | |
10¹⁰ – 10¹⁴ | Weak temperature dependence | Grain boundary barrier dominated | Sintering aids (Y₂O₃/Al₂O₃) | Turbine blades, high-temp insulators | |
10¹³ – 10¹⁶ | Stable at high temperatures | Wide bandgap insulator | Crystallinity, impurities (B₂O₃) | Thermal management, insulators |
Request a custom quote for high-quality alumina ceramic products.
Applications and Implications

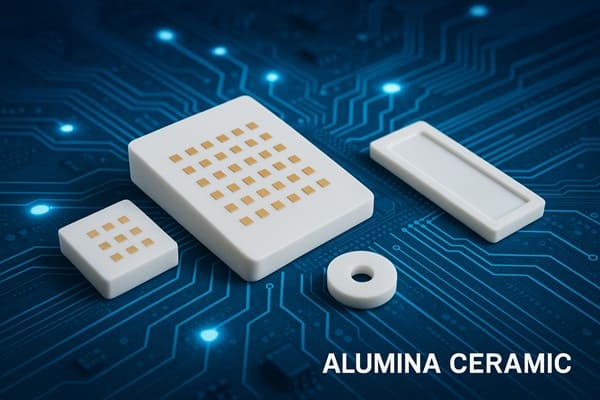

Alumina’s high electrical resistivity makes it a cornerstone material in applications requiring robust insulation. In electronics, alumina is used as a substrate for integrated circuits, where its high resistivity prevents unwanted current flow between components. In automotive applications, alumina’s resistivity and thermal stability make it ideal for spark plug insulators, ensuring reliable ignition in internal combustion engines. Additionally, alumina is used in high-voltage insulators for power transmission systems, where its dielectric strength prevents electrical breakdown.
Below are some of the key applications of alumina in electrical systems:
- Electrical Insulators: Alumina is commonly used as an electrical insulator in devices such as capacitors, resistors, and circuit substrates.
- High-Temperature Applications: Its high melting point (2072°C) allows alumina to withstand extreme temperatures, making it ideal for furnace linings and electrical components exposed to high heat.
- Semiconductors: In the semiconductor industry, alumina is used for its insulating properties in devices such as transistors and diodes.
- Substrates in Electronics: Alumina is also used as a substrate for integrated circuits and microelectronics due to its electrical insulating capabilities and thermal conductivity.
Other ceramics have specialized applications based on their resistivity profiles:
- Zirconia: Used in oxygen sensors and fuel cells, where its ionic conductivity at high temperatures is leveraged, unlike alumina’s purely insulating role.
- Silicon Carbide: Employed in power electronics, such as MOSFETs and diodes, where its lower resistivity and semiconducting properties are advantageous.
- Boron Nitride: Utilized in thermal management for electronics, combining high resistivity with excellent thermal conductivity.
- Silicon Nitride: Applied in high-temperature environments, such as turbine blades, where its resistivity and mechanical strength are critical.
Trade-offs depend on the application. Alumina’s high resistivity and cost-effectiveness make it ideal for general insulation, but SiC is preferred in power electronics due to its conductivity. BN’s thermal conductivity makes it better for heat dissipation, while Si₃N₄’s thermal shock resistance suits extreme environments. We must balance resistivity, cost, and other properties when selecting a ceramic.
At Heeger Materials Inc., we supply optimized-grade ceramic products that comply with ASTM and ISO standards, ensuring outstanding quality and reliability.
FAQ
Question | Answer |
What is the electrical resistivity of alumina? | Alumina (Al₂O₃) typically has an electrical resistivity ranging from 10¹³ to 10¹⁴ ohm·m, making it an excellent insulator. |
How does alumina compare to zirconia in terms of electrical resistivity? | Zirconia has a lower resistivity (around 10⁴ to 10⁵ ohm·m) than alumina, but alumina is preferred for high-resistivity applications. |
Why is alumina used in high-temperature applications? | Alumina has a high melting point (around 2072°C) and excellent electrical insulation properties, making it ideal for high-temperature environments. |
Which ceramics have higher electrical resistivity than alumina? | Boron nitride (BN) and some specialized ceramics can have slightly higher resistivity than alumina, typically in the range of 10¹² to 10¹⁴ ohm·m. |
What are the primary applications of alumina in electronics? | Alumina is commonly used as an electrical insulator in capacitors, resistors, substrates, and high-temperature components. |
Can alumina be used in semiconductor devices? | Yes, alumina’s electrical insulating properties make it suitable for use in semiconductor components like transistors and diodes. |
Alumina’s electrical resistivity of approximately 10¹⁴ Ω·cm at room temperature positions it as one of the most effective insulating ceramics, making it a versatile choice for applications requiring high electrical isolation. Compared to zirconia, boron nitride, and silicon nitride, alumina offers comparable or superior resistivity, while silicon carbide stands out for its semiconducting properties. Each ceramic’s unique combination of resistivity, thermal, and mechanical properties dictates its suitability for specific applications. Alumina’s widespread use in electronics, automotive, and power systems underscores its reliability and cost-effectiveness.
Advancements in ceramic processing, such as improved sintering techniques or controlled doping, may further enhance resistivity and performance. Researchers continue to explore hybrid ceramics and composites to meet the demands of next-generation technologies, such as high-power electronics and renewable energy systems. By understanding the strengths and limitations of alumina and its peers, we can make informed decisions to optimize material selection for their projects.
