Electron emitters are crucial components in various scientific and industrial applications, ranging from electron microscopes to vacuum tubes and plasma generation systems. These devices rely on materials capable of releasing electrons efficiently and reliably under specific conditions, such as high temperatures or electric fields. Lanthanum hexaboride (LaB6) has emerged as a premier material for thermionic electron emitters due to its unique combination of low work function, high thermal stability, and robust performance in vacuum environments. This article explores the properties that make LaB6 an ideal choice for electron emitters, delving into its physical characteristics, emission mechanisms, and practical advantages.

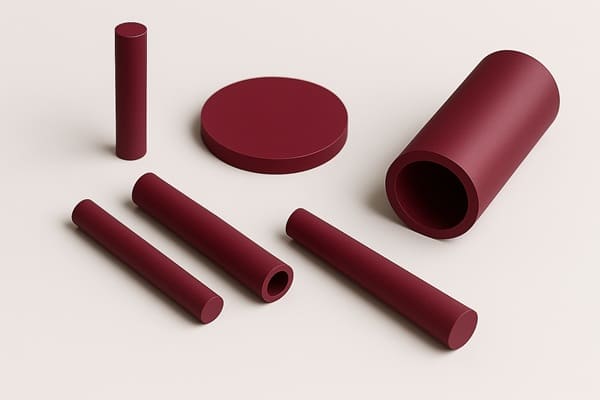

At Heeger Materials Inc., we specialize in high-quality lanthanum hexaboride (LaB6) ceramic products with various forms and specifications, ensuring optimal performance for industrial and scientific applications.
Basic Properties of Lanthanum Hexaboride (LaB6)
LaB6 is a binary compound made of lanthanum (La) and boron (B) atoms in a 1:6 ratio. It forms a crystalline structure known as a "hexagonal close-packed" arrangement, which contributes to its high stability at elevated temperatures. The arrangement of atoms allows for efficient electron movement, which is critical for its role as an electron emitter.
Crystal Structure and Composition:
1. Basic Crystallographic Data
- Chemical Formula: LaB₆
- Crystal System: Cubic
- Space Group: Pm-3m (No. 221)
- Lattice Parameter: a = 4.156 Å (at 25°C)
- Z (Formula Units per Unit Cell): 1
- Density (X-ray): 4.72 g/cm³
2. Atomic Structure
LaB₆ features a CsCl-type arrangement with:
- La atoms at cube corners (position: 0,0,0)
- B₆ octahedra at body center (position: ½,½,½)
Atom | Coordination | Geometry | Bond Length |
La | 24 (to B) | Cuboctahedral | La-B: 2.88 Å |
B | 6 (to B) + 4 (to La) | Octahedral + Tetrahedral | B-B: 1.73 Å |
3. Electronic Structure Features
Band Structure:
- Conduction band: Primarily La 5d states
- Valence band: B 2p states
- Small band overlap → metallic conductivity
Charge Transfer:
- Formal description: La³⁺(B₆)²⁻
- Actual charge: ~0.5e transferred from La to B₆
4. Comparison to Other Rare Earth Hexaborides
Property | LaB₆ | CeB₆ | SmB₆ |
Lattice Param. (Å) | 4.156 | 4.140 | 4.133 |
B-B Distance (Å) | 1.73 | 1.72 | 1.71 |
Electrical Resistivity (μΩ·cm) | 15 | 50 | 10⁵ |
Looking for high-quality lanthanum hexaboride (LaB6) ceramic products? Explore Heeger Materials' selection.
Electrical Conductivity and Thermionic Emission Capability:
LaB6 is a conductor, and its electrical conductivity increases with temperature, which is a desirable trait in thermionic emission applications. Thermionic emission refers to the process where electrons are ejected from a material's surface due to thermal energy. LaB6 has a relatively low work function, which means it requires less energy to release electrons compared to other materials.
1. Electrical Conductivity Fundamentals
Property | Value | Comparison |
Resistivity (RT) | 15 μΩ·cm | Lower than TiB₂ (28 μΩ·cm) |
Resistivity @ 1500°C | 50 μΩ·cm | More stable than W |
Carrier Density | ~10²¹ cm⁻³ | Metal-like |
Mobility (e⁻) | ~100 cm²/V·s | Higher than graphite |
2. Thermionic Emission Performance
Parameter | LaB₆ | CeB₆ | |
Work Function (ϕ) | 2.4-2.8 eV | 4.5 eV | 2.2-2.6 eV |
Richardson Constant (A*) | 29 A/cm²K² | 60-100 | 30 |
Saturation Current @ 1700°C | 50 A/cm² | 1.5 A/cm² | 70 A/cm² |
Energy Spread (ΔE) | 0.5-1.0 eV | 2-3 eV | 0.7-1.2 eV |
High Thermal Stability and Durability:
One of the most appealing aspects of LaB6 is its high resistance to thermal degradation. It can withstand high operating temperatures without losing its structural integrity, making it ideal for high-temperature environments. This thermal stability ensures that LaB6 maintains consistent performance over long periods, even in harsh conditions.
1. Extreme Temperature Resilience
Property | Value | Significance |
Melting Point | 2,530°C | Higher than most metals (W: 3,422°C but LaB₆ outperforms in electron emission. |
Service Limit (Vacuum) | 2,200°C | 400°C higher than SiC |
Thermal Shock Resistance | ΔT >800°C | Survives rapid quenching from 1,500°C→RT |
Key Advantage: Maintains structural integrity under repeated thermal cycling (1,000+ cycles @ 1,200°C⇄RT).
2. Oxidation Resistance
Temperature | Behavior | Protection Method |
<800°C | A passive La₂O₃ layer forms | Natural protection |
800-1000°C | Linear oxidation (1-3 mg/cm²/hr) | SiC coatings |
>1000°C | Catastrophic B₂O₃ evaporation | Operate in vacuum/Ar |
3. Thermomechanical Stability
Property | Value | Implication |
CTE (25-1500°C) | 6.4×10⁻⁶/K | Matches tungsten (5.5) - minimizes interfacial stress |
Creep Rate @ 1500°C | 10⁻⁹ s⁻¹ (50 MPa) | 100× better than Ni superalloys |
Hardness @ 1500°C | 15 GPa | Retains 60% of RT hardness |
4. Comparison to Other Advanced Ceramics
Property | LaB₆ | ||||
Max Service Temp (Air) | 1000°C | 1600°C | 900°C | 1400°C | 1500°C |
Max Service Temp (Inert/Vacuum) | 2200°C | 2200°C | 3000°C (sublimes) | 2000°C | 2000°C |
Thermal Conductivity (W/m·K) | 15 | 120-490 | 15-600* | 180 | 2-3 |
CTE (×10⁻⁶/K) | 6.4 | 4.0-4.5 | 0.6-40** | 4.5 | 10-11 |
Electrical Resistivity (Ω·cm) | 15×10⁻⁶ | 10⁵-10¹² | 10¹³-10¹⁸ | >10¹⁴ | >10¹⁰ |
Work Function (eV) | 2.4-2.8 | N/A | N/A | N/A | N/A |
Primary Thermal Stability Limitation | B evaporation >1800°C | SiO₂ scale protects | Sublimation | Decomposition | Phase transition |
Explore our optimized lanthanum hexaboride (LaB6) ceramic products.
Electron Emission Mechanism of LaB6
The mechanism of thermionic emission is key to understanding how LaB6 works as an electron emitter.
- ✅Thermionic Emission Process: When a material is heated to a high temperature, its electrons gain enough energy to overcome the work function (the minimum energy required to free an electron from the material). In the case of LaB6, this process is more efficient because of its relatively low work function and high thermal stability.
- ✅Role of LaB6: LaB6 excels at maintaining a high electron emission current because it has a low work function and an effective electron density near the surface. Its stable crystalline structure also ensures that electrons are ejected consistently, even under high temperatures, ensuring reliable performance in applications like electron guns and cathodes.
1. Physics of Thermionic Emission
Thermionic emission is the process by which electrons gain sufficient thermal energy to overcome a material’s work function and escape from its surface. In LaB6, this process is highly efficient due to its low work function of 2.5–2.7 eV, which allows electron emission at relatively low temperatures (1400–1800°C) compared to tungsten (2000–2500°C). This lower temperature requirement reduces energy consumption and minimizes wear on the emitter, making LaB6 a cost-effective and durable choice.
The physics of thermionic emission in LaB6 is governed by the Richardson-Dushman equation, which relates emission current density to temperature and work function. LaB6’s ability to achieve high emission at moderate temperatures is due to its favorable electronic structure, where lanthanum atoms provide a high density of free electrons. This efficiency is critical for applications requiring stable and intense electron beams, such as in electron microscopes or vacuum tubes.
Key Factors in Emission:
- Low work function reduces the energy barrier for electron escape.
- High electron density from lanthanum’s valence electrons.
- Optimal temperature range for efficient emission.
2. Emission Efficiency
LaB6 achieves high emission efficiency, with current densities reaching 20–50 A/cm² at operating temperatures of 1400–1800°C. This high current density is a direct result of its low work function and optimized surface properties, which allow a large number of electrons to be emitted per unit area. The efficiency is further enhanced by controlling surface conditions, such as polishing to reduce roughness or maintaining a clean emission surface to prevent contamination.
Factors like crystal orientation and surface defects also influence emission efficiency. For instance, single-crystal LaB6 emitters with specific orientations (e.g., <100>) exhibit higher emission due to lower surface energy barriers. Proper maintenance of the emitter surface, such as operating in high-vacuum conditions, ensures consistent performance over thousands of hours, making LaB6 ideal for demanding applications.
Emission Efficiency Factors:
- High current density (20–50 A/cm²) at moderate temperatures.
- Surface polishing to enhance emission uniformity.
- Crystal orientation optimization for improved performance.
3. Comparison with Other Emitters
When compared to other electron emitter materials, LaB6 offers a superior balance of performance metrics. Its current density (20–50 A/cm²) is significantly higher than tungsten (5–20 A/cm²) and comparable to CeB6 (30–60 A/cm²), but LaB6’s longer lifespan and greater resistance to poisoning make it more reliable in vacuum systems. While CeB6 may provide slightly higher emissions, it is more susceptible to surface contamination, reducing its practical lifespan.
Tungsten, a traditional emitter material, requires higher operating temperatures, leading to increased evaporation and shorter lifespans (500–1000 hours). In contrast, LaB6 can operate for 1000–2000 hours under similar conditions. Compared to field emission sources, which require ultra-high vacuum and complex setups, LaB6’s thermionic emission is simpler and more robust, making it a versatile choice for various applications.
Material | Current Density (A/cm²) | Operating Temp (°C) | Lifespan (Hours) | Resistance to Poisoning |
LaB6 | 20–50 | 1400–1800 | 1000–2000 | High |
CeB6 | 30–60 | 1400–1700 | 800–1500 | Moderate |
Tungsten | 5–20 | 2000–2500 | 500–1000 | Low |
Field Emitters | 10–100 | Ambient | Variable | Very Low |
Discover our high-quality lanthanum hexaboride (LaB6) ceramic products.
Advantages of LaB6 Electron Emitters
Lanthanum hexaboride (LaB₆) stands as the premier thermionic emitter, combining low work function, exceptional brightness, and unrivaled durability for high-performance electron sources. Its ability to deliver stable, high-current beams at significantly lower temperatures than conventional materials makes it indispensable in electron microscopy, space technology, and precision lithography. This section explores the key advantages that solidify LaB₆’s dominance in electron emission applications.
- High Work Function and Low Electron Affinity: LaB6 has a work function around 2.7 to 3.2 eV, which is lower than many other materials, making it easier for electrons to be emitted. Its low electron affinity also means that it doesn't attract electrons back to its surface, allowing for more efficient emission.
- Superior Emission Current Density and Stability: LaB6 is known for its ability to maintain a high emission current density over long periods without significant degradation. This makes it ideal for use in high-performance electron emitters.
- Resistance to Oxidation and Degradation: Unlike many other materials, LaB6 is resistant to oxidation, which can often compromise electron emission efficiency. This property is particularly important in vacuum environments or high-temperature settings where other materials might degrade.
Applications of LaB6 as an Electron Emitter
Lanthanum hexaboride (LaB₆) has become the gold standard for high-performance electron emission due to its unique combination of low work function (2.4–2.8 eV), high thermal stability, and long operational lifetime. Below are its key applications across industries:
1. Electron Microscopy
✅Scanning Electron Microscopes (SEMs)
- Provides brighter and more coherent electron beams than tungsten filaments
- Enables sub-nanometer resolution for advanced materials research
✅Transmission Electron Microscopes (TEMs)
- Higher beam stability → sharper imaging with reduced noise
- Longer lifespan (1,500+ hours) minimizes maintenance downtime
2. Electron Beam Lithography (EBL)
✅Semiconductor Manufacturing
- Supports <10 nm patterning for next-gen chips (5 nm and below)
- Lower energy spread (0.5–1.0 eV) improves line-edge precision
✅Nanoimprint & Photomask Fabrication
- Stable current density ensures uniform exposure
3. X-Ray Generation
✅Medical & Industrial X-Ray Tubes
- Higher electron flux → shorter exposure times (better imaging with lower patient dose)
- Long lifespan reduces replacement costs in CT scanners and NDT systems
4. Plasma & Space Technology
✅Ion Thrusters (Electric Propulsion)
- Withstands high-voltage arcs and ion bombardment
- Used in satellites (e.g., NASA’s Deep Space missions)
✅Fusion Research (Tokamaks)
- Robust performance in magnetic confinement plasmas
5. High-Power Electronics
✅Traveling-Wave Tubes (TWTs)
- Efficient microwave amplification for radar & communications
✅Free-Electron Lasers (FELs)
- Delivers high-brightness beams for synchrotron light sources
Request a custom quote for high-quality lanthanum hexaboride (LaB6) ceramic products.
Challenges and Limitations
Despite its advantages, LaB6 faces several challenges that limit its widespread adoption as an electron emitter. The synthesis of high-purity LaB6, particularly single-crystal forms, is complex and costly, requiring precise control of temperature and composition during fabrication. Impurities or defects in the crystal structure can reduce emission efficiency, necessitating advanced processing techniques like zone refining or chemical vapor deposition.
LaB6 is also sensitive to surface contamination in non-vacuum environments, where exposure to oxygen or other reactive gases can form insulating layers, reducing emission performance. While it performs well in high-vacuum systems, maintaining such conditions can increase operational costs. Finally, the high cost of raw materials and fabrication limits LaB6’s scalability for large-scale industrial applications, posing a barrier to broader adoption.
- Complex and costly synthesis of high-purity single crystals.
- Sensitivity to surface contamination in non-vacuum environments.
- High material and processing costs limit scalability.
At Heeger Materials Inc., we supply optimized-grade ceramic products that comply with ASTM and ISO standards, ensuring outstanding quality and reliability.
FAQ
Question | Answer |
What is LaB6, and why is it used for electron emitters? | LaB6 (Lanthanum Hexaboride) is a refractory material with a low work function, making it ideal for electron emission in high-tech devices. |
What are the advantages of LaB6 as an electron emitter? | LaB6 offers high thermal stability, low work function, and resistance to oxidation, which enhances its efficiency and durability in electron emitters. |
How does LaB6 work as an electron emitter? | LaB6 emits electrons through thermionic emission, where heat causes electrons to overcome the work function and be released from the material. |
What applications use LaB6 as an electron emitter? | LaB6 is widely used in electron guns, electron microscopes, thermionic energy converters, and vacuum tubes due to its efficient electron emission. |
What is the work function of LaB6? | LaB6 has a low work function of around 2.7 to 3.2 eV, making it easier to release electrons compared to other materials. |
What challenges does LaB6 face as an electron emitter? | LaB6 can experience surface degradation and requires high purity for optimal performance in electron emission applications. |
Conclusion
LaB6’s suitability as an electron emitter stems from its low work function, high thermal and chemical stability, and excellent electrical conductivity, which enable efficient and reliable electron emission. Its ability to produce bright, stable electron beams at moderate temperatures makes it a preferred material for high-precision applications like electron microscopy and vacuum tubes. The material’s resistance to poisoning and long lifespan further enhance its value in demanding environments.
While challenges like high synthesis costs and sensitivity to contamination remain, ongoing research into advanced fabrication and material optimization promises to expand LaB6’s applications. As new technologies like fusion energy and advanced power systems emerge, LaB6 is poised to remain a cornerstone material for electron emitters, driving innovation in scientific and industrial fields.
