How ceramic CNC machining precision directly impacts product quality?

Ceramic CNC (Computer Numerical Control) machining is a cornerstone of modern manufacturing, enabling the production of high-performance components used in various industries, including aerospace and medical devices. Unlike traditional materials like metals or plastics, ceramics offer unique properties such as exceptional hardness, thermal resistance, and electrical insulation. However, these same properties make ceramics challenging to machine with precision. Precision in CNC machining refers to the ability to achieve tight tolerances, smooth surface finishes, and exact dimensional accuracy, all of which are critical for ensuring that ceramic components meet stringent quality standards.

The importance of precision cannot be overstated, as it directly influences the performance, reliability, and longevity of the final product. For example, in applications like semiconductor manufacturing or biomedical implants, even a micrometer-level deviation can lead to catastrophic failures or compromised functionality. This article explores how precision in ceramic CNC machining serves as a linchpin for product quality, ensuring that components meet both functional and aesthetic requirements. By examining the technical aspects, real-world impacts, and strategies for achieving precision, we aim to highlight why manufacturers must prioritize this critical factor in today’s competitive markets.

At Heeger Materials Inc., we specialize in high-quality ceramic products made from a variety of materials and specifications, ensuring optimal performance for industrial and scientific applications.

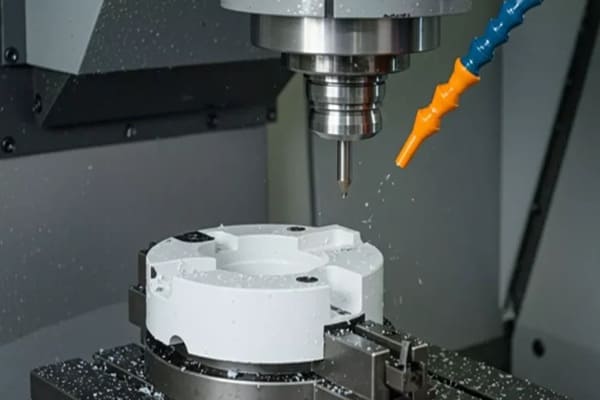

Overview of Ceramic CNC Machining

Ceramic CNC machining involves the use of computer-controlled tools to shape and finish ceramic materials into precise components. Ceramics, such as alumina, zirconia, and silicon nitride, are prized for their exceptional properties, which include:

• High Hardness: Ceramics are among the hardest materials, often surpassing metals, making them ideal for wear-resistant applications.
• Thermal Stability: They maintain structural integrity at extreme temperatures, crucial for aerospace and industrial applications.
• Electrical Insulation: Ceramics are widely used in electronics for their non-conductive properties.
• Chemical Inertness: Their resistance to corrosion makes them suitable for harsh environments.

However, these properties pose significant challenges for machining. Ceramics are brittle, prone to cracking under stress, and require specialized tools like diamond-tipped cutters to achieve desired shapes. Unlike metals, which are more forgiving to machining errors, ceramics demand extreme precision to avoid defects like micro-cracks or surface irregularities. CNC machining addresses these challenges by offering automated, repeatable, and highly controlled processes, but achieving precision remains a complex task that requires advanced equipment and expertise.

Comparison of Ceramic and Metal Machining Challenges

Looking for high-quality ceramic products? Explore Heeger Materials' selection.

The Role of Precision in Ceramic CNC Machining

Precision is a critical factor in Ceramic CNC Machining, influencing part quality, performance, and application suitability. Advanced ceramics (e.g., alumina, zirconia, silicon carbide) are widely used in industries like aerospace, medical, electronics, and automotive due to their hardness, thermal stability, and corrosion resistance. However, their brittleness and high wear resistance make machining challenging, necessitating ultra-precise CNC processes.

Key Aspects of Precision in Ceramic CNC Machining

1. Dimensional Accuracy & Tight Tolerances

• Ceramic components often require micron-level tolerances (as tight as ±0.001 mm) for applications like medical implants or semiconductor parts.
• CNC machining ensures repeatability, critical for high-volume production of identical parts.

2. Surface Finish Quality

• Precision machining minimizes micro-cracks, chipping, and surface roughness, which can compromise structural integrity.
• Fine finishing (e.g., diamond grinding, polishing) achieves Ra < 0.1 µm for applications like optical or sealing components.

3. Complex Geometries

• CNC allows intricate shapes (thin walls, sharp edges, deep holes) that are difficult with traditional methods.
• 5-axis CNC machining enables multi-angle precision cuts without repositioning.

4. Minimizing Material Waste

• Precision toolpaths optimize material usage, crucial for expensive advanced ceramics.
• Reduced scrap lowers production costs and improves sustainability.

Explore our optimized ceramic products.

Direct Impacts of Precision on Product Quality

Precision in ceramic CNC machining has a profound impact on several aspects of product quality, which can be broken down into the following categories:

• Consistency and Reliability: Precision ensures that every component in a batch meets the same specifications, which is critical for mass production. For example, in semiconductor manufacturing, ceramic substrates must have uniform dimensions to ensure consistent electrical performance across thousands of units.
• Performance: High precision enhances the mechanical, thermal, and electrical properties of ceramic components. For instance, in aerospace, precisely machined ceramic coatings on turbine blades improve thermal resistance, enabling engines to operate at higher temperatures and efficiencies.
• Durability: Precision minimizes defects such as micro-cracks or surface irregularities, which can weaken ceramics and lead to premature failure. A well-machined ceramic component can withstand extreme conditions, extending the lifespan of the product.
• Aesthetics: For consumer products like ceramic watch bezels or dental implants, precision machining ensures a flawless surface finish, enhancing visual appeal and user satisfaction.

Discover our high-quality ceramic products.

Consequences of Poor Precision

Lack of precision in ceramic CNC machining can lead to severe consequences, impacting both product performance and manufacturing costs. Dimensional inaccuracies, for instance, can result in poor fit during assembly, leading to operational inefficiencies or complete system failures. In industries like aerospace, where ceramic components are subjected to extreme conditions, even a small deviation can cause catastrophic outcomes, such as engine failure due to misaligned turbine blades.

Machining-induced defects, such as micro-cracks or surface roughness, are another critical issue. These defects can act as stress concentrators, significantly reducing the strength and durability of ceramic components. For example, a poorly machined ceramic implant in the medical field could develop cracks under stress, leading to implant failure and patient harm. Additionally, poor precision often results in higher production costs due to:

• Rework: Components that fail to meet specifications require additional machining, increasing labor and material costs.
• Scrap: Defective parts that cannot be salvaged contribute to material waste.
• Product Recalls: In severe cases, faulty components can lead to costly recalls and damage to brand reputation.

Strategies to Enhance Precision in Ceramic CNC Machining

Ceramics demand ultra-precise machining due to their brittleness, hardness, and stringent application requirements. Below are proven technical strategies to achieve sub-micron accuracy and zero-defect production in ceramic CNC machining.

1. Machine Tool & Setup Optimization

A. High-Rigidity CNC Machines

• Use linear motor-driven machines (e.g., Kern Micro HD) for nanometer-level repeatability.
• Granite-based machine beds reduce thermal drift (critical for <1µm tolerances).
• Hydrostatic guideways eliminate stick-slip errors in slow-speed finishing.

B. Advanced Workholding

• Vacuum chucks for thin ceramics (prevent distortion from clamping forces).
• Cryogenic fixturing minimizes thermal expansion during machining.

C. Laser-Assisted Tool Alignment

• On-machine laser tool setters ensure ±0.1µm tool positioning accuracy.

2. Cutting Tools & Parameters

A. Diamond Tooling (Non-Negotiable for Precision)

• PCD (Polycrystalline Diamond) end mills for <5µm chip loads.
• Single-crystal diamond tools for optical-quality finishes (Ra < 0.02µm).

B. Ductile-Mode Machining (Avoids Brittle Fracture)

Critical Parameters:

• Depth of Cut (DoC): <1µm for ZrO₂, <0.5µm for SiC
• Feed Rate: 0.5–5 mm/min (prevents crack propagation)
• Spindle Speed: 30,000–60,000 RPM (reduces lateral forces)

C. Ultrasonic-Assisted Machining (USM)

• Reduces cutting forces by 60%, enabling higher precision in deep cavities.
• Best for: Alumina, glass ceramics.

3. In-Process Monitoring & Adaptive Control

A. Real-Time Force & Vibration Sensors

• Detect micro-chipping before it ruins the part.
• AI-driven adaptive control adjusts feeds/speeds dynamically.

B. Vision-Based Tool Wear Monitoring

• Microscopic camera systems track diamond tool degradation (critical for <0.5µm accuracy).

C. On-Machine Metrology

• Touch probes & laser scanners verify dimensions without unclamping.
• Closed-loop feedback corrects tool paths in real time.

4. Post-Machining Treatments

A. Laser Micro-Polishing

• Removes 0.1–0.5µm of material to eliminate subsurface damage.
• Achieves Ra < 0.01µm on curved surfaces.

B. Hot Isostatic Pressing (HIP)

• Heals micro-cracks in Si₃N₄, ZrO₂ (extends fatigue life 3–5×).

C. Atomic Layer Deposition (ALD) Coating

• Nanoscale conformal coatings (e.g., Al₂O₃) seal surface pores.

Request a custom quote for high-quality ceramic products.

Future Trends and Improvements of Ceramic CNC Machining

The future of ceramic CNC machining lies in the continued development of advanced machines, materials, and techniques. Technologies such as AI-driven optimization, additive manufacturing for ceramics, and more precise cutting tools will further push the boundaries of precision. As these innovations continue to emerge, we can expect even higher quality standards in the ceramic manufacturing industry, ensuring that products meet the increasingly stringent requirements of modern applications.

1. AI & Machine Learning-Driven Machining

A. Self-Optimizing CNC Systems

• AI algorithms analyze cutting forces, tool wear, and surface finish in real time, auto-adjusting feeds/speeds for optimal precision.
• Predictive maintenance reduces downtime by forecasting tool failure before it happens.

B. Generative Design for Ceramics

• AI-assisted CAD creates lightweight, high-strength geometries impossible with traditional methods.
• Topology-optimized ceramic parts reduce material waste by 30–50%.

2. Hybrid & Non-Conventional Machining

A. Laser-Assisted CNC Turning/Grinding

• Localized laser heating softens ceramics (e.g., ZrO₂, Al₂O₃) for ductile-mode machining at <10nm surface roughness.
• Femtosecond lasers enable crack-free micro-drilling (e.g., fuel injector nozzles).

B. Electrochemical Machining (ECM) for Conductive Ceramics

• No contact = no tool wear (ideal for SiC, TiB₂).
• Achieves ±0.5µm accuracy in complex geometries.

C. Additive Manufacturing + CNC Hybrid Systems

• 3D-printed near-net-shape ceramics finished with micron-level CNC precision.
• Binder jetting + sintering + diamond grinding reduces machining time by 70%.

At Heeger Materials Inc., we supply optimized-grade ceramic products that comply with ASTM and ISO standards, ensuring outstanding quality and reliability.

FAQ

In this article, we discussed the critical role of precision in ceramic CNC machining and how it directly impacts product quality. The main factors influencing precision include machine calibration, cutting tools, material selection, and environmental conditions. Higher precision leads to better dimensional accuracy, smoother surface finishes, and fewer defects, all of which contribute to improved product performance and reduced manufacturing costs.
