Boron carbide (B4C) stands as one of the most remarkable materials in modern defense technology, renowned for its extraordinary properties that make it a cornerstone in protective applications. This lightweight, ultra-hard ceramic has carved a niche in defense due to its ability to withstand extreme conditions while offering unparalleled protection. From body armor to nuclear shielding, B4C’s versatility has made it indispensable in safeguarding lives and assets in high-stakes environments.
B4C’s rise in prominence stems from the increasing demand for materials that balance strength, weight, and durability. In defense, where every gram matters and threats range from ballistic projectiles to nuclear radiation, B4C delivers a rare combination of attributes.
The purpose of this article is to delve into the unique characteristics of boron carbide, explore its applications in defense, compare it to other materials, and highlight its future potential. By understanding what makes B4C exceptional, we can appreciate its critical role in advancing defense technologies.

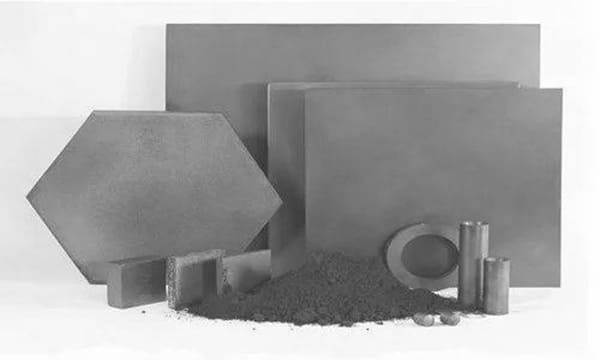

At Heeger Materials Inc., we specialize in high-quality boron carbide (B4C) ceramic products with various materials and specifications, ensuring optimal performance for industrial and scientific applications.
 ceramics-HM-1.jpg)
Overview of B4C (Boron Carbide)
Boron carbide (B₄C) is an extremely hard ceramic material known for its high hardness, low density, and excellent chemical stability. It is one of the hardest known materials, ranking third after diamond and cubic boron nitride (cBN).
Synthesis Methods
✅Carbothermal Reduction:
- 2 B2O3+7C→B4C+6CO2 B2O3+7C→B4C+6CO
(Most common industrial method, using boron oxide and carbon at ~1,500–2,000°C)
✅Magnesiothermic Reduction:
- 2 B2O3+6Mg+C→B4C+6MgO2 B2O3+6Mg+C→B4C+6MgO
(Lower temperature but requires purification)
✅Chemical Vapor Deposition (CVD): For high-purity coatings
Advantages & Limitations
✔ Advantages:
- Exceptional hardness
- Lightweight
- Good chemical resistance (inert to most acids/alkalis)
- High neutron absorption cross-section
✖ Limitations:
- Brittle (like most ceramics)
- Difficult to machine/sinter without additives
- Expensive compared to other ceramics (e.g., SiC, Al₂O₃)
Looking for high-quality B4C (Boron Carbide) ceramic products? Explore Heeger Materials' selection.
Properties of B4C (Boron Carbide)
Boron carbide’s superiority in defense applications is rooted in its exceptional physical and chemical properties, which set it apart from other materials. These properties make it uniquely suited to meet the rigorous demands of modern defense systems.
1. Basic Physical Properties
Property | Value / Characteristics |
Chemical Formula | B₄C (B₄C to B₁₃C₂ possible) |
Crystal Structure | Rhombohedral |
Density | 2.52 g/cm³ |
Color | Black/Dark Gray |
Melting Point | ~2,450°C (decomposes) |
2. Mechanical Properties
Property | Value | Comparison |
Vickers Hardness | 30-40 GPa | 3rd hardest known material |
Mohs Hardness | 9.3 | (Diamond=10) |
Fracture Toughness | 2.5-3.5 MPa·m¹/² | Relatively brittle |
Young's Modulus | 450-470 GPa | Very stiff |
Compressive Strength | 2.5-3.5 GPa | Excellent |
3. Thermal Properties
Property | Value |
Thermal Conductivity | 30-42 W/m·K |
Thermal Expansion | 4.5-5.5 × 10⁻⁶ /K |
Oxidation Resistance | Good up to 600°C |
Specific Heat Capacity | ~1.0 J/g·K (RT) |
4. Chemical Properties
Property | Behavior |
Acid Resistance | Excellent (HCl, HF, H₂SO₄) |
Alkali Resistance | Good at RT |
Oxidation | Forms B₂O₃ layer (>600°C) |
Molten Metal Resistance | Excellent vs Al, Fe |
5. Nuclear Properties
Property | Value | Significance |
Neutron Absorption (¹⁰B) | 3,840 barns | Excellent absorber |
Radiation Stability | High | Good for reactors |
6. Electrical & Optical Properties
Property | Characteristics |
Electrical Conductivity | Semiconductor (0.1-10 Ω·cm) |
Optical Behavior | Opaque, IR absorbing |
7. Comparative Properties of Hard Ceramics
Material | Hardness (GPa) | Density (g/cm³) | Thermal Conductivity (W/m·K) | Fracture Toughness (MPa·m¹/²) |
B₄C | 30-40 | 2.52 | 30-42 | 2.5-3.5 |
25-30 | 3.21 | 120-200 | 3-4 | |
15-20 | 3.97 | 30-35 | 3-5 | |
Diamond | 70-100 | 3.51 | 2000+ | 5-10 |
Explore our high-quality B4C (Boron Carbide) ceramic products.
Applications of B4C (Boron Carbide) in Defense
Boron carbide’s unique properties translate into a wide range of defense applications, each leveraging its strengths to address specific threats.
1. Personal & Vehicle Armor
B4C is widely used in body armor and vehicle plating for its hardness and light weight. In body armor, B4C plates protect soldiers from bullets and shrapnel, while in vehicles, B4C panels offer strong protection without adding excess weight, maintaining fuel efficiency and agility. Its effectiveness against armor-piercing rounds makes it ideal for both applications.
Application | Role of B₄C | Advantages |
Body Armor Plates | Used in ceramic composite armor (e.g., SAPI plates) | • High hardness stops bullets (NIJ Level IV) |
Helmets | Reinforced composites for shrapnel protection | • Lightweight for soldier mobility |
Vehicle Armor | Ceramic tiles for military vehicles (e.g., Humvees, tanks) | • Lightweight (critical for mobility) |
2. Ballistic Protection
B4C is also used in ballistic shields and helmets, absorbing and dispersing high-velocity impacts. Its effectiveness in urban combat, where sniper fire and IEDs are common, is enhanced by its ability to withstand multiple hits without fracturing.
Threat | B₄C Performance | Comparison |
Small Arms (7.62mm, 5.56mm) | Stops projectiles in hard armor plates | Outperforms Al₂O₃ in weight savings |
Armor-Piercing (AP) Rounds | Disintegrates tungsten/steel cores | Better than SiC against high-velocity threats |
Shrapnel/IED Fragments | Used in composite panels | Superior to metals in multi-hit scenarios |
3. Military Aerospace
Component | Function | Why B₄C? |
Helicopter Armor | Floor/wall panels for crash & ballistic protection | Combines lightness and strength |
Drone Armor | Lightweight protection for UAVs | Critical for payload efficiency |
Aircraft Brakes | High-temperature wear surfaces | Harder and lighter than carbon-carbon |
4. Specialized Defense Systems
System | Use Case | Benefit |
Nuclear Shielding | Neutron-absorbing components in submarines/missiles | High¹⁰B content stops radiation |
Sandblasting Protection | Coatings for ship hulls/aircraft | Resists erosion in harsh environments |
Explosive Containment | Fragmentation liners | Hardness contains blast debris |
Discover our optimized B4C (Boron Carbide) ceramic products.
Advantages of B4C (Boron Carbide) Over Other Materials
Boron carbide’s superiority in defense is further highlighted when compared to alternative materials like steel, alumina, or silicon carbide. While each material has its strengths, B4C’s unique combination of properties gives it a competitive edge.
1. Lightweight Yet Extremely Hard
Material | Density (g/cm³) | Vickers Hardness (GPa) | Advantages of B₄C |
B₄C | 2.52 | 30–40 | Best hardness-to-weight ratio among ceramics |
SiC | 3.21 | 25–30 | 15% lighter than SiC at similar hardness |
Al₂O₃ | 3.97 | 15–20 | Over 2x harder and 37% lighter |
Steel | 7.8 | 5–8 | 3x lighter and 5–6x harder |
Diamond | 3.51 | 70–100 | Hardness close to diamond, but much cheaper |
✅ Best for:
- Body armor (lighter than SiC/Al₂O₃, better protection than steel)
- Aerospace components (weight-critical applications)
2. Superior Ballistic Performance
Material | Stops Armor-Piercing (AP) Rounds? | Multi-Hit Capability | Advantages of B₄C |
B₄C | Yes (NIJ Level IV) | Moderate (requires backing) | Best AP protection per weight |
SiC | Yes (but heavier) | Better than B₄C | B₄C is more effective against tungsten rounds |
Al₂O₃ | Limited (Level III) | Poor | B₄C is 2x better at stopping high-velocity threats |
Steel | Yes (but very heavy) | Good | B₄C is 3x lighter for the same protection |
✅ Best for:
- Military armor plates (e.g., SAPI plates)
- Vehicle armor (Humvees, tanks)
3. Excellent Neutron Absorption (Nuclear Applications)
Material | Neutron Absorption (¹⁰B cross-section, barns) | Radiation Stability | Advantages of B₄C |
B₄C | 3,840 (high¹⁰B content) | Excellent | Best non-metallic neutron absorber |
SiC | Very low | Good | B₄C is essential for nuclear reactors |
Al₂O₃ | Very low | Moderate | B₄C is used in control rods & shielding |
Steel | Low | Poor | B₄C is lighter & more effective |
✅ Best for:
- Nuclear reactor control rods
- Radiation shielding in submarines/missiles
4. Chemical & Thermal Stability
Material | Acid/Alkali Resistance | Oxidation Resistance | Advantages of B₄C |
B₄C | Resistant to most acids (HCl, HF, H₂SO₄) | Stable up to 600°C (B₂O₃ layer forms) | Better than metals in corrosive environments |
SiC | Good (but reacts with HF) | Stable up to 1,600°C | SiC is better at ultra-high temperatures, but B₄C is harder |
Al₂O₃ | Good (attacked by strong acids) | Stable up to 1,800°C | B₄C is harder and lighter |
Steel | Poor (rusts easily) | Oxidizes rapidly | B₄C is far more durable |
✅ Best for:
- Chemical industry wear parts
- High-temperature armor (e.g., jet engine components)
5. Cost vs. Performance Trade-Offs
Material | Cost (USD/kg) | Best Use Case | Why B₄C Wins? |
B₄C | $300–$500 (high-grade) | Top-tier armor, nuclear apps | Best balance of hardness & weight |
SiC | $50–$150 | General armor, industrial wear | B₄C is better for AP rounds |
Al₂O₃ | $10–$50 | Low-cost armor, abrasives | B₄C is 2x harder |
Steel | $1–$5 | Structural armor | B₄C is 3x lighter & stops AP rounds |
When to Choose B₄C Over Alternatives
✔ Choose B₄C if you need:
- Ultimate hardness + lightweight (e.g., body armor, aerospace)
- Armor-piercing ballistic protection
- Neutron absorption (nuclear shielding)
- Corrosion/heat resistance in harsh environments
✖ Avoid B₄C if:
- Cost is a major constraint (SiC/Al₂O₃ is cheaper)
- Toughness is critical (SiC has better fracture resistance)
Request a custom quote for high-quality B4C (Boron Carbide) ceramic products.
Manufacturing and Challenges
Boron carbide is produced through hot pressing or pressureless sintering. Hot pressing creates dense, high-quality B4C but is costly and slow, limiting scalability. Pressureless sintering is cheaper but may result in lower-density products, impacting performance.
Key challenges in B4C production include:
- Cost: The raw materials and energy-intensive processes make B4C more expensive than alternatives like alumina.
- Brittleness: As noted, B4C’s brittleness requires innovative design solutions, such as composites, to enhance toughness.
- Scalability: Producing large, uniform B4C components for vehicle armor or nuclear shielding is challenging due to manufacturing constraints.
Future Potential
Boron carbide’s role in defense is poised to expand as technology advances. Emerging applications include:
- Advanced Composites: Combining B4C with materials like graphene or carbon nanotubes could enhance its toughness and expand its use in lightweight, high-strength armor.
- Protective Coatings: B4C-based coatings for military equipment, such as aircraft or naval vessels, could improve resistance to wear and corrosion.
- Next-Generation Defense Systems: B4C’s neutron-absorbing properties make it a candidate for advanced nuclear defense systems, including portable radiation shields or reactor components.
As defense threats evolve, B4C’s adaptability ensures it will remain a key material in developing innovative solutions, from drones to space-based defense systems.
At Heeger Materials Inc., we supply optimized-grade ceramic products that comply with ASTM and ISO standards, ensuring outstanding quality and reliability.
FAQ
Question | Answer |
What is B4C (Boron Carbide) used for in defense? | B4C is used in ballistic armor, shields, and helmets due to its high hardness and ability to absorb and disperse impact from projectiles. |
Why is B4C considered superior for armor? | B4C is extremely hard and lightweight, offering superior protection against high-velocity projectiles and explosive threats. |
How does B4C perform under high impact? | B4C can withstand multiple hits without fracturing, making it reliable for use in combat situations. |
What are the manufacturing methods of B4C? | B4C is made using hot pressing or pressureless sintering, where boron and carbon are combined under heat and pressure. |
What are the advantages of hot pressing B4C? | Hot pressing creates dense, high-quality B4C components, offering enhanced performance in armor applications. |
Is pressureless sintering a better option for B4C production? | Pressureless sintering is more cost-effective but may result in lower-density B4C, slightly affecting its performance in defense applications. |
In conclusion, Boron Carbide (B4C) is a superior material for defense due to its unparalleled combination of hardness, lightweight nature, high melting point, and ballistic resistance. These properties make it essential in a variety of military applications, including personal armor systems, vehicle armor, and reactive armor.
As research and development continue, the future of B4C appears promising. Its unique characteristics and potential for enhancement will likely make it an even more valuable asset in future defense systems, paving the way for the next generation of military technology.
