Niobium and Niobium Alloys: A guide to key industry standards & specifications

Niobium, a transition metal, has significant industrial applications due to its excellent properties such as high melting point, corrosion resistance, and superconductivity. It is primarily used in aerospace, electronics, steel production, and medical devices. To ensure consistent quality and performance, the manufacturing and utilization of niobium and its alloys are governed by strict industry standards and specifications.

In this article, we will explore the key industry standards and specifications related to niobium and its alloys. We will delve into the various properties of niobium, the different alloy types, and how industry standards ensure that these materials meet the required criteria for diverse applications. This comprehensive guide will help businesses and professionals in industries using niobium to understand its proper usage, manufacturing requirements, and quality control processes.

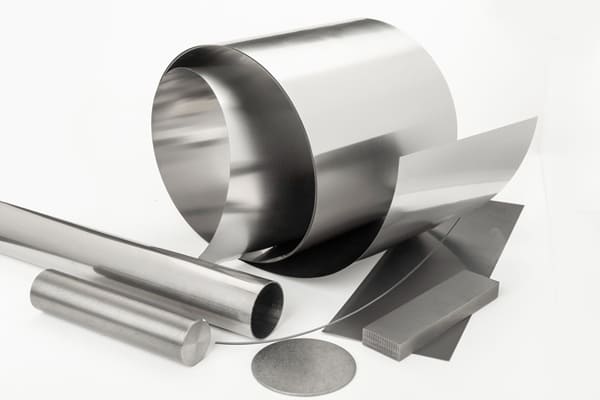

At Heeger Materials Inc., we specialize in high-quality niobium and niobium alloy products with various forms and specifications, ensuring optimal performance for industrial and scientific applications.

Properties of Niobium

Niobium’s remarkable properties make it a versatile material across multiple industries. Its high melting point of approximately 2,468°C allows it to withstand extreme temperatures, making it ideal for high-temperature environments like jet engines. Niobium is also highly resistant to corrosion, particularly in acidic environments, due to the formation of a stable oxide layer on its surface. Additionally, its superconducting properties at low temperatures make it a critical component in applications like MRI scanners and particle accelerators.

Some of its key properties include:

• High melting point: Niobium has a melting point of around 2,468°C (4,474°F), making it ideal for high-temperature applications such as rocket nozzles and turbines.
• Corrosion resistance: Niobium is highly resistant to oxidation and corrosion, even in aggressive environments like acids and high-temperature settings.
• Superconductivity: Niobium-based alloys, particularly niobium-titanium (NbTi), are used in superconducting magnets for MRI machines and particle accelerators.
• Ductility and Malleability: Niobium is easy to form into sheets, wires, and other shapes without losing its structural integrity, making it suitable for intricate designs.
• Biocompatibility: Due to its resistance to corrosion and its compatibility with the human body, niobium is used in medical implants like joint replacements.

1. Physical Properties of Niobium

2. Chemical Properties of Niobium

3. Mechanical Properties of Niobium

Looking for high-quality niobium and niobium alloy products? Explore Heeger Materials' selection.

Niobium Alloys and Their Types

Niobium alloys are primarily formed to improve the mechanical properties of niobium for specific applications. Some key niobium alloys include:

• Niobium-Titanium (NbTi): This is the most common superconducting alloy. It is used in applications like MRI machines, particle accelerators, and magnetic shielding. NbTi is known for its excellent superconductivity at low temperatures.
• Niobium-Zirconium (NbZr): This alloy is used in nuclear applications due to its high corrosion resistance and stability at high temperatures. It is commonly used in the production of nuclear fuel rods.
• Niobium-Hafnium (NbHf): This alloy is used in aerospace applications due to its ability to withstand extreme heat and pressure.
• Niobium-Tantalum (NbTa): Known for its strength and resistance to wear, this alloy is used in high-stress environments like the aerospace and medical industries.

Explore our optimized niobium and niobium alloy products.

Applications of Niobium and Niobium Alloys

Request a custom quote for high-quality niobium and niobium alloy products.

Key Industry Standards for Niobium and Niobium Alloys

Niobium and niobium alloys, known for their high-temperature strength, corrosion resistance, and superconducting properties, are governed by a comprehensive industry standard system that spans the entire supply chain, from raw materials to advanced applications. This analysis delves into international, national, and regional standards, highlighting key technical specifications and common application scenarios:

International Standard System

1. ASTM (American Society for Testing and Materials)

• ASTM B393-18: Standard specification for niobium and niobium alloy strip, sheet, and plate. It defines the chemical composition (Nb ≥ 99.9%), mechanical properties (annealed tensile strength ≥ 170 MPa), and dimensional tolerances (tolerance ± 0.013 mm for thickness ≤ 0.15 mm) for five grades (e.g., R04200, R04251).
• Application: Electronic device packaging, nuclear reactor shielding.
• ASTM B394-20: Standard for seamless tubes, specifying an outer diameter of ≤ 65 mm and a room temperature elongation of ≥ 20%, used for chemical reactor coil tubing.
• ASTM B899-21: Standard for welded tubes, detailing requirements for weld radiographic inspection (ASTM E142) and pressure testing (≥ 1.5 times the working pressure), applicable to aerospace fuel lines.

2. ISO (International Organization for Standardization)

• ISO 5832-12:2019: Standard for tantalum used in surgical implants (Note: niobium alloys in medical applications refer to this standard), specifying biocompatibility testing (ISO 10993) and microstructure requirements (grain size ≤ 50 μm), used for orthopedic implants.
• ISO 18118:2020: General technical conditions for processing materials made from tantalum and tantalum alloys (applicable to niobium alloys), covering hardness (HV ≥ 100) and surface roughness (Ra ≤ 0.8 μm), suitable for chemical equipment linings.

3. EN (European Standards)

• EN 2463:2018: Standard for forged tantalum alloys used in aerospace (relevant for niobium alloys), requiring high-temperature tensile strength (≥ 300 MPa at 700°C) and long-term durability (≥ 100 hours at 700°C/150 MPa), used in rocket engine nozzles.

National/Regional Standards

1. Chinese Standards

• GB/T 14842-2007: Standard for niobium and niobium alloy rods, specifying tensile strength ≥ 207 MPa and elongation ≥ 25% for grades such as Nb1 (Nb ≥ 99.95%) and NbZr1 (Zr = 1.0%), used for nuclear reactor structural components.
• GB/T 8183-2007: Standard for seamless tubes, introducing grades NbZr1 and NbZr2, with an outer diameter range of 1-65 mm, applicable to semiconductor equipment vacuum tubing.
• GB/T 25080-2022: Standard for niobium-titanium alloy rods for superconducting applications, requiring tensile strength ≥ 700 MPa and critical current density ≥ 1×10⁵ A/cm², used in MRI superconducting coils.
• YS/T 656-2015: Standard for grades and chemical compositions, such as Nb1 (Nb ≥ 99.95%) and NbHf10Ti1 (Hf = 10%, Ti = 1%), used for high-temperature alloys.

2. Japanese Standards

• JIS H4600:2021: Standard for tantalum and tantalum alloy processing materials (applicable to niobium alloys), specifying flatness of sheets ≤ 2%, used for semiconductor equipment vacuum chambers.

3. Russian Standards

• GOST 19804-2015: Standard for aerospace-grade tantalum alloys (relevant for niobium alloys), specifying low-temperature impact toughness (≥ 50 J/cm² at -196°C), used for low-temperature pressure vessels.

Industry Standards and Special Specifications

1. Aerospace Industry

• AMS 5566:2020: Standard for tantalum alloy forgings (relevant for niobium alloys), requiring a grain size of ≥5, used for high-temperature components in turbine engines.
• NASA-STD-5013: Welding process specification (relevant for niobium alloys), stipulating an electron beam weld bead width ≤ 0.1 mm, applicable to rocket propulsion systems.

2. Medical Industry

• YY/T 0660-2021: Standard for tantalum used in surgical implants (relevant for niobium alloys), requiring a hemolysis rate ≤ 5% and cell toxicity level ≤ Grade 1, used for artificial joint coatings.

3. Electronics Industry

• EIA-364-81-A: Standard for reliability testing of tantalum capacitors (relevant for niobium alloys), specifying high-temperature life testing (85°C/ rated voltage ≥ 1000 hours), used in consumer electronics.

Comparison of Key Technical Specifications

At Heeger Materials Inc., we supply optimized-grade niobium and niobium alloy products that comply with ASTM, ISO, and AMS standards, ensuring outstanding quality and reliability.

Recommendations for Standard Implementation

Material Selection:

• High-pressure environments: Prioritize the use of ASTM B394 seamless tubes, as their wall thickness tolerance is more stringent (±10% vs. ±15% for GB/T 8183).
• Medical implants: Must comply with ISO 5832-12 and provide a biocompatibility testing report.

Process Control:

• Welding processes should refer to NASA-STD-5013, with electron beam welding recommended to minimize the heat-affected zone (width < 0.1 mm).
• Additive manufacturing should follow GB/T 41883 (tantalum alloy standard), and powder must undergo oxygen content testing (≤1000 ppm).

Certification Requirements:

• Exports to Europe must be certified according to EN 2463, and aerospace products must comply with AMS standards.
• Medical devices must pass FDA 510(k) or CE certification, with ISO 10993 testing data provided.

Typical Cases

• Aerospace: A certain rocket engine combustion chamber uses NbHf10Ti1 alloy (compliant with AMS 5566), with a service life of 1000 hours at 1650°C.
• Medical Field: Porous niobium-coated artificial hip joints (referencing ISO 5832-12), with a bone ingrowth rate > 90%, and no loosening observed in clinical follow-up over 5 years.
• Electronics Industry: Niobium capacitors (referencing EIA-364-81-A) used in smartphones, with leakage current ≤ 1μA and a lifespan > 10 years.
• Latest Technological Trends
• Additive Manufacturing Standards:
• GB/T 41883-2022 (tantalum alloy) serves as a reference for 3D printing of niobium alloys, promoting the application of complex structural parts in aerospace.
• High-Temperature Alloys:
• Nb-Si alloys (such as the 2400°C-grade materials developed by Northwestern Polytechnical University) will increase the operating temperature to 2400°C, suitable for hypersonic vehicles.
• Environmental Recycling:
• Niobium capacitor recycling mainly follows corporate standards (e.g., niobium content in recycled material ≥ 85%), while international standards are still under development.

Adhering to industry standards for niobium and its alloys is critical for ensuring quality, safety, and performance across diverse applications. From aerospace to medical devices, these standards provide a framework for consistency and reliability. As niobium’s applications expand, staying updated with evolving standards is essential for manufacturers and engineers. Future advancements in niobium alloy development, such as improved superconducting materials or lightweight aerospace alloys, will likely drive the creation of new standards, further solidifying niobium’s role in cutting-edge technologies.
