Piezoelectric ceramics are materials that can generate an electrical charge when subjected to mechanical stress. This unique property makes them invaluable in various applications. A common example is the use of piezoelectric materials in sensors, where mechanical pressure applied to the material is converted into an electrical signal. These ceramics are primarily composed of compounds such as lead zirconate titanate (PZT), a material with exceptional piezoelectric properties.
As electronics continue to evolve, there is a growing demand for sustainable, efficient, and flexible solutions. Piezoelectric ceramics could play a significant role in addressing these needs. The ability to generate electricity from mechanical movements could revolutionize the way we think about power sources for electronic devices. This exploration could lead to more energy-efficient electronics, the miniaturization of devices, and more self-sustaining systems.
At Heeger Materials Inc., we specialize in high-quality ceramic products made from a variety of materials and specifications, ensuring optimal performance for industrial and scientific applications.
An Overview of Piezoelectric Ceramics

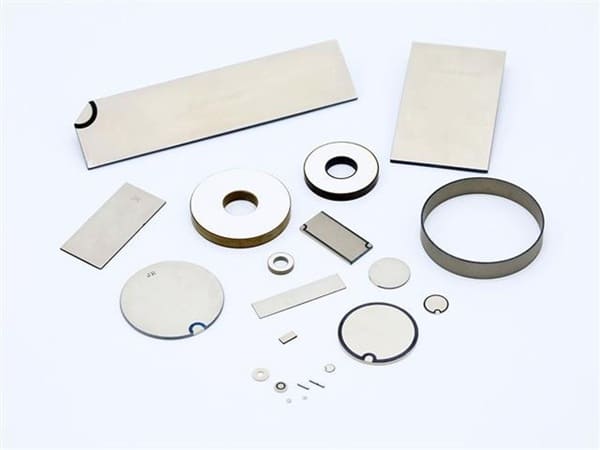

Piezoelectric ceramics are a class of smart materials that generate an electric charge in response to mechanical stress (direct piezoelectric effect) or undergo mechanical deformation when subjected to an electric field (inverse piezoelectric effect). These materials are widely used in sensors, actuators, transducers, and other electronic devices.
1. Composition of Piezoelectric Ceramics
Piezoelectric ceramics are typically ferroelectric polycrystalline materials that are poled to induce piezoelectric behavior. The most common families include:
(a) Lead-Based Piezoceramics
✅Lead Zirconate Titanate (PZT) – The most widely used piezoelectric ceramic.
✅Chemical Formula: Pb(ZrₓTi₁ₓ)O₃ (where 0<x<1)
✅Properties: High piezoelectric coefficients (d33), high Curie temperature (Tc), and tunable properties by varying Zr/Ti ratio.
✅Modifications: Doping (soft vs. hard PZT)
- Soft PZT (e.g., PZT-5H): High d33, used in sensors.
- Hard PZT (e.g., PZT-8): High mechanical quality factor (Qm), used in high-power applications.
(b) Lead-Free Piezoceramics (Environmental Alternatives)
✅Barium Titanate (BaTiO₃) – One of the first discovered piezoceramics.
- Properties: Moderate d33, low Tc (~120°C).
✅Sodium Potassium Niobate (KNN, (K, Na)NbO₃)
- Properties: Good d33, eco-friendly, but challenging to sinter.
✅Bismuth Sodium Titanate (BNT, (Bi₀.₅Na₀.₅)TiO₃)
- Properties: High depolarization temperature, but low piezoelectric response.
(c) Composite Piezoceramics
✅PZT-Polymer Composites (e.g., PZT-PVDF)
- Properties: Flexible, used in medical ultrasound transducers.
2. Key Properties of Piezoelectric Ceramics
Piezoelectric Properties:
Material | d33 (pC/N) | d31 (pC/N) | g33 (mV·m/N) | k33 | k31 |
PZT-5H | 500–650 | -180 to -250 | 20–25 | 0.70–0.75 | 0.30–0.35 |
PZT-8 | 200–300 | -90 to -120 | 10–15 | 0.60–0.65 | 0.30–0.35 |
BaTiO₃ | 150–190 | -40 to -60 | 5–12 | 0.45–0.55 | 0.20–0.25 |
KNN | 80–200 | -30 to -60 | 10–20 | 0.40–0.50 | 0.20–0.30 |
BNT | 70–120 | -30 to -50 | 8–15 | 0.40–0.50 | 0.15–0.25 |
Dielectric Properties:
Material | εr | δtanδ | Dielectric Loss | Resistivity (Ω·cm) |
PZT-5H | 3000–4000 | 0.015–0.025 | High | 10¹⁰–10¹¹ |
PZT-8 | 1000–1500 | 0.002–0.005 | Low | 10¹¹–10¹² |
BaTiO₃ | 1200–2000 | 0.01–0.03 | Moderate | 10⁹–10¹⁰ |
KNN | 500–1000 | 0.02–0.04 | Moderate | 10¹⁰–10¹¹ |
BNT | 400–800 | 0.02–0.05 | High | 10⁹–10¹⁰ |
Mechanical & Thermal Properties:
Material | Qm | s11E (10⁻¹² m²/N) | Curie Temp Tc (°C) | Depolarization Td (°C) |
PZT-5H | 50–150 | 15–20 | 180–220 | — |
PZT-8 | 800–1200 | 10–15 | 300–350 | — |
BaTiO₃ | 300–500 | 8–12 | 120–130 | — |
KNN | 200–500 | 6–10 | 350–420 | — |
BNT | 100–300 | 5–8 | 320–350 | ~200 |
Looking for high-quality ceramic products? Explore Heege Materials’ selection.
Common Applications of Piezoelectric Ceramics
1. Consumer Electronics
- Speakers & Buzzers: Convert electrical signals into sound waves (e.g., smartphone speakers, alarm buzzers).
- Ultrasonic Sensors: Time-of-flight (ToF) distance measurement in robotics and smartphones.
- Haptic Feedback: Vibrational response in touchscreens and gaming controllers.
- Microphones: High-sensitivity acoustic detection in MEMS microphones.
2. Medical Applications
- Ultrasound Imaging: Generate and receive high-frequency sound waves for diagnostic imaging.
- Surgical Tools: Precision vibration-assisted scalpels and dental devices.
- Bone Growth Stimulators: Low-frequency mechanical stimulation to accelerate fracture healing.
- Drug Delivery Systems: Piezoelectric Micropumps for Controlled Drug Release
3. Industrial & Automation
- Non-Destructive Testing (NDT): Detect material flaws using ultrasonic waves.
- Flow Meters: Measure liquid/gas flow rates via ultrasonic pulses.
- Vibration Sensors: Monitor machinery health (bearings, turbines, pipelines).
- Piezoelectric Actuators: Precision positioning in robotics and CNC machines.
4. Automotive Systems
- Fuel Injectors: High-precision fuel spray control in engines.
- Knock Sensors: Detect engine knocking to optimize combustion efficiency.
- Parking Assist: Ultrasonic proximity sensors for collision avoidance.
- Tire Pressure Monitoring: Energy-harvesting sensors for wireless TPMS.
Explore our optimized ceramic products.
Advantages of Piezoelectric Ceramics in Electronics
Piezoelectric ceramics (e.g., PZT, BaTiO₃, KNN) are widely used in electronic devices due to their unique electromechanical properties. Here are their key advantages:
1. High Sensitivity & Fast Response
- High piezoelectric coefficients (e.g., PZT-5H: d33=500–650 pC/Nd33=500–650 pC/N) enable precise detection of small mechanical changes.
- Ultra-fast response time (microseconds), ideal for real-time sensing (e.g., touchscreens, ultrasonic sensors).
2. Energy Efficiency
- Low power consumption in actuators (e.g., inkjet printer nozzles, autofocus lenses).
- Energy harvesting capabilities (e.g., converting vibrations/waste energy into electricity for IoT sensors).
3. Miniaturization & Integration
- Compatible with MEMS/NEMS (Micro/Nano-Electro-Mechanical Systems), enabling tiny sensors and actuators.
- Thin-film applications (e.g., AlN, PZT films in RF filters and MEMS microphones).
4. Wide Frequency Range
Operates from Hz to GHz, suitable for:
- Low-frequency haptic feedback (e.g., smartphones).
- High-frequency ultrasonic imaging (1–20 MHz).
5. Durability & Stability
- Long lifespan with minimal wear (no moving parts in actuators).
- Stable performance under harsh conditions (e.g., PZT-8 withstands high temperatures up to 350°C).
6. Versatility in Functions
- Sensing & actuation in one material (e.g., ultrasonic transducers for medical imaging).
- Multifunctional use: Vibration damping, noise cancellation, and precision motion control.
Discover our high-quality ceramic products.
Challenges and Limitations in Utilizing Piezoelectric Ceramics
A. Manufacturing Costs
Producing high-quality piezoelectric ceramics involves complex processes like high-temperature sintering and precise poling, which drive up costs. For large-scale applications, these expenses can be prohibitive compared to cheaper alternatives like silicon-based components. Reducing production costs through innovative manufacturing techniques is essential for broader adoption.
B. Material Toxicity
Many piezoelectric ceramics, such as PZT, contain lead, raising environmental and health concerns. Disposal and recycling of lead-based materials are regulated in many regions, complicating their use. Researchers are developing lead-free alternatives, but these often exhibit lower performance, posing a challenge to scalability.
C. Scalability Issues
Integrating piezoelectric ceramics into large-scale electronic systems is challenging due to their brittle nature and the need for precise alignment. For example, embedding them into flexible electronics or large circuits requires advanced engineering solutions, which are still in development.
D. Competition with Alternatives
Piezoelectric ceramics face competition from technologies like flexible electronics, organic semiconductors, and advanced battery systems. These alternatives may offer lower costs or easier integration in certain applications, such as flexible displays or high-capacity energy storage.
Request a custom quote for high-quality ceramic products.
Future Potential and Innovations of Piezoelectric Ceramics
A. Advances in Material Science
The development of lead-free piezoelectric ceramics, such as potassium sodium niobate (KNN), is a major focus of research. These materials aim to match the performance of PZT while being environmentally friendly. Additionally, nanotechnology is enabling the creation of thinner, more efficient piezoelectric films, expanding their applications.
B. Integration with Emerging Technologies
Piezoelectric ceramics could synergize with emerging fields like the Internet of Things (IoT), where self-powered sensors are critical, or wearable electronics, where compact power sources are needed. For example, piezoelectric patches in clothing could power health-monitoring devices, enhancing user convenience.
C. Research and Development Trends
Ongoing research is improving the efficiency, durability, and affordability of piezoelectric ceramics. Innovations like 3D-printed ceramics and hybrid materials are being explored to overcome current limitations. Collaborative efforts between academia and industry are accelerating these advancements.
D. Market Growth
The global piezoelectric ceramics market is projected to grow significantly, driven by demand in electronics, healthcare, and the automotive industries. According to recent data, the market could reach $3 billion by 2030, with a compound annual growth rate (CAGR) of over 5%.
FAQ
Question | Answer |
What are piezoelectric ceramics? | Piezoelectric ceramics are materials that generate an electric charge when subjected to mechanical stress, commonly used in sensors and actuators. |
What are the benefits of piezoelectric ceramics in electronics? | They offer advantages like energy efficiency, miniaturization, and the ability to power devices without external energy sources. |
How are piezoelectric ceramics used in wearable devices? | They are used for energy harvesting, enabling wearable devices to be powered by movement or environmental changes. |
What challenges do piezoelectric ceramics face? | Key challenges include material limitations, manufacturing complexity, and optimizing their performance for large-scale applications. |
Can piezoelectric ceramics power IoT devices? | Yes, they can power small IoT devices by harvesting energy from mechanical vibrations or pressure changes in their environment. |
What industries benefit from piezoelectric ceramics? | Industries such as healthcare, electronics, automotive, and energy harvesting can all benefit from the unique properties of piezoelectric ceramics. |
At Heeger Materials, we supply optimized-grade ceramic products that comply with ASTM, ISO, and AMS standards, ensuring outstanding quality and reliability.
In conclusion, piezoelectric ceramics hold great promise for the future of electronics, offering energy efficiency, miniaturization, and self-powered systems. Despite challenges in materials and manufacturing, ongoing advancements suggest a bright future. These ceramics could play a key role in shaping innovations across various industries, from wearable devices to energy harvesting, revolutionizing how we power and interact with technology.
