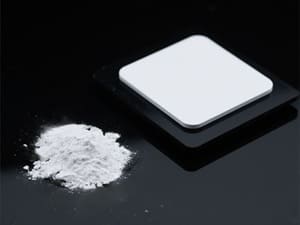

Alumina substrates play a vital role in electronics, aerospace, and other high-tech industries due to their excellent mechanical strength, wear resistance, thermal stability, and electrical insulation. The fabrication quality of these substrates depends heavily on the properties of the raw alumina powder used. Variations in alumina powder characteristics significantly impact the casting process and the ultimate performance of alumina substrates. This article explores how different alumina powder properties influence tape casting and sintering outcomes for high-quality alumina substrates.
At Heeger Materials Inc., we specialize in high-quality alumina products, ensuring optimal performance for industrial and scientific applications.
What Are the Critical Intrinsic Properties of Alumina Powder Affecting Alumina Substrate Quality?
Intrinsic properties of alumina powder, such as chemical purity, α-Al2O3 phase content, and crystalline structure, are foundational for producing reliable alumina substrates. High purity reduces electrical conduction and enhances sintering, while phase composition affects mechanical strength.
Parameter | Ideal Range | Effect on Alumina Substrate Performance |
Purity | ≥ 99% | Ensures insulation and prevents defects |
Na₂O Content | < 0.05% | Reduces electrical leakage |
α-Al₂O₃ Phase Ratio | > 95% | Improves mechanical strength and thermal stability |
Fe₂O₃ Content | < 0.02% | Limits dielectric loss and discoloration |
Optimal intrinsic properties of alumina powder ensure stable tape casting and durable alumina substrates with minimal defects.
Explore our high-quality alumina powder.
How Does Alumina Powder Particle Size Influence the Casting Process and Alumina Substrate Formation?
In our evaluation, the particle size of alumina powder proved to be a decisive factor influencing slurry rheology, green tape smoothness, and final substrate density after sintering. Fine powders generally produce smoother, defect-free tapes and higher densification, although excessive fineness can promote agglomeration. In contrast, coarser powders tend to lower packing density and cause surface irregularities.
Particle Size Characteristics and Observed Casting Quality:
Powder ID | D50 (µm) | Green Tape Surface Quality | Notes |
A12 | 0.82 | Excellent | Smooth, uniform particle distribution |
A15 | 0.78 | Excellent | Very stable slurry, minimal agglomeration |
A18 | 0.80 | Good | Slight clustering observed in SEM images |
B20 | 1.45 | Fair | Minor surface waviness after drying |
B25 | 1.55 | Poor | Pinholes and uneven edges detected |
Based on these results, alumina powders with a median particle size in the 0.75–0.82 μm range demonstrated the best balance of slurry stability, tape smoothness, and sintering performance for high-reliability substrates.
Explore our high-quality alumina substrate.
Why Is the Particle Size Distribution of Alumina Powder Essential for Uniform Alumina Substrate Casting?
The particle size distribution (PSD) influences packing density and slurry flow, affecting green tape uniformity and sintering shrinkage. Narrow PSD yields better packing but may reduce flowability; broad PSD can improve flow but cause shrinkage inconsistencies.
Impacts of PSD on Alumina Substrate Casting:
- Inhomogeneous slurry flow leads to thickness variations
- Increased risk of microcracks during drying and sintering
- Warpage due to uneven shrinkage
- Reduced mechanical strength from residual porosity
Optimizing PSD is crucial for producing defect-free alumina substrates.
How Does Alumina Powder Morphology Affect Slurry Stability and Alumina Substrate Surface Quality?
Our analysis revealed that alumina powder morphology has a direct impact on slurry rheology, tape surface smoothness, and the microstructure of sintered substrates. Spherical or near-spherical particles provide superior flowability and more uniform packing, which in turn reduces porosity and surface defects. In contrast, irregular or highly agglomerated particles tend to disrupt slurry stability, leading to uneven tape thickness and poor sintered surface quality.
Morphology Characteristics and Observed Slurry Behavior:
Powder ID | Morphology | Agglomeration Level | Slurry Flowability |
A12 | Spherical | Low | Excellent |
A15 | Near-spherical | Low | Excellent |
A18 | Rounded | Moderate | Good |
B20 | Irregular | High | Fair |
B25 | Irregular | High | Poor |
SEM imaging confirmed that powders with spherical morphology (A12, A15) yielded the smoothest tape surfaces and the highest final densities, whereas irregular powders (B20, B25) showed more frequent defects such as warping and surface roughness after sintering.
How Do Additives Interact with Alumina Powder to Influence Alumina Substrate Casting?
Choosing compatible additives (dispersants, binders, plasticizers, solvents) is essential to stabilize alumina powder slurries and ensure uniform flow during casting.
Common Additives for Alumina Powder Slurries:
- Dispersants: Polyacrylic acid — prevents particle aggregation
- Solvents: Ethanol, butyl acetate — adjust slurry viscosity
- Binders: Polyvinyl butyral (PVB) — provides green strength
- Plasticizers: Dibutyl phthalate (DBP) — enhances flexibility
- Deflocculants: Ammonium polyacrylate — improves dispersion
Optimizing additive composition based on alumina powder characteristics improves alumina substrate quality.
How Does Alumina Powder Quality Influence Common Defects in Green Alumina Substrates?
Powder quality directly affects defects such as cracks, pores, warpage, and roughness in green tapes and sintered alumina substrates.
Defect Type | Cause Related to Alumina Powder |
Cracks | Large agglomerates cause stress concentration |
Pores | Poor dispersion and particle packing |
Warpage | Wide particle size distribution and shrinkage mismatch |
Surface Roughness | Presence of oversized or irregular particles |
High-quality alumina powders with uniform particle size and minimal agglomerates reduce these defects, improving alumina substrate integrity.
How Does Alumina Powder Compare to Other Ceramic Powders in Substrate Manufacturing?
In substrate manufacturing, alumina powder competes with other technical ceramics such as zirconia, silicon nitride, and silicon carbide powders. Understanding the differences helps clarify alumina’s advantages and limitations in casting and final substrate performance.
Material | Density (g/cm³) | Hardness (GPa) | Thermal Conductivity (W/m·K) | Electrical Resistivity (Ω·cm) | Suitability for Substrates |
Alumina Powder | 3.95 | 15–20 | 25–30 | >10¹² | High: cost-effective, excellent insulation |
6.05 | 12–14 | 2–3 | 10⁷–10⁹ | Moderate: high toughness but lower insulation | |
3.2 | 16–20 | 20–30 | 10⁸–10¹⁰ | Moderate: good mechanical, lower insulation | |
3.21 | 24–30 | 120–160 | 10⁵–10⁸ | Low: excellent conductivity, poor insulation |
Alumina powder offers an excellent balance of mechanical strength, thermal stability, and high electrical resistivity, making alumina substrates particularly suitable for insulating electronic components where cost and reliability are critical.
Request a custom quote for our alumina ceramic products.
How Do Alumina Powder Characteristics Affect the Sintering Process and Final Alumina Substrate Properties?
In our sintering experiments, the physical properties of alumina powders—particularly particle size uniformity and morphology—were found to directly affect shrinkage behavior, densification rate, and residual porosity. These factors ultimately determine the mechanical strength and electrical insulation performance of the final alumina substrates.
Sintering Performance Data:
Powder ID | Shrinkage (%) | Water Absorption (%) | Final Density (g/cm³) |
A12 | 15.3 | 0.28 | 3.83 |
A15 | 14.9 | 0.22 | 3.85 |
A18 | 15.1 | 0.25 | 3.84 |
B20 | 12.5 | 0.88 | 3.68 |
B25 | 12.2 | 1.05 | 3.61 |
Powders with finer and more uniform particles (A12, A15, A18) achieved higher densification and lower water absorption, resulting in substrates with improved mechanical integrity and stable electrical properties. In contrast, coarser, irregular powders (B20, B25) showed reduced shrinkage, higher porosity, and lower final density.
What Are the Best Practices for Selecting Alumina Powder to Optimize Alumina Substrate Production?
Selecting alumina powder requires balancing chemical purity, particle size, morphology, and phase composition to ensure optimal casting and sintering performance.
Recommended Alumina Powder Specifications for Substrates:
- Purity ≥ 99.5%
- Median particle size (D50) between 0.5–0.8 μm
- α-Al₂O₃ phase content > 95%
- Spherical particle morphology
- Minimal agglomeration under microscopic analysis
Proper powder selection enhances alumina substrate consistency, strength, and performance.
FAQ
Question | Answer |
What purity level is needed for alumina powder? | ≥ 99.5% purity to reduce defects and improve insulation. |
How does α-phase content affect alumina substrate strength? | Higher α-phase improves sintering and mechanical durability. |
What powder morphology is ideal for alumina substrates? | Near-spherical powders provide best slurry flow and packing. |
How to detect poor powder dispersion in slurry? | Presence of agglomerates, bubbles, and uneven tape thickness. |
How to improve the sintered alumina substrate density? | Use fine, uniform powders with controlled sintering profiles. |
Conclusion
Alumina powder properties—including intrinsic chemistry, particle size and distribution, morphology, and phase content—play a decisive role in the casting process and the quality of alumina substrates. Optimizing these powder characteristics leads to improved slurry stability, defect reduction, and superior sintering densification, ultimately producing alumina substrates with excellent mechanical strength, thermal stability, and electrical insulation.
Continuous advancements in powder processing and material characterization will further enhance alumina substrate manufacturing, meeting the rising demands of modern electronics and industrial applications. Careful selection and control of alumina powder remain the cornerstone for producing high-performance alumina substrates.
