Multilayer Ceramic Capacitors (MLCCs) have become indispensable components in the electronics industry, serving as the backbone for energy storage, filtering, and decoupling in a wide array of devices. As we enter 2025, MLCC technology continues to evolve rapidly, driven by the demands of emerging sectors such as electric vehicles (EVs), 5G networks, and artificial intelligence (AI) infrastructure. These capacitors, composed of multiple layers of ceramic dielectric material sandwiched between conductive electrodes, offer high capacitance in compact sizes, making them ideal for miniaturized electronics.
MLCCs are not just passive components; they are enablers of next-generation technologies. For instance, the rise of AI servers and EVs has led to a surge in demand for high-performance MLCCs, with oversupply issues persisting but balanced by innovations in material science. This guide will delve into fundamentals, types, applications, selection strategies, trends, and future outlooks, equipping readers with actionable insights for 2025 and beyond.
At Heeger Materials Inc., we specialize in high-quality ceramic products with various materials and specifications, ensuring optimal performance for industrial and scientific applications.
Overview of MLCC (Multi-Layer Ceramic Capacitor)

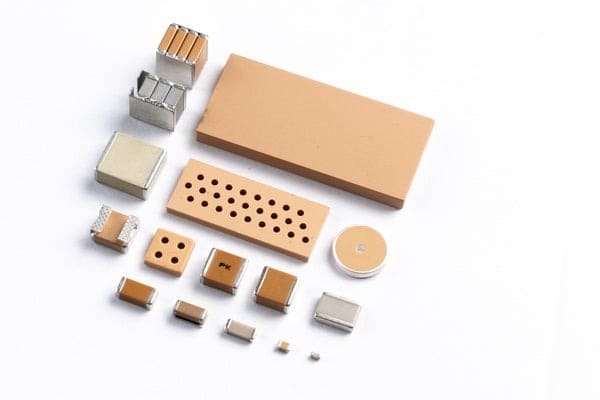

MLCC (Multi-Layer Ceramic Capacitor) is a type of ceramic capacitor that consists of multiple layers of ceramic dielectric material and metal electrodes stacked alternately. These capacitors are widely used in electronic circuits for filtering, decoupling, timing, and energy storage due to their small size, high reliability, and excellent electrical performance.
1. Structure & Composition
An MLCC is constructed as follows:
- Dielectric Layer: Made of ceramic materials (e.g., BaTiO₃ for high capacitance).
- Electrodes: Typically made of nickel (Ni) or silver-palladium (Ag-Pd) for internal layers, with external terminations of silver (Ag) or tin (Sn).
- Terminations: Provide electrical connection to the circuit board (e.g., solderable coatings).
2. Key Characteristics
- High Capacitance Density: Achieved by stacking many thin layers.
- Low ESR/ESL: Excellent high-frequency performance.
- Small Size: Available in tiny surface-mount packages (e.g., 0201, 0402, 0603).
- Wide Capacitance Range: From pF (picofarads) to μF (microfarads).
- Voltage Ratings: From a few volts to the kV range.
- Temperature Stability: Class I (NP0/C0G) for stability, Class II (X7R, X5R, Y5V) for higher capacitance.
Key Types of MLCCs (Multi-Layer Ceramic Capacitors)
MLCCs are classified primarily by their dielectric materials, which influence stability, capacitance, and application suitability. The Electronics Industries Alliance (EIA) standards divide them into Class I, II, and III, each with distinct characteristics tailored to specific needs.
1. Class I MLCCs (High Stability, Low Loss)
Dielectric Type: NP0 (C0G)
Characteristics:
- Ultra-stable capacitance over temperature and voltage.
- Very low losses (tan δ < 0.001).
- Low capacitance range (typically 1pF to 100nF).
- No aging effect (capacitance does not degrade over time).
Applications:
- High-frequency RF circuits (filters, oscillators).
- Timing circuits (crystal oscillators).
- Precision analog circuits (ADC/DAC decoupling).
2. Class II MLCCs (Moderate Stability, Higher Capacitance)
These offer higher capacitance but with some trade-offs in stability. Common types:
A. X7R
Temperature Range: -55°C to +125°C (±15% capacitance variation).
Voltage Stability: Good (better than X5R/Y5V).
Capacitance Range: 100pF to 22µF.
Applications:
- General-purpose decoupling in power supplies.
- Consumer electronics (motherboards, GPUs).
B. X5R
Temperature Range: -55°C to +85°C (±15% capacitance variation).
Voltage Stability: Worse than X7R but cheaper.
Capacitance Range: 100pF to 100µF.
Applications:
- Power supply filtering (low-cost applications).
- Automotive infotainment systems.
C. Y5V
Temperature Range: -30°C to +85°C (+22%/-82% capacitance variation).
Voltage Stability: Poor (large drop under DC bias).
Capacitance Range: 1nF to 100µF (highest in Class II).
Applications:
- Non-critical consumer electronics (toys, low-cost gadgets).
- Where cost matters more than stability.
3. Class III MLCCs (High Capacitance, Poor Stability)
Dielectric Types: Z5U, Y5V (sometimes grouped with Class II)
Characteristics:
- Very high capacitance but high losses (tan δ ~ 0.05–0.10).
- Extreme sensitivity to temperature, voltage, and aging.
- Mostly obsolete due to poor reliability.
Applications:
- Legacy electronics (mostly replaced by better Class II types).
Comparison Table of Key MLCC Types
Type | Dielectric | Temp Range | Cap Stability | Loss (tan δ) | Typical Use |
NP0 (C0G) | Class I | -55°C to +125°C | ±30ppm/°C | <0.001 | RF, Timing |
X7R | Class II | -55°C to +125°C | ±15% | ~0.025 | Decoupling, General |
X5R | Class II | -55°C to +85°C | ±15% | ~0.05 | Power Supplies |
Y5V | Class II/III | -30°C to +85°C | +22%/-82% | ~0.10 | Low-cost consumer |
Z5U | Class III | +10°C to +85°C | +22%/-56% | ~0.15 | Obsolete |
Applications of MLCCs (Multi-Layer Ceramic Capacitors)
MLCCs are among the most widely used passive components in modern electronics due to their compact size, high reliability, and excellent electrical properties.
1. Consumer Electronics
MLCCs are essential in portable and high-performance consumer devices:
Smartphones & Tablets
- Decoupling & Noise Filtering (CPU/GPU power rails).
- RF Signal Conditioning (5G/Wi-Fi/Bluetooth modules).
Laptops & PCs
- Motherboard Power Delivery (VRM decoupling).
- SSD/HDD Signal Integrity.
TVs & Displays
- EMI Suppression (HDMI/USB interfaces).
- Backlight Driver Circuits.
2. Automotive Electronics
MLCCs play a critical role in vehicle electrification and ADAS (Advanced Driver Assistance Systems):
- Engine Control Units (ECUs): Sensor Signal Filtering (O2, pressure, temperature sensors).
- Infotainment & Connectivity: Audio/Video Signal Conditioning.
- Electric & Hybrid Vehicles (EV/HEV): Battery Management Systems (BMS) and DC-DC Converter Noise Suppression.
- ADAS & Autonomous Driving: Radar/LiDAR Power Stabilization.
3. Power Electronics & Energy Systems
MLCCs help improve efficiency and stability in power conversion:
- Switched-Mode Power Supplies (SMPS): Input/Output Filtering (Buck/Boost converters).
- Renewable Energy Systems: Solar Inverters & Wind Turbine Controllers.
- Industrial Motor Drives: Snubber Circuits for Noise Reduction.
4. Telecommunications & 5G Infrastructure
High-frequency MLCCs (Class I NP0/C0G) are crucial for signal integrity:
- Base Stations & Antennas: RF Matching & Filtering.
- Optical Networking: High-Speed Data Line Conditioning.
- Satellite & Radar Systems: Low-ESR/ESL MLCCs for Stable Performance.
5. Medical & Industrial Equipment
MLCCs ensure reliability in harsh environments:
Medical Devices
- Implantable Devices (Pacemakers, Hearing Aids).
- Diagnostic Equipment (MRI, Ultrasound).
Industrial Automation
- PLC (Programmable Logic Controller) Noise Immunity.
- Robotics & Motion Control Systems.
6. Aerospace & Defense
High-reliability MLCCs are used in mission-critical systems:
- Avionics & Flight Control Systems.
- Military Radios & Secure Communications.
- Missile Guidance & UAV Electronics.
Selection Criteria for MLCCs (Multi-Layer Ceramic Capacitors)
Choosing the right MLCC for a specific application requires careful consideration of electrical, mechanical, and environmental factors. Below are the key parameters to evaluate when selecting an MLCC:
1. Capacitance Value & Tolerance
Required Capacitance:
- Low Capacitance (pF range): For timing, RF, and high-frequency circuits (use Class I NP0/C0G).
- Medium-High Capacitance (nF-µF range): For decoupling, filtering (use Class II X7R/X5R).
Tolerance:
- Tight tolerance (±5%, ±10%): Critical for precision circuits (e.g., oscillators).
- Wider tolerance (±20%): Acceptable for decoupling applications.
2. Voltage Rating (Rated & Operating Voltage)
Rated Voltage (V_DC): Must exceed the maximum expected voltage in the circuit.
DC Bias Effect:
- Class II MLCCs (X7R, X5R) lose capacitance under DC bias—check derating curves.
- For high-voltage applications, select HV MLCCs (≥500V).
3. Dielectric Type (Class I, II, III)
Dielectric | Stability | Temp Range | Best For |
NP0/C0G (Class I) | Ultra-stable | -55°C to +125°C | RF, Timing, Precision |
X7R (Class II) | Moderate | -55°C to +125°C | Decoupling, General Use |
X5R (Class II) | Moderate | -55°C to +85°C | Power Supplies |
Y5V (Class III) | Poor | -30°C to +85°C | Non-critical, Low-Cost |
4. Temperature Coefficient & Stability
- Class I (NP0/C0G): Near-zero temp coefficient (±30ppm/°C).
- Class II (X7R/X5R): ±15% over rated temp range.
- High-Temp MLCCs (X8R, X9M): For automotive/industrial (up to 150°C–200°C).
5. Package Size & Mounting
Common Sizes (EIA Codes):
- 01005 (0.4×0.2mm) – Ultra-compact (wearables).
- 0402 (1.0×0.5mm) – Smartphones, IoT.
- 0603 (1.6×0.8mm) – General-purpose.
- 1206 (3.2×1.6mm) – High-power/high-voltage.
Flex Crack Risk:
- Use soft-termination MLCCs for flexible PCBs.
- Avoid mechanical stress (follow PCB bending guidelines).
6. Equivalent Series Resistance (ESR) & Inductance (ESL)
- Low ESR/ESL: Critical for high-frequency decoupling (CPU/GPU power rails).
- Reverse-Geometry MLCCs: Reduce ESL in high-speed circuits.
7. Reliability & Environmental Factors
- Automotive (AEC-Q200): Vibration/shock-resistant.
- High-Humidity: Use silicone-coated or conformal-coated MLCCs.
- Aerospace/Military: MIL-PRF-55681 qualified.
8. Cost & Availability
- NP0/C0G: Expensive, used only where necessary.
- X7R/X5R: Best balance of cost & performance.
- Y5V: Cheap but unstable—avoid in critical circuits.
MLCC Selection Checklist
✅ Define Application Needs (Decoupling? Timing? RF?)
✅ Choose Dielectric Class (NP0, X7R, X5R, etc.)
✅ Check Voltage & Capacitance Requirements
✅ Select Package Size (0402, 0603, etc.)
✅ Verify Temperature & DC Bias Performance
✅ Consider ESR/ESL for High-Frequency Use
✅ Ensure Reliability Standards (AEC-Q200, MIL-SPEC)
Common Pitfalls to Avoid
❌ Ignoring DC Bias Effect (Capacitance drops under voltage).
❌ Overlooking Flex Cracking Risk (Use soft-termination for flexible PCBs).
❌ Mismatching Dielectric for Temperature Needs (X5R fails in high-temp automotive apps).
❌ Choosing the Wrong Size (Too large for compact designs, too small for power handling).
As the electronics industry continues to evolve, MLCCs remain at the heart of innovation, enabling advancements in 5G, AI, electric vehicles, and IoT. Their unmatched combination of miniaturization, high performance, and reliability makes them indispensable across industries—from consumer gadgets to mission-critical aerospace systems.
Looking ahead, key trends will shape MLCC development:
✔ Higher Capacitance in Smaller Packages (e.g., 01005 for wearables).
✔ Improved Materials (low-loss dielectrics for high-frequency 5G/6G).
✔ Enhanced Reliability (AEC-Q200 for automotive, MIL-SPEC for defense).
✔ Sustainability (lead-free, RoHS-compliant designs).
At Heeger Materials, we’re committed to pushing the boundaries of ceramic technology, providing cutting-edge MLCC solutions for tomorrow’s challenges. Stay ahead by choosing wisely—and innovating relentlessly.
