Quick answer: In vacuum electronics and electron beam instruments, thermionic cathode materials determine source brightness, operating temperature, vacuum tolerance, and emitter lifespan. Tantalum (Ta) provides rugged, low-cost emission in industrial electron beam melting and moderate vacuum (10-5 Torr). Yttrium oxide (Y2O3) coated onto non-reactive iridium discs enables robust emission in poor vacuum environments (10-4 Torr) resistant to oxygen poisoning. Barium oxide (BaO) dispenser cathodes achieve an exceptionally low work function (~2.0 eV) for long-lived microwave tubes, but require ultra-high vacuum (>10-7 Torr). Single-crystal lanthanum hexaboride (LaB6) delivers high brightness (106 A/cm2·sr), low energy spread (~1.5 eV), and a 2.69 eV work function at 1500–1600°C, making it the premier cathode for high-resolution scanning electron microscopy (SEM) and electron-beam lithography under ultra-high vacuum.
Thermionic electron emission governs the performance of electron beam welding units, scanning and transmission electron microscopes (SEM/TEM), surface analysis systems, X-ray generators, and traveling wave tubes. Selecting an optimal cathode material requires balancing the material's work function (Φ), operating temperature (T), required vacuum level, poisoning susceptibility, and beam brightness according to the Richardson-Dushman emission law.
Thermionic Emission Fundamentals and Key Cathode Parameters
Thermionic cathodes emit electrons when thermal energy overcomes the electrostatic potential barrier at the material surface. The saturated emission current density J is expressed by the Richardson-Dushman equation:
J = A0 T2 exp(−Φ / kB T)
where A0 is Richardson's constant, T is absolute temperature in Kelvin, Φ is the effective work function in electron-volts (eV), and kB is the Boltzmann constant. A lower work function exponentially increases electron emission current density at a given temperature, or conversely, allows the cathode to operate at a lower temperature while delivering comparable beam currents, thereby suppressing thermal evaporation and extending service life.
Comparative Analysis of the Four Primary Cathode Materials
1. Tantalum (Ta) Metal Cathodes: Rugged Refractory Emitters
Tantalum (Ta) is a refractory metal featuring a high melting point (3017°C), excellent ductility, and mechanical toughness. Compared to tungsten (W, Φ ~4.5 eV), tantalum exhibits a slightly lower work function (~4.2 eV), allowing operation at marginally reduced temperatures (1800–2000°C).
- Vacuum Requirements: Operates reliably in moderate industrial vacuum (~10-5 Torr / 10-3 Pa).
- Advantages: Economical, ductile, easily fabricated into hairpins, ribbons, and disc filaments, and highly resistant to mechanical shock and thermal cycling.
- Primary Applications: Industrial electron beam welding (EBW), electron beam physical vapor deposition (EBPVD) guns, and high-power melting furnaces where operating vacuum fluctuates.
2. Yttrium Oxide (Y2O3) Coated Iridium Cathodes: Poisoning Resistance
Yttrium Oxide (Y2O3) cathodes utilize an inert, non-oxidizing iridium (Ir) disc substrate coated with a fine ceramic layer of rare-earth yttria. The Y2O3/Ir system delivers an effective work function of approximately 2.6 to 3.0 eV.
- Vacuum Tolerance: Exceptional resilience in poor vacuum conditions (~10-4 Torr / 10-2 Pa), resisting permanent deactivation from hydrocarbon vapor or atmospheric leaks.
- Burn-Out and Poisoning Resistance: Unlike refractory tungsten or tantalum which burn out catastrophically when exposed to air while hot, Y2O3/Ir cathodes can survive accidental vacuum venting without irreversible destruction. Once high vacuum is restored, the yttria emission surface rapidly regenerates.
- Primary Applications: Mass spectrometers, residual gas analyzers (RGA), ionization vacuum gauges, and analytical instruments exposed to reactive process gases.
3. Barium Oxide (BaO) Dispenser Cathodes: Low Work Function
Barium oxide dispenser cathodes consist of a porous refractory tungsten matrix impregnated with barium aluminate (BaO-CaO-Al2O3). During thermal activation, free barium diffuses to the surface, creating a polarized Ba-O dipole monolayer that lowers the surface work function to ~2.0 eV.
- Low Operating Temperature: Emits substantial current densities (1 to 10 A/cm2) at moderate temperatures of only 950°C to 1150°C.
- Poisoning Sensitivity: Highly vulnerable to water vapor, oxygen, and halogen poisoning. Activation and continuous operation strictly demand clean ultra-high vacuum (UHV ≥ 10-7 Torr / 10-5 Pa).
- Lifespan: Under stable UHV conditions and controlled cathode loading, service lifetimes exceed several thousand to tens of thousands of hours.
- Primary Applications: Traveling wave tubes (TWT), klystrons, high-power microwave amplifiers, linear electron accelerators, and CRT projection guns.
4. Lanthanum Hexaboride (LaB6) Single-Crystal Cathodes: High Brightness SEM Sources
Lanthanum Hexaboride (LaB6) is an advanced refractory ceramic characterized by a rigid boron octahedral cubic cage structure hosting lanthanum atoms. Oriented single crystals (typically <100> or <310> crystalline facets) provide an exceptionally low work function of 2.69 eV coupled with high chemical resistance and low thermal volatility.
- Beam Brightness and Energy Spread: LaB6 delivers source brightness (~106 A/cm2·sr) 5 to 10 times higher than standard tungsten hairpins, with a tight energy spread (~1.5 eV) and small virtual source crossover size.
- High-Vacuum Requirement: Requires ultra-high vacuum (10-7 to 10-8 Torr / 10-5 to 10-6 Pa) to prevent surface oxidation into volatile boron oxides and premature carbon-crucible chemical degradation.
- Extended Longevity: When mounted in a pyrolytic graphite/carbon heater assembly and maintained at 1500–1600°C, LaB6 cathodes provide 1000 to 3000 operating hours with minimal tip erosion. Explore specialized LaB6 hollow cathodes for plasma and ion propulsion.
Temperature Emission Comparison: LaB6 vs. Ta vs. Tungsten (W)
The comparative thermionic emission curves below demonstrate the dramatic emission density advantages of lanthanum hexaboride over metallic tantalum and tungsten across elevated temperature ranges:

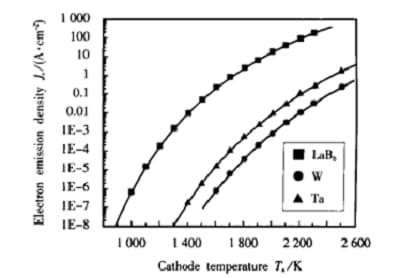

Figure 1: Electron emission current density (J, A/cm2) as a function of absolute cathode temperature (T, K) for single-crystal LaB6, tantalum (Ta), and tungsten (W).
As indicated in the Richardson emission plot:
- At 1800 K (~1527°C), LaB6 achieves an emission current density exceeding 1 A/cm2, whereas tungsten emits less than 10-4 A/cm2 and tantalum emits approximately 10-3 A/cm2.
- To match the emission output of LaB6, a metallic tungsten filament must be heated above 2600 K (~2327°C), which accelerates tungsten evaporation and dramatically shortens filament life.
- Tantalum consistently outperforms pure tungsten at intermediate temperatures, providing higher emission current densities under lower thermal power input.
Comprehensive Engineering Selection Matrix
The table below summarizes the critical physical, operational, and performance parameters for cathode specification:
| Cathode Material | Effective Work Function (Φ) | Operating Temperature | Required Operating Vacuum | Typical Source Brightness | Poisoning Sensitivity | Primary Application Field |
|---|---|---|---|---|---|---|
| Tantalum (Ta) | ~4.12–4.25 eV | 1700–2000°C | 10-5 Torr (Moderate) | ~104 A/cm2·sr | Low (Robust against moderate gas exposure) | EB welding, EBPVD coating guns, industrial melting |
| Yttrium Oxide (Y2O3/Ir) | ~2.60–3.00 eV | 1300–1600°C | 10-4 Torr (Poor vacuum tolerant) | ~104–105 A/cm2·sr | Very Low (Survives atmospheric air exposure) | Mass spectrometry, RGA gauges, vacuum sensors |
| Barium Oxide (BaO Dispenser) | ~1.95–2.10 eV | 950–1150°C | 10-7 Torr (Clean UHV required) | ~105 A/cm2·sr | High (Poisoned by water vapor, oxygen, organics) | Microwave tubes (TWT, klystrons), particle accelerators |
| Lanthanum Hexaboride (LaB6) | ~2.69 eV (<100>) | 1450–1650°C | 10-7 to 10-8 Torr (Clean UHV) | ~106 A/cm2·sr | Moderate (Susceptible to oxygen erosion at high T) | SEM / TEM microscopy, e-beam lithography, hollow cathodes |
Frequently Asked Questions
| Question | Technical Answer |
| Why is work function (Φ) the most critical parameter in thermionic cathode selection? | Work function represents the minimum energy required to extract an electron from the cathode surface into vacuum. Because emission current density scales exponentially with negative work function divided by temperature, lower work function materials produce high emission current densities at substantially lower operating temperatures, reducing thermal evaporation, heater power, and instrument thermal drift. |
| Why cannot LaB6 cathodes operate in poor vacuum environments? | At typical operating temperatures of 1500–1600°C, residual oxygen, water vapor, and reactive hydrocarbons chemically etch the lanthanum hexaboride crystal, forming volatile boron oxides that erode the emitter tip and alter emission uniformity. Clean ultra-high vacuum (≥ 10-7 Torr) is mandatory to preserve tip radius and ensure stable emission. |
| What makes Y2O3-coated iridium cathodes unique compared to metallic filaments? | Y2O3/Ir emitters resist catastrophic oxidation. While metallic tantalum or tungsten filaments burn out instantly if exposed to atmosphere or rough vacuum when heated, an iridium-yttria cathode temporarily ceases emission but will fully regenerate its emission capacity once proper high vacuum is re-established. |
| When should an engineer select tantalum instead of tungsten or LaB6? | Tantalum is preferred in heavy industrial electron-beam systems (such as metallurgical melting or thick-plate welding) where operating vacuum is around 10-5 Torr, mechanical vibration or thermal shock is common, and budget constraints prioritize economical, ductile filaments over micro-scale beam brightness. |
Cathode Material Sourcing and Technical Consultation
Selecting the right cathode material requires optimizing work function, vacuum operating window, and emitter geometry. Explore our high-purity Lanthanum Hexaboride (LaB6) Materials, Tantalum Metals, Refractory Metals, and Rare Earth Materials. For custom crystal orientations, hollow cathode designs, or high-purity oxide powders, contact our engineering specialists via the Heeger Materials contact page.
