What Are Sputtering Targets? Materials, Forms, and Selection Guide

Sputtering targets are solid source materials used in physical vapor deposition (PVD) to form thin films on a substrate. In a vacuum chamber, ions from a plasma strike the target surface and eject atoms or molecules. Those particles travel through the process gas and condense on the substrate as a film. The target therefore influences film composition, deposition stability, contamination risk, and usable target life.

How does sputtering work?

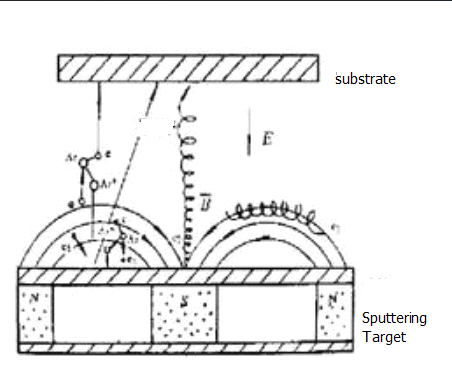

During sputtering, a low-pressure process gas is ionized to create a plasma. The positive ions are accelerated toward a negatively biased target. When the ions transfer enough momentum to the surface, target atoms are released and move toward the substrate. A magnetron can help confine electrons near the target surface, increasing plasma efficiency and supporting a more stable deposition process.

The deposited film is affected by more than the target material alone. Gas composition and pressure, applied power, substrate temperature, target-to-substrate distance, substrate motion, and deposition time all influence the result. For reactive sputtering, a gas such as oxygen or nitrogen can also react with the sputtered species during deposition. Process development should therefore match the target specification to the equipment and the intended film.

What materials are used for sputtering targets?

Sputtering targets are made from metals, alloys, ceramics, compounds, and other engineered compositions selected for the required film chemistry and function.

• Pure metals: Used when the deposited film requires a single metallic element, such as aluminum, titanium, tantalum, molybdenum, tungsten, gold, or other selected metals.
• Alloys: Used when the film needs a controlled combination of elements. The nominal alloy composition and the allowed compositional variation should be defined before ordering.
• Oxides and other ceramic compounds: Used for insulating, transparent, dielectric, optical, electronic, and other functional films. Ceramic targets require attention to phase, density, brittleness, and sputtering mode.
• Specialty and single-crystal materials: Used when crystal structure, orientation, or a tightly controlled composition is important to the deposition study.

Browse Heeger Materials' current sputtering target category for material-specific options. The broader deposition materials category also includes related source materials for thin-film processing.

Which sputtering target forms are available?

Target geometry must match the cathode, magnet assembly, power level, and usable area of the deposition system. Common forms include:

• Circular or disc targets: Used in many planar magnetron cathodes and laboratory systems.

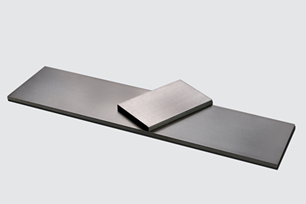

• Rectangular targets: Used in rectangular cathodes and larger-area coating equipment. Long targets may be designed as segments for handling and installation.

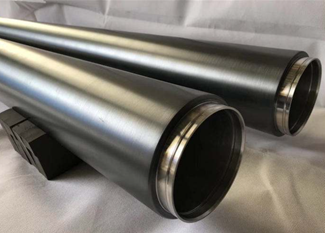

• Rotary or tubular targets: Used in systems designed around a rotating cylindrical cathode. The process and cooling design should be confirmed before specifying the target.
• Custom geometries: Used when the equipment requires a non-standard outline, hole pattern, thickness, or interface.

Dimensions are not interchangeable between systems. A quote should identify the target shape, diameter or length and width, thickness, hole pattern, edge treatment, and any drawing or equipment reference.

Why do density and bonding matter?

Target density and internal integrity affect how a material behaves during sputtering. Porosity, inclusions, cracks, or large variations in composition can contribute to unstable erosion, particles, arcing, or non-uniform film deposition. The relevant acceptance criteria depend on the material, target manufacturing route, equipment, and application.

Many planar targets are attached to a backing plate to transfer heat and provide mechanical support. The bond must be compatible with the target, backing plate, operating temperature, power, cooling arrangement, and process environment. Heeger Materials describes target bonding service options on its current site. A bonding inquiry should include the target dimensions, backing plate material, expected power, cooling conditions, and any temperature or vacuum constraints.

How should a sputtering target be specified?

A clear target specification reduces quotation errors and makes process qualification easier. Include the following information when it is relevant to the application:

1. Material and composition: State the element, alloy, compound formula, nominal composition, and acceptable deviation.
2. Purity and impurities: Define the purity basis and list critical impurity limits when trace contamination can affect the film.
3. Target form and dimensions: Provide the shape, diameter or length and width, thickness, hole pattern, and drawing revision.
4. Density and microstructure: State the required density, porosity limit, grain-size expectation, phase composition, or other material-control requirement.
5. Backing and bonding: Identify whether a backing plate is required, which material is preferred, and whether the target should be supplied bonded or unbonded.
6. Surface and cleanliness: Define surface finish, flatness, roughness, cleaning, edge condition, and packaging requirements where they affect the process.
7. Deposition process: Identify DC, RF, pulsed DC, or reactive sputtering, along with the cathode type, cooling method, and intended film.
8. Documentation and quantity: State the required quantity and whether a certificate of analysis, material certificate, safety data sheet, inspection report, or other documentation is needed.

How do you choose between a standard and custom target?

A standard target may be suitable when the composition, geometry, and interface match an existing cathode and the application has ordinary documentation requirements. A custom target is more appropriate when the equipment uses a special geometry, the film requires a particular composition or orientation, the target needs a backing plate or bond, or the process has strict density, impurity, surface, or packaging requirements.

For epitaxial, single-crystal, or orientation-sensitive work, specify the crystal type and orientation in addition to the normal material and dimensional requirements. Heeger Materials maintains a separate single-crystal sputtering target category for this type of inquiry.

FAQ

What is the difference between a sputtering target and a substrate?

The target is the source material that is sputtered. The substrate is the surface that receives the deposited film. They are separate parts of the deposition system and are specified for different functions.

Can the same target be used in every sputtering system?

No. Target shape, dimensions, thickness, backing, bonding, cooling, power mode, and cathode interface must match the equipment. Confirm the system drawing or OEM requirements before ordering.

Does higher purity always produce a better film?

Higher purity can reduce some contamination risks, but the appropriate requirement depends on the film, process, substrate, and allowable impurity levels. Purity should be specified together with critical impurity limits and the intended deposition conditions.

What information should be included in a sputtering target inquiry?

Provide the material or composition, purity, target geometry, dimensions, thickness, density or phase requirements, backing plate and bonding preference, deposition process, quantity, and documentation requirements.

Well-defined target specifications connect the material choice to the deposition equipment and the film objective. For a technical quotation, provide the cathode details and drawing whenever possible so that geometry, backing, bonding, and documentation can be reviewed together.
