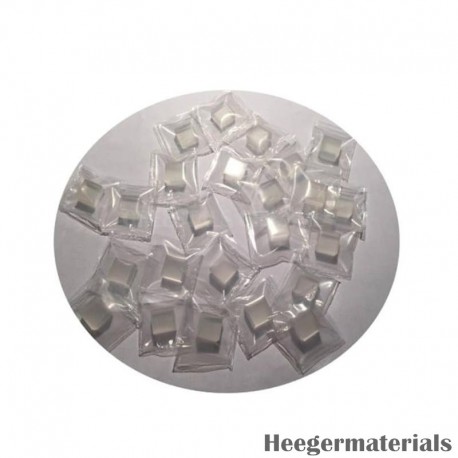

Sodium Chloride Crystal Substrate | NaCl Crystal Substrate
HM2931
New product
Sodium Chloride (NaCl) Crystal Substrate is a highly transparent material with excellent infrared transmission, making it ideal for optical components, spectroscopy, and thin-film deposition. Heeger Materials is a professional supplier and manufacturer of high-quality Sodium Chloride Crystal Substrate, offering customized solutions and competitive prices.
Please contact us if you need customized services. We will contact you with the price and availability in 24 hours.
Data sheet
| Density | 2.16 g/cm3 |
| Molecular Formula | NaCl |
More info
Sodium Chloride (NaCl) Crystal Substrate is widely used in optical and scientific applications due to its high transparency in the infrared spectrum. It is commonly utilized in infrared spectroscopy, optical windows, and X-ray optics. NaCl substrates provide a smooth, stable surface for thin-film deposition and epitaxial growth, making them valuable in material science and optical coatings. However, NaCl is highly hygroscopic and requires proper handling and storage to maintain its quality. With its excellent optical properties and broad applications, NaCl Crystal Substrate is essential for advanced optical and research applications. Heeger Materials provides high-quality NaCl Crystal Substrate to meet various industrial and scientific needs.
Sodium Chloride Crystal Substrate | NaCl Crystal Substrate Selection Notes
Sodium Chloride Crystal Substrate | NaCl Crystal Substrate belongs to the halide crystal substrate range and is selected for controlled halide composition, orientation, dimensions, optical surface quality, moisture sensitivity and protective packaging. It is commonly used in infrared and ultraviolet optics, spectroscopy, detector windows, thin-film research, thermoluminescent dosimetry and optical experiments. When requesting a quote, confirm halide composition, orientation, dimensions, thickness, surface finish or cleavage, coating when applicable, moisture protection, packaging and quantity.
Related Materials and Product Forms
For material comparison or adjacent product forms, browse infrared crystals, single crystal substrates, crystals and substrates and Halide Crystal Substrates.
FAQ
How should Sodium Chloride Crystal Substrate | NaCl Crystal Substrate be specified and packaged? Please provide composition, orientation, dimensions, thickness, surface finish or cleavage, coating, moisture sensitivity, protective packaging, quantity and intended optical or dosimetry use.
Sodium Chloride Crystal Substrate Properties
| Crystal Structure | Cubic |
| Growth Method | Crystallization Method |
| Lattice Constant | a = 5.642 Å |
| Density | 2.16 g/cm³ |
| Transmission Band | 0.25–22.00 µm |
| Refractive Index (nᵈ) | 1.54427 |
| Transmittance (T) | 0.90 |
| Nf (Impurity Absorption Peak) | 0.01270 |
Sodium Chloride Crystal Substrate Specifications
Surface Quality/Roughness | 80/50, <30nm |
Deliquescence | This crystal is water-soluble and highly deliquescent, hence chemical polishing is not suitable. |
Crystal Orientation | <111>, <110>, <100> |
Dimensions | 10×10×2.0mm, 20×20×2.0mm |
Customization | Special processing for customer-specified orientations and dimensions available. |
Polishing | Single-side or double-side polished |
Sodium Chloride Crystal Substrate Applications
- Infrared Spectroscopy: Used as an optical window and substrate in IR spectroscopy due to its excellent infrared transmission.
- Optical Windows and Lenses: Applied in optical systems requiring high transparency in the IR and visible ranges.
- X-ray Optics: Serves as a substrate material for X-ray diffraction and imaging applications.
- Thin-Film Deposition: Provides a stable and smooth surface for thin-film growth in optical and electronic applications.
- Material Science Research: Utilized in crystallography, solid-state physics, and other advanced scientific studies.
Sodium Chloride Crystal Substrate Packing And Shipping
Sodium Chloride (NaCl) Crystal Substrate will be securely packaged in sturdy containers with cushioning materials to prevent movement or damage during shipping. This careful packaging ensures that the product arrives in perfect condition, maintaining its high-quality standards throughout the delivery process.
Where to Buy Sodium Chloride (NaCl) Crystal Substrate in Bulk?
Heeger Materials Inc., a professional supplier and manufacturer of high-quality Halide Crystal Substrates products including Sodium Chloride (NaCl) Crystal Substrate, leverages extensive expertise in supply and export to offer competitive prices. We provide customized solutions to meet specific requirements, ensuring exceptional quality and customer satisfaction.
