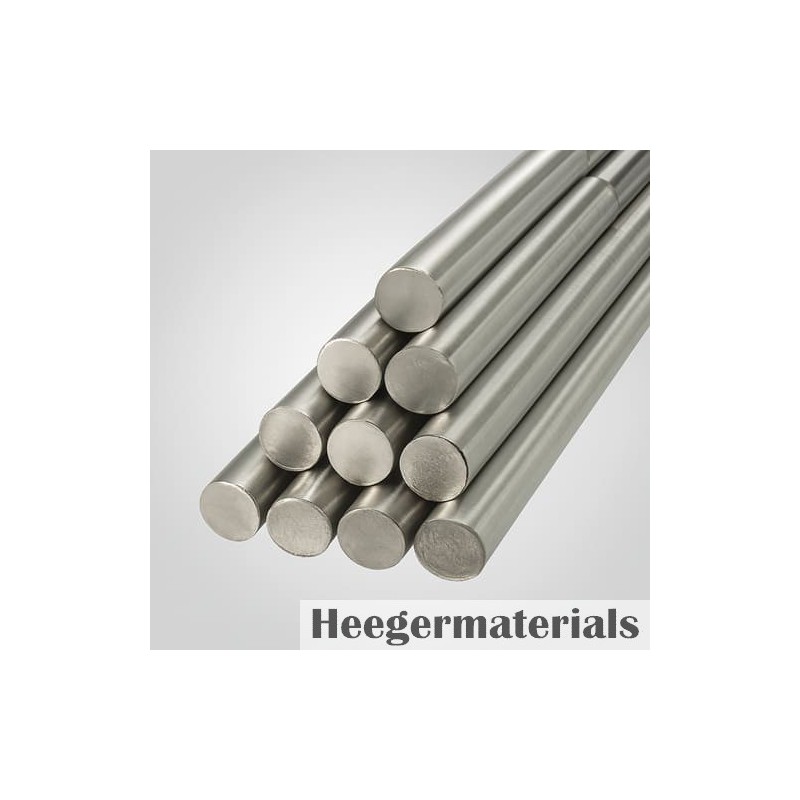

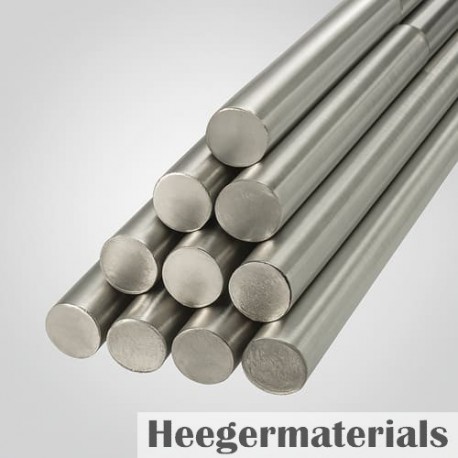

Hiperco 50A Rod, Soft Magnetic Alloys

Reference: HM3182

Condition: New product

Hiperco 50A Rod is a Fe-Co-V soft magnetic alloy rod for high-flux motors, actuators, generators, magnetic cores and precision electromagnetic assemblies. Heeger Materials supplies custom diameters, lengths, heat-treatment conditions, surface finish and testing documentation.

More details

Inquiry

Please contact us if you need customized services. We will contact you with the price and availability in 24 hours.

Data sheet

Diameter	Customized
Density	8.15 g/cm3
Materials	FeCo49V2

More info

Hiperco 50A is a soft magnetic alloy material composed of iron, cobalt, and vanadium. Hiperco 50A Rod is renowned for its exceptionally high saturation flux density, outstanding permeability, and good mechanical strength. It is the ideal material developed for demanding electromagnetic applications that require high efficiency, high power density, and compact design. Available in a wide range of specifications and forms, HM's Hiperco 50A products meet the highest standards of quality and reliability for demanding applications.

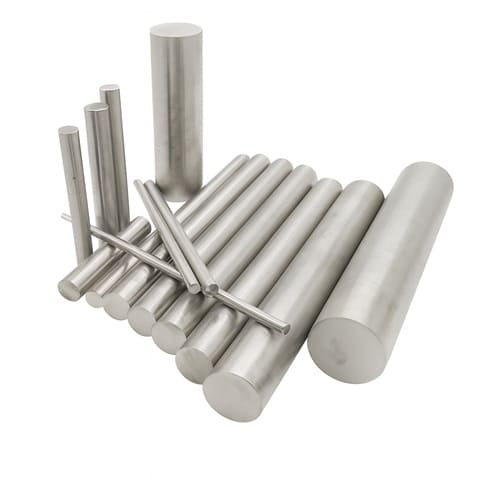

Hiperco 50A Rod, Soft Magnetic Alloys

Hiperco 50A Rod Chemical Composition

Specification note: Specify Fe-Co-V chemistry, rod diameter, length, tolerance, straightness, heat-treatment condition, magnetic property target, surface finish, inspection standard and quantity.

Chemical Composition (%)
C	Mn	Si	P	S	Cu	Ni	Co	V	Fe
≤0.04	≤0.30	≤0.30	≤0.020	≤0.020	≤0.20	≤0.50	49.0~51.0	0.80~1.80	Balance

Hiperco 50A Rod Physical Properties

Physical Properties
Resistivity (μΩ•m)	Density (g/cm3)	Curie point(°C)	Magnetostriction Coefficient (×10^-6)	Tensile Strength (N/mm2)
				Unannealed	Annealed
0.40	8.20	980	60~100	1325	490

Hiperco 50A Rod Magnetic Properties After Heat-Treatment

DC Magnetic Property Requirements After Heat-Treatment
Type	Minimum Magnetic Flux Density for Different Magnetic Field Strengths (T)						Coercive force Hc / (A/m)
Type	B400	B800	B1600	B2400	B4000	B8000
Cold-rolled Strips	1.70	1.90	2.00	2.10	2.20	2.25	≤110
Wires, Forgings, Billets, Bars	1.60	1.70	1.80	2.05	2.15	2.20	≤144

Hiperco 50A Rod Key Features

Extremely High Saturation Flux Density (2.4 T): One of the highest among all soft magnetic materials, enabling very high magnetic flux density, which significantly reduces the size and weight of electromagnetic components.
High Permeability: Allows for rapid and efficient establishment and concentration of magnetic fields, improving device responsiveness and energy efficiency.
Excellent DC Magnetic Properties: Delivers superior performance in DC or low-frequency applications with minimal energy loss.
Good Machinability: Compared to other alloys in its class, Hiperco® 50A rod is easier to machine, including turning, milling, and drilling, facilitating the manufacture of complex components.

Hiperco 50A Rod Applications

High-flux magnetic cores, pole pieces and solenoid components.
Aerospace actuators, generators and compact motor assemblies.
Magnetic bearings, sensors and laboratory electromagnetic fixtures.

Aerospace Motors and Generators (rotor, stator laminations)
High-Power-Density Transformer and Inductor Cores
Electromagnetic Pole Pieces and Magnetic Lenses
High-Performance Loudspeaker Motor Systems
Various demanding Electromagnetic Actuators and Sensors

Hiperco 50A Rod Packing And Shipping

Packaging note: Rods can be protected with sleeves, separators and rigid cartons or crates according to length, finish and export shipping requirements.

Hiperco 50A Rod is securely packed in wooden crates or cartons, reinforced with cushioning materials to prevent movement during transit. This packaging approach ensures that the products remain intact and protected throughout the shipping process.

Hiperco 50A Rod Packing

Where to Buy Hiperco 50A Rod in Bulk?

Heeger Materials Inc., a professional supplier and manufacturer of high-quality Refractory Metal products including Hiperco 50A Rod, leverages extensive expertise in supply and export to offer competitive prices. We provide customized solutions to meet specific requirements, ensuring exceptional quality and customer satisfaction.

Heeger Materials Inc. was established in 2016 in Colorado, USA. We specialize in premium-grade metals, alloys, ceramics, powders, and other materials catering to research, development, and large-scale industrial production in scientific and industrial sectors.
