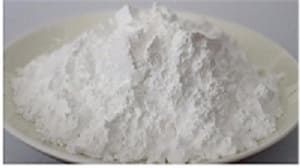

Ytterbium Oxide Yb2O3 Powder

HTRE921

New product

Ytterbium Oxide Yb2O3 is applied in petroleum and environment protection catalysts, mischmetal, polishing powders and Rare Earth fertilizers. Heeger Materials (HM) provides Ytterbium Oxide Yb2O3 at a competitive price. The purity and particle size can be customized.

More details

Inquiry

Please contact us if you need customized services. We will contact you with the price and availability in 24 hours.

Data sheet

MF Yb2O3
MW 394.08
Purity 99.9999%/99.999%/99.99%/99.9%
CAS 1314-37-0
Synonyms YtterbiumOxid/Oxyde De Ytterbium/Oxido Del Yterbio

More info

HM stocks a wide variety of rare earth materials for use in electronics, petrochemical, metallurgy, machinery, energy, environmental protection, agriculture, and other fields. We also offer pure metals and compounds for R&D applications.

Ytterbium Oxide (Yb2O3) Powder

  • Yb2O3
  • 99.9 %-99.999%
  • Chemical formula: Yb2O3
  • Molar mass: 394.08 g/mol
  • Appearance: White solid.
  • Density:  9.17 g/cm3, solid.
  • Melting point: 2,355 °C (4,271 °F; 2,628 K)
  • Boiling point: 4,070 °C (7,360 °F; 4,340 K)
  • Solubility in water: Insoluble
  • Crystal structure: Cubic

Ytterbium Oxide Yb2O3 Powder Application

Ytterbium Oxide, also called Ytterbia, is being applied to numerous fiber amplifier and fiber optic technologies, High purity Ytterbium Oxide are widely applied as a doping agent for garnet crystals in lasers an important colorant in glasses and porcelain enamel glazes. As Ytterbium Oxide has a significantly higher emissivity in the infrared range than Magnesium Oxide, higher radiant intensity is obtained with Ytterbium-based payloads in comparison to those commonly based on Magnesium/Teflon/Viton (MTV).

Ytterbium Oxide Yb2O3 Powder Specification

Grade 99.9999% 99.999% 99.99% 99.9%
CHEMICAL COMPOSITION
Yb2O3 /TREO (% min.) 99.9999 99.999 99.99 99.9
TREO (% min.) 99.9 99 99 99
Loss On Ignition (% max.) 0.5 0.5 1 1
Rare Earth Impurities ppm max. ppm max. ppm max. % max.
Tb4O7/TREO
Dy2O3/TREO
Ho2O3/TREO
Er2O3/TREO
Tm2O3/TREO
Lu2O3/TREO
Y2O3/TREO		 0.1
0.1
0.1
0.5
0.5
0.5
0.1		 1
1
1
5
5
1
3		 5
5
10
25
30
50
10		 0.005
0.005
0.005
0.01
0.01
0.05
0.005
Non-Rare Earth Impurities ppm max. ppm max. ppm max. % max.
Fe2O3
SiO2
CaO
Cl-
NiO
ZnO
PbO		 1
10
10
30
1
1
1		 3
15
15
100
2
3
2		 5
50
100
300
5
10
5		 0.002
0.01
0.02
0.05
0.001
0.001
0.001
