Overview
Ball bearings are critical components in a wide range of mechanical systems, designed to reduce friction and allow smooth rotational motion. They are used in various industries, from automotive and aerospace to industrial machinery and electronics, providing efficiency and enhancing performance. The material choice for ball bearings is paramount, as it directly impacts their durability, wear resistance, load capacity, and overall performance. Zirconia ceramic balls and steel balls are two of the most commonly used materials, each offering unique advantages depending on the specific application. In this article, we will explore the key differences between zirconia ceramic balls and steel balls in bearings, helping you make an informed decision when selecting the right material for your needs.
At Heeger Materials, we specialize in high-quality zirconia ceramic balls, ensuring optimal performance for industrial and scientific applications.

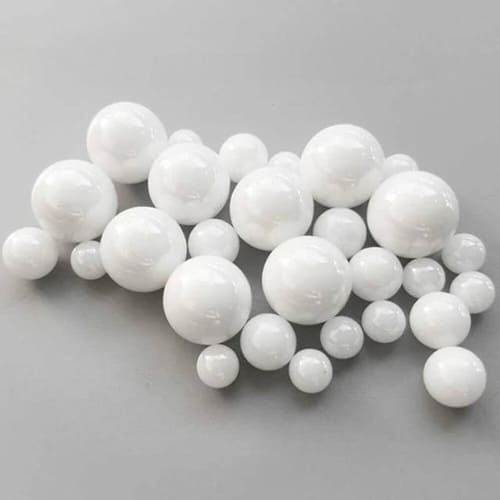

Composition and Characteristics of Zirconia Ceramic Balls
Zirconia ceramic balls are primarily made from zirconium dioxide (ZrO₂), a highly stable and strong ceramic material. These balls are produced through a sintering process, where zirconia powder is heated to very high temperatures, forming a solid, dense structure. Zirconia is known for its high fracture toughness and resistance to thermal shock, which makes it a preferred choice for high-performance applications. In addition, it exhibits excellent hardness, often approaching that of diamond, and it is lightweight, reducing the load on rotating parts. Another key characteristic is its low thermal expansion, which helps maintain dimensional stability in fluctuating temperatures.
Characteristic | Zirconia Ceramic Balls |
Main Composition | Zirconium Dioxide (ZrO₂) |
Density | 6.00 - 6.10 g/cm³ |
Hardness (Vickers) | 1200 - 1300 HV |
Fracture Toughness | 8 - 10 MPa·m^1/2 |
Young’s Modulus | 200 - 210 GPa |
Poisson’s Ratio | 0.31 - 0.34 |
Thermal Expansion | 10.5 - 11.5 × 10⁻⁶ /°C (20-1000°C) |
Maximum Operating Temperature | 800 - 1000°C (depending on specific zirconia grade) |
Surface Roughness (Ra) | < 0.1 µm (polished surface) |
Electrical Resistivity | > 10¹⁴ Ω·cm |
Corrosion Resistance | Excellent, no rusting or degradation in harsh chemicals |
Wear Resistance | High, typically 3 to 4 times better than steel balls |
Thermal Conductivity | 2.5 - 3 W/m·K |
Tensile Strength | ~ 1000 MPa (in bending tests) |
Advantages of Zirconia Ceramic Balls in Bearings
- High Hardness: Zirconia ceramic balls are extremely hard, which allows them to withstand significant wear over time. Their hardness helps prevent surface damage, making them ideal for applications requiring precise motion and minimal friction.
- Wear Resistance: These balls have excellent wear resistance, ensuring a longer lifespan for bearings, even under heavy loads or high-speed rotations. The smooth surface of zirconia balls reduces the risk of surface degradation and reduces maintenance costs.
- Corrosion Resistance: One of the standout features of zirconia ceramic balls is their exceptional corrosion resistance. Unlike steel balls, zirconia does not rust or corrode when exposed to moisture or harsh chemicals, making it ideal for use in environments that involve corrosive substances, such as pharmaceuticals, food processing, and marine applications.
- Thermal Stability: Zirconia balls can perform well in high-temperature environments, making them suitable for applications in industries such as automotive and aerospace, where bearings may be exposed to extreme heat.
Types of Steel Used for Ball Bearings
Steel Type | Composition | Properties | Common Grades |
Carbon Steel | Mixture of carbon and iron. | Good balance of hardness, strength, and wear resistance. More susceptible to corrosion, may require a protective coating. | 100C6 |
Stainless Steel | Contains iron, carbon, and at least 10.5% chromium, providing corrosion resistance. | Excellent corrosion resistance, high strength, and withstands high temperatures. Ideal for oxidation-resistant applications like the marine and food industries. | AISI 440C, 304, 316 |
Chrome Steel | High-carbon steel alloy with chromium. | Excellent hardness, strength, and wear resistance. Ideal for high-precision and high-load bearing applications. | 52100 |
Alloy Steel | Contains elements like nickel, manganese, and chromium to increase strength, hardness, and toughness. | Higher resistance to wear, ideal for harsh conditions and heavy-duty applications. | - |

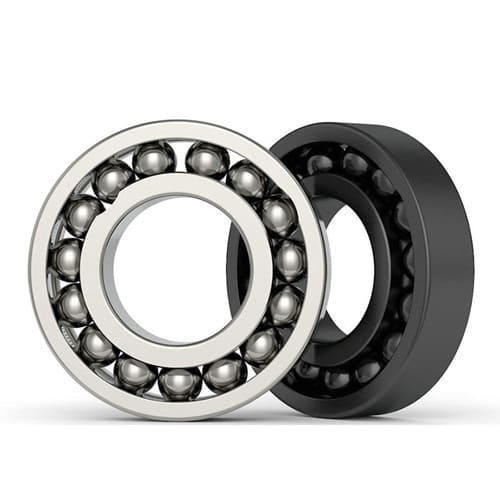

Benefits of Steel Balls in Bearings
- Strength and Durability: Steel balls, particularly those made from chrome and carbon steel, provide high strength and durability, making them capable of withstanding heavy loads and high-impact forces over time.
- Cost-Effectiveness: Compared to ceramic balls, steel balls are typically more cost-effective, making them a popular choice for a wide range of industrial and commercial applications.
- Wear Resistance: Steel balls have good wear resistance, particularly when made from high-carbon or chrome steel, which prolongs the service life of bearings.
- Precision and Consistency: Steel balls are manufactured with high precision, ensuring that they maintain their shape and size even under repeated use. This consistency helps bearings operate smoothly.
Performance Comparison: Zirconia Ceramic Balls vs. Steel Balls
Category | Zirconia Ceramic Balls | Steel Balls |
Durability and Wear Resistance | Extremely durable and wear-resistant, high hardness, minimal surface degradation. | Good durability but more prone to wear and surface damage over time. |
High-Temperature and Corrosive Environment Performance | Can withstand high temperatures (up to 1000°C) and resist chemical corrosion. | Limited heat resistance, softens at high temperatures, more prone to corrosion. |
Cost and Long-Term Value | Higher initial cost, but long-term value due to reduced replacement and maintenance costs. | Lower upfront cost, but higher maintenance and replacement costs over time. |
Noise and Vibration Levels | Produces less noise and vibration due to its smooth surface and high density. | Produces more noise and vibration, especially under high loads. |
Best Use Cases for Zirconia Ceramic Balls
Zirconia ceramic balls are known for their superior durability, high resistance to wear, and excellent performance in demanding environments. Below are some of the best use cases:
- High-Speed Bearings
- Zirconia ceramic balls are commonly used in high-speed bearings due to their low friction, high hardness, and ability to withstand higher speeds without degrading.
- Medical Devices
- Due to their biocompatibility and resistance to corrosion, zirconia ceramic balls are used in various medical applications, such as prosthetic joints or dental implants.
- Aerospace and Precision Equipment
- The ability of zirconia ceramic balls to maintain integrity in extreme conditions makes them suitable for aerospace and high-precision equipment that operates in harsh environments.
- Ball Valves
- Zirconia ceramic balls are ideal for applications like ball valves, where durability, resistance to corrosion, and the ability to function under high pressure are crucial.
- Chemical Processing Chemical Processing
- Zirconia’s resistance to aggressive chemicals makes it suitable for applications in chemical processing industries where exposure to harsh substances is common.
Best Use Cases for Steel Balls
Steel balls are widely used due to their strength, cost-effectiveness, and versatility in a variety of applications. Here are some of the best use cases:
- Automotive Applications
- Steel balls are frequently used in car parts such as gear systems, clutches, and ball bearings, where strength and high load-bearing capacity are essential.
- Industrial Bearings
- Steel balls are commonly found in industrial machinery and mechanical systems, where they provide a balance between cost and performance for both high- and low-load environments.
- Conveyor Systems
- Steel balls are often used in conveyor systems due to their reliability and ability to withstand repeated use under varying loads.
- Agricultural Machinery
- Steel balls are utilized in agricultural machinery components, especially in parts exposed to dirt, moisture, and varying temperatures.
- Grinding Media
- Steel balls are frequently used in grinding and milling operations due to their hardness, making them suitable for the grinding of minerals, ores, and other materials.
Decision Factors for Choosing the Right Material for Specific Applications
Decision Factor | Zirconia Ceramic Balls | Steel Balls |
Load and Speed Requirements | Best for high-speed and high-load applications with minimal friction and wear. | Suitable for medium to high-load applications where speed is less critical and cost-effectiveness is important. |
Corrosion Resistance | Excellent resistance to corrosion and harsh chemicals. | Prone to corrosion unless treated with special coatings. |
Temperature Resistance | Suitable for high-temperature applications (up to 1000°C). | Limited heat resistance, softens at high temperatures. |
Cost Considerations | Higher initial cost, but better long-term value due to durability and less maintenance. | More affordable initially, but higher maintenance and replacement costs over time. |
Environment and Durability | Ideal for harsh environments, such as medical, aerospace, and chemical industries. | Suitable for general industrial applications with fewer environmental challenges. |
In summary, the key differences between zirconia ceramic balls and steel balls lie in their material properties and suitability for various applications. Zirconia ceramic balls offer superior corrosion resistance, high temperature tolerance, and are ideal for high-speed and high-load environments. However, they come with a higher initial cost. On the other hand, steel balls are more affordable and suitable for general industrial applications, though they are more prone to wear and corrosion over time.
Based on the application needs and performance requirements, zirconia ceramic balls are the preferred choice for high-performance, high-load, and high-corrosion environments, especially in industries like aerospace, medical, and chemical processing. Steel balls are a cost-effective option for general-purpose applications where environmental factors and extreme conditions are not as critical.
Additionally, ceramic balls offer a broad range of material options for bearing applications. Beyond zirconia, materials like alumina (Al₂O₃), silicon nitride (Si₃N₄), and silicon carbide (SiC) also exhibit excellent performance characteristics for bearings. Alumina is known for its high hardness and wear resistance, while silicon nitride and silicon carbide provide superior strength, thermal stability, and resistance to both wear and corrosion, making them suitable for extreme conditions.
Ceramic balls have great potential in bearings due to their high-temperature resistance, corrosion resistance, low friction, and long lifespan. They perform well in harsh environments, making them ideal for industries like aerospace, chemicals, and medical equipment. As material technology advances, ceramic bearings will become more efficient and cost-effective, playing a key role in future technologies such as automation and clean energy.
