How Do Alumina Washers Perform in Extreme Pressure Conditions?

How Do Alumina Washers Perform in Extreme Pressure Conditions?

Overview

Alumina washers play a critical role in various industrial applications, particularly in environments where durability and resistance to wear and heat are paramount. Commonly used in industries such as automotive, aerospace, and electronics, these washers help ensure the stability and efficiency of mechanical systems. Understanding how alumina washers perform under extreme pressure conditions is essential for optimizing their functionality and preventing potential failures. In high-pressure environments, the right material selection is crucial to maintain the integrity of the system, minimize wear, and enhance overall performance. Choosing alumina washers for such conditions offers significant advantages, making them an ideal choice for many demanding applications.

At Heeger Materials Inc., we specialize in high-quality alumina ceramics, ensuring optimal performance for industrial and scientific applications.

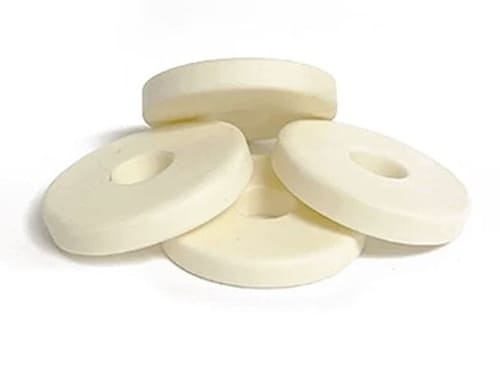

alumina washers-HM

What Are Alumina Washers?

Alumina washers are washers (flat, circular discs with a hole in the center) made from alumina (aluminum oxide, Al₂O₃), a high-performance ceramic material. They are used in applications requiring excellent electrical insulation, high-temperature resistance, chemical stability, and mechanical strength.

Key Properties of Alumina Washers:

  • High Electrical Insulation – Alumina is an excellent electrical insulator, making these washers ideal for electronic and high-voltage applications.
  • Thermal Resistance – They can withstand extreme temperatures (up to ~1,600°C or 2,912°F) without degrading.
  • Chemical Inertness – Resistant to acids, alkalis, and corrosive environments.
  • High Hardness & Wear Resistance – Alumina is very hard (Mohs hardness ~9), making it resistant to abrasion.
  • Low Thermal Conductivity – Helps in thermal insulation applications.
  • Dimensional Stability – Maintains shape and performance under thermal and mechanical stress.

Grades of Alumina Washers:

Material

Unit

95%
Al2O3

96%
Al2O3

99%
Al2O3

99.5%
Al2O3

99.7%
Al2O3

99.95%
Al2O3

Density

g/cm3

3.7

3.7

3.85

3.9

3.95

3.98

Bending Strength (20℃)

Mpa

300

300

330

360

380

500-600

Compressive Strength (20℃)

Mpa

2000

2000

2000

2350

2000

3500

Young’s Modulus (20℃)

Gpa

270

275

370

370

380

400

Fracture Toughness (20℃)

MPam½

3.5

3.5

4

4

4

4.5

Poisson’s Ratio(20℃)

0.2

0.22

0.22

0.23

0.23

Mohs Hardness(20℃)

HRA

8.0-8.5

8.0-8.5

8.5-9.0

9.0

9.0-9.5

9.0-9.5

Vickers Hardness (HV1)

kg/mm2

1600

1600

1600

1650

1750

1800

Thermal Expansion Coefficient (25-300 ℃)

10-6K-1

6.5

6.5

7.6

7.2

7.2

7.5

Thermal Conductivity (20℃)

W/mk

20

25

27.5

32

32

45

Thermal Shock Resistance

△T·℃

200

200

200

250

400

Specific Heat Capacity

J/g·k

0.79

0.78

0.79

0.80

Max Operating Temperature (Oxygen Condition)

1600

1600

1650

1650

1700

1750

Volume Resistivity (20℃)

Ω·cm

1014

1014

1014

1014

1014

1014

Dielectric Strength

KV/mm

10

10

10

15

15

16

Dielectric Constant (1 MHz, 25℃)

9

9

9.1

9.9

9.9

9.9

Dielectric Loss Tangent (1MHz, 20℃)

tanδ

3*10-4

2*10-4

3*10-4

1*10-4

1*10-4

1*10-4

Looking for premium alumina ceramic washers? Explore Advanced Ceramics Hubs selection.

What Are The Types of Alumina Washers?

Type

Key Properties

Common Applications

Standard Flat Washers

- High electrical insulation
- Good mechanical strength
- Chemical resistance

- Electronics & PCB insulation
- High-voltage equipment
- General industrial spacers

Thermally Conductive Washers

- Enhanced heat dissipation (composite materials)
- Retains electrical insulation

- Power electronics cooling
- LED heat management
- Semiconductor equipment

Custom-Shaped Washers

- Precision-machined for tight tolerances
- Complex geometries are possible

- Aerospace components
- Medical devices
- Specialized industrial machinery

Alumina Washers vs. Other Ceramic Washers: Key Differences

While alumina (Al₂O₃) washers are widely used for their electrical insulation and chemical resistance, other advanced ceramics like zirconia (ZrO₂), silicon nitride (Si₃N₄), and silicon carbide (SiC) offer superior mechanical or thermal properties, but often at a higher cost. Below is a detailed comparison of their key performance metrics:

Property

Alumina (Al₂O₃, 99%)

Zirconia (ZrO₂, YSZ)

Silicon Nitride (Si₃N₄)

Silicon Carbide (SiC)

Density (g/cm³)

3.9

6.0

3.2

3.1

Hardness (Mohs)

9

8.5

9.5

9.5

Flexural Strength (MPa)

300-400

900-1,200

700-1,000

400-600

Fracture Toughness (MPa·√m)

3-4

7-10

6-7

4-5

Max. Use Temp. (°C)

1,600

2,400

1,400

1,650

Thermal Conductivity (W/m·K)

30

2-3

15-30

120-200

Electrical Resistivity (Ω·cm)

>10¹⁴

>10¹⁰

>10¹⁴

10²-10⁵

Thermal Expansion (×10⁻⁶/K)

8.0

10.5

3.2

4.5

Cost

Low

High

Very High

High

Why Choose Alumina Washers for High-Pressure Applications?

Alumina (Al₂O₃) is ideal for high-pressure environments due to its exceptional mechanical strength, thermal stability, and chemical resistance, outperforming metals and polymers in extreme conditions.

Key Advantages:

✔ High Compressive Strength – Withstands over 2,000 MPa without deformation
✔ Extreme Hardness (Mohs 9) – Resists wear and surface degradation under heavy loads
✔ Thermal Stability – Maintains strength up to 1,600°C (no softening or creep)
✔ Corrosion Resistance – Impervious to acids, alkalis, and solvents (except HF)
✔ Low Thermal Expansion – Minimizes stress cracks during pressure/temperature swings
✔ Non-Galling Properties – Prevents adhesion/friction damage in moving parts

What Are The Typical Applications of Alumina Washers in Extreme Pressure Conditions?

Alumina washers are critical in industries where high pressure, temperature, and corrosion resistance are required. Below are real-world examples showcasing their performance in demanding environments.

1. Oil & Gas Industry – Downhole Drilling Equipment

Application:

Used as insulating spacers and wear-resistant washers in Measurement While Drilling (MWD) tools.

Protects sensors from high-pressure drilling fluids (up to 25,000 psi) and abrasive particles.

Why Alumina?
✔ Resists mud erosion better than steel or PEEK washers
✔ Maintains electrical insulation at 300°C+ wellbore temperatures
✔ Prevents galvanic corrosion in saline environments

2. Aerospace – Jet Engine Fuel Systems

Application:

Used in high-pressure fuel injector assemblies (up to 5,000 psi).

Acts as a thermal barrier between the combustor and fuel lines.

Why Alumina?
✔ Withstands 1,200°C exhaust heat without degrading
✔ Zero outgassing in vacuum conditions (critical for aviation safety)
✔ Harder than steel, reducing wear from fuel particulates

3. Semiconductor – High-Pressure Chemical Vapor Deposition (HPCVD)

Application:

Seals and insulates wafer-processing chambers under ultra-high vacuum (10⁻⁶ Torr) and high gas pressures (50+ atm).

Why Alumina?
✔ 99.6% purity prevents silicon wafer contamination
✔ No deformation under cyclic pressure loads
✔ Chemically inert to corrosive precursor gases (e.g., WF₆, Cl₂)

4. Hydraulic Systems – Subsea Robotics

Application:

Seals hydraulic actuators in ROVs (Remotely Operated Vehicles) at 3,000 m+ depths (300+ bar pressure).

Why Alumina?
✔ Zero water absorption prevents hydrolysis failure
✔ Superior crush resistance vs. polymer seals
✔ Non-magnetic (no interference with sensors)

Alumina washers ensure long-term reliability where pressure, heat, and corrosion would degrade conventional materials.

Industry-Specific Benefits

Industry

Typical Load Conditions

Critical Alumina Properties

Competitor Limitations

Electronics

Low mechanical, high electrical stress

Dielectric strength 15 kV/mm

Plastics melt, metals conduct

Aerospace

Thermal cycling 20-1,200°C

CTE 8 ppm/°C

Metals oxidize, polymers degrade

Semiconductor

Ultra-high vacuum required

Outgassing rate <10⁻⁹ Torr·L/s

Many ceramics contaminate

Chemical Processing

pH 0-14 exposure

<0.01% weight loss in acids

Metals corrode rapidly

Medical

Repeated sterilization

500+ autoclave cycles

Polymers degrade, metals pit

Request a custom quote for alumina ceramic washers.

Challenges and Considerations when Using Alumina Washers in Extreme Pressure Conditions

Alumina washers are highly valued for their durability, but they also face certain challenges when exposed to extreme pressure conditions. Understanding these challenges and finding ways to mitigate them can enhance the performance and longevity of alumina washers in demanding applications.

Challenge

Root Cause

Mitigation Strategies

Applicable Industries

1. High Cost

- Expensive raw materials (high-purity alumina)
- Precision manufacturing requirements

• Optimize design (thinner profiles, minimal waste)
• Bulk purchasing
• Use alternatives (e.g., steatite) for non-critical apps

Semiconductor, Aerospace, Medical

2. Brittleness

- Ceramic structure lacks ductility
- Stress concentrations under load

• Even pressure distribution (broad contact surfaces)
• Avoid shock loads
• Use toughened alumina (e.g., ZrO₂-reinforced)

Oil & gas, Defense, Hydraulics

3. Limited Flexibility

- Rigid material cannot conform to surface deformations

• Precision machining for exact fits
• Use in stable, aligned systems
• Pair with compliant gaskets

Electronics, Precision engineering

4. Thermal Shock Sensitivity

- Low fracture toughness + rapid ΔT-induced cracks

• Gradual heating/cooling cycles
• Thermal insulation barriers
• Use low-porosity grades (99.5% Al₂O₃)

Furnaces, Jet engines, HPCVD systems

5. Wear in High Friction

- Abrasive particles accelerate surface wear

• Lubrication (dry-film or grease)
• Regular inspection/replacement
• Harder coatings (e.g., diamond-like carbon)

Mining, Chemical pumps, Robotics

6. Chemical Attack

- Degradation in HF/strong alkalis
- Pitting in caustic environments

• Chemical-grade alumina (99.8% purity)
• Protective coatings (e.g., PTFE)
• Alternative ceramics (SiC for acids)

Chemical processing, Semiconductor, Marine

Alumina washers play a critical role in high-pressure applications due to their unmatched combination of mechanical strength, thermal stability, and chemical resistance. While challenges like brittleness and cost exist, proper material selection (e.g., 99.5% purity for corrosion resistance, zirconia-toughened grades for toughness) and design optimizations ensure reliable performance in extreme conditions. Industries from oil & gas to aerospace rely on alumina washers to enhance durability, reduce maintenance, and prevent system failures.
