Alumina polishing, utilizing aluminum oxide (Al₂O₃) as an abrasive, is a critical process for enhancing the surface quality of metals and ceramics, impacting their functionality, aesthetics, and longevity. In industries such as aerospace, electronics, and biomedical engineering, high-quality surface finishes are essential for performance, whether it’s achieving corrosion resistance in metal components or optical clarity in ceramic lenses. Alumina’s widespread use stems from its exceptional hardness, chemical stability, and versatility, making it a preferred choice for precision polishing across diverse applications.
The significance of surface quality cannot be overstated. For metals, a polished surface reduces friction, improves wear resistance, and enhances visual appeal, as seen in polished stainless steel for medical instruments or aluminum for automotive trim. For ceramics, polishing eliminates surface defects, ensuring strength and functionality in applications like semiconductor substrates or dental implants. This article explores how alumina polishing achieves these outcomes by examining its mechanisms, benefits, and tailored approaches for each material type.
At Heeger Materials Inc., we specialize in high-quality alumina polishing materials, ensuring optimal performance for industrial and scientific applications.
What is Alumina Polishing?
Alumina polishing involves the use of aluminum oxide, a crystalline compound with a Mohs hardness of 9, as an abrasive to refine the surfaces of materials. Available in forms such as powders, slurries, pastes, and suspensions, alumina is applied through mechanical processes like lapping, buffing, or chemical-mechanical polishing (CMP). The process removes microscopic layers of material, smoothing out imperfections and creating a uniform surface. Alumina’s effectiveness lies in its ability to balance aggressive material removal with precision finishing, depending on particle size and application method.
The polishing process relies on both mechanical and chemical interactions. Mechanically, alumina particles abrade the surface, removing irregularities like scratches or burrs. Chemically, slurries may interact with the material surface to enhance removal rates or improve finish quality, particularly in CMP for ceramics. The choice of alumina form depends on the application: powders are ideal for manual lapping, slurries for automated systems, and pastes for intricate components.
Key Properties Include:
- Hardness: Enables cutting through tough materials like ceramics.
- Particle Size: Ranges from coarse (50–100 microns, ~60–150 grit) for initial grinding to ultra-fine (0.05–0.3 microns) for mirror finishes.
- Chemical Stability: Prevents unwanted reactions, ensuring clean surfaces.
Common Abrasive Types Include:
- Alpha-Alumina (α-Al₂O₃): Hard, angular grains for aggressive material removal.
- Gamma-Alumina (γ-Al₂O₃): Softer, spherical particles for fine finishing.
- Doped Alumina (e.g., CeO₂/SiO₂): Enhanced chemical activity for specific materials.

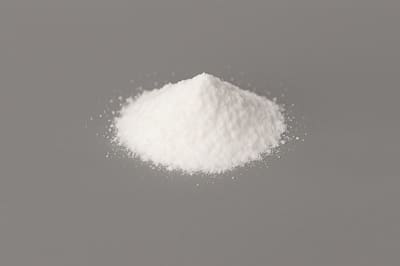

Common Forms of Alumina Polishing Materials include:
Alumina Form | Particle Size Range | Common Application |
Powder | 50–100 µm (~60–150 grit) | Initial grinding, lapping |
Slurry | 0.3–5 µm | Automated polishing, CMP |
Paste | 1–10 µm | Manual finishing, intricate parts |
Suspension | 0.05–0.3 µm | Precision polishing, ceramics |
Advantages Over Alternatives
Feature | Alumina Polishing | Diamond Polishing |
Cost | $5–50/kg | $500–5000/kg |
Suitable for | Most metals/ceramics | Ultra-hard materials |
Surface Quality | Ra 0.01–0.5 μm | Ra <0.01 μm |
Thermal Stability | Up to 2000°C | Oxidizes >600°C |
Looking for high-quality alumina ceramic products? Explore Heeger Materials' selection.
How Does Alumina Polishing Improve Metal Surface Quality?
Metals, ranging from soft aluminum (Mohs 2–3) to hard stainless steel (Mohs 5–6), benefit significantly from alumina polishing due to their ductile nature and varying hardness. The process removes surface imperfections such as scratches, burrs, or oxide layers, resulting in smoother, more functional, and visually appealing surfaces. Alumina’s hardness allows it to cut through metal surfaces efficiently, while its range of particle sizes (e.g., 0.3–5 microns or ~150–600 grit) enables tailored polishing from rough grinding to mirror-like finishes.
The mechanisms of alumina polishing for metals involve mechanical abrasion, where particles remove material by scraping or cutting. For softer metals like aluminum, finer particles (0.3–1 micron) are used to prevent excessive scratching, while harder metals like titanium can handle coarser particles (1–5 microns) for initial stages. Slurries in automated polishing systems ensure uniform material removal, while pastes are ideal for manual finishing of intricate parts like jewelry or precision tools. The process also enhances surface uniformity, preparing metals for coatings or bonding.
1. Alumina Polishing Parameters for Common Metals
Metal Type | Recommended Alumina | Grit Progression | Particle Size (μm) | Lubricant/Coolant | Pressure (psi) | Speed (RPM) | Target Ra (μm) | Special Notes |
Stainless Steel | Alpha-Al₂O₃ + 5% diamond hybrid | 320 → 600 → 1200 | 46 → 25 → 12 | Water-soluble (pH 8-9) | 3-5 | 200-400 | 0.05-0.1 | Prevents iron contamination |
Aluminum | Gamma-Al₂O₃ (spherical) | 400 → 800 → 1500 | 35 → 21 → 8 | Kerosene-based | 1-2 | 500-800 | 0.1-0.2 | Avoid galling; low pressure |
Titanium | Ce-doped Alpha-Al₂O₃ | 320 → 600 → 1000 | 46 → 25 → 12 | Synthetic ester | 2-3 | 150-200 | 0.2-0.3 | Minimize heat to prevent oxidation |
Copper Alloys | Gamma-Al₂O₃ + ZrO₂ (10%) | 600 → 1000 → 1500 | 25 → 12 → 8 | Water-based + anticorrosive | 1.5-2.5 | 300-500 | 0.05-0.15 | Prevents staining/discoloration |
Tool Steels | Sintered Alpha-Al₂O₃ | 120 → 240 → 400 | 125 → 58 → 35 | Heavy-duty oil | 4-6 | 250-350 | 0.4-0.6 | Maintains edge sharpness |
Nickel Alloys | Alpha-Al₂O₃ + Cr₂O₃ (3%) | 240 → 500 → 800 | 58 → 30 → 21 | Synthetic coolant | 3-4 | 180-250 | 0.3-0.5 | Resists work hardening |
Magnesium | Gamma-Al₂O₃ (low-aggression) | 800 → 1200 → 2000 | 21 → 12 → 6 | Dry polishing (N₂ atmosphere) | 0.5-1 | 600-1000 | 0.2-0.4 | Explosion-proof setup required |
Tungsten Carbide | Diamond-Al₂O₃ composite | 150 → 320 → 600 | 100 → 46 → 25 | Glycol-based | 5-7 | 100-150 | 0.5-1.0 | Requires a diamond for effective MRR |
2. Mechanisms of Surface Improvement in Alumina Polishing
Mechanism | Technical Process | Effect on Metal Surface | Key Parameters |
Material Removal | Hard alumina particles (Mohs 9) cut surface peaks via mechanical abrasion | Reduces macro-scale imperfections (scratches, pits) | Grit size (60–2000), pressure (1–6 psi) |
Progressive Refinement | Sequential grit progression (e.g., 240 → 400 → 800 → 1200) | Eliminates scratches layer-by-layer; achieves Ra 0.01–0.1 μm | Grit jump ≤1.5x, removal rate (2–100 μm/min) |
Work Hardening | Plastic deformation from abrasive action increases dislocation density | Enhances surface hardness by 10–20% (improves wear resistance) | Pressure, abrasive shape (angular vs. spherical) |
Oxide Layer Control | Chemically inert alumina avoids unwanted oxidation vs. iron-based abrasives | Preserves passive layers (e.g., Cr₂O₃ on stainless steel) | Lubricant pH (8–10 for SS), temperature (<150°C) |
Surface Smoothening | Nano-alumina (20–100 nm) fills micro-valleys via tribochemical reactions | Achieves Ra <0.01 μm (mirror finish) | Slurry concentration (15–25%), polishing time |
Residual Stress Relief | Polishing-induced micro-plasticity redistributes stresses | Reduces crack initiation sites (critical for aerospace parts) | Low-speed finishing (50–200 RPM) |
3. Key Benefits for Metal Surfaces
Benefit | Technical Impact | Example Applications |
Ra Reduction | Achieves Ra 0.01–0.1 μm | Medical implants, optical components |
Fatigue Resistance | Removes stress-concentrating micro-notches | Aerospace turbine blades |
Corrosion Resistance | Smoother surfaces retard pitting initiation | Marine hardware, chemical reactors |
Aesthetic Quality | Mirror finishes (reflectivity >90%) | Automotive trim, jewelry |
4. Applications of Alumina Polishing in Metal:
- Automotive Parts: Components like engine parts, gears, and shafts are polished to reduce friction and enhance durability.
- Aerospace: Aircraft parts are polished to improve corrosion resistance and reduce wear in high-stress environments.
- Medical Devices: Surgical tools, implants, and prosthetics benefit from a polished surface that enhances biocompatibility and durability.
Exploring our optimized alumina ceramic products.
How Does Alumina Polishing Improve Ceramic Surface Quality?
Ceramics, such as alumina, zirconia, or silicon carbide (Mohs 7–9), are hard and brittle, requiring precise polishing to achieve high-quality surfaces without inducing cracks or subsurface damage. Alumina polishing is ideal for ceramics due to its ability to deliver ultra-smooth finishes using fine particles (0.05–0.3 microns). The process is critical for applications demanding optical clarity, mechanical strength, or low surface roughness, such as in optical lenses or semiconductor substrates.
The mechanism involves gentle abrasion with ultra-fine alumina particles, often in suspension or slurry form, to remove microscopic defects while preserving the material’s integrity. Multi-stage polishing is common, starting with coarser abrasives (e.g., diamond) for material removal, followed by alumina for final finishing. Low-pressure techniques like CMP minimize the risk of micro-cracks, ensuring defect-free surfaces. Alumina’s chemical stability prevents unwanted reactions with ceramic surfaces, maintaining purity in sensitive applications.
1. Alumina Polishing Parameters for Common Ceramics
Ceramic | Alumina Type | Grit Progression | Slurry pH | Target Ra (μm) | Critical Parameter |
Monocrystalline α-Al₂O₃ | 240 → 600 → 1200 | 9–10 | 0.05–0.1 | Match abrasive hardness to substrate | |
Ce-doped α-Al₂O₃ | 320 → 800 → 1500 | 7–8 | 0.02–0.1 | Avoid phase transformation at >150°C | |
Sintered Al₂O₃-ZrO₂ | 150 → 400 → 800 | 10–11 | 0.1–0.3 | High-pressure cooling (prevents cracking) | |
Diamond-Al₂O₃ hybrid | 80 → 240 → 600 | 3–4 | 0.2–0.5 | Requires a diamond for effective cutting |
2. Mechanisms of Surface Improvement in Ceramics
Mechanism | Process Description | Effect on Ceramic Surface |
Brittle Fracture Control | Alumina abrasives induce controlled micro-fractures to remove surface peaks. | Prevents grain pullout; maintains structural integrity. |
Progressive Refinement | Multi-stage grit progression (e.g., 80 → 400 → 1200) eliminates scratches step-by-step. | Achieves Ra 0.01–0.1 μm (mirror finish). |
Chemo-Mechanical Polishing | Alumina reacts with ceramic surfaces (e.g., Si₃N₄) under pH-controlled slurries. | Reduces mechanical damage; enhances surface smoothness. |
Grain Boundary Preservation | Nano-alumina (20–100 nm) polishes without disrupting polycrystalline structures. | Critical for high-strength ceramics (e.g., Y-TZP zirconia). |
3. Key Benefits for Ceramics
Benefit | Technical Impact | Example Applications |
Ra Reduction | Achieves Ra <0.05 μm (optical-grade finish). | Laser optics, semiconductor wafers. |
Strength Retention | Minimizes subsurface cracks (+30% flexural strength vs. diamond polishing). | Dental implants, aerospace components. |
Phase Stability | Prevents t→m transformation in zirconia. | Biomedical devices (e.g., hip joints). |
Dimensional Accuracy | Nanoscale material removal avoids over-polishing. | Precision bearings, fuel cell components. |
4. Applications of Alumina Polishing in Ceramics
- Optical Components: Lenses and mirrors used in optical devices require high precision, which is achieved through alumina polishing.
- Wear-Resistant Coatings: Polished ceramic coatings are used in industries like aerospace and automotive to improve resistance to wear and corrosion.
- Electronics: Polishing ceramic substrates for electronic components ensures better performance and reliability.
Request a custom quote for high-quality alumina polishing materials.
Comparison: Alumina Polishing on Metals vs. Ceramics
The polishing requirements for metals and ceramics differ significantly due to their distinct material properties. Metals, being ductile and less hard (Mohs 2–7), allow for faster polishing with coarser alumina particles (0.3–5 microns, ~150–600 grit). Ceramics, with higher hardness (Mohs 7–9) and brittleness, require slower, more precise polishing with ultra-fine particles (0.05–0.3 microns) to avoid damage. These differences influence the choice of alumina form, polishing method, and process duration.
For metals, polishing often involves buffing or vibratory techniques to achieve quick material removal and aesthetic finishes. Coarser alumina in slurries or pastes is effective for removing scratches or oxide layers, but care must be taken to avoid over-polishing, which can cause surface waviness. Ceramics, however, rely on lapping or CMP with suspensions to achieve sub-micron smoothness, as their brittleness makes them susceptible to micro-cracks. Alumina’s versatility allows it to address both needs, but the particle size and delivery method must be tailored.
1. Fundamental Differences
Parameter | Metals | Ceramics | Key Implications |
Material Removal | Plastic deformation + cutting | Brittle fracture + micro-abrasion | Ceramics require gentler abrasion to avoid cracking. |
Hardness | Typically <9 Mohs (e.g., Al, Cu) | Often >9 Mohs (e.g., Al₂O₃, SiC) | Ceramics need harder/matched abrasives (e.g., diamond-alumina hybrids). |
Thermal Conductivity | High (dissipates heat quickly) | Low (heat accumulates, risking thermal shock) | Ceramics require strict temperature control. |
2. Alumina Abrasive Selection
Property | Metals | Ceramics |
Preferred Type | Alpha-alumina (angular particles) | Monocrystalline alpha or doped alumina |
Particle Shape | Angular for cutting efficiency | Mixed angular/spherical for crack control |
Grit Range | 120–2000 grit | 80–3000+ grit (finer finishes) |
Additives | Lubricants (oils, coolants) | pH-controlled slurries (e.g., KOH) |
3. Surface Finish Outcomes
Material | Initial Ra (μm) | Achievable Ra with Alumina (μm) | Limiting Factor |
Stainless Steel | 2–5 | 0.02–0.1 | Work hardening |
Aluminum | 1–3 | <0.05 | Smearing |
Alumina Ceramic | 1–2 | 0.05–0.2 | Grain pullout |
Zirconia (Y-TZP) | 0.5–1 | 0.01–0.1 | Phase transformation |
At Heeger Materials Inc., we supply optimized-grade ceramic products that comply with ASTM and ISO standards, ensuring outstanding quality and reliability.
Best Practices for Alumina Polishing
To achieve optimal results in alumina polishing, it is important to select the right form of alumina, adjust the particle size according to the material being polished, and use the appropriate techniques. The following best practices can help you get the best finish:
1. Choosing the Right Alumina Form and Particle Size:
- Coarse Particle Size: Best for initial polishing of rough surfaces (metal).
- Fine Particle Size: Ideal for finishing and achieving a high gloss (both metal and ceramic).
2. Technique and Tips:
- Controlled Pressure: Apply uniform pressure during polishing to avoid uneven surfaces, especially with ceramics.
- Clean Polishing Surface: Ensure the material being polished is free from contaminants before starting the process.
- Consistent Movement: Move the polishing tool consistently to avoid surface gouging or uneven finishes.
3. Common Mistakes to Avoid:
- Using Too Coarse Abrasive: For ceramics, using a coarse alumina can lead to surface cracking.
- Excessive Pressure: Applying too much pressure can cause metal surfaces to warp or ceramic surfaces to fracture.
- Not Cleaning the Surface: Dirt and debris can lead to imperfections in the final polish.
Conclusion
Alumina polishing is an essential technique for improving the surface quality of both metals and ceramics. It enhances durability, resistance to wear and corrosion, and provides a smooth, aesthetically pleasing finish. Understanding the differences in polishing metals and ceramics, and selecting the appropriate alumina form and techniques, is crucial for achieving the best results.
Whether you are working in the automotive, aerospace, medical, or electronics industries, alumina polishing offers unparalleled benefits in improving material performance. By tailoring the polishing process to the specific needs of each material, you can ensure that both metals and ceramics meet the highest standards of quality and functionality.
For top-quality alumina ceramic products, Heeger Materials provides tailored solutions for various applications.
Looking for premium alumina polishing materials? Contact us today!
