Graphite vs alumina crucibles for metal melting: 5 key benefits of alumina

Crucibles are indispensable tools in metal melting, serving as the vessels that contain and withstand the extreme temperatures required to transform solid metals into molten forms. Whether in a laboratory setting or an industrial foundry, the choice of crucible material significantly impacts the efficiency, quality, and safety of the melting process. Two of the most commonly used materials for crucibles are graphite and alumina (aluminum oxide, Al₂O₃). Each material has unique properties that make it suitable for specific applications, but alumina crucibles have gained increasing attention for their superior performance in demanding environments. This article explores the five key benefits of alumina crucibles over their graphite counterparts, helping us make informed decisions for their metal melting needs.

The choice between graphite and alumina often comes down to factors such as temperature requirements, chemical compatibility, and cost. Graphite crucibles are widely used due to their affordability and excellent thermal conductivity, but they have limitations in high-purity or high-temperature applications. Alumina crucibles, while typically more expensive, offer distinct advantages that make them the preferred choice for many specialized tasks.

At Heeger Materials Inc., we specialize in high-quality alumina crucibles with various forms and specifications, ensuring optimal performance for industrial and scientific applications.

Background on Graphite and Alumina Crucibles

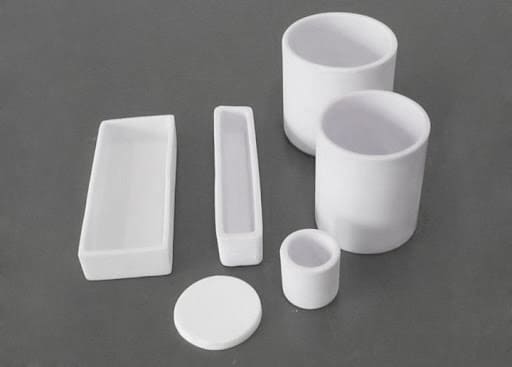

What are Alumina Crucibles?

Alumina crucibles are made from aluminum oxide (Al2O3), a ceramic material known for its superior heat resistance, durability, and stability. Alumina is often chosen for high-temperature metal melting applications due to its ability to withstand extreme temperatures and maintain structural integrity over extended use. These crucibles are ideal for melting metals such as steel, platinum, and other high-melting-point materials that require a crucible that can handle prolonged exposure to heat and chemical reactions without breaking down.

Key Properties of Alumina Crucibles:

Types of Alumina Crucibles:

• Standard Alumina (95–99% Al₂O₃) – Good for general high-temperature use.
• High-Purity Alumina (99.5–99.9% Al₂O₃) – Used in ultra-clean processes like semiconductor manufacturing.
• Porous Alumina Crucibles – Allow gas diffusion in specific experiments.

Common Applications:

• Laboratory Use: Melting, ashing, and sintering samples in furnaces.
• Metallurgy: Holding molten metals and alloys.
• Materials Science: Powder processing, crystal growth, and ceramic sintering.
• Chemical Analysis: Sample preparation in XRF (X-ray fluorescence) and other analytical techniques.
• Semiconductor Industry: High-purity alumina crucibles for growing single crystals.

Looking for high-quality alumina crucibles? Explore Heeger Materials' selection.

What are Graphite Crucibles?

Graphite crucibles are containers made from graphite, a form of carbon known for its high thermal conductivity, heat resistance, and strength at elevated temperatures. Graphite crucibles are commonly used for melting metals such as gold, silver, and copper, which have relatively lower melting points. These crucibles excel in environments where heat transfer efficiency is a priority. However, graphite is not as resistant to oxidation at extremely high temperatures as alumina, and it can degrade over time when exposed to reactive metals or gases.

Key Properties of Graphite Crucibles:

Types of Graphite Crucibles:

• Clay-Graphite Crucibles (cheaper, good for general use).
• High-Purity Graphite Crucibles (99.9% C, for high-end applications).
• Silicon Carbide-Bonded Graphite (enhanced strength & oxidation resistance).

Common Applications:

✅Metal Melting & Casting

• Gold, silver, copper, aluminum, and other non-ferrous metals.
• Used in induction furnaces and jewelry making.

✅Laboratory Use: High-temperature experiments (e.g., crystal growth, alloy studies).

✅Semiconductor & Solar Industry: Silicon processing for PV cells and electronics.

✅Chemical Analysis: Sample preparation in spectrographic analysis.

Graphite vs. Alumina Crucibles for Metal Melting

In metal melting, graphite crucibles are ideal for cost-sensitive applications with lower temperature requirements, while alumina crucibles excel in high-temperature, high-purity, or chemically aggressive environments.

Explore our optimized alumina crucibles.

5 Key Benefits of Alumina Crucibles

1. Exceptional Thermal Stability

Alumina crucibles are engineered to endure extreme temperatures, often exceeding 1700°C, far surpassing the capabilities of graphite crucibles, which typically degrade above 600°C in oxidizing atmospheres. This high thermal resistance makes alumina ideal for melting metals with elevated melting points, such as platinum (1768°C), titanium (1668°C), or specialty alloys used in aerospace and medical industries. The ability to maintain structural integrity at such temperatures ensures consistent performance without the risk of crucible failure, which could lead to costly material loss or equipment damage.

Unlike graphite, which may burn off or crack under prolonged exposure to high heat, alumina’s ceramic composition allows it to withstand repeated heating and cooling cycles. This makes it a reliable choice for processes requiring sustained high temperatures, such as in research laboratories or industrial furnaces. For example, in the production of high-purity semiconductors, alumina crucibles maintain stability during prolonged melting processes, ensuring the quality of the final product.

•   Withstands temperatures up to 1700°C or higher.
•   Ideal for high-melting-point metals and alloys.
•   Maintains structural integrity during repeated thermal cycles.

2. Superior Chemical Inertness

One of the standout advantages of alumina crucibles is their exceptional chemical inertness. Alumina does not readily react with most molten metals, fluxes, or atmospheric gases, even at elevated temperatures. This property is critical in applications requiring high-purity melts, such as in the production of precious metals, semiconductors, or optical materials. Graphite crucibles, by contrast, can react with certain metals (e.g., iron or nickel) or fluxes, leading to contamination that compromises the quality of the melt.

For instance, in the jewelry industry, where gold and platinum must remain free of impurities, alumina crucibles ensure that the molten metal remains uncontaminated, preserving its value and quality. Additionally, alumina’s resistance to corrosive fluxes makes it suitable for melting reactive metals like titanium, which can degrade graphite crucibles over time. This chemical stability reduces the need for frequent crucible replacements and minimizes the risk of introducing unwanted impurities into the melt.

Chemical Compatibility Comparison:

•   Minimal reactivity with molten metals and fluxes.
•   Ensures high purity in sensitive applications.
•   Reduces contamination risks compared to graphite.

3. Mechanical Robustness

Alumina crucibles are renowned for their exceptional mechanical robustness, a critical advantage in the demanding environment of metal melting. Made from high-purity aluminum oxide (Al₂O₃), alumina crucibles exhibit a crystalline structure that provides superior strength and resistance to physical stress. This robustness allows them to withstand the mechanical strains caused by rapid temperature changes, heavy molten metal loads, and repeated handling in industrial or laboratory settings. Unlike graphite crucibles, which can develop micro-cracks or erode under mechanical stress, alumina crucibles maintain their structural integrity even under prolonged exposure to harsh conditions.

The mechanical robustness of alumina is particularly valuable in high-throughput industrial applications, such as foundries producing large volumes of metal castings. For example, during the melting of heavy metals like steel or titanium, the crucible must endure significant weight and thermal shock without deforming or fracturing. Alumina’s high compressive strength and resistance to abrasion ensure that it can handle these challenges effectively. Additionally, its ability to resist spalling (surface flaking due to thermal expansion) further enhances its durability, reducing the risk of failure during critical melting processes.

In contrast, graphite crucibles are more susceptible to mechanical wear, especially in environments where they are subjected to repeated loading and unloading or abrasive interactions with molten metals. Over time, this can lead to material loss and compromised performance. Alumina’s superior mechanical properties translate into fewer replacements, lower maintenance costs, and increased operational efficiency, making it a preferred choice for applications requiring long-term reliability.

• High compressive strength to handle heavy molten metal loads.
• Resistance to abrasion and spalling in harsh environments.
• Fewer replacements due to enhanced durability.

4. Electrical Insulation

Another significant advantage of alumina crucibles is their excellent electrical insulation properties. Alumina is a non-conductive ceramic material with a high dielectric strength, meaning it does not conduct electricity even at elevated temperatures. This property is particularly beneficial in metal melting processes that involve electric furnaces, such as induction or resistance furnaces, where electrical conductivity in the crucible material could interfere with the heating process or pose safety risks. Graphite crucibles, being carbon-based, are electrically conductive, which can lead to inefficiencies or complications in certain furnace setups.

In induction furnaces, for example, the crucible material must not interact with the electromagnetic field used to generate heat. Alumina’s non-conductive nature ensures that the electromagnetic energy is focused entirely on heating the metal inside the crucible, improving energy efficiency and reducing the risk of arcing or short-circuiting. This is particularly important when melting high-value materials, such as precious metals or superalloys, where precise control over the heating process is critical to achieving consistent results.

• Non-conductive, ideal for electric furnaces like induction or resistance types.
• Enhances energy efficiency by focusing electromagnetic energy on the metal.
• Improves safety by reducing electrical hazards.

5. Excellent Durability and Longevity

Alumina crucibles are highly durable, thanks to their robust ceramic structure, which resists thermal shock, mechanical wear, and chemical corrosion. Unlike graphite crucibles, which can degrade due to oxidation or mechanical stress after repeated use, alumina crucibles maintain their integrity over many melting cycles. This durability translates into a longer lifespan, making them a cost-effective choice for applications requiring frequent or prolonged use.

For example, in industrial settings where crucibles are subjected to rapid temperature changes, alumina’s resistance to thermal shock prevents cracking or spalling, common issues with graphite. This durability is particularly valuable in high-throughput environments, such as foundries producing large quantities of metal castings. Over time, the reduced need for crucible replacements offsets the higher initial cost of alumina, making it an economical option for long-term operations.

•   Resistant to thermal shock and mechanical wear.
•   Longer lifespan than graphite in harsh conditions.
•   Cost-effective for frequent or prolonged use.

Request a custom quote for high-quality alumina crucibles.

When to Choose Alumina Crucibles: Optimal Use Cases

While alumina crucibles offer numerous advantages, practical considerations must guide their selection. Cost is a primary factor: alumina crucibles are generally more expensive than graphite due to their advanced material properties and manufacturing processes. However, their longer lifespan and reduced need for replacements can offset the initial investment, especially in high-frequency or high-purity applications.

1. By Material Compatibility

Best for processing:

Reactive Metals
✅ Titanium (Ti)
✅ Zirconium (Zr)
✅ Iron/Steel (Fe)
Reason: Prevents carbide formation that occurs with graphite

High-Purity Applications
✅ Semiconductor materials (Si, GaAs)
✅ Superalloys research
✅ Analytical chemistry samples

2. By Process Environment

Ideal for:

Oxidizing Atmospheres

⏳Air or oxygen-rich environments
⏳Processes requiring open-air heating

Long-Duration Heating
⏳ Continuous furnace operations
⏳ Slow cooling processes

When to Avoid Alumina Crucibles: Limitations

However, alumina crucibles have limitations. Their ceramic nature makes them more brittle than graphite, requiring careful handling to avoid cracking. Additionally, their low thermal conductivity, while beneficial for heat retention, may result in slower initial heating compared to graphite. Users must weigh these factors against their specific needs to determine the best crucible material.

1. Chemical Incompatibilities

Avoid with:

❌ Hydrofluoric Acid (HF) at any concentration

❌ Strong alkalis (NaOH, KOH) above 800°C

❌ Fluoride-containing compounds

Chemical Resistance Chart:

2. Process Limitations

Poor choice for:

• Rapid thermal cycling (unless using thermal shock-resistant grades)
• Induction heating applications (non-conductive)
• Large-scale industrial melting (cost-prohibitive)

Alternative Selection Guide:

3. Economic Considerations

Cases where alumina isn't cost-effective:

• Small jewelry workshops melting gold/silver
• Bulk non-ferrous metal casting
• Short-run prototype development

At Heeger Materials Inc., we supply optimized-grade ceramic products that comply with ASTM and ISO standards, ensuring outstanding quality and reliability.

Conclusion

Alumina crucibles offer five key benefits that make them a superior choice over graphite in many metal melting applications: high thermal resistance, superior chemical inertness, excellent durability, low thermal conductivity, and versatility. These properties ensure reliable performance in high-temperature, high-purity, or chemically aggressive environments, making alumina crucibles indispensable for industries ranging from aerospace to jewelry manufacturing. While their higher initial cost may be a consideration, the long-term savings from durability and energy efficiency often outweigh this drawback.

For applications requiring precision, purity, or extreme conditions, alumina crucibles are the recommended choice. By carefully assessing your melting requirements—such as temperature, metal type, and budget—you can determine whether alumina’s advantages align with your needs. Ultimately, choosing the right crucible material enhances efficiency, reduces costs, and ensures the highest quality in your metal melting processes.

For top-quality alumina ceramic materials, Heeger Materials provides tailored solutions for various applications.

Looking for premium alumina crucibles? Contact us today!
