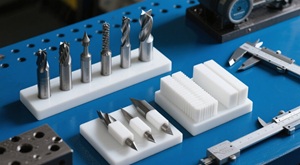

In the world of advanced materials, ceramics are unmatched in hardness, wear resistance, and thermal stability. However, machining them poses serious challenges due to their brittle nature. This is where ceramic CNC machining comes in, enabling precise shaping of materials like alumina, zirconia, and silicon nitride using specialized tools. Selecting the right tools for ceramic CNC machining is essential to avoid cracking, improve quality, and prolong tool life. In this article, we’ll explore tool selection strategies, material compatibility, geometry considerations, and common machining challenges to help engineers and manufacturers make informed decisions.
At Heeger Materials Inc., we specialize in high-quality ceramic products, ensuring optimal performance for industrial and scientific applications.
What Is Ceramic CNC Machining and Why Are Special Tools Needed?
Ceramic CNC machining refers to the computer-controlled cutting and shaping of ceramics using diamond-based tools. Unlike metals, ceramics cannot be cut with traditional carbide tools due to their hardness and brittleness. They demand low feed rates, minimal mechanical stress, and tools that can withstand intense friction and heat.
Property | Ceramic vs. Metal Comparison |
Hardness | Ceramics: Very High | Metals: Moderate |
Ductility | Ceramics: Brittle | Metals: Ductile |
Tool Requirement | Diamond tools only | Carbide or HSS |
Because of these extreme physical properties, ceramic CNC machining relies on robust tooling systems and precise control of machining parameters.
What Are the Key Factors in Selecting Tools for Ceramic CNC Machining?
Selecting the ideal tool involves more than just picking a diamond tip. Engineers must evaluate tool composition, edge geometry, feed/speed settings, and cooling strategy to match the ceramic being machined. A mismatch in these factors can lead to microcracks, tool wear, or surface defects.
Factor | Recommendation |
Tool Material | Polycrystalline Diamond (PCD) |
Cutting Edge Radius | As small as possible to minimize stress |
Feed/Speed Rate | Low RPM and low feed for brittle ceramics |
Correct selection improves machining efficiency, reduces tool costs, and ensures consistent dimensional accuracy.
Which Tool Materials Are Best for Ceramic CNC Machining?
Only the hardest tool materials can endure the stress of ceramic machining. Diamond-based tools lead the pack due to their superior wear resistance, sharpness, and thermal conductivity.
Tool Material | Suitability for Ceramics | Notes |
PCD (Polycrystalline) | Excellent | Ideal for sintered ceramics |
CVD Diamond Coating | Good | Long tool life, precise cutting |
Cubic Boron Nitride | Moderate | Better suited for hardened steel |
PCD and CVD tools are especially effective in dry or mist-cooled machining environments.
What Ceramic Materials Can Be CNC Machined?
Not all ceramics are suitable for CNC machining. Those with high density and grain uniformity are preferred. Below is a list of commonly machined ceramics and their corresponding tool requirements:
Ceramic Type | Machining Difficulty | Recommended Tool Type |
High | PCD, CVD diamond | |
Very High | Fine-grain PCD + coolant | |
Moderate | CVD diamond | |
High | CVD or brazed diamond tools | |
Low | Carbide or PCD | |
Low to Moderate | Can be dry-machined |
Choosing tool types based on ceramic properties reduces tool breakage and improves yield.
Explore our high-quality technical ceramic products.
What Are the Differences Between Ceramic Materials in CNC Machining?
Each ceramic material has unique properties that affect how it behaves under CNC machining. Some are easier to cut but offer lower strength; others are extremely hard and durable but require careful tool and process optimization.
Property / Material | Alumina (Al₂O₃) | Zirconia (ZrO₂) | Silicon Nitride (Si₃N₄) | ZTA | Macor |
Hardness | Very High | Extremely High | High | High | Medium |
Fracture Toughness | Low | High | Very High | Medium–High | Low |
Thermal Shock Resistance | Low | Medium | Excellent | Medium | Good |
CNC Machining Difficulty | High | Very High | Moderate | High | Low |
Common Tool Type | PCD, CVD | Fine-grain PCD | CVD Diamond | Brazed Diamond | Carbide, PCD |
Applications | Insulators, valves | Dental parts, bearings | Turbines, high-speed parts | Pumps, cutters | Prototyping |
Although all these materials are machinable with CNC tools, their machining difficulty and performance vary significantly. For example, zirconia requires extremely sharp tools and careful temperature control, while Macor can be machined dry with carbide tools due to its glass-ceramic nature.
Request a custom quote for our technical ceramic products.
How Do Tool Geometries Affect Ceramic CNC Machining Performance?
The geometry of a tool—including its edge shape, rake angle, and flute design—plays a vital role in chip control, surface finish, and crack prevention. A slight error in geometry can lead to catastrophic failure in ceramic machining.
Geometry Feature | Performance Effect |
Sharp Edge | Reduces crack formation |
Low Helix Angle | Improves vibration control |
Negative Rake Angle | Minimizes pressure and chipping risk |
Advanced ceramics benefit from tools engineered with high-precision edge integrity.
What Are the Common Problems When Using the Wrong CNC Tool for Ceramics?
Using the wrong tools can quickly degrade machining quality and increase costs. The brittle nature of ceramics leaves little room for error.
Problem | Likely Cause |
Chipping | Too much tool pressure or a dull edge |
Excessive Tool Wear | Incorrect material or too high RPM |
Thermal Cracks | Inadequate or incorrect cooling |
Surface Fracture | Wrong rake angle or flute geometry |
Addressing these problems through proper tool selection and setup greatly improves machining success.
How Do Tool Cooling and Lubrication Methods Impact Ceramic CNC Machining?
Ceramics are sensitive to thermal stress. Choosing the right cooling method can reduce cracking and extend tool life.
Method | Recommended For | Notes |
Air/Mist Cooling | Most ceramic types | Best for reducing thermal shock |
Dry Machining | Green ceramics | Safer for fragile pre-sintered parts |
Flood Cooling | Often avoided | Can cause microcracks |
Cooling strategy should be matched to both tool type and ceramic material for optimal performance.
How to Extend Tool Life in Ceramic CNC Machining?
Tool costs can be significant, especially in high-volume production. Extending tool life not only improves cost-efficiency but also boosts part quality and consistency.
Technique | Effect on Tool Longevity |
Pre-machining green bodies | Lowers resistance and wear |
Lower feed rates | Reduces tool loading and breakage |
Toolpath optimization | Ensures uniform stress distribution |
Scheduled regrinding | Restores cutting-edge sharpness |
FAQ
Question | Answer |
Can carbide tools cut ceramics? | No, use PCD or diamond-coated tools only |
Do all ceramics require the same tool type? | No, tool choice depends on material hardness and density |
Is flood cooling necessary? | No, mist or dry methods are preferred |
What is the typical tool life? | 20–40 minutes under continuous machining |
Can CNC achieve smooth finishes on ceramics? | Yes, with fine-grain tools and polishing passes |
These common questions highlight the importance of precision planning in ceramic machining.
Conclusion
In ceramic CNC machining, success depends heavily on the tool. Every decision—from tool material to geometry to cooling method—impacts the outcome. With advanced ceramics used in industries like aerospace, medical, electronics, and renewable energy, the stakes are high. Selecting the perfect CNC tool means fewer defects, longer tool life, and higher precision. As machining technology evolves, innovations in diamond tooling and AI-assisted path optimization will continue to push ceramic CNC capabilities forward. For manufacturers, investing in the right tooling strategy is the first and most essential step toward achieving precision, consistency, and efficiency.
