Yttria stabilized zirconia (YSZ) thermal expansion: The critical role of yttria content

Yttria Stabilized Zirconia (YSZ) is a high-performance ceramic material renowned for its exceptional thermal, mechanical, and chemical stability, making it a cornerstone in advanced engineering applications. Zirconia (ZrO₂) in its pure form is polymorphic, exhibiting different crystal structures at varying temperatures, which can lead to structural instability. By doping zirconia with yttria (Y₂O₃), the material’s phase stability is significantly enhanced, allowing it to maintain desirable properties under extreme conditions. YSZ is widely utilized in industries such as aerospace, energy, and biomedical engineering due to its ability to withstand high temperatures, resist corrosion, and maintain structural integrity. For example, YSZ is a key component in thermal barrier coatings (TBCs) for turbine blades and electrolytes in solid oxide fuel cells (SOFCs).

Yttria plays a pivotal role in tailoring the properties of YSZ, particularly its thermal expansion behavior. By stabilizing the high-temperature tetragonal or cubic phases of zirconia, yttria prevents destructive phase transformations that occur in pure zirconia, which can cause volume changes and cracking. The amount of yttria added (typically 3–8 mol%) significantly affects the phase composition, microstructure, and thermal properties of YSZ. Higher yttria content generally promotes the cubic phase, which has a different CTE compared to the tetragonal phase, influencing how the material behaves under thermal stress. This article will delve into how varying yttria content can fine-tune YSZ’s thermal expansion to meet specific application requirements.

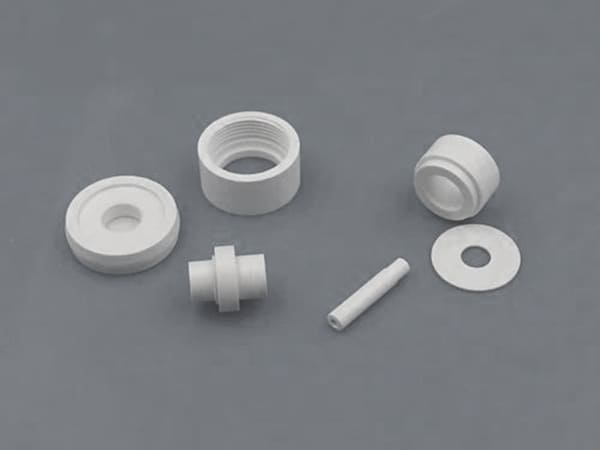

At Heeger Materials Inc., we specialize in high-quality yttria stabilized zirconia (YSZ) products made from a variety of forms and specifications, ensuring optimal performance for industrial and scientific applications.

Fundamentals of Yttria Stabilized Zirconia (YSZ)

1. Crystal Structure of Zirconia

Zirconia exists in three primary crystal phases: monoclinic, tetragonal, and cubic, each stable at different temperature ranges. The monoclinic phase is stable at room temperature but transforms to the tetragonal phase at around 1170°C, accompanied by a significant volume change (approximately 3–5%). This transformation can induce cracks, making pure zirconia unsuitable for high-temperature applications. At even higher temperatures (~2370°C), zirconia transitions to the cubic phase. The phase transformations are reversible but can lead to mechanical failure due to volume expansion and contraction. The table below summarizes the phases and their characteristics:

2. Yttria Stabilization Mechanism

Yttria stabilization involves doping zirconia with yttrium oxide (Y₂O₃) to retain the tetragonal or cubic phases at lower temperatures, preventing the destructive monoclinic-to-tetragonal transformation. Yttria introduces oxygen vacancies into the zirconia lattice, compensating for the charge difference between Zr⁴⁺ and Y³⁺ ions. These vacancies stabilize the high-temperature phases by reducing lattice strain and enabling the material to maintain its structure during thermal cycling. The stabilization process can be summarized as follows:

• Low Yttria Content (3–5 mol%): Stabilizes the tetragonal phase, suitable for applications requiring high toughness.
• High Yttria Content (6–8 mol%): Promotes the cubic phase, ideal for applications needing high ionic conductivity, such as SOFCs. This stabilization enhances YSZ’s suitability for high-temperature environments but also influences its thermal expansion behavior, as different phases exhibit distinct CTEs.

3. Thermal Expansion Basics

The coefficient of thermal expansion (CTE) measures how much a material expands per unit temperature increase, typically expressed in units of 10⁻⁶/°C. For YSZ, the CTE is critical because it determines how well the material integrates with other components in a system. A mismatch in CTE can cause thermal stresses, leading to cracking or delamination. For example, in TBCs, YSZ’s CTE must align with that of the metallic substrate (typically 10–14 × 10⁻⁶/°C) to ensure coating adhesion during thermal cycling. The CTE of YSZ varies with its phase composition, which is directly influenced by yttria content, making it a key parameter to control in material design.

Looking for high-quality yttria stabilized zirconia (YSZ) products? Explore Heege Materials’ selection.

Influence of Yttria Content on Thermal Expansion

1. Yttria Concentration Variations

Yttria content in YSZ typically ranges from 3 to 8 mol%, with each concentration producing distinct phase compositions and properties. At lower concentrations (3–5 mol%), YSZ is primarily in the tetragonal phase, which offers high fracture toughness due to transformation toughening. At higher concentrations (6–8 mol%), the cubic phase dominates, providing better ionic conductivity but lower toughness. These phase differences directly impact the thermal expansion behavior, as the tetragonal phase has a slightly higher CTE than the cubic phase. The following list highlights common yttria doping levels and their applications:

• 3 mol% YSZ: Used in structural ceramics for high toughness.
• 6 mol% YSZ: Common in TBCs for balanced thermal and mechanical properties.
• 8 mol% YSZ: Preferred in SOFCs for high ionic conductivity.

2. Mechanisms Behind Yttria’s Influence on CTE

✅Phase Stabilization Effect:

• Y₂O₃ suppresses the monoclinic-tetragonal transformation, eliminating abrupt volume changes.
• Cubic YSZ has a more isotropic and linear thermal expansion compared to monoclinic/tetragonal.

✅Oxygen Vacancy Contribution:

• Y³+ substitution creates oxygen vacancies (□), which influence lattice vibrations (phonon modes).
• Higher Y₂O₃ (>8 mol%) increases vacancy clustering, slightly reducing CTE.

✅Cation Size Effect:

• Y³+ (1.02 Å) is larger than Zr⁴+ (0.84 Å), causing lattice expansion but also increasing bond anharmonicity.

3. Comparison of CTE for Different Y₂O₃ Compositions

4. Microstructural Effects

Yttria content also affects the microstructure of YSZ, including grain size and defect density, which indirectly influence thermal expansion. Higher yttria content tends to increase grain size due to enhanced sinterability, which can reduce the CTE slightly due to fewer grain boundaries. Additionally, oxygen vacancies introduced by yttria doping alter the lattice dynamics, affecting how the material responds to temperature changes. For instance, a higher defect density in cubic YSZ may lead to a more isotropic expansion behavior compared to tetragonal YSZ, which exhibits anisotropic expansion due to its lower symmetry.

5. Temperature Range Considerations

The thermal expansion behavior of YSZ varies across different temperature ranges, and yttria content plays a role in this variability. At low temperatures (<500°C), the CTE is relatively stable, but at higher temperatures (>1000°C), phase transitions or lattice relaxation in low-yttria YSZ can cause deviations in CTE. For example, 3 mol% YSZ may exhibit slight non-linear expansion due to partial phase transformations, while 8 mol% YSZ remains more consistent due to its fully stabilized cubic structure. This makes high-yttria YSZ more suitable for applications involving extreme thermal cycling, such as TBCs in gas turbines.

Explore our optimized yttria stabilized zirconia (YSZ) products.

Applications and Implications

1. Key Applications by Y₂O₃ Content

2. Practical Implications

✅Grain Size Effects:

• Higher Y₂O₃ → Larger grains → Better sinterability but reduced grain boundary scattering (affects mechanical/thermal properties).
• Lower Y₂O₃ → Finer grains → Enhanced strength but prone to phase transformation stresses.

✅Defect-Driven Behavior:

• Oxygen vacancies in high-Y₂O₃ YSZ improve high-temperature ionic transport (SOFCs) but may accelerate aging in humid environments.
• Vacancy clustering in over-stabilized YSZ (>10 mol%) can degrade long-term performance.

✅Thermal Expansion Matching:

• 8YSZ (8 mol%) is the industrial standard for TBCs/SOFCs due to its CTE (~10.5–11.5 × 10⁻⁶ K⁻¹) matching superalloys and electrodes.
• Tetragonal YSZ (3–4 mol%) requires engineered interfaces to mitigate anisotropic expansion in biomedical devices.

3. Emerging Trends & Challenges

• Dopant Engineering: Scandia (Sc₂O₃)-doped YSZ offers higher ionic conductivity but at higher cost.
• Nanostructured YSZ: Grain boundary engineering to enhance toughness without sacrificing stability.
• Aging Mitigation: Strategies like La₂O₃ co-doping to suppress vacancy clustering in high-Y₂O₃ YSZ.

Request a custom quote for high-quality yttria stabilized zirconia (YSZ) products.

Challenges and Optimization

1. Key Challenges in YSZ Applications

2. Optimization Strategies

3. Future Directions

• Low-Temperature SOFCs: Developing bi-layered electrolytes (e.g., YSZ/GDC) to maintain conductivity below 700°C.
• Self-Healing TBCs: Incorporating glass-forming phases to seal cracks during thermal cycling.
• AI-Driven Design: Machine learning to optimize dopant combinations (e.g., Y-Sc-Gd ternary systems).

At Heeger Materials, we supply optimized-grade ceramic products that comply with ASTM, ISO, and AMS standards, ensuring outstanding quality and reliability.

In conclusion, the yttria content in YSZ significantly influences its thermal expansion properties. Higher yttria concentrations stabilize the cubic phase and reduce thermal expansion, while lower concentrations allow for more expansion but are prone to phase instability. The relationship between yttria content and thermal expansion is complex and requires careful optimization for specific applications.

The ability to tailor YSZ’s thermal expansion through yttria content has significant implications for advanced material applications. By optimizing yttria doping, engineers can enhance the performance and durability of components in high-temperature environments, contributing to advancements in aerospace, energy, and biomedical fields.
