Understanding yield strength of alumina in extreme conditions (0-1600°C)

Alumina (Al₂O₃), also known as aluminum oxide, is a key material in advanced ceramics, prized for its thermal stability, hardness, and chemical inertness. These properties make it essential in industries like aerospace and electronics, where materials must endure extreme conditions. Yield strength, the stress at which a material deforms plastically, is crucial for assessing mechanical performance. For brittle ceramics like alumina, yield strength correlates with fracture strength or microcracking. This article examines alumina’s yield strength across temperatures (0-1600°C), vital for applications such as turbine blades, furnace linings, and cutting tools, offering insights into its behavior under extreme thermal conditions.

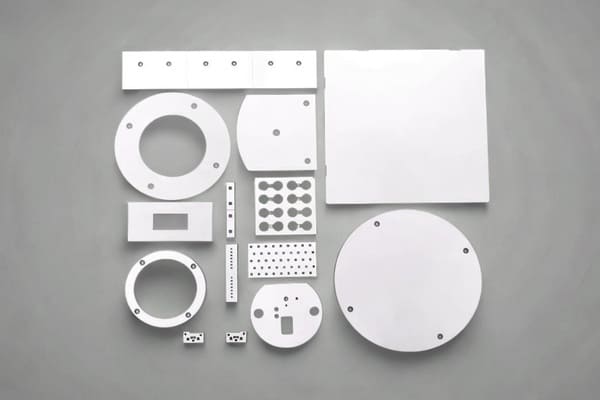

At Heeger Materials Inc., we specialize in high-quality alumina ceramic products, manufactured in various forms and specifications, to ensure optimal performance for industrial and scientific applications.

Background on Alumina

Alumina is a crystalline compound composed of aluminum and oxygen, known for its high melting point (~2072°C), excellent wear resistance, and low electrical conductivity. Its polymorphic forms, particularly alpha-alumina (corundum), are widely used due to their stability and mechanical strength. Alumina’s applications span diverse fields: it serves as a refractory material in high-temperature furnaces, an insulator in electronics, and a structural component in aerospace due to its ability to maintain integrity under thermal and mechanical stress.

Composition and Structure

Alumina is primarily composed of aluminum and oxygen in a crystal lattice arrangement. The most common and stable form of alumina is alpha-alumina (α-Al₂O₃), which has a hexagonal crystal structure. This structure is tightly packed, contributing to alumina's high melting point (approximately 2072°C), hardness (9 on the Mohs scale), and low thermal expansion. The composition and arrangement of atoms within the material directly influence its mechanical properties, including its yield strength. At high temperatures, these properties may change due to phase transitions, grain growth, or thermal degradation.

Key Properties

• Density: Approximately 3.95 g/cm³, which is relatively high and contributes to its robustness.
• Thermal Conductivity: Alumina exhibits low thermal conductivity (about 30 W/m·K at room temperature), making it an excellent insulator.
• Thermal Expansion: Alumina’s coefficient of thermal expansion is relatively low, which helps it retain its structural integrity under temperature changes.
• Hardness: As mentioned, alumina ranks 9 on the Mohs scale, making it highly resistant to abrasion.

The yield strength of alumina is influenced by its microstructure, including grain size, porosity, and the presence of impurities or dopants. For instance, fine-grained alumina tends to exhibit higher strength due to reduced flaw sizes, while impurities can either weaken or enhance mechanical properties depending on their nature.

Looking for high-quality alumina ceramic products? Explore Heeger Materials’ Selection.

Factors Influencing The Yield Strength of Alumina

Yield strength in ceramics like alumina is complex due to their brittle nature, where plastic deformation is minimal, and failure often occurs via crack propagation. For alumina, yield strength is typically measured as the stress at which microcracks initiate or catastrophic failure occurs. Key factors influencing yield strength include:

1. Grain Size

The yield strength of a material is often influenced by its microstructure, particularly the grain size. Smaller grains typically enhance yield strength through the grain boundary strengthening mechanism (Hall-Petch relationship). As temperature increases, however, grain growth may occur, which could reduce the material's yield strength. The balance between grain size and temperature is critical in determining alumina's mechanical behavior at elevated temperatures.

2. Purity and Dopants

• High-purity alumina (>99.9%) generally has higher yield strength due to fewer defects.
• Dopants (e.g., MgO, Y₂O₃) can inhibit grain growth during sintering, refining microstructure, and improving strength.
• Impurities (e.g., SiO₂, Na₂O) may form weak grain boundaries, reducing strength.

3. Porosity and Defects

• Higher porosity (voids or microcracks) significantly reduces yield strength by acting as stress concentrators.
• Dense alumina (low porosity, >95% theoretical density) exhibits higher strength.

4. Sintering Conditions

• Temperature & Time: Higher sintering temperatures can increase density but may lead to excessive grain growth, reducing strength.
• Pressure-assisted sintering (e.g., hot pressing, spark plasma sintering) produces finer grains and higher density, improving yield strength.

5. Crystal Structure and Phase Composition

• α-Alumina (hexagonal, stable phase) has higher strength than transitional phases (e.g., γ-Al₂O₃).
• Secondary phases (e.g., glassy grain boundary phases) may weaken or strengthen alumina depending on composition.

6. Temperature and Strain Rate

• High temperatures reduce yield strength due to increased atomic mobility and dislocation glide.
• Higher strain rates can increase apparent yield strength due to limited time for dislocation movement.

7. Residual Stresses

• Compressive residual stresses (e.g., from surface treatments like shot peening) can enhance yield strength.
• Tensile residual stresses (e.g., from uneven cooling) may promote cracking and lower strength.

8. Testing Conditions

• Loading mode: Alumina is stronger in compression than in tension due to its brittle nature.
• Sample geometry (e.g., surface finish, notch sensitivity) influences measured strength.

Temperature significantly affects this property: at low temperatures, alumina maintains high strength due to strong ionic-covalent bonding, but as temperature rises, mechanisms like grain boundary sliding and creep become prominent, reducing strength.

Explore our optimized alumina ceramic products.

Alumina’s Behavior at Low Temperatures (0-500°C)

Alumina exhibits high strength, thermal stability, and minimal thermal expansion in this range, making it ideal for structural and wear-resistant applications.

Key Characteristics:

✅ High Yield Strength – Typically >300 MPa (fine-grained, high-purity alumina).
✅ Stable Crystal Structure – No phase changes; α-Al₂O₃ remains dominant.
✅ Low Thermal Expansion – CTE ~8–9 × 10⁻⁶/°C, reducing thermal stresses.
✅ Brittle Fracture Dominates – No ductility; fracture toughness may slightly improve at lower T.
✅ Minimal Creep/Dislocation Activity – Plastic deformation negligible below ~1000°C.
Potential Weakness – Moisture-induced stress corrosion cracking is possible in some environments.

Applications at Low Temperatures:

• Precision machining tools.
• Wear-resistant components in automotive systems.
• Insulating substrates in electronics.

Example Data (Experimental):

• Compressive strength @ 200°C: ~350 MPa (polycrystalline alumina).
• Applications: Cutting tools, wear coatings, cryogenic insulators, ballistic armor.

Alumina’s Behavior at High Temperatures (500-1600°C)

As temperature rises, alumina experiences progressive strength loss due to thermal softening, creep, and microstructural changes, necessitating dopants for stabilization in extreme environments.

Key Characteristics:

• Declining Yield Strength – Drops significantly above 500°C (e.g., ~100 MPa for MgO-doped alumina at 1400°C vs. ~50 MPa for pure alumina).
• Creep Dominance – Grain boundary sliding & diffusion drive deformation (critical above 1000°C).
• Reduced Thermal Shock Resistance – Microcracks form under rapid temperature changes.
• Dopant Stabilization – Yttria (Y₂O₃) or Magnesia (MgO) inhibits grain growth, preserving strength.

Challenges at High Temperatures:

• Creep deformation under sustained loads.
• Reduced thermal shock resistance.
• Potential phase transformations in impure alumina.

Example Data & Applications:

• Yield Strength @ 1400°C: ~100 MPa (MgO-doped) vs. ~50 MPa (undoped).
• Applications: Furnace linings, thermal barriers, gas turbine components.

Discover our high-quality alumina ceramic products.

Experimental Methods for Studying Yield Strength

Measuring the yield strength of alumina, especially at high temperatures, requires specialized techniques due to its brittleness and the challenges of extreme environments. Common methods include compressive and tensile testing, where samples are subjected to controlled loads until failure. Nanoindentation is also used to probe localized mechanical properties, particularly for thin films or small samples. High-temperature testing demands furnaces capable of maintaining precise temperatures and inert atmospheres to prevent oxidation. Challenges include sample alignment, thermal gradients, and the difficulty of detecting microcrack initiation. Recent studies, such as those using in-situ X-ray diffraction, have provided insights into how alumina’s microstructure evolves under stress at 1200°C, revealing grain boundary effects.

Key Testing Methods:

• Compressive testing: Measures strength under crushing loads.
• Tensile testing: Assesses behavior under pulling forces.
• Nanoindentation: Evaluates hardness and localized yield.

Comparison with Other Materials

To understand alumina’s performance, it's important to compare it with other materials like zirconia (ZrO₂), silicon carbide (SiC), and steel alloys. Alumina stands out for its chemical stability and cost-effectiveness, with a yield strength of ~300 MPa at 500°C and ~50-100 MPa at 1600°C. Zirconia offers superior toughness but is more expensive and has a lower melting point (~2715°C). Silicon carbide has high hardness and thermal conductivity, with a yield strength of ~400 MPa at 1000°C, but is prone to oxidation at high temperatures unless coated. Steel alloys lose strength above 800°C, making them unsuitable for extreme environments. Alumina’s strength, stability, and affordability make it ideal for applications like furnace linings, though its brittleness limits high-impact uses compared to zirconia or metals.

Advantages of Alumina:

• Cost-effective compared to zirconia and SiC.
• High chemical inertness, resistant to corrosive environments.
• Stable yield strength at moderate temperatures (0-500°C).

Limitations of Alumina:

• Brittle nature leads to low fracture toughness.
• Significant strength reduction above 1000°C due to creep.
• Susceptible to thermal shock compared to SiC.

Request a custom quote for high-quality alumina ceramic products.

Applications and Implications

Understanding alumina’s yield strength under extreme conditions directly informs material selection for demanding applications. In aerospace, alumina is used in turbine blades and thermal barrier coatings, where it must resist creep and thermal shock at temperatures exceeding 1200°C. In refractories, it lines furnaces operating at 1500°C, leveraging its high melting point and chemical stability. The electronics industry uses alumina as a substrate for circuits, benefiting from its insulating properties at moderate temperatures. Knowledge of yield strength helps engineers predict failure risks and optimize designs. Future research aims to enhance alumina’s performance through advanced doping strategies and nanostructuring to improve strength retention at high temperatures.

• Turbine blades in jet engines.
• Furnace linings in steel production.
• Substrates for high-power electronics.

At Heeger Materials Inc., we supply optimized-grade ceramic products that comply with ASTM and ISO standards, ensuring outstanding quality and reliability.

FAQ

 Alumina’s yield strength under extreme conditions (0-1600°C) is a critical factor in its widespread use across high-performance applications. At low temperatures, its high strength and stability make it a reliable choice for precision components, while at high temperatures, challenges like creep and thermal shock necessitate careful material design. By understanding the interplay of microstructure, temperature, and additives, researchers can push the boundaries of alumina’s capabilities. This article highlights the importance of continued research to develop advanced alumina-based materials, ensuring their reliability in next-generation technologies like hypersonic vehicles and high-efficiency power systems.

For top-quality ceramic products, Heeger Materials provides tailored solutions for various applications.
