Technical ceramics in PCBs: why they're critical for high-frequency & high-temperature applications

Technical ceramics in PCBs: why they're critical for high-frequency & high-temperature applications

Printed Circuit Boards (PCBs) are the cornerstone of modern electronics, serving as the foundation for interconnecting components in devices ranging from consumer gadgets to sophisticated aerospace systems. As technology advances, the demand for PCBs capable of operating at high frequencies and in extreme temperature environments has surged. Applications like 5G telecommunications, satellite systems, and electric vehicle powertrains require materials that can maintain performance under intense conditions. Traditional PCB materials, such as FR-4, often fall short in these scenarios due to their limited thermal and electrical properties. This is where technical ceramics step in, offering a robust solution tailored to these demanding applications. Their unique properties make them indispensable for ensuring reliability and efficiency in next-generation electronics.

The rapid evolution of industries drives the shift toward high-frequency and high-temperature applications. For instance, the rollout of 5G networks requires circuits that can handle microwave frequencies without significant signal loss, while aerospace systems must endure extreme heat during operation. Technical ceramics, with their superior thermal conductivity and low dielectric loss, address these challenges effectively. This article explores why ceramics have become critical in modern PCB design, delving into their properties, applications, and future potential.

At Heeger Materials Inc., we specialize in high-quality technical ceramic products with various materials and specifications, ensuring optimal performance for industrial and scientific applications.

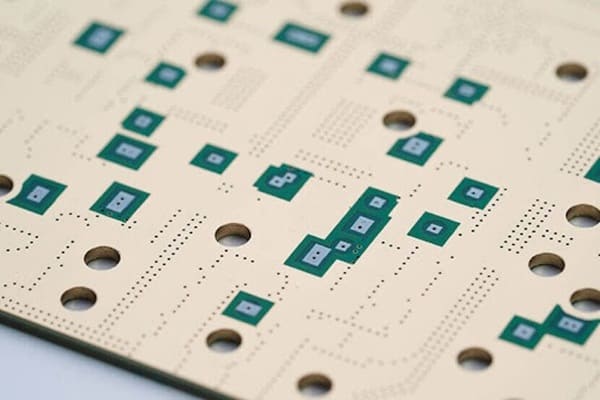

technical ceramic PCBs

What Are Technical Ceramics?

Technical ceramics, also known as advanced ceramics, engineered ceramics, or industrial ceramics, are high-performance ceramic materials designed for specialized applications requiring exceptional mechanical, thermal, electrical, or chemical properties. Unlike traditional ceramics (e.g., pottery, bricks), technical ceramics are precisely engineered for demanding industrial, medical, and technological uses.

Key Characteristics of Technical Ceramics:

  • High Hardness & Wear Resistance – Superior to metals, making them ideal for cutting tools and abrasion-resistant components.
  • Extreme Temperature Stability – Can withstand very high (up to 2000°C+) or cryogenic temperatures without degrading.
  • Chemical & Corrosion Resistance – Inert to acids, alkalis, and harsh environments.
  • Electrical Insulation or Conductivity – Some are excellent insulators (e.g., alumina), while others are conductive (e.g., silicon carbide at high temps).
  • Low Thermal Expansion – Maintain dimensional stability under thermal stress.
  • Biocompatibility – Used in medical implants (e.g., zirconia dental crowns).

Common Types of Technical Ceramics:

Oxide Ceramics:

  • Alumina (Al₂O₃) – Electrical insulation, wear resistance (used in spark plugs, medical implants).
  • Zirconia (ZrO₂) – High fracture toughness (dental implants, cutting blades).

Non-Oxide Ceramics:

  • Silicon Carbide (SiC) – Extreme hardness, thermal conductivity (semiconductors, armor).
  • Boron Carbide (B₄C) – Ultra-high hardness (bulletproof armor, abrasive nozzles).
  • Silicon Nitride (Si₃N₄) – Thermal shock resistance (engine components, bearings).

Advanced Composite Ceramics:

  • Aluminum Nitride (AlN) – High thermal conductivity (electronics cooling).
  • Sialons – Silicon nitride-alumina composites for extreme environments.

Advantages Over Metals & Polymers:

✔ Longer lifespan in harsh conditions
✔ Lighter weight with high strength
✔ Better performance at extreme temperatures

Unlike traditional ceramics used in pottery, technical ceramics are highly engineered to exhibit exceptional electrical, thermal, and mechanical properties. In the context of PCBs, ceramics such as alumina (Al₂O₃), aluminum nitride (AlN), and beryllium oxide (BeO) are commonly used as substrates. These materials are selected for their ability to withstand extreme conditions while maintaining electrical performance.

The choice of ceramic depends on the application’s requirements. For example:

  • Alumina (Al₂O₃): Widely used due to its balance of cost, thermal conductivity, and dielectric properties.
  • Aluminum Nitride (AlN): Preferred for applications requiring high thermal conductivity.
  • Beryllium Oxide (BeO): Offers excellent thermal conductivity but is less common due to toxicity concerns during manufacturing.

These ceramics are fabricated through processes like sintering, where raw materials are heated to form a dense, durable structure. Their use in PCBs has grown as industries demand substrates that can handle the rigors of high-frequency signals and elevated temperatures.

Looking for high-quality technical ceramic products? Explore Heege Materials’ selection.

Key Properties of Technical Ceramics in PCBs

Technical ceramics are prized for their unique combination of properties that make them ideal for PCB substrates in challenging environments. Their high thermal conductivity allows efficient heat dissipation, critical for high-power electronics. For instance, aluminum nitride can achieve thermal conductivity up to 170 W/m·K, significantly higher than FR-4’s 0.3 W/m·K. This ensures that heat generated by components is quickly transferred away, preventing thermal damage.

Additionally, ceramics exhibit low dielectric loss, which minimizes signal degradation in high-frequency circuits. Their dielectric constant is stable across a wide range of frequencies, ensuring consistent performance in RF and microwave applications. Ceramics are also thermally stable, maintaining structural integrity at temperatures exceeding 1000°C in some cases, unlike organic substrates that degrade above 130°C.

1. High Thermal Conductivity

Why it matters: Efficient heat dissipation prevents overheating in high-power electronics.

Example Ceramics:

  • Aluminum Nitride (AlN) – ~170-200 W/mK (best for high-power ICs, LEDs).
  • Beryllium Oxide (BeO) – ~330 W/mK (used in RF/military, but toxic).
  • Silicon Carbide (SiC) – ~120 W/mK (for extreme environments).

Comparison: FR4 (~0.3 W/mK) vs. AlN (~200 W/mK).

2. Low Thermal Expansion (CTE Matching Silicon/GaAs)

Why it matters: Prevents cracking when bonded to semiconductor chips (e.g., power modules, RF devices).

Example Ceramics:

  • Alumina (Al₂O₃) – ~6-8 ppm/°C (close to silicon’s ~3 ppm/°C).
  • Aluminum Nitride (AlN) – ~4.5 ppm/°C (better match than alumina).

3. Excellent Electrical Insulation (High Dielectric Strength)

Why it matters: Prevents short circuits in high-voltage PCBs.

Key Metrics:

  • Dielectric Strength: Alumina (~10-35 kV/mm) vs. FR4 (~20 kV/mm).
  • Volume Resistivity: >10¹⁴ Ω·cm (prevents leakage currents).

4. High-Frequency Performance (Low Dielectric Loss)

Why it matters: Critical for 5G, RF, and millimeter-wave PCBs.

Key Properties:

  • Low Dielectric Constant (Dk): AlN (~8.8), Al₂O₃ (~9.8).
  • Low Loss Tangent (Df): AlN (~0.0003), Al₂O₃ (~0.0001) – better than FR4 (~0.02).

5. Chemical & Moisture Resistance

Why it matters: Ensures reliability in harsh environments (e.g., automotive, aerospace).

Ceramic Advantage: Unlike organic PCBs, ceramics resist:

  • Oxidation, acids, solvents.
  • Humidity-induced delamination.

6. Mechanical Rigidity & Stability

Why it matters: Maintains structural integrity under vibration/stress.

Example: Alumina PCBs are used in power electronics (IGBT modules) due to high stiffness.

7. High-Temperature Stability (No Outgassing or Warping)

Why it matters: Suitable for power electronics, aerospace, and automotive (e.g., EV inverters).

Max Operating Temp:

  • Alumina: ~1600°C (vs. FR4: ~130°C).
  • AlN: ~1800°C.

Common Ceramic PCB Types

Material

Thermal Conductivity

CTE (ppm/°C)

Dielectric Constant (Dk)

Key Applications

Alumina (Al₂O₃)

20-30 W/mK

6-8

~9.8

Power modules, sensors

Aluminum Nitride (AlN)

170-200 W/mK

4.5

~8.8

High-power LEDs, RF ICs

Beryllia (BeO)

330 W/mK

6-8

~6.7

High-frequency military (toxic)

LTCC (Low-Temp Co-fired Ceramic)

2-5 W/mK

5-7

~5-8

RF/microwave modules

Applications of Ceramic PCBs

✔ Power Electronics – IGBTs, EV inverters (AlN, Al₂O₃).
✔ RF/Microwave – 5G antennas, radar systems (LTCC, AlN).
✔ LED Packaging – High-power LED substrates (AlN).
✔ Aerospace & Defense – Avionics, missile guidance (BeO, Al₂O₃).
✔ Medical Implants – Bio-inert ceramic PCBs for sensors.

Explore our optimized technical ceramic products.

Importance of Technical Ceramics in High-Frequency Applications

High-frequency applications, such as 5G networks, radar systems, and satellite communications, rely on PCBs that can transmit signals in the gigahertz range without significant loss. Technical ceramics excel in these scenarios due to their low dielectric loss tangent, which reduces energy dissipation as signals propagate through the substrate. This is critical for maintaining signal integrity in RF and microwave circuits, where even minor losses can degrade performance.

Ceramics also have a stable dielectric constant, which ensures consistent impedance across a wide frequency range. This stability is vital for applications like antennas and transceivers, where precise signal control is required. For example, in 5G base stations, ceramic-based PCBs enable faster data transmission by minimizing signal attenuation. Their ability to support fine-line geometries further enhances their suitability for compact, high-density circuit designs.

Why Ceramics Outperform Traditional Materials in HF Apps:

  • Low Signal Loss: Ceramics (especially BeO/AlN) have ultra-low Df, minimizing energy dissipation at mmWave frequencies (24-300 GHz).
  • Stable Dk Across Frequencies: Unlike organics (e.g., PTFE), ceramics maintain consistent Dk up to 110+ GHz, critical for 5G/radar phase stability.
  • Thermal-Electrical BalanceAlN combines high thermal conductivity (200 W/mK) with low Dk (8.8), enabling compact high-power RF designs.
  • Hermetic Sealing: Ceramics prevent moisture ingress (vs. PTFE), reducing parasitic capacitance shifts in humid environments.

Material Selection Guide for HF Apps:

  • 5G Base Stations (28/39 GHz): AlN (best thermal-Dk balance)
  • Automotive Radar (77 GHz): BeO (lowest loss) or AlN
  • Satellite Comms (Ka/Q-band): LTCC (multilayer integration)
  • Consumer mmWave (60 GHz): PTFE (cost-effective for short-range)

Discover our high-quality technical ceramic products.

Importance of Technical Ceramics in High-Temperature Applications

High-temperature environments, such as those found in aerospace, automotive, and industrial systems, pose significant challenges for PCBs. Components in jet engines, electric vehicle (EV) powertrains, or space exploration equipment often operate at temperatures exceeding 200°C. Technical ceramics are uniquely suited for these conditions due to their ability to maintain electrical and mechanical properties at elevated temperatures.

For instance, alumina and aluminum nitride can withstand temperatures up to 1500°C and 1800°C, respectively, without degrading. This ensures that PCBs remain functional in harsh environments, preventing failures that could compromise safety or performance. In EVs, ceramic substrates help manage heat in power electronics, extending component lifespan. Their low thermal expansion also minimizes warping, ensuring reliability in thermally dynamic systems.

Why Ceramics Outperform Traditional PCB Materials in High-Temp Applications?

Stability at Extreme Temperatures

  • FR4 (standard PCB material) fails at ~130°C, while ceramics (Al₂O₃, AlN, SiC) operate beyond 1000°C without degradation.
  • SiC remains stable up to 2200°C in inert environments (e.g., space applications).

Superior Thermal Management

  • AlN (200 W/mK) and SiC (120 W/mK) dissipate heat far better than metals (Cu: ~400 W/mK, but expands too much).
  • Prevents delamination, solder joint failure, and component overheating in power electronics.

Low CTE (Matching Silicon & Semiconductors)

  • AlN (4.5 ppm/°C) and SiC (4.0-4.5 ppm/°C) closely match Si (3 ppm/°C), reducing thermal stress in IC packaging.
  • Prevents cracking in high-power modules (e.g., EV inverters, IGBTs).

Electrical Insulation at High Temps

  • Unlike metals, ceramics maintain high resistivity (>10¹⁴ Ω·cm) even at 1000°C.
  • Critical for high-voltage PCBs (e.g., aerospace power distribution).

Chemical & Oxidation Resistance

  • No outgassing or corrosion in harsh environments (e.g., jet engines, nuclear reactors).
  • SiC resists molten metals and acids, making it ideal for industrial sensors.

Request a custom quote for high-quality technical ceramic products.

Challenges and Limitations

Despite their advantages, technical ceramics face several challenges. Their high material and manufacturing costs can be prohibitive for mass-market applications.

  • Cost: Technical ceramics are often more expensive than traditional PCB materials like FR4. The cost of raw materials, as well as manufacturing complexity, can increase the overall production cost of PCBs.
  • Manufacturing Complexity: Processing and shaping ceramics can be more difficult compared to conventional PCB materials. Techniques such as precision machining or thin-film deposition are often required, which can add to the complexity and cost of fabrication.
  • Brittleness: While ceramics are strong in many respects, they are more brittle than metals. This can present challenges in handling and assembly, particularly in applications where mechanical stress or vibration is common.

Despite these challenges, the benefits of using technical ceramics often outweigh the drawbacks, particularly in high-performance applications.

FAQ

Question

Answer

What are technical ceramics used for in PCBs?

Technical ceramics are used in PCBs for high-frequency and high-temperature applications due to their excellent thermal conductivity, electrical insulation, and mechanical strength.

Why are ceramics preferred for high-frequency PCBs?

Ceramics like Aluminum Nitride (AlN) have low dielectric loss, stable dielectric properties, and high thermal conductivity, making them ideal for maintaining signal integrity in high-frequency circuits.

How do technical ceramics help with heat management in PCBs?

Technical ceramics such as AlN and Si₃N₄ help dissipate heat effectively, preventing overheating and maintaining reliable performance in high-temperature environments.

What are the benefits of using ceramics in high-temperature PCBs?

Ceramics offer high thermal stability, low thermal expansion, and excellent electrical insulation, making them ideal for applications exposed to extreme temperatures without degradation.

What are common types of technical ceramics used in PCBs?

Common types include Aluminum Nitride (AlN), Silicon Nitride (Si₃N₄), Beryllium Oxide (BeO), and Zirconia (ZrO₂), each known for specific properties like high thermal conductivity or electrical insulation.

What challenges are associated with using ceramics in PCBs?

The main challenges are higher costs and manufacturing complexities, as ceramics require precision processing techniques and are more expensive than traditional PCB materials.

At Heeger Materials, we supply optimized-grade technical ceramic products that comply with ASTMISO, and AMS standards, ensuring outstanding quality and reliability.

Technical ceramics have revolutionized PCB design for high-frequency and high-temperature applications, offering unmatched thermal and electrical performance. From enabling 5G connectivity to ensuring reliability in aerospace systems, ceramics address the limitations of traditional materials like FR-4. While challenges like cost and brittleness remain, ongoing innovations in materials and manufacturing are paving the way for broader adoption. As industries continue to push the boundaries of electronics, technical ceramics will play a pivotal role in shaping the future of high-performance PCBs.
