Electric vehicles (EVs) have revolutionized the automotive industry, driven by the global push towards sustainable transportation and reduced carbon emissions. As of 2025, the EV market has seen exponential growth, with millions of units sold annually worldwide, fueled by advancements in battery technology, charging infrastructure, and power electronics. At the core of every EV lies the power module, a critical component responsible for managing energy flow, converting DC to AC for motor drives, and ensuring efficient operation. These modules must handle high voltages, currents, and temperatures while maintaining reliability over thousands of miles. However, traditional materials often fall short in meeting the demands of modern EVs, leading to inefficiencies, overheating, and reduced vehicle range.

Silicon nitride substrates provide superior thermal management, mechanical strength, and electrical insulation, enabling power modules to perform at higher efficiencies and power densities. Unlike conventional substrates like alumina, silicon nitride excels in high-stress environments, making it ideal for the rigorous conditions in EVs.

The integration of silicon nitride not only boosts EV performance but also contributes to longer battery life and faster charging times. As the industry shifts towards wide-bandgap semiconductors like silicon carbide (SiC) and gallium nitride (GaN), silicon nitride's role becomes even more pivotal, supporting the transition to more compact and powerful systems.

At Heeger Materials Inc., we specialize in high-quality silicon nitride substrates in various forms and specifications, ensuring optimal performance for industrial and scientific applications.

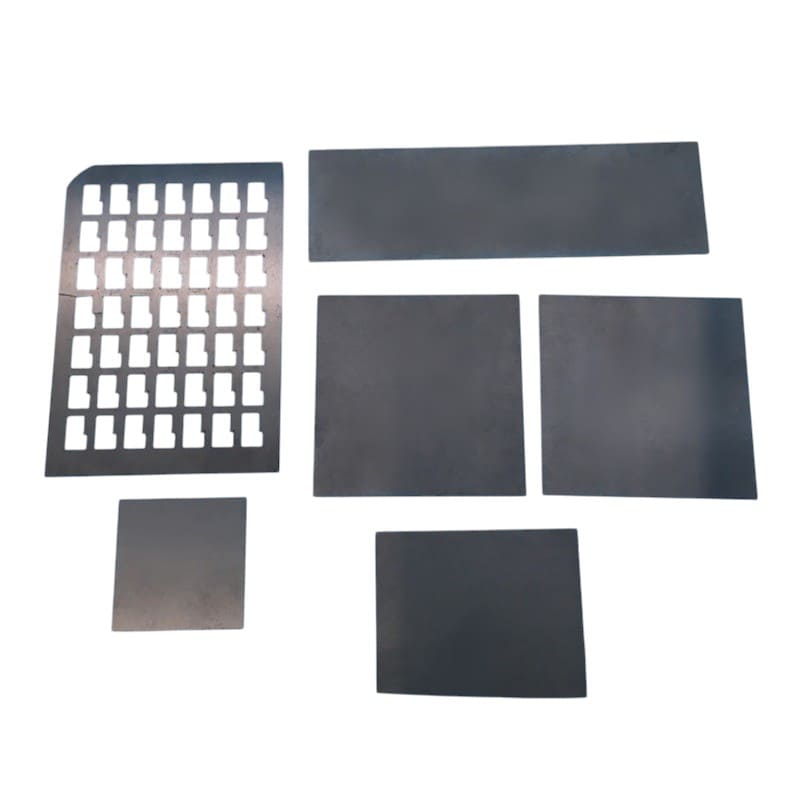

silicon nitride substrates

Role of Power Modules in Electric Vehicles

Power modules are essential in electric vehicles, converting DC from the battery to AC for the motors and managing power distribution to systems like air conditioning. In high-performance EVs, they handle over 100 kW, operating efficiently under extreme conditions like rapid acceleration and regenerative braking.

Power module performance affects key EV metrics like energy efficiency, range, and reliability. Inefficient conversion can reduce range by 10-15%, while module failures risk downtime or safety issues, especially in high-speed or autonomous driving. Key challenges include managing heat from switching losses and achieving high power density to reduce size and weight for better aerodynamics.

Here's a list of primary functions and challenges:

  • Energy Conversion: Inverters and converters ensure smooth power delivery, but high switching frequencies generate heat.
  • Thermal Dissipation: Modules must handle temperatures up to 200°C without failure.
  • Reliability Under Stress: Vibration, thermal cycling, and electrical stress from EV operation demand robust materials.
  • Miniaturization: Smaller modules allow for lighter EVs, improving efficiency.

These elements underscore why innovative materials like silicon nitride are essential for pushing EV technology forward.

Looking for high-quality silicon nitride substrates? Explore the Heeger Materials selection.

Properties of Silicon Nitride Substrates

Silicon nitride (Si3N4) is a high-performance ceramic material renowned for its exceptional combination of thermal, mechanical, and electrical properties, making it superior for power module substrates. It boasts a thermal conductivity ranging from 80 to 177 W/mK, far exceeding that of traditional alumina (Al2O3) at around 20-30 W/mK, which allows for rapid heat dissipation in dense power electronics. Mechanically, silicon nitride offers a flexural strength of over 800 MPa and a fracture toughness of 6-8 MPa·m^(1/2), providing resilience against cracks and thermal shocks common in EV operations.

Electrically, it serves as an excellent insulator with a dielectric strength above 15 kV/mm and low dielectric loss, ensuring minimal current leakage even at high voltages. In high-temperature environments, silicon nitride maintains stability up to 1000°C, outperforming aluminum nitride (AlN) in thermal cycling reliability due to its lower coefficient of thermal expansion (CTE) of about 3 ppm/K, which closely matches that of silicon-based semiconductors, reducing stress at interfaces.

Key properties:

Property

Value / Characteristic

Significance for Power Modules

Thermal Conductivity

20–30 W/m·K

Balances heat dissipation and cost efficiency

Coeff. of Thermal Expansion (CTE)

~3.2 ppm/°C

Matches Si/SiC chips, reducing thermal stress

Flexural Strength

700–1000 MPa

Withstands mechanical stress in high-vibration environments

Fracture Toughness

6–7 MPa·m¹/²

Resists cracking under thermal cycling

Dielectric Strength

15–20 kV/mm

Reliable insulation for high-voltage EV systems

Density

3.2–3.3 g/cm³

Lightweight for automotive applications

Chemical Resistance

Excellent (resists acids/alkalis)

Long-term durability in harsh conditions

Metalization Compatibility

Compatible with DBC/AMB processes

Strong bonds for robust power interconnects

Maximum Operating Temperature

>1200°C (short-term)

Suitable for high-power density designs

Properties of Silicon Nitride (Si₃N₄) Substrates vs. Competing Materials:

Property

Si₃N₄

Al₂O₃ (96%)

AlN

ZTA

Significance

Thermal Conductivity (W/m·K)

20-30

24

170-200

15-20

Heat dissipation capability

CTE (ppm/°C)

3.2

8.0

4.5

8.5

Thermal expansion matching with chips

Flexural Strength (MPa)

700-1000

300-400

300-350

500-700

Mechanical load resistance

Fracture Toughness (MPa·m¹/²)

6-7

3-4

2-3

5-6

Crack propagation resistance

Dielectric Strength (kV/mm)

15-20

10-15

15-20

12-15

Electrical insulation capability

Density (g/cm³)

3.2-3.3

3.9

3.3

4.0-4.2

Weight considerations

Chemical Resistance

Excellent

Good

Good

Very Good

Environmental durability

Cost

High

Low

Very High

Moderate

Economic feasibility

Typical Applications

High-reliability power modules

Standard substrates

High-power density modules

Wear-resistant components

Application suitability

These properties make silicon nitride ideal for EVs, where substrates must endure repeated thermal cycles without degrading, enhancing overall module lifespan and performance.

Key Advantages of Silicon Nitride (Si₃N₄) in EVs:

✔ Best mechanical strength → Survives vibration/thermal cycling.
✔ Good thermal conductivity → Efficient heat dissipation.
✔ Matched CTE to Si/SiC → Prevents delamination in power modules.
✔ Superior reliability → Longer lifespan than Al₂O₃, cheaper than AlN.

Explore our optimized silicon nitride substrates.

Applications of Silicon Nitride Substrates in Power Modules

In power modules, silicon nitride substrates are primarily used in Active Metal Brazing (AMB) configurations, where copper layers are bonded to the ceramic for circuit formation. They support key components like Insulated Gate Bipolar Transistors (IGBTs) and wide-bandgap devices such as SiC and GaN MOSFETs, which operate at higher frequencies and voltages for superior efficiency in EVs. By facilitating better heat transfer, silicon nitride reduces junction temperatures, allowing modules to handle higher power loads without overheating.

One major application is in thermal management: The substrate's high conductivity draws heat away from semiconductors, minimizing thermal stress and extending component life. This enables power density increases of up to 50% compared to alumina-based modules, supporting compact designs that fit into space-constrained EV architectures. Additionally, silicon nitride's mechanical robustness prevents cracking under vibration and thermal expansion, crucial for modules in motor inverters exposed to road conditions.

List of specific enhancements:

  • Heat Dissipation: Reduces thermal resistance by 20-30%, improving cooling efficiency.
  • Power Density: Allows for smaller, lighter modules with higher output.
  • Reliability: Withstands over 10,000 thermal cycles, far beyond standard requirements.
  • Integration with WBG Semiconductors: Matches CTE to SiC/GaN, reducing interface failures.

Several automotive manufacturers are already utilizing silicon nitride substrates in their EV power modules, benefiting from improved performance and efficiency. For instance:

  • Tesla: Tesla has incorporated Si₃N₄ substrates in some of their power modules, improving heat management and efficiency in their battery packs.
  • BMW: BMW's electric models use Si₃N₄-based substrates to enhance the performance of their inverters and power modules.

Discover our high-quality silicon nitride substrates.

Challenges and Future Developments

Despite advantages, silicon nitride substrates face challenges like high production costs due to the AMB process and material sourcing. Manufacturing complexities, such as achieving uniform bonding without defects, can lead to yields below 90%, increasing expenses. Additionally, while Ag-free variants are emerging to cut costs, they require optimization to match performance.

Future directions include cost reduction through scaled production and advanced sintering techniques, potentially lowering prices by 30-50%. Material optimizations, like doping for higher conductivity, and integration with 3D printing, could enhance customization. In next-gen EVs, silicon nitride holds potential for ultra-high-voltage systems and autonomous vehicles, supporting the shift to 800V architectures for faster charging.

Request a custom quote for high-quality silicon nitride substrates.

Conclusion

Silicon nitride substrates are indispensable for advancing EV power modules, offering unmatched thermal and mechanical properties that elevate efficiency, reliability, and performance. Their adoption drives the sustainable evolution of the EV industry, reducing environmental impact through better energy utilization. Looking ahead, ongoing innovations promise even greater integrations, paving the way for smarter, more efficient electric mobility.
