Choosing Silicon Nitride Powder: A Guide to Grades, Specifications, and Applications

Choosing Silicon Nitride Powder: A Guide to Grades, Specifications, and Applications

Silicon nitride powder is one of the most important raw materials in advanced ceramics, widely used in structural ceramics, electronic components, aerospace, automotive, and semiconductor equipment. Its unique combination of high strength, thermal shock resistance, and corrosion resistance makes it a preferred choice for producing high-performance ceramics. However, not all silicon nitride powders are the same—different grades, specifications, and processing methods can significantly impact the final ceramic properties. This article examines the key aspects of selecting silicon nitride powder, including its properties, significance, grade variations, and its comparison with other ceramic powders. By the end, readers will understand not only the applications of silicon nitride powder but also how to evaluate its specifications for specific industrial needs.

At Heeger Materials Inc., we specialize in high-quality silicon nitride products, ensuring optimal performance for industrial and scientific applications.

 Choosing Silicon Nitride Powder: A Guide to Grades, Specifications, and Applications

What Is Silicon Nitride Powder and Why Is It Important?

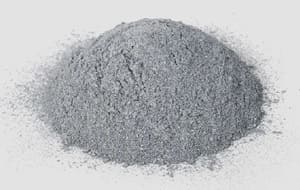

Silicon nitride (Si₃N₄) powder is a non-oxide ceramic raw material characterized by high hardness, low density, and strong resistance to thermal shock and chemical corrosion. It is typically synthesized through methods such as carbothermal reduction, direct nitridation of silicon, or chemical vapor deposition. The choice of powder directly influences the microstructure and properties of sintered ceramics, determining whether the final product can withstand extreme environments such as high-speed bearings, engine parts, or plasma chambers.

Property

Silicon Nitride Powder

Importance in Ceramics

Density

~3.2 g/cm³

Lightweight but strong

Hardness

15–20 GPa

Wear resistance

Thermal Conductivity

20–90 W/m·K

Heat dissipation

Thermal Expansion

2.8 × 10⁻⁶/K

High thermal shock resistance

Flexural Strength (ceramics)

> 900 MPa

Mechanical reliability

Corrosion Resistance

Excellent

Works in acids, alkalis, and plasma

In short, silicon nitride powder is the foundation of advanced ceramics, where material purity, particle size, and phase composition directly determine the final performance.

Explore our high-quality silicon nitride powder products.

What Are the Key Grades of Silicon Nitride Powder?

Silicon nitride powders are commonly classified by their phase composition (α-Si₃N₄ and β-Si₃N₄), synthesis method, and intended application. The α-phase is metastable and transforms into the β-phase during sintering, promoting densification and grain growth. On the other hand, β-phase powders often yield higher thermal conductivity but lower mechanical strength.

Powder Grade

Main Phase

Characteristics

Typical Applications

High α-phase (>90%)

α-Si₃N₄

Promotes densification, fine microstructure

Cutting tools, structural ceramics

Mixed phase

α + β

Balanced properties

General-purpose ceramics

High β-phase (>80%)

β-Si₃N₄

High thermal conductivity, lower strength

Thermal management ceramics

Nano-scale powder

α-Si₃N₄ (nano)

High reactivity, fast sintering

Transparent ceramics, coatings

Different grades are selected based on performance requirements: for instance, α-rich powders are ideal for achieving high mechanical strength, while β-rich powders are more suitable for applications requiring high thermal conductivity.

What Specifications Should Be Considered When Choosing Silicon Nitride Powder?

Choosing the right silicon nitride powder requires analyzing several critical specifications. These factors determine whether the powder will perform well during processing (e.g., pressing, injection molding, sintering) and in the final ceramic product.

Specification

Typical Requirement

Effect on Performance

Particle Size

0.2–1.0 μm (submicron)

Smaller particles improve densification

Surface Area

10–25 m²/g

Higher area increases sintering activity

α-Phase Content

70–95%

Higher α improves density and mechanical strength

Oxygen Content

<2 wt%

Excess oxygen forms SiO₂, reduces conductivity

Metal Impurities (Fe, Ca, Mg)

<0.05 wt%

Impurities reduce high-temp strength

Carbon Content

<0.1 wt%

Excess carbon interferes with sintering

For example, excessive oxygen increases glassy phases, which may weaken the final ceramic, while high-purity powders ensure stronger and more stable performance.

How Does Powder Processing (Granulation) Affect Silicon Nitride Ceramics?

Even if the base powder meets purity and particle size requirements, granulation methods strongly influence flowability, packing density, and final ceramic quality. Granulation transforms fine powders into larger, more manageable particles while maintaining uniform composition.

Granulation Method

Process

Advantages

Limitations

Dry pressing granulation

Compaction + crushing

Low cost, simple

Irregular shape, dust issues

Cold isostatic pressing

Pressure applied uniformly

High density, uniform

Higher cost, complex

Spray drying granulation

Slurry sprayed into hot air

Spherical shape, excellent flowability

Risk of hollow particles, binder removal required

Among these, spray granulation is often preferred for large-scale production because it yields spherical, free-flowing granules that improve mold filling and uniform sintering.

How Does Silicon Nitride Powder Compare with Other Ceramic Powders?

While silicon nitride powder offers an excellent balance between strength, thermal resistance, and chemical stability, it is not the only ceramic material available. A comparison with other ceramic powders highlights why it is often chosen for demanding applications.

Ceramic Powder

Density (g/cm³)

Hardness (GPa)

Thermal Conductivity (W/m·K)

Thermal Shock Resistance

Typical Applications

Silicon Nitride (Si₃N₄)

3.2

15–20

20–90

Excellent

Bearings, engine parts, plasma chambers

Alumina (Al₂O₃)

3.9

13–15

20–30

Moderate

Substrates, insulators

Silicon Carbide (SiC)

3.2

25–28

120–200

Good

Heat exchangers, seals

Zirconia (ZrO₂)

6.0

12–14

2–3

Poor

Dental ceramics, oxygen sensors

From this comparison, silicon nitride powder stands out for its lightweight, high strength, and thermal shock resistance, making it especially valuable in applications where both mechanical integrity and resistance to rapid temperature changes are critical.

Request a custom quote for our silicon nitride powder products.

What Are the Main Applications of Silicon Nitride Powder?

Silicon nitride powder is used to manufacture a wide range of advanced ceramic components. Its versatility stems from its ability to maintain strength and reliability under extreme conditions.

Key applications include:

  • Automotive: Turbocharger rotors, engine components, bearings
  • Semiconductors: Plasma-resistant parts, insulators
  • Aerospace: High-temperature structural parts
  • Energy: Gas turbines, solar panel substrates
  • Medical: Implants and cutting tools

Industry

Component

Benefits of Si₃N₄

Automotive

Bearings, engine parts

High strength, wear resistance

Semiconductor

Etching machine parts

Plasma resistance, purity

Aerospace

Turbine blades

Thermal shock resistance

Medical

Dental implants

Biocompatibility, durability

The adaptability of silicon nitride ceramics to multiple industries makes it one of the most valuable advanced ceramic powders on the market.

What Future Trends Are Shaping Silicon Nitride Powder Development?

With growing demands for energy efficiency, miniaturization, and high-performance electronics, silicon nitride powder is evolving. Trends include the development of nano-sized powders for transparent ceramics, low-oxygen powders for improved conductivity, and additive manufacturing-compatible powders for 3D printing of complex shapes.

Future Trend

Description

Impact

Nano-scale Si₃N₄

Ultra-fine powders with high reactivity

Enables transparent and advanced composites

Low-oxygen powders

Reduced surface SiO₂ content

Higher thermal conductivity ceramics

3D printing powders

Spherical granules tailored for AM

Complex shapes, reduced machining

Hybrid composites

Si₃N₄ + graphene or SiC

Enhanced multifunctional properties

These innovations ensure silicon nitride remains a central material in the future of high-performance ceramics.

FAQ

Question

Answer

What is the ideal α-phase content for high-strength ceramics?

Typically, 80–95%, as it promotes densification during sintering.

Can silicon nitride powder be used in biomedical applications?

Yes, it is biocompatible and used in dental and orthopedic implants.

How does oxygen content affect performance?

Excess oxygen forms glassy phases, reducing thermal conductivity and strength.

Is β-phase powder better than α-phase powder?

β-phase gives higher thermal conductivity, but the α-phase yields higher strength.

Which industries rely most on Si₃N₄ powder?

Automotive, aerospace, semiconductors, and medical fields.

Conclusion

Silicon nitride powder is not just another ceramic raw material—it is a strategic material enabling the production of high-performance ceramics across multiple industries. By carefully considering its grades, specifications, processing methods, and comparison with other ceramic powders, manufacturers can select the right powder to meet their specific application needs. As future trends push toward higher purity, nano-scale powders, and compatibility with 3D printing, silicon nitride will continue to play a crucial role in advanced materials engineering.

Looking for high-quality silicon nitride product? Contact us today!
