Aluminum oxide, also known as alumina (Al₂O₃), is a widely used ceramic oxide material prized for its exceptional properties, including an extremely high melting point, remarkable hardness, high mechanical strength, and outstanding corrosion resistance. These characteristics make it an indispensable raw material across a diverse range of industrial applications.
Alumina's versatility stems not only from its intrinsic properties but also from the ability to engineer its microstructural morphology. It can be synthesized into various forms such as spherical powders, acicular (needle-like) crystals, and irregular granular aggregates, each imparting different characteristics to the final material. Among these configurations, one has emerged as a critical enabler for next-generation applications: flake-shaped alumina. This distinctive form consists of two-dimensional, plate-like particles with high aspect ratios. The process of precisely refining and "flattening" the crystal structure into this morphology significantly amplifies its functional properties, including barrier enhancement, mechanical strength, and thermal management, making it a superior candidate for advanced composites and high-performance coatings.
At Heeger Materials Inc., we specialize in high-quality aluminum oxide products in various forms and specifications, ensuring optimal performance for industrial and scientific applications.
The Flake Morphology and Its Unique Advantages
The morphology of alumina powder is a critical factor determining its functional performance. Among the various forms of alumina products, flake alumina stands out due to its unique and advantageous properties.

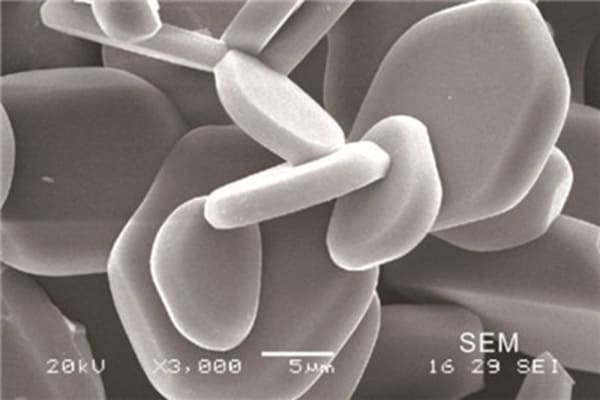

Structurally, as a material with a well-defined two-dimensional planar form, flake alumina is most characterized by its minimal thickness and significantly larger diameter. This unique architecture combines the dual advantages of both nano- and micro-scale powders, achieving a nano-level thickness while maintaining a micron-scale particle size.
In terms of performance, flake alumina retains all the inherent excellent properties of alumina. However, its distinctive 2D flake structure endows it with a smooth surface and moderate surface activity. This leads to exceptional light reflectivity and a strong ability to bond with other active groups.
Furthermore, flake alumina demonstrates superior performance in adsorption, shielding effects, and adhesion. This unique combination of properties significantly expands its applications across various industrial and consumer sectors. This high functionality is reflected in its price, as flake alumina commands a value dozens of times higher than metallurgical-grade alumina, representing a product with extremely high added value.
From Pearlescent Pigments to Semiconductor Polishing: Key Applications of Flaky Aluminum Oxide
Due to its unique properties, flake-shaped alumina can be applied in various fields, including pearlescent pigments, cosmetics, filler materials, ceramic toughening, and polishing.
Pearlescent Pigments
Pearlescent pigments are special pigments that exhibit a colorful pearlescent effect when illuminated. This effect arises from the scattering and refraction of light through the layered matrix. As the global demand for pearlescent pigments continues to grow, researchers are delving deeper into suitable substrates. They have discovered that synthetic flake-shaped alumina has many advantages in this area. Flake-shaped alumina is structurally stable, colorless, has a smooth surface, is heat-resistant, and serves as a viable alternative to natural mica flakes.
Cosmetics
Cosmetics are essential items in daily life, and since they come into contact with the skin, the pigments used must not only be visually appealing but also stable, non-toxic, and non-absorbable. Al2O3 meets these criteria perfectly. Studies have shown that Al2O3 also possesses excellent dispersibility and adsorption capability, allowing it to adhere tightly to the skin surface. The ideal thickness for flake-shaped alumina used in cosmetics is between 0.2 and 1 μm, with a particle size ranging from 2 to 40 μm.
Thermal Conductive Fillers
As electronic devices become more advanced, the heat generated per unit area has gradually increased. If heat is not dissipated promptly, it can cause irreversible damage to electronic devices. Thermal conductive fillers are crucial components of heat dissipation modules. Flake-shaped alumina, due to its high thermal conductivity, can serve as an effective thermal filler when combined with polymer composites, enhancing heat dissipation efficiency and ensuring normal operation of the equipment.
Ceramic Toughening Agents
Alumina is one of the most widely used and studied structural ceramics due to its excellent properties. However, its inherent brittleness is a significant drawback that limits its widespread application. Enhancing its fracture toughness and bending strength has been a challenge for materials researchers. Incorporating flake-shaped alumina as a second-phase toughening agent in ceramics can promote crack deflection and bridging, significantly improving the fracture toughness of the ceramic.
Polishing Materials
Flake-shaped alumina has a high hardness and a concentrated particle size distribution, making it an ideal polishing powder. This type of polishing powder can be used for polishing electronic display devices, ceramics, and high-precision optical lens surfaces. Additionally, because flake-shaped alumina exhibits good dispersion and alignment in liquid media, along with excellent gloss and light reflection properties, its surfaces can remain nearly parallel to the surfaces being polished, minimizing the risk of damage and scratches.
Synthesis Techniques of Flaky Aluminum Oxide
The production of flaky or platelet-shaped alumina requires synthesis methods that promote two-dimensional (2D) anisotropic growth over isotropic (spherical) growth. These techniques can be broadly categorized into top-down (breaking down bulk material) and bottom-up (building from molecular precursors) approaches.
1. Mechanical Delamination
This method involves the physical processing of a precursor material to exfoliate it into flakes.
- Process: Typically, a precursor like aluminum hydroxide (Al(OH)₃) or boehmite (γ-AlOOH) is subjected to intensive wet or dry ball milling. The milling media applies shear forces that fracture the material along its crystalline planes, breaking it down into smaller, platelet-shaped particles.
- Post-processing: The milled product is often then calcined at high temperatures (e.g., 1000-1400°C) to convert the hydroxide or boehmite into the desired crystalline phase of alumina (e.g., α-Al₂O₃).
- Advantages: Relatively simple, scalable, and cost-effective for large-volume industrial production.
- Disadvantages: Less control over particle size distribution (PSD), can introduce impurities from the milling media, and may result in thicker flakes with lower aspect ratios compared to bottom-up methods.
2. Solution-Based Routes (Liquid Phase)
These methods offer greater control over the flake morphology, size, and thickness by carefully managing chemical reactions and crystallization conditions.
Hydrothermal/Solvothermal Synthesis:
- Process: An aluminum precursor (e.g., aluminum salt or alkoxide) is placed in a sealed reactor (autoclave) with a solvent (water or organic) and heated under pressure well above its boiling point. This creates a supercritical environment that facilitates the dissolution and recrystallization of alumina precursors into well-defined platelets.
- Key Factor: The use of mineralizers (e.g., KF, Na₂CO₃) is crucial. They act as catalysts to promote the dissolution and oriented growth of plate-like crystals. The choice of mineralizer and temperature/pressure parameters directly controls the final flake size and aspect ratio.
- Advantages: Produces high-purity, crystalline flakes with uniform morphology and high aspect ratios.
Molten Salt Synthesis (MSS):
- Process: An aluminum source (e.g., Al₂(SO₄)₃, Al(OH)₃) is mixed with one or more low-melting-point inorganic salts (e.g., NaCl, Na₂SO₄, KCl). The mixture is heated to a temperature above the melting point of the salt mixture but below the melting point of alumina. The molten salt acts as a high-temperature solvent, providing a liquid medium for ions to diffuse and crystallize slowly into a thermodynamically stable platelet morphology.
- Key Factor: The salt melt dissolves the precursor and suppresses nucleation, allowing for slow, controlled crystal growth. The salt is later removed by washing with water.
- Advantages: Excellent control over crystal habit, high crystallinity, and relatively simple equipment. Very effective for producing large, thin α-Al₂O₃ platelets.
3. Vapor-Phase Deposition
- Process: Techniques like Chemical Vapor Deposition (CVD) can be used to grow alumina flakes or films. A volatile aluminum compound (e.g., AlCl₃, trimethylaluminum) is decomposed in a hot reactor, often in the presence of an oxidizing agent (e.g., CO₂, H₂O). The atoms are deposited onto a substrate, where they can form crystalline structures.
- Suitability: This is less common for producing free-standing flakes for pigments or fillers and is more typically used for creating protective coatings or specialized nanostructures where the flake is grown in situ on a surface.
4. Template-Assisted Synthesis
- Process: This method uses a sacrificial template with a desired shape to guide the growth of alumina. For example, a graphene oxide template with a 2D structure can be used. The alumina precursor is deposited onto the template via sol-gel or atomic layer deposition (ALD). The template is subsequently removed by calcination, leaving behind a replica of its structure.
- Advantages: Provides exceptional control over the flake's architecture.
- Disadvantages: Complex, expensive, and not suitable for mass production.
Challenges and Trends
Despite the remarkable potential of flake-shaped alumina, several challenges remain in its widespread adoption. One of the primary hurdles is achieving consistent and cost-effective production at scale, particularly for high-aspect-ratio flakes with uniform morphology. Current synthesis methods often involve trade-offs between quality, throughput, and cost. Mechanical methods, while scalable, tend to produce flakes with broader size distributions and lower aspect ratios. Conversely, chemical and template-based routes offer superior control but are less feasible for mass production due to their complexity and expense.
Another challenge lies in the integration of flake alumina into composite materials. Achieving optimal dispersion and alignment within polymer or ceramic matrices is critical for maximizing performance but remains technically demanding. Furthermore, as applications become more advanced—particularly in electronics and optics—the demand for ever-thinner, larger, and more defect-free flakes continues to grow.
Looking ahead, several trends are shaping the future of flake alumina research and application. There is a growing emphasis on developing greener synthesis routes that reduce energy consumption and environmental impact. Advances in computational materials design are also enabling more precise control over crystal growth and morphology. Additionally, the integration of flake alumina into emerging technologies such as flexible electronics, energy storage systems, and advanced coatings is opening new avenues for innovation. As multidisciplinary collaboration increases, flake alumina is poised to play an even more significant role in the next generation of high-performance materials.
Conclusion
The transformation of conventional aluminum oxide into flake-shaped alumina represents a powerful example of how material innovation can unlock extraordinary value from a commonplace substance. By precisely engineering its morphology into two-dimensional platelets, alumina gains enhanced functional properties that make it indispensable across a wide range of high-tech applications—from pearlescent pigments and thermal management to advanced ceramics and precision polishing.
While challenges in synthesis and integration persist, ongoing research and technological advances are steadily overcoming these barriers. The future of flake alumina is bright, driven by trends toward sustainable production, smarter material design, and expanding applications in cutting-edge industries. As we continue to refine and optimize this remarkable material, flake alumina is set to remain at the forefront of materials science, offering new solutions to some of the world’s most pressing technological challenges.
For top-quality ceramic products, Heeger Materials provides tailored solutions and precision machining techniques for various applications.
Looking for premium alumina powder products? Contact us today!
