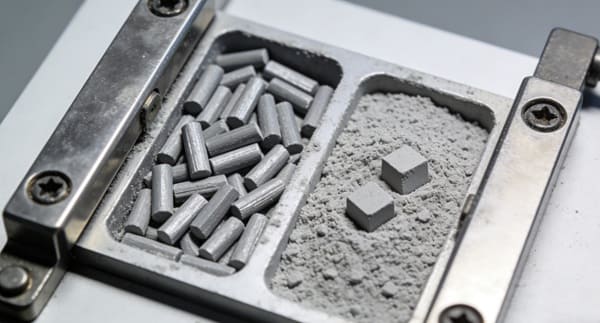

Silicon nitride (Si3N4) ceramics are widely used in thermal management, semiconductor process components, and high-power electronic modules because of their strong mechanical properties and high thermal conductivity. Achieving high thermal conductivity in Si3N4 depends not only on the sintering process but also on the inherent characteristics of the silicon nitride powder itself. Factors such as particle size, purity, crystal phase composition, oxygen content, and specific surface area define the microstructure that forms during sintering, which ultimately dictates how efficiently phonons can travel through the ceramic.
This article provides a detailed, structured, and SEO-friendly analysis of how Silicon Nitride Powder characteristics affect thermal conductivity. Each section explores a key mechanism, supported by scientific logic, data tables, and practical insights for ceramic manufacturers.
At Heeger Materials Inc., we specialize in high-quality silicon nitride powder products, ensuring optimal performance for industrial and scientific applications.
What Thermal-Conduction Mechanisms Exist in Si3N4 and Why Do Silicon Nitride Powder Characteristics Matter?
Understanding how heat flows through silicon nitride is essential before analyzing the influence of powder properties. Unlike metals, where electrons conduct heat, Si3N4 transfers heat mainly through phonons, which are lattice vibration waves. Anything in the final ceramic that disrupts phonon movement—defects, impurities, pores, glassy phases—reduces thermal conductivity significantly. Since the powder determines these microstructural features, powder quality becomes the fundamental factor.
Below is an overview of the key phonon-scattering sources and their relationship to powder characteristics.
Major Phonon-Scattering Factors in Si3N4 Ceramics
- Point defects (oxygen solid solution, vacancies)
- Grain-boundary disorders
- Glassy secondary phases
- Residual porosity
- Small or uneven grain size distribution
These scattering sources are all initiated or magnified by powder characteristics. For example, powders with high oxygen content yield more glass phase; powders with small particle size create more grain boundaries; powders with low purity introduce more defects. As a result, the thermal conductivity of sintered Si3N4 can range from 40–180 W/m·K depending on powder quality.
Explore our high-quality silicon nitride products.
How Do Silicon Nitride Powder Phases (α-Phase vs β-Phase) Influence Thermal Conductivity?
The phase composition (α vs β content) directly controls grain growth behavior and microstructure evolution. β-Si3N4 has an inherently higher theoretical thermal conductivity (~250 W/m·K) than α-Si3N4 (~180 W/m·K). During sintering, α-particles transform to β and elongate into rod-like grains that create continuous thermal pathways.
Comparison of α-Si3N4 and β-Si3N4 in Thermal Conductivity
Property | α-Si3N4 | β-Si3N4 |
Crystal structure | Trigonal | Hexagonal |
Theoretical thermal conductivity | ~180 W/m·K | ~250 W/m·K |
Grain morphology | Fine, equiaxed | Elongated, rod-shaped |
Effect on conductivity | Requires conversion to β for high conductivity | Forms main thermal channels |
Powders with higher α-phase tend to form finer grains and require full α→β transformation for good thermal properties. If the conversion is incomplete, grain connectivity weakens and thermal conductivity drops.
Therefore, manufacturers often choose α-Si3N4 powder with controlled particle size and low oxygen content to achieve a strong β-grain network after sintering.
How Does Silicon Nitride Powder Purity Affect the Thermal Conductivity of Sintered Si3N4?
Purity is one of the most decisive factors affecting final thermal conductivity. Impurity elements—such as oxygen, metallic contaminants (Fe, Ca, Mg), and carbon—introduce point defects, disturb grain boundaries, and generate unwanted second phases. These defects increase phonon scattering.
Impact of Common Impurities on Heat Conduction
Impurity | Mechanism | Impact on Thermal Conductivity |
Oxygen | Solid solution + glass phase formation | -10% to -25% reduction |
Iron (Fe) | Electronic defect formation | -5% to -10% reduction |
Calcium/Magnesium | Low-thermal-conductivity oxides | -8% reduction |
Carbon | Inhibits grain growth | -5% to -20% reduction |
Higher-purity powders (≥99.9%) consistently achieve thermal conductivities above 140 W/m·K in sintered bodies, while lower-purity powders may only reach 80–100 W/m·K.
Purity controls not only microstructural cleanliness but also the effectiveness of β-grain formation—making it essential for high-performance thermal components.
Why Does Particle Size Distribution of Silicon Nitride Powder Influence Thermal Conductivity?
Particle size determines packing density, pore distribution, transformation kinetics, and grain growth. A narrow distribution promotes uniform densification and reduces pore formation, which is critical since pores are among the worst thermal insulators.
Effect of Particle Size on Si3N4 Thermal Conductivity
Powder Particle Size | Sintering Behavior | Final Thermal Conductivity |
<0.5 μm | High surface area, high glass phase | Lower (80–110 W/m·K) |
0.5–1.0 μm | Balanced growth and densification | Medium (110–140 W/m·K) |
1–2 μm | Promotes elongated β-grain growth | High (140–170 W/m·K) |
>2 μm | Hard to densify fully | Lower due to residual pores |
Powders that are too fine tend to produce more glassy second phases due to surface oxidation, while powders that are too coarse struggle to achieve full densification.
A well-controlled 0.5–1.5 μm distribution is typically recommended for high-thermal-conductivity ceramics.
How Does Powder Oxygen Content Control Grain Boundaries and Thermal Pathways?
Oxygen content is arguably the single most important chemical parameter in Si3N4 powders. Oxygen forms SiO2 on particle surfaces, which reacts with sintering aids (typically Y2O3 or Al2O3) to produce a glassy secondary phase. This glass phase lies at grain boundaries and severely blocks phonon flow.
Influence of Powder Oxygen Level on Conductivity
Oxygen Content (wt%) | Expected Glass Phase Volume (%) | Thermal Conductivity Result |
<0.5% | Minimal | 150–180 W/m·K |
0.5–1.0% | Moderate | 120–150 W/m·K |
1.0–1.5% | High | 90–120 W/m·K |
>1.5% | Very high | <90 W/m·K |
Since glassy phases typically have thermal conductivity around 1–3 W/m·K, even small increases in oxygen drastically reduce heat transfer efficiency.
Low-oxygen powders are therefore essential in applications like heat-spreaders and semiconductor processing.
How Do Secondary Phases Originating From Silicon Nitride Powder Affect Thermal Conductivity?
Second phases arise from sintering aids and impurities interacting with surface oxides. These phases form glassy grain-boundary films and triple-junction pockets, creating a discontinuity in the phonon transport path.
Common Secondary Phases and Their Effects
- Y-Si-Al-O glass phase → major thermal barrier
- Crystalline Y2Si2O7 → moderate reduction
- Amorphous SiO2 → strong phonon scattering
- Oxynitrides formed during sintering → moderate impact
These phases reduce conductivity not only by blocking phonon paths but also by inhibiting β-grain growth.
Optimizing powder surface chemistry and sintering-aid selection is therefore crucial for minimizing secondary-phase formation.
How Does Powder Morphology and Particle Shape Influence Sintered Microstructure and Heat Conduction?
Morphology—including sphericity, agglomeration, and surface roughness—affects packing uniformity and pore elimination. Highly agglomerated powders trap internal pores, while irregular shapes prevent efficient packing, both leading to lower thermal conductivity.
Typical Morphology Effects
Morphology Issue | Resulting Microstructure | Thermal Impact |
Agglomeration | Internal closed pores | Major reduction |
Irregular particles | Inhomogeneous packing | Moderate reduction |
Smooth spherical particles | High packing density | Improved conductivity |
Rough surfaces | More surface oxidation | Lower conductivity |
Manufacturers aim for powders with good dispersion, moderate sphericity, and minimal hard-agglomeration.
How Do Sintering-Aid Requirements Reflect the Quality of Silicon Nitride Powder?
Sintering aids (Y2O3, Al2O3, MgO) are essential for liquid-phase sintering, but excessive amounts produce more glassy phases. High-quality powders need less sintering aid to reach full density, which means fewer unwanted low-conductivity phases in the final ceramic.
Sintering-Aid Indicators of Powder Quality
- Lower required sintering-aid content → higher powder purity
- Faster densification → better particle size distribution
- Stronger β-grain growth → better α-phase content
- Less residual glass → higher final thermal conductivity
Reducing sintering-aid content while maintaining density is one of the clearest indicators that the powder is suitable for high-thermal-conductivity applications.
Why Does Residual Porosity Originate From Powder Characteristics and Reduce Thermal Conductivity?
Pores typically arise from insufficient powder packing, incomplete α→β transformation, or agglomeration. These pores are extremely detrimental because air has a thermal conductivity of ~0.026 W/m·K—essentially an insulator.
Effect of Porosity on Heat Conduction
Porosity (%) | Thermal Conductivity (W/m·K) |
<0.5% | 150–180 |
1% | 130–150 |
3% | 100–120 |
5% | <80 |
Porosity reduction begins with powder control: eliminating agglomerates, optimizing particle size, and ensuring proper dispersion before forming.
Request a custom quote for our silicon nitride products.
FAQ
Question | Answer |
Why is powder purity important? | Because impurities create defects and second phases that scatter phonons. |
Does α-phase powder give lower conductivity? | Not if fully converted to β; incomplete transformation lowers conductivity. |
Does particle size affect densification? | Yes, size controls pore elimination and grain growth behavior. |
How much oxygen is acceptable? | Ideally, below 0.5% for high-conductivity ceramics. |
Can sintering aids reduce conductivity? | Excess aids create glassy phases that block heat flow. |
Conclusion
The thermal conductivity of silicon nitride ceramics is fundamentally shaped by the characteristics of the Silicon Nitride Powder used to produce them. Phase composition, purity, oxygen level, particle size, and morphology directly determine how well the ceramic densifies, how β-grains form, and how clean and continuous the phonon-transport pathways are. High-performance Si3N4 ceramics—such as those used in power modules, thermal substrates, and semiconductor equipment—require powders engineered with tight control over physical and chemical parameters.
By understanding and optimizing these powder characteristics, manufacturers can produce Si3N4 ceramics with dramatically improved thermal performance, meeting the growing demands of advanced industries.
