Boron Carbide Ceramics (B4C)

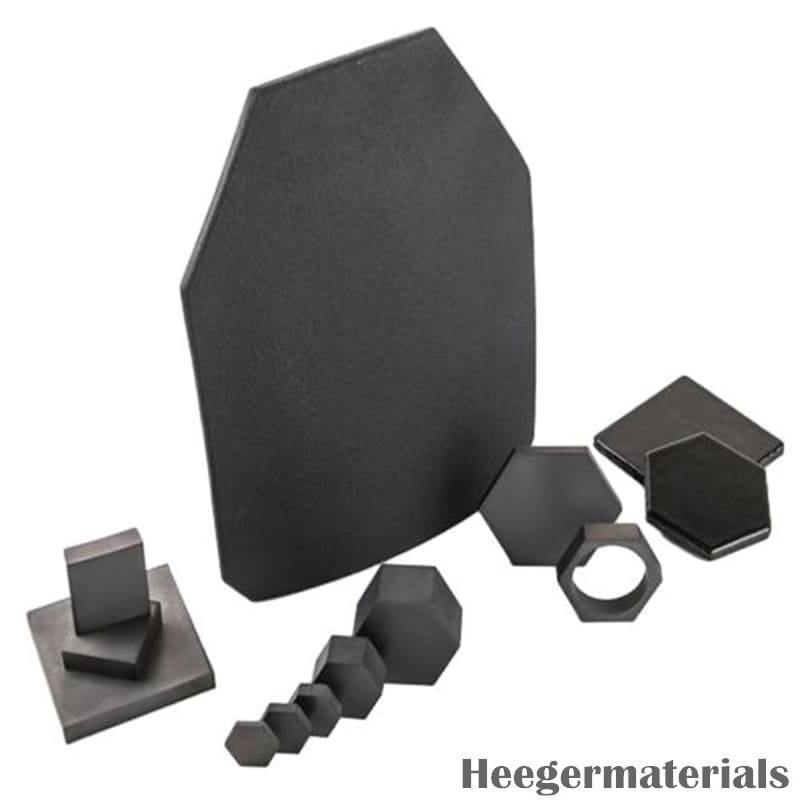

New Boron Carbide Bulletproof Plate, B4C Bulletproof Plate-Heeger Materials Inc View larger

Boron Carbide Bulletproof Plate, B4C Bulletproof Plate

HM3056

Boron Carbide (B4C) Bulletproof Plate offers advanced ballistic protection with superior hardness, high impact resistance, and low weight, making it ideal for military and defense applications. Heeger Material provides high-quality Boron Carbide Bulletproof Plates with customized solutions and competitive prices for top-tier defense protection.

More details

Inquiry

Please contact us if you need customized services. We will contact you with the price and availability in 24 hours.

Data sheet

Thick0.2-80 mm, or customized
ShapeSquare, disc, hexagonal, triangular, or other customized shape
ColorBlack or grey
Density2.46-2.62 g/cm³
MaterialsB4C
Purity≥99.5%
Size10-500 mm, or customized

More info

Boron Carbide (B4C) Bulletproof Plate is a high-performance ballistic protection material designed to provide exceptional defense against high-velocity projectiles. Known for its remarkable hardness and impact resistance, Boron Carbide is the ideal material for military and defense applications, where protection is critical. These plates are made from boron carbide powder using advanced sintering methods such as hot-pressing or pressureless sintering, ensuring optimal density and hardness. With the lowest density and highest hardness among armor ceramics, Boron Carbide Bulletproof Plates offer superior performance for NIJ III and NIJ IV level ballistic protection. Heeger Material delivers high-quality Boron Carbide Bulletproof Plates that offer lightweight, reliable protection for the defense and security industries.

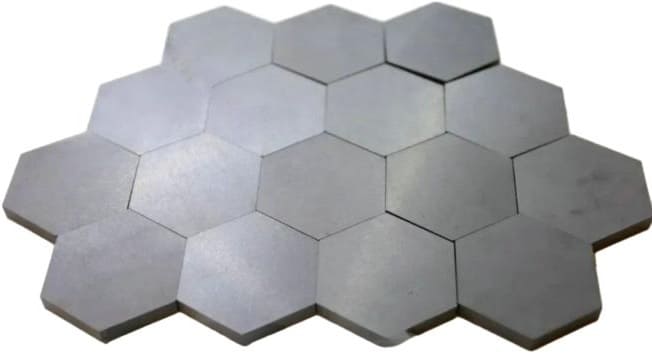

Boron Carbide Bulletproof Plate, B4C Bulletproof Plate

Boron Carbide Bulletproof Plate Specifications

Purity:≥99.5%
Apparence:Black or grey
Chemical Formula:B₄C
Density:2.46-2.62 g/cm³
Size:10-500 mm, or customized
Thickness:0.2-80 mm, or customized
Shape:Square, disc, hexagonal, triangular, or other customized shape
Curve Type:Flat or Curved

Boron Carbide Bulletproof Plate Pressureless Sintering Process

  • Raw Material Preparation: Use high-purity boron carbide powder and sintering aids.
  • Powder Mixing: Mix powder and sintering aids evenly.
  • Molding: Shape the powder into the desired form.
  • Degassing: Remove volatile components to avoid bubbles or cracks.
  • Pressureless Sintering: Sinter at 1600-2000°C.
  • Cooling and Inspection: Cool to room temperature and inspect for quality.

Boron Carbide Bulletproof Plate Advantages

  • Exceptional Hardness: Offers superior hardness, making it highly effective at withstanding and deflecting high-velocity projectiles.
  • Lightweight: With one of the lowest densities among armor ceramics, it provides excellent protection while keeping the overall weight to a minimum.
  • High Impact Resistance: Engineered to absorb and dissipate the energy of impact, ensuring effective protection in high-stress conditions.
  • Superior Ballistic Performance: Meets and exceeds NIJ III and NIJ IV standards, making it ideal for military and defense-grade protection.
  • Corrosion and Wear Resistant: Resistant to chemical degradation and wear, ensuring long-term reliability in harsh environments.

Boron Carbide Bulletproof Plate Applications

  • Military Armor: Used in the production of lightweight, high-performance ballistic armor for military vehicles and personnel protection.
  • Defense Systems: Employed in armored defense systems for protection against high-velocity projectiles in combat situations.
  • Law Enforcement Protection: Utilized in law enforcement gear, such as bulletproof vests and shields, to provide enhanced safety in critical situations.
  • Aerospace Applications: Applied in aerospace for impact protection in military aircraft, offering strength without adding excessive weight.
  • Security Equipment: Used in the design of armored doors, walls, and other security features for critical infrastructure, providing reliable defense against potential threats.

Boron Carbide Bulletproof Plate Packing

The Boron Carbide Bulletproof Plate is securely packed in wooden crates or cartons, reinforced with cushioning materials to prevent movement during transit. This packaging approach ensures that the products remain intact and protected throughout the shipping process.

Boron Carbide Bulletproof Plate Packing

Where to Buy Boron Carbide (B4C) Bulletproof Plate in Bulk?

Heeger Materials Inc., a professional supplier and manufacturer of high-quality Boron Carbide Ceramics (B4C) products, including Boron Carbide Bulletproof Plate, leverages extensive expertise in supply and export to offer competitive prices. We provide customized solutions to meet specific requirements, ensuring exceptional quality and customer satisfaction.
