Viewed products

Sale! Lanthanum Hexaboride Powder, LaB6 Powder, CAS 12008-21-8-Heeger Materials Inc View larger

Lanthanum Hexaboride Powder, LaB6 Powder, CAS 12008-21-8

HTRE1213

New product

Lanthanum Hexaboride (LaB6) Powder is a rare earth boride with the molecular formula of LaB6. Heeger Materials can supply high-purity Lanthanum Hexaboride (LaB6) Powder with particle sizes from -20 mesh to -500 mesh at a competitive price. The purity and particle size can be customized.

More details

Inquiry

Please contact us if you need customized services. We will contact you with the price and availability in 24 hours.

Data sheet

Particle Size20 mesh to 500 mesh/Customized
Purity99.5% - 99.99%
CAS12008-21-8

More info

Lanthanum Hexaboride (LaB6) Powder, also referred to as Lanthanum Boride, is characterized by its cubic crystal structure and purple coloration, and finds successful applications in military and high-tech sectors, including radar aerospace, electronics, instrumentation, medical equipment, metallurgy for home appliances, and environmental protection.

Lanthanum Hexaboride (LaB6) Powder

  • CAS: 12008-21-8
  • Chemical formula: LaB6
  • Density: 4.72 g/cm3
  • Melting point: 2210 ℃
  • Molecular weight: 203.78 g/mol

Lanthanum Hexaboride (LaB6) Powder Specifications

Product

Average Particle Size (D50)

Purity (%)

O (%)

N (%)

C (%)

B (%)

HM-LaB6-1

30-50 nm

>99.0

--

--

--

30.5~31.8

HM-LaB6-2

1.0-3.0 μm

>99.5

≤0.8

≤0.10

≤0.05

30.5~31.8

HM-LaB6-3

-325 mesh

>99.9

≤0.5

≤0.05

≤0.05

30.5~31.8

Impurity Composition (%)

Element

Max Value

Typical Value

Element

Max Value

Typical Value

Element

Max Value

Typical Value

Al

0.0010

0.0005

Fe

0.0500

0.0300

P

0.0010

0.0005

As

0.0010

0.0005

K

0.0020

0.0010

Pb

0.0003

0.0001

Bi

0.0003

0.0001

Mg

0.0020

0.0010

S

0.0010

0.0005

Ca

0.0015

0.0006

Mn

0.0010

0.0005

Sb

0.0020

0.0010

Cd

0.0005

0.0001

Mo

0.0030

0.0015

Si

0.0050

0.0030

Co

0.0005

0.0001

Na

0.0020

0.0005

Sn

0.0003

0.0001

Cr

0.0050

0.0020

Ni

0.0050

0.0030

Ti

0.0050

0.0020

Cu

0.0003

0.0001

Nb

0.0030

0.0010

V

0.0050

0.0010

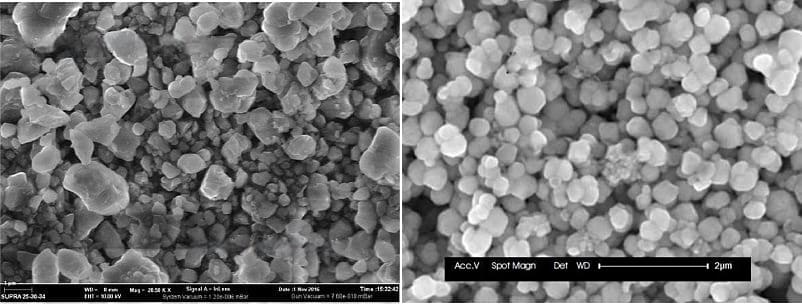

Lanthanum Hexaboride (LaB6) Powder SEM

LaB6-XRD

Lanthanum Hexaboride (LaB6) Powder Features

  • Insoluble in water and acid at room temperature
  • High electrical conductivity
  • Low thermal evaporation rate
  • High emission current density
  • Good thermal stability
  • High thermal electronic radioactivity
  • Obvious absorption and scattering of near-infrared radiation in sunlight

Lanthanum Hexaboride (LaB6) Powder Applications

  • Used as the ideal material for making high-power electron tubes, magnetron controllers, electron beams, ion beams, and gas pedal cathodes
  • Used as a coating applied to the surface layer of polyethylene film sheets to isolate the infrared rays of sunlight
  • Used as the material for window glass nano-coating
  • Used as a new type of heat insulation and energy-saving material

Lanthanum Hexaboride (LaB6) Powder Storage and Packing

Lanthanum Hexaboride (LaB6) Powder should be kept sealed and stored in a dry and cool place, avoiding exposure to air for a long time. The vacuum-sealed packing is 100g/bag, 500g/bag, 1kg/bag, 25kg/drum, or as required.

Lanthanum Hexaboride (LaB6) Powder Packing

Other Hexaborides Powders

HM is a leading supplier of other Hexaborid-Ceramics Lanthanides powders, such as Cerium Boride (CeB6) PowderCalcium Hexaboride (CaB6) PowderEuropium Hexaboride (EuB6) Powder, etc.
