View larger

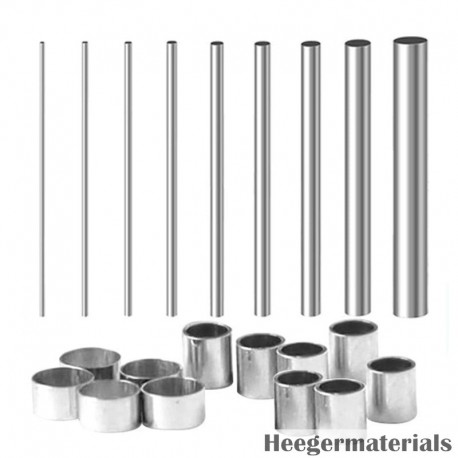

Palladium Tube
HM3092
New product
Please contact us if you need customized services. We will contact you with the price and availability in 24 hours.
Data sheet
| Density | 12.023 g/cm3 |
| Melting Piont | 1554 ℃ |
| Molecular Formula | Pd |
| Purity | 99.95%, or customized |
| CAS | 7440-05-3 |
| Boiling Point | 2970 ℃ |
More info

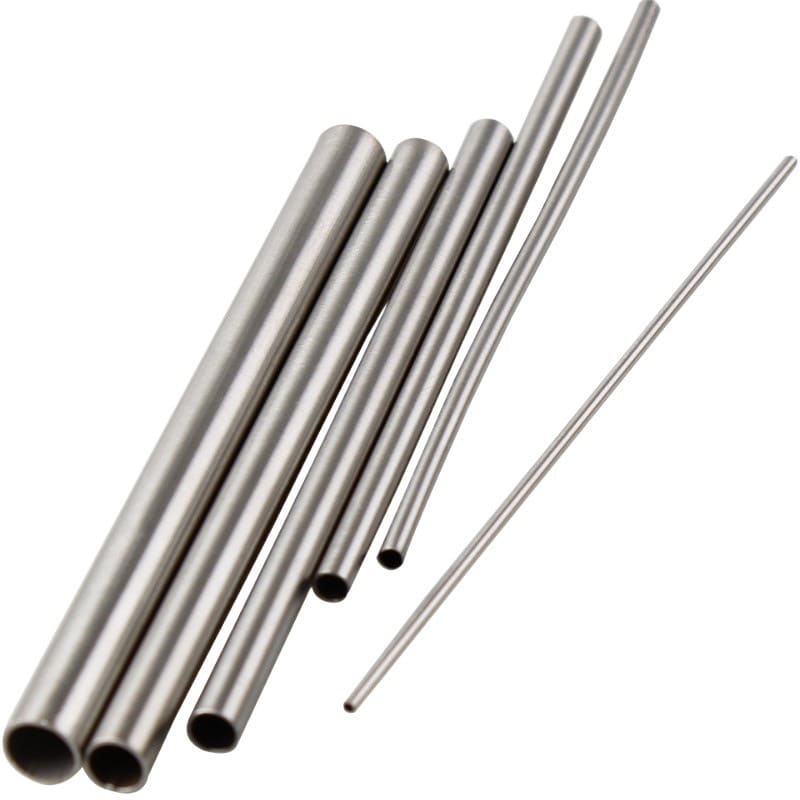

Palladium Tube is manufactured from high-purity palladium using precision cold-drawing or welding techniques to ensure tight dimensional control and consistent quality. It features outstanding hydrogen absorption and permeability, along with excellent resistance to corrosion and high temperatures. These properties make it highly suitable for hydrogen purification systems, chemical catalysis, semiconductor processes, and scientific instrumentation. Heeger Materials provides high-precision Palladium Tube in a range of sizes and specifications to support advanced industrial and research applications.
Palladium Tube Selection Notes
Palladium Tube belongs to the palladium alloy product range and is selected for controlled palladium alloy composition, corrosion behavior, dimensions, surface condition and fabrication quality. It is commonly used in hydrogen-related research, electrical components, laboratory assemblies, membrane studies, precision tubing and precious-metal alloy development. When requesting a quote, confirm outside diameter, inside diameter, wall thickness, length, tolerance and end design, purity or alloy composition, temper or condition when applicable, certification and application requirements.
Related Materials and Product Forms
For material comparison or adjacent product forms, browse palladium products, platinum products and precious metals.
FAQ
What specifications are needed for Palladium Tube? Please provide purity or alloy composition, required form and dimensions, tolerance, temper or condition, surface finish, certification needs, quantity and intended laboratory, electrical or high-temperature application.
Palladium Tube Tolerances
Item | Diameter | Tolerance |
Outside Diameter | =<2mm | ±0.05mm |
2mm – 5mm | ±0.1mm | |
>5mm | ±5% | |
Wall Thickness |
| ±10% |
Palladium Tube Advantages
- Hydrogen Permeability: Enables selective absorption and transmission of hydrogen, essential for purification systems.
- Corrosion Resistance: Performs reliably in aggressive chemical and high-temperature environments.
- High Thermal Stability: Maintains structural and chemical integrity under extreme conditions.
- High Purity and Precision: Manufactured with tight tolerances for use in demanding industrial and scientific applications.
- Excellent Catalytic Properties: Supports various catalytic reactions, especially in hydrogenation and dehydrogenation processes.
Palladium Tube Packing
The Palladium Tube will be carefully placed in wooden cases or cartons, with additional support from soft materials, to prevent shifting during transportation. This packaging method guarantees the integrity of the products throughout the delivery process.
Where to Buy Palladium Tube in Bulk?
Heeger Materials Inc., a professional supplier and manufacturer of high-quality Palladium products including Palladium Tube, leverages extensive expertise in supply and export to offer competitive prices. We provide customized solutions to meet specific requirements, ensuring exceptional quality and customer satisfaction.
Heeger Materials Inc. was established in 2016 in Colorado, USA. We are a specialized supplier of premium-grade metals, alloys, ceramics, powders, and various other materials catering to research, development, and large-scale industrial production in scientific and industrial sectors.
