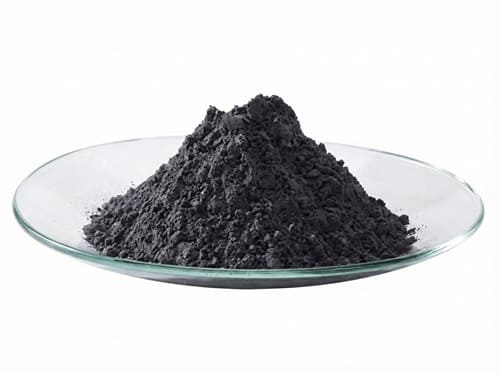

Flaky Carbonyl Iron Powder

Condition: New product

Flaky Carbonyl Iron Powder exhibits excellent magnetic properties and is widely used in the manufacturing of soft magnetic materials, microwave-absorbing materials, and other areas. Heeger Materials can provide high-quality Flake Carbonyl Iron Powder at competitive prices, customizing concentration, and particle size according to specific requirements.

More details

Inquiry

Please contact us if you need customized services. We will contact you with the price and availability in 24 hours.

Data sheet

Shape	Flaky Powder
Particle Size	1-30 μm, or customized
Materials	Fe

More info

Flaky Carbonyl Iron Powder is a type of iron powder obtained through the decomposition of carbonyl iron, featuring a unique flaky shape, high specific surface area, and reactivity. It possesses a high aspect ratio, surpassing the Snoek limit. This material serves as a crucial catalyst and outstanding electromagnetic wave absorber, making it suitable for the preparation of radar-absorbing materials.

In addition, HM provides high-quality Flaky Iron Silicon Aluminum Powder and Flaky Iron Silicon Chromium Powder, with customized options for the content ratio, flake diameter, and thickness based on specific requirements.

Flaky Carbonyl Iron Powder

Flaky Carbonyl Iron Powder Specifications

Product	Concentration (wt%)	Thickness (mm)	Absorption Band (GHz)	Reflectivity (dB)	Particle Size D50 (μm)	Application
HM-CI01-A	75	1	7-15	≤-8	3-5	Wave-absorbing film
HM-CIP01-F	75	0.75	8-15	≤-8	3.5-5	Wave-absorbing film
HM-C07-DF-2	86	1.4	2-6	≤-5	3.5-5.5	Wave-absorbing film
HM-CIP01-J	82	1.5	5-8	≤-8	3.5-5.5	Wave-absorbing film
HM-CI08-A	84	2	2.5-5.5	≤-8	3.5-5.5	Wave-absorbing film
HM-CIP01-5J-2	85	1.5	6-9	≤-10	3.5-5.5	Wave-absorbing film
HM-01C-B	10	1	11-17.5	≤-8	6-9	Wave-absorbing thermal conductive film
HM-CIP01-8J-2	83	1	8-18	≤-7.5	3.5-6	Wave-absorbing coating
HM-FD5B	80	2.5	1.2-1.5	≤-5	3.5-6	Wave-absorbing coating
HM-FD5B	85	2.1	1.7-2.7	≤-8	4.5-6.5	Wave-absorbing coating
HM-CIP03-B-N1	89	0.75	5.5-12	≤-5	3.5	Wave-absorbing coating

Note: The parameters provided are for reference only. Actual testing and technical agreements shall prevail.

Flaky Carbonyl Iron Powder SEM

Flaky Carbonyl Iron Powder Applications

Radar system clutter suppression film
Electromagnetic compatibility system patch
Coatings

Flaky Carbonyl Iron Powder Packing

Flaky Carbonyl Iron Powder should be stored in a sealed container in a dry and cool place and not exposed to air for an extended period. HM offers vacuum-sealed packaging including 100g/bag, 500g/bag, 1kg/bag, and 25kg/drum, or can offer customized packaging as per specific requirements.

Flaky Carbonyl Iron Powder Packing
