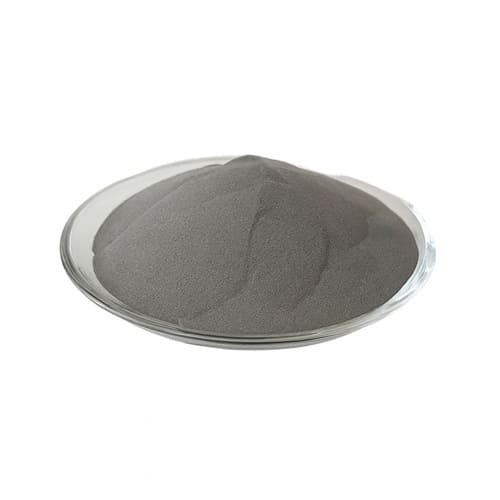

Flaky Iron Silicon Chromium Alloy Powder, FeSiCr

Condition: New product

Flaky Iron Silicon Chromium Alloy Powder is a soft magnetic material with excellent magnetic permeability and corrosion resistance, perfect for absorbing electromagnetic waves. Heeger Materials offers top-quality Flaky Iron Silicon Chromium Alloy Powder at competitive prices, allowing customization of composition ratio, flake diameter, thickness, and particle size to meet specific needs.

More details

Inquiry

Please contact us if you need customized services. We will contact you with the price and availability in 24 hours.

Data sheet

Shape	Flaky Powder
Materials	FeSiCr

More info

Flaky Iron Silicon Chromium Alloy Powder, composed of iron, silicon, and chromium, is a soft magnetic alloy powder known for its excellent corrosion resistance, low high-frequency loss, and cost-effectiveness. It has a flat and flake-like morphology with smooth edges. It is an important basic material for manufacturing integrated inductors, cores, absorbing materials, etc.

In addition, HM provides high-quality Flaky Carbonyl Iron Powder and Flaky Iron Silicon Aluminum Powder, with customized options for the composition ratio, flake diameter, and thickness based on specific requirements.

Flaky Iron Silicon Chromium Alloy Powder

Flaky Iron Silicon Chromium Alloy Powder Chemical Composition

Product	Chemical Composition (wt%)
Product	Fe	Si	Cr
HM-QH-A	Bal.	10.5-11.5	1.5-2.5
HM-QH-B	Bal.	10.5-11.5	1.5-2.5
HM-5#	Bal.	6-6.5	4-5
HM-TC-F	Bal.	4-6	4-6

Flaky Iron Silicon Chromium Alloy Powder Specifications

Product	Concentration (wt%)	Test band(GHz)	The dielectric constant real part	The dielectric constant imaginary part	Permeability real part	Permeability imaginary part	D50 (μm)
HM-QH-A	65	2-18	31-59	8-22	0.5-2.9	0.4-1.9	35-50
HM-QH-B	65	2-18	44-74	12-16	0.6-3	0.3-1.9	40-60
HM-5#	65	2-18	18-26	0.8-8	0.6-2.7	0.4-1.2	30-45
HM-TC-F	50	2-18	15-24	1-5	0.7-3	0.2-1.4	15-25

*Note: The parameters provided are for reference only. Actual testing and technical agreements shall prevail.

Flaky Iron Silicon Chromium Alloy Powder SEM

Flaky Iron Silicon Chromium Alloy Powder Applications

Manufacturing power components
Powder magnetic cores
EMI absorbing materials
Absorbing and corrosion-resistant coating

Flaky Iron Silicon Chromium Alloy Powder Packing

Flaky Iron Silicon Chromium Alloy Powder should be stored in a sealed container in a dry and cool place and not exposed to air for an extended period. HM offers vacuum-sealed packaging including 100g/bag, 500g/bag, 1kg/bag, and 25kg/drum, or can offer customized packaging as per specific requirements.

Flaky Iron Silicon Chromium Alloy Powder Packing
