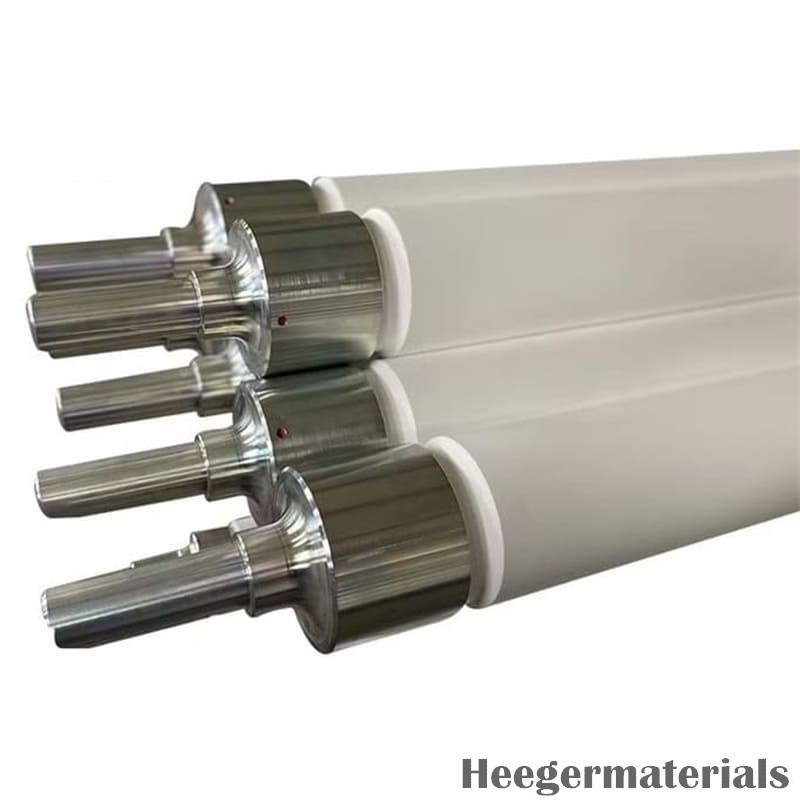

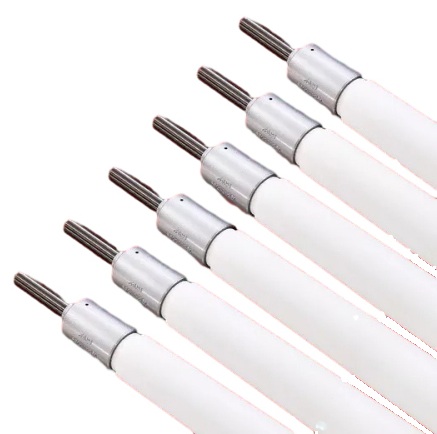

Quartz Ceramic Roller

Name: Quartz Ceramic Roller
Brand: Heeger Materials Inc
SKU: HM3071

Reference: HM3071

Quartz Ceramic Roller is supplied with configurable specification, quantity, documentation and protected packing options for technical material applications.

More details

Inquiry

Please contact us if you need customized services. We will contact you with the price and availability in 24 hours.

Data sheet

Color	White
Materials	SiO2

More info

Quartz Ceramic Roller is engineered for use in high-temperature environments where stability, thermal shock resistance, and dimensional precision are critical. It comes in three specialized types to suit distinct applications: hollow rollers for silicon steel annealing furnaces, solid rollers for glass tempering furnaces, and heat-resistant rollers for metal heat treatment. Each type is designed to handle the specific thermal and mechanical demands of its use case. With features like low thermal expansion, high surface accuracy, and the ability to maintain strength at elevated temperatures, these rollers contribute to smoother, more efficient production processes. Custom sizes and configurations are available to meet varied industrial requirements. Heeger Materials (HM) provides high-performance Quartz Ceramic Rollers to support reliable and precise high-temperature operations.

Quartz Ceramic Roller Specifications

Diameter (mm)	Length (mm)	Purity (%)
15	600	99.8
20	800	99.8
25	1000	99.8
30	1200	99.8
35	1250	99.8
35	1230	99.8
40	1415	99.8
45	1800	99.8
50	2000	99.8
55	2280	99.8
50	2166	99.8
55	2471	99.8
60	2515	99.8
60	2571	99.8
60	2400	99.8
65	2600	99.8
70	2788	99.8
75	3000	99.8
80	3200	99.8
85	3360	99.8
95	3615	99.8
95	3805	99.8
100	4000	99.8
105	4200	99.8
300	6000	99.8

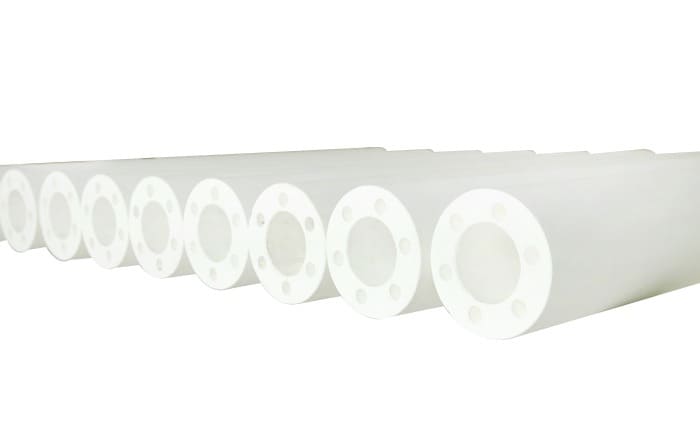

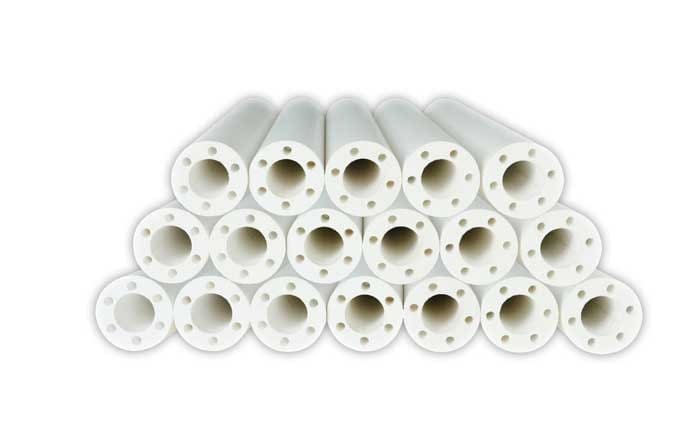

Quartz Ceramic Hollow Roller for Silicon Steel Annealing Furnace

Quartz Ceramic Hollow Roller for Silicon Steel Annealing Furnace is designed to withstand high temperatures and provide stable support during the annealing of silicon steel sheets. Its hollow structure reduces weight without compromising strength, while offering low thermal expansion and strong resistance to thermal shock. This ensures reliable, long-term performance in continuous furnace operations.

Quartz Ceramic Hollow Roller for Silicon Steel Annealing Furnace

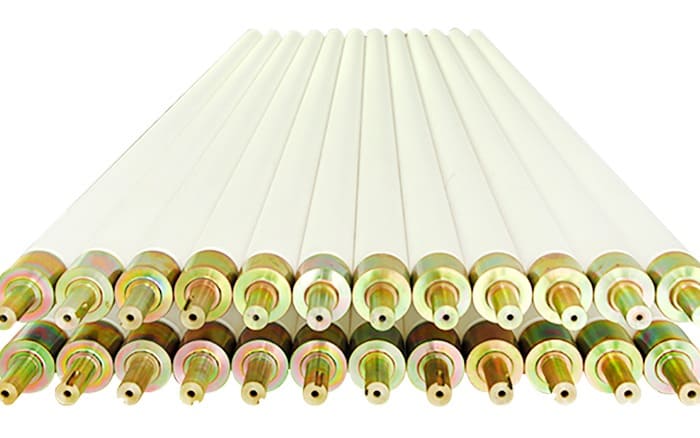

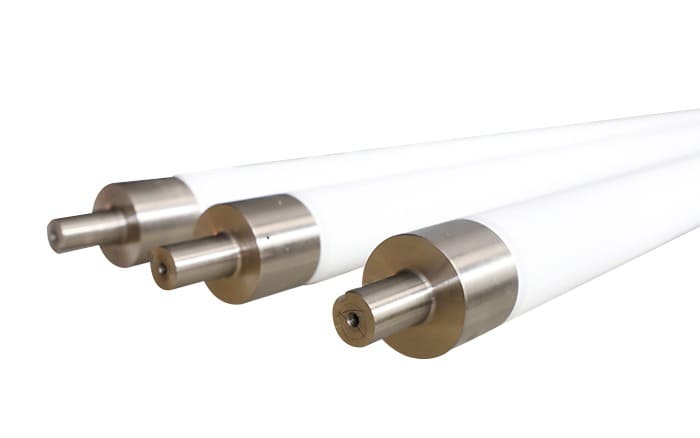

Quartz Ceramic Roller for Glass Tempering Furnace

Quartz Ceramic Roller for Glass Tempering Furnace provides a smooth, non-stick surface and excellent resistance to thermal shock. It handles rapid temperature changes without deformation, ensuring consistent transport of glass sheets and reducing surface defects during the tempering process.

Quartz Ceramic Roller for Glass Tempering Furnace

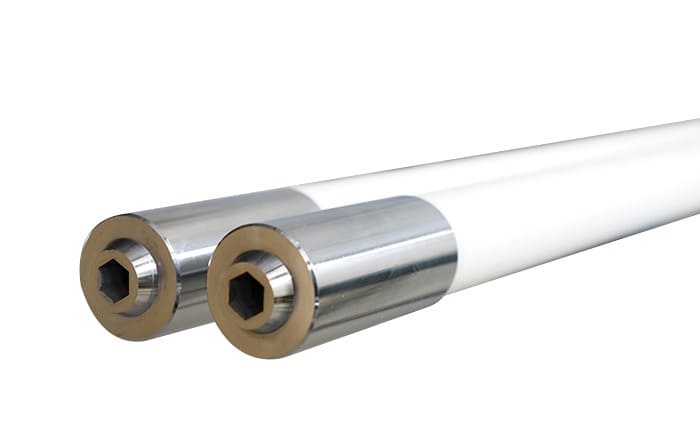

Quartz Ceramic Roller for Metal Heat Treatment Furnaces

Quartz Ceramic Roller for Metal Heat Treatment Furnaces delivers strong thermal resistance and chemical stability, ideal for high-temperature metal processing. It resists oxidation and metal vapor corrosion, maintaining reliable performance and structural integrity under continuous heat exposure.

Quartz Ceramic Roller for Metal Heat Treatment Furnaces

Quartz Ceramic Roller Advantages

High Thermal Shock Resistance: Withstands rapid temperature changes without cracking or warping.
Low Thermal Expansion: Maintains dimensional stability even under extreme heat.
Smooth Surface Finish: Reduces friction and minimizes surface defects on processed materials.
Excellent Corrosion Resistance: Resists attack from metal vapors, oxidation, and harsh furnace atmospheres.
Customizable Dimensions: Can be produced in various lengths, diameters, and wall thicknesses to suit different furnace systems.

Quartz Ceramic Roller Applications

Silicon Steel Annealing Furnaces: Support precise and stable movement of steel sheets during high-temperature annealing.
Glass Tempering Furnaces: Ensures smooth transport of glass panels while withstanding rapid thermal cycling.
Metal Heat Treatment Furnaces: Facilitates safe handling of metal components in extreme heat environments.
Semiconductor Processing Lines: Used in clean, high-temperature zones for wafer or substrate transfer.
Photovoltaic Panel Production: Assists in thermal processing steps requiring non-contaminating, thermally stable rollers.

Quartz Ceramic Roller Packing

The Quartz Ceramic Roller is securely packed in wooden crates or cartons, reinforced with cushioning materials to prevent movement during transit. This packaging approach ensures that the products remain intact and protected throughout the shipping process.

Quartz Ceramic Roller Packing

Bulk supply options.

Heeger Materials Inc., a professional supplier and manufacturer of high-quality Quartz Ceramics products, including Quartz Ceramic Roller, leverages extensive expertise in supply and export to offer competitive prices. We provide customized solutions to meet specific requirements, ensuring exceptional quality and customer satisfaction.

Heeger Materials Inc. was established in 2016 in Colorado, USA. We specialize in premium-grade metals, alloys, ceramics, powders, and other materials catering to research, development, and large-scale industrial production in scientific and industrial sectors.
