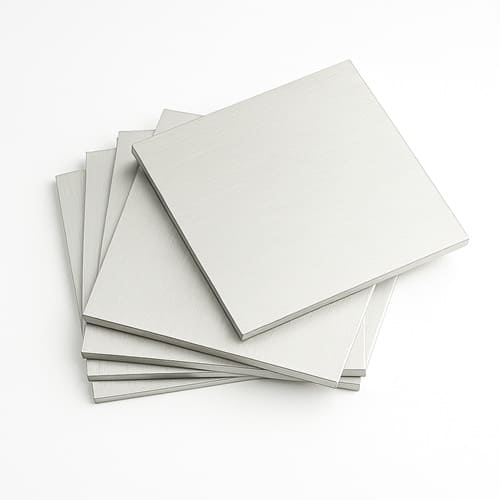

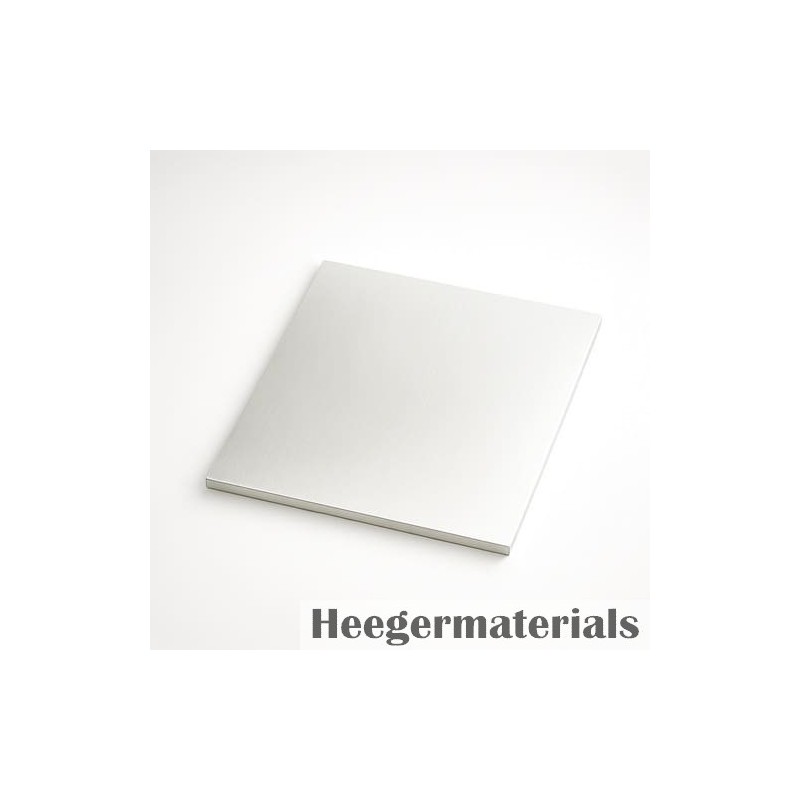

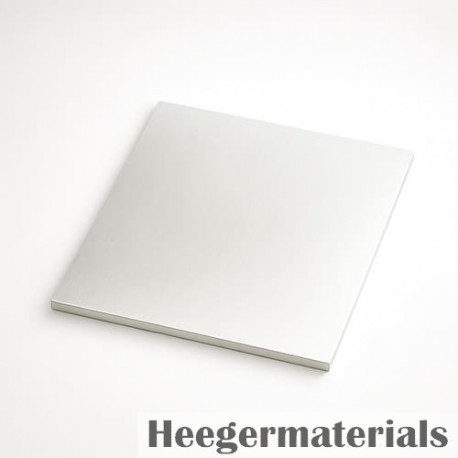

Nitinol Plate, Shape Memory Alloy Plate

Condition: New product

Nitinol Plate is an intelligent alloy material, renowned for its shape memory and superelasticity. It can sense and respond to temperature and stress, making it the ideal material for precision actuation, adaptive structures, and medical devices. Heeger Materials is a professional supplier and manufacturer of high-quality nitinol plates, offering customized solutions and competitive prices.

More details

Inquiry

Please contact us if you need customized services. We will contact you with the price and availability in 24 hours.

Data sheet

Thick	0.1-40 mm, or customized
Materials	NiTi, NiTiNb, NiTiCu, NiTiFe, NiTiCo, NiTiV, NiTiPb, or customized
Standard	ASTM F2063-18

More info

Nitinol Plate is an advanced material, possessing excellent shape memory and superelastic properties. It is the ideal core material for precision actuation, adaptive structures, and advanced medical devices. HM can provide high-quality Nitinol Plates with various specifications and tight tolerances.

Nitinol Plate, Shape-memory Alloy Plate

Surface State: Passivated State, Bright State, Polished State
Material Brand: NT-M, NT-E, NT-S, NT-H

Nitinol Plate Chemical Analysis

Element	Content (wt%)
Nickel (Ni)	54.5~57.0
Carbon (C )	≤0.040
Cobalt (Co)	≤0.050
Copper (Cu)	≤0.010
Chromium (Cr)	≤0.010
Hydrogen (H)	≤0.005
Iron (Fe)	≤0.050
Niobium (Nb)	≤0.025
N+O	≤0.050
Titanium (Ti)	Balance

Nitinol Plate Dimensions and Tolerances

Thickness (mm)	Tolerance (mm)
＞0.1~0.5	±0.05
＞0.5~0.8	±0.07
＞0.8~2.0	±0.09
＞1.1~1.5	±0.11
＞1.5~2.0	±0.15
＞2.0~3.0	±0.18
＞3.0~4.0	±0.22
＞4.0~6.0	±0.35
＞6.0~8.0	±0.40
＞8.0~10.0	±0.50
＞10.0~20.0	±0.70
＞20.0~30.0	±0.90
＞30.0~40.0	±1.10

*If the thickness is <6mm, please check the Nitinol Sheet.

Nitinol Plate Typical Specifications

Thickness (mm)	Width (mm)	Width Tolerance	Length (mm)	Length Tolerance
＞0.3~4.0	100~300	+10 0	300~1000	+15 0
>4.0~20.0	100~500	+15 0	300~1000	+20 0
＞20.0~40.0	100~500	+20 0	300~1000	+25 0

Nitinol Plate Mechanical Properties

Item	Test Result
Item	NT-M	NT-E
Tensile Strength	751 MPa	942MPa
Elongation	18%	10.8%
Upper Yield Strength	/	338MPa
Lower Yield Strength	/	47MPa
Residual Strain（6% Strain）	/

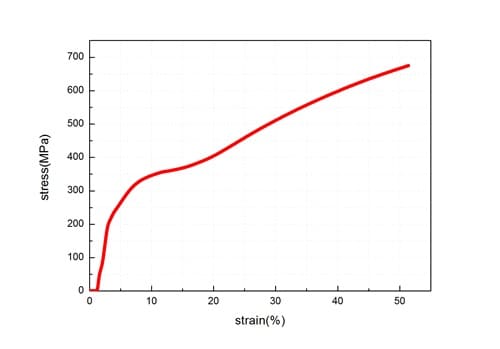

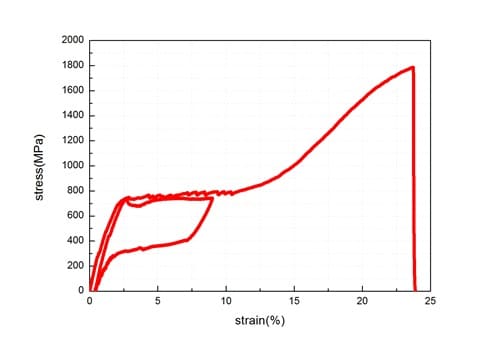

Nitinol Plate Stress-Strain Curve

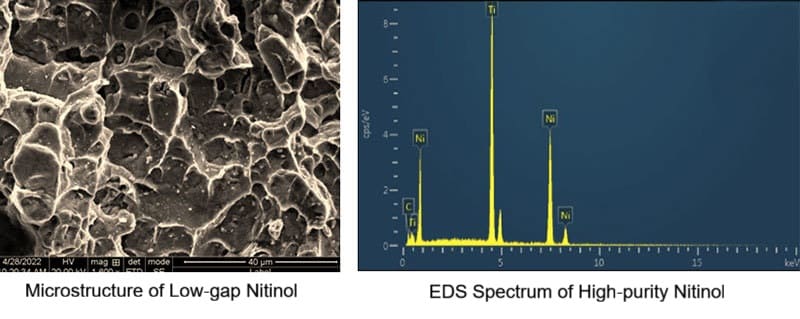

Nitinol Plate Metallurgical Structure Characterization

Nitinol Plate Metallurgical Structure Characterization Diagram

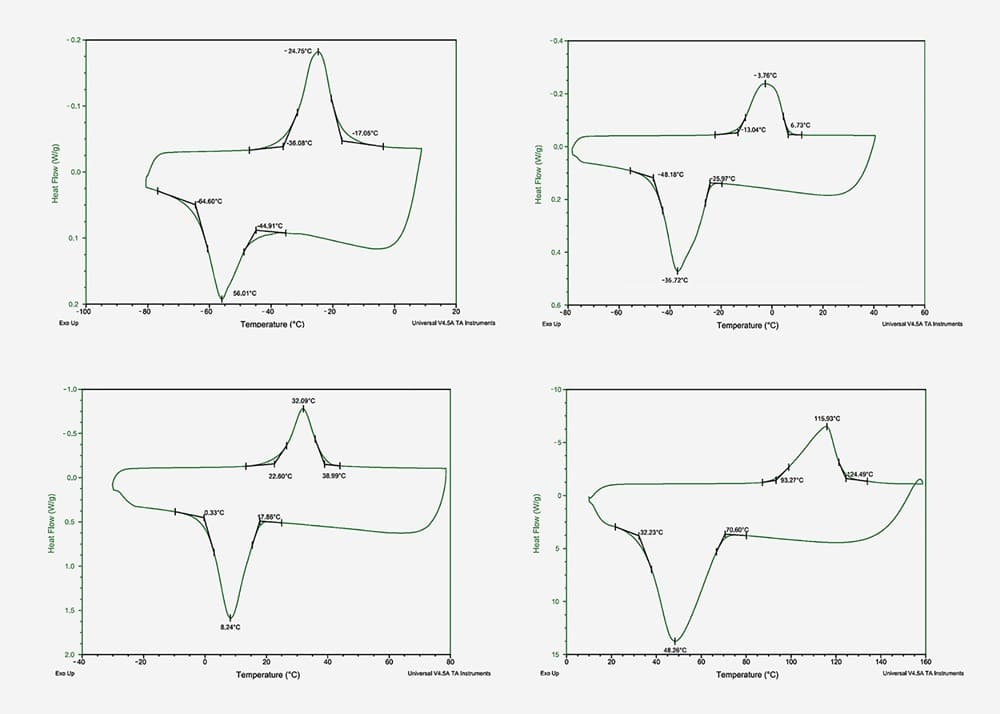

Nitinol Plate Heat Flow vs. Temperature Curve

Phase Transition Temperature	Test Result (℃)
Phase Transition Temperature	NT-S	NT-E	NT-M	NT-H
Mf	-64.60	-48.18	0.33	32.23
Mp	-56.01	-36.72	8.24	48.26
Ms	-44.91	-25.97	17.86	70.60
As	-36.08	-13.04	2.60	93.27
Ap	-24.75	-3.76	32.09	115.93
Af	-17.05	6.73	38.99	124.49

Nitinol Plate Heat Flow vs. Temperature Curve

Nitinol Plate Applications

Nitinol Plates, leveraging their unique properties of Shape Memory Effect (SME) and Superelasticity (SE), find diverse and critical applications across various high-tech industries. Its main applications are as follows:

Medical Devices: Stents, Orthopedic Implants, Surgical Tools
Aerospace Industry: Actuators, Deployable Structures
Robotics: Artificial Muscles, Grippers
Consumer Electronics: Eyeglass Frames, Connectors
Automotive Applications: Sensors, Actuators

Nitinol Plate Packaging

Nitinol Plate will be packaged in custom foam inserts within sturdy wooden crates. This multi-layer protection ensures the ingots are shielded from impacts, vibrations, and environmental changes, arriving safely in optimal conditions.

Nitinol Plate Packing

Where to Buy Nitinol Plate in Bulk?

Heeger Materials Inc., a professional supplier and manufacturer of high-quality Titanium products, including Nitinol Plates, leverages extensive expertise in supply and export to offer competitive prices. We provide customized solutions to meet specific requirements, ensuring exceptional quality and customer satisfaction.

Heeger Materials Inc. was established in 2016 in Colorado, USA. We are a specialized supplier of premium-grade metals, alloys, ceramics, powders, and other materials catering to research, development, and large-scale industrial production in scientific and industrial sectors.
