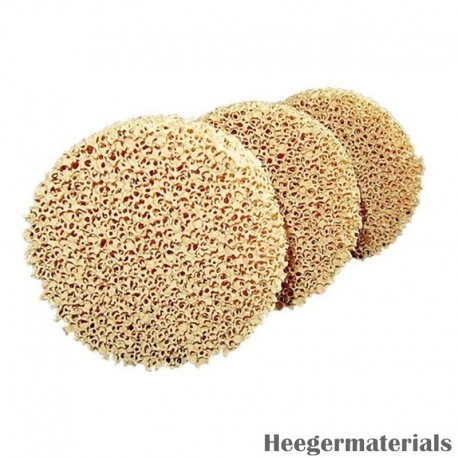

Zirconia Ceramic Foam Filter-ZrO2 Foam

Data sheet

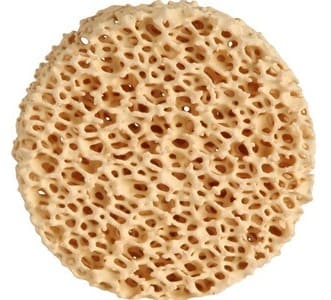

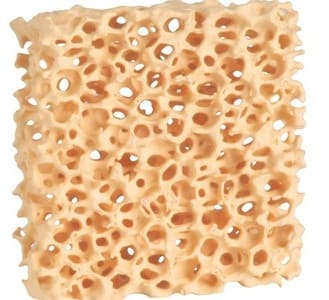

Shape	Round, Square
Materials	ZrO2, SiO2

More info

Zirconia (ZrO2) Ceramic Foam Filter is widely used for purifying molten stainless steel, carbon steel, and large cast iron castings. Made from high-purity zirconia (ZrO2), it offers exceptional thermal resistance up to 1700°C. With outstanding strength and resistance to thermal shock, this filter efficiently removes inclusions as small as a few microns from high-temperature molten steel. It also helps transform turbulent flow into smooth laminar flow, reducing the impact and erosion of the mold cavity. This results in smoother casting surfaces, improved product quality, and significantly lower scrap rates. Heeger Materials provides high-quality Zirconia Ceramic Foam Filter with reliable performance for advanced foundry applications.

Zirconia Ceramic Foam Filter Properties

Chemical Composition	ZrO2, SiO2
Porosity (%)	80–90%
Pore Density (PPI)	8–45
Operating Temperature (°C)	≤1100°C
Room Temperature Bending Strength (MPa)	1.0 MPa
Room Temperature Compression Strength (MPa)	1.2 MPa
Thermal Shock Resistance	1100°C to room temperature, 6 times
Bulk Density (g/cm³)	0.4–0.5 g/cm³
Suitable Alloys	Alloy steel and other high-melting-point metal alloys

Zirconia Ceramic Foam Filter Stock Specifications

Shape And Size (mm)	Circular	Φ50×22, Φ60×22, Φ70×22, Φ75×25, Φ100×25, Φ125×30, Φ150×30, Φ200×35, Φ250×40, Φ300×40
	Square	50×50×22, 60×60×22, 70×70×22, 75×75×25, 100×100×25, 125×125×25, 150×150×30, 175×175×35, 200×200×35, 250×250×40
Custom Dimensions	Sizes can be customized to specific requirements.
Edge Wrapping	Filters can be wrapped with high-temperature fiber cotton of thickness 1mm, 3mm, or 5mm. Ceramic-edge products can also be customized. Maximum diameter/length can reach up to 300mm.

Zirconia Ceramic Foam Filter Filtration Capacity

Dimensions (mm)	Flow Rate (kg/s) (Carbon Steel)	Flow Rate (kg/s) (Alloy Steel)	Filter Capacity (kg)
40×40×20	2	2.5	32
50×50×22	3	4	50
55×55×22	4	5	55
60×60×22	3	4	70
75×75×25	5	6.5	105
100×100×25	7	10	190
150×150×30	17	22	420
Dia 50×22	2	3	40
Dia 60×25	2	3.5	50
Dia 70×25	3	4.2	70
Dia 90×25	6	8	115
Dia 100×25	7	9	145
Dia 120×25	11	14	210
Dia 150×30	12.5	15	330

Zirconia Ceramic Foam Filter Key Advantages

Excellent high-temperature performance and effective filtration.
Streamlining adjusts the flow rate of molten metal, reducing secondary inclusions and pores.
Improves the surface quality and mechanical properties of castings.
Enhances casting quality.
Reduces casting defects and repair welding rates.

Zirconia Ceramic Foam Filter Usage Guidelines

Pore Size Selection: For medium and large steel castings, filters with 10–15 PPI are recommended. For smaller castings with higher requirements, filters with smaller pore sizes can be selected based on specific needs.
Filtration Capacity: Carbon steel and low-alloy steel: 1.0–2.7 kg/cm², Stainless steel: 1.0–4.0 kg/cm²
Filtration capacity is influenced by casting type, placement position, pouring temperature, pressure head size, and other conditions. For detailed usage guidelines, please contact us for more details.

Zirconia Ceramic Foam Filter Applications

Molten Steel Filtration: This effectively removes micron-sized inclusions from stainless steel, carbon steel, and alloy steel melts, improving the purity of the final castings.
Reduction of Re-Oxidation Slag: Helps stabilize the molten metal flow, slow down turbulence, and reduce the formation of re-oxidation slag during the casting process.
Improved Casting Quality: This minimizes erosion of the mold cavity, resulting in smoother surfaces and higher dimensional accuracy in cast components.
Wide Industrial Use: Suitable for use in automotive parts, aerospace components, machine tools, hydraulic systems, pumps, valves, and wind power equipment manufacturing.
High-Temperature Resistance: Made of ZrO2, it withstands temperatures up to 1700°C, meeting the demanding requirements of high-temperature steel filtration.

Zirconia Ceramic Foam Filter Packing And Shipping

Zirconia (ZrO2) Ceramic Foam Filter will be securely packaged in sturdy containers with cushioning materials to prevent movement or damage during shipping. This careful packaging ensures the product arrives in perfect condition, maintaining its high-quality standards throughout delivery.

Where to Buy Zirconia (ZrO2) Ceramic Foam Filter in Bulk?

Heeger Materials Inc., a professional supplier and manufacturer of high-quality Zirconia Ceramic products including Zirconia (ZrO2) Ceramic Foam Filter, leverages extensive expertise in supply and export to offer competitive prices. We provide customized solutions to meet specific requirements, ensuring exceptional quality and customer satisfaction.

Heeger Materials Inc. was established in 2016 in Colorado, USA. We specialize in premium-grade metals, alloys, ceramics, powders, and other materials catering to research, development, and large-scale industrial production in scientific and industrial sectors.
