View larger

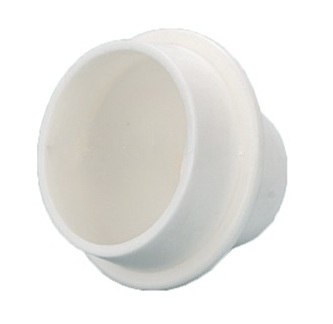

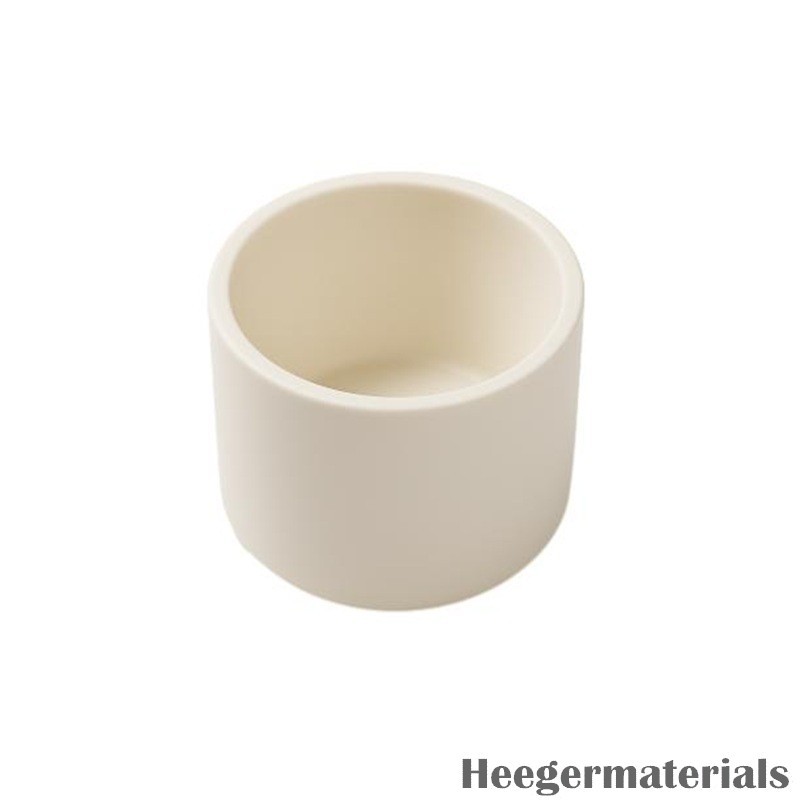

Beryllium Oxide Crucible
New product
Please contact us if you need customized services. We will contact you with the price and availability in 24 hours.
Data sheet
| Thick | customized |
| Shape | Cylinder, Conical Cylinder, Rectangular, T-shape, or customized |
| Color | White |
| Molecular Formula | BeO |
| Size | customized |
More info
Beryllium Oxide Crucible delivers outstanding performance in high-temperature and high-frequency applications thanks to its exceptional thermal conductivity, electrical insulation, and chemical stability. It resists thermal shock and aggressive molten materials, making it ideal for processing rare earths, semiconductors, and specialized alloys. Heeger Materials provides high-quality Beryllium Oxide Crucible with reliable performance for critical thermal applications.
Beryllium Oxide Crucible Selection Notes
Beryllium Oxide Crucible belongs to the beryllium oxide ceramic component range and is selected for high thermal conductivity with electrical insulation, controlled BeO grade, density, dimensions and machined surface quality. It is commonly used in RF and microwave electronics, power semiconductor assemblies, heat spreaders, high-power resistors, vacuum electronics and electrically insulating thermal management. When requesting a quote, confirm capacity, diameter, height, wall thickness, lid requirement, temperature and working atmosphere, BeO grade and purity, density, thermal-conductivity requirement, dimensional tolerance, surface finish, metallization or drawing, cleaning, packaging and quantity.
Related Materials and Product Forms
For material comparison or adjacent product forms, browse beryllium oxide ceramics, technical ceramics and alumina ceramics.
FAQ
What BeO specifications are needed for Beryllium Oxide Crucible? Please provide BeO grade, dimensions and tolerances, density or thermal-conductivity requirement, surface finish, metallization or drawing, cleaning, packaging, documentation and quantity.
Beryllium Oxide Crucible Data Sheet
| Color: | White |
| Chemical Formula: | BeO |
| Dimension: | customized |
| Machining Accuracy: | 0.01 mm |
| Surface Roughness: | 0.1 μm |
Beryllium Oxide Crucible Chemical Compositions
| Element | Content (ppm) |
|---|---|
| Boron (B) | 2 |
| Aluminum (Al) | 46 |
| Chromium (Cr) | 8 |
| Iron (Fe) | 32 |
| Magnesium (Mg) | 1000 |
| Manganese (Mn) | 2 |
| Nickel (Ni) | 9 |
| Titanium (Ti) | 5 |
| Sodium (Na) | 173 |
| Calcium (Ca) | 31 |
| Silicon (Si) | 2100 |
Beryllium Oxide Crucible Key Features
- Exceptional Thermal Conductivity: Offers superior heat transfer performance, ideal for high-temperature processing.
- High Dielectric Strength: Maintains excellent electrical insulation even under extreme thermal stress.
- Thermal Shock Resistance: Withstands rapid temperature changes without cracking or degradation.
- Chemical Inertness: Resists corrosion and reaction with molten metals and aggressive chemicals.
- High Purity and Stability: Provides consistent performance in demanding environments such as semiconductor and rare-earth material processing.
Beryllium Oxide Crucible Applications
- High-Temperature Metallurgy: Used for melting and processing reactive and rare metals due to its thermal stability.
- Semiconductor Manufacturing: Serves in crystal growth and wafer processing, thanks to its electrical insulation and purity.
- Vacuum Furnace Components: Operates reliably in vacuum environments for heat treatment and material synthesis.
- Nuclear Research: Supports fuel pellet production and material testing under extreme radiation and heat.
- Advanced Ceramics Production: Facilitates sintering and compound formation at high temperatures with minimal contamination.
Beryllium Oxide Crucible Packing
The Beryllium Oxide Crucible will be carefully placed in wooden cases or cartons, with additional support from soft materials, to prevent shifting during transportation. This packaging method guarantees the integrity of the products throughout the delivery process.
Where to Buy Beryllium Oxide Crucible in Bulk?
Heeger Materials Inc., a professional supplier and manufacturer of high-quality Beryllium Oxide (BeO) Ceramics products, including Beryllium Oxide Crucible, leverages extensive expertise in supply and export to offer competitive prices. We provide customized solutions to meet specific requirements, ensuring exceptional quality and customer satisfaction.
Heeger Materials Inc. was established in 2016 in Colorado, USA. We are a specialized supplier of premium-grade metals, alloys, ceramics, powders, and various other materials catering to research, development, and large-scale industrial production in scientific and industrial sectors.
