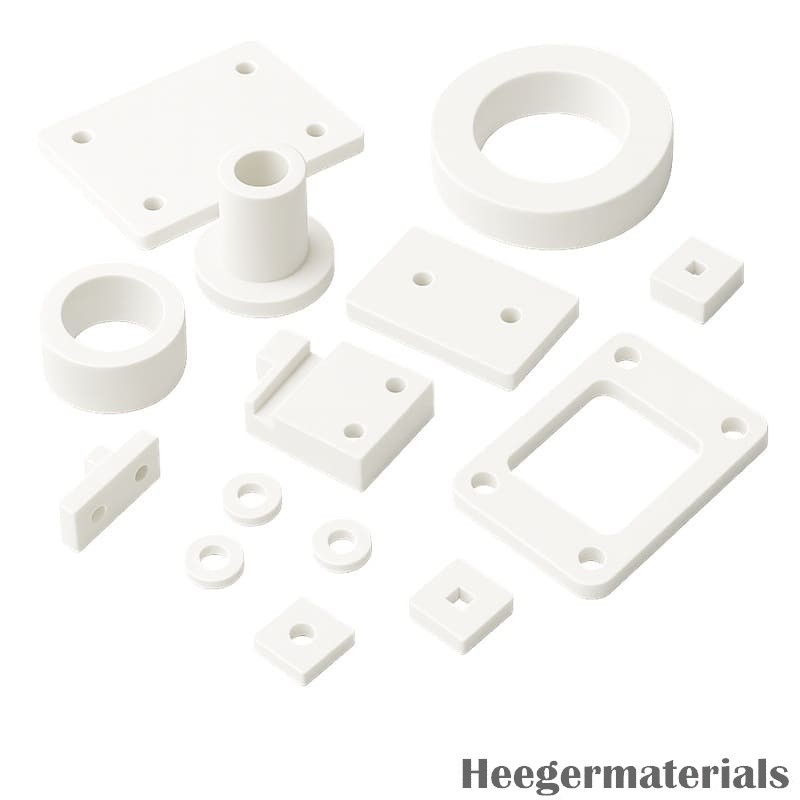

Beryllium Oxide Custom Parts
New product
Please contact us if you need customized services. We will contact you with the price and availability in 24 hours.
Data sheet
| Thick | customized |
| Color | White |
| Molecular Formula | BeO |
| Size | customized |
More info
Beryllium Oxide Custom Parts are precision-engineered ceramic components that offer exceptional thermal conductivity, electrical insulation, and mechanical strength. These parts are specifically designed to meet unique requirements in high-performance applications such as RF electronics, semiconductor equipment, and aerospace systems. With superior thermal shock resistance and chemical stability, Beryllium Oxide parts maintain reliability even in harsh conditions. Heeger Materials (HM) provides high-quality Beryllium Oxide Custom Parts with reliable performance and customized specifications.
Beryllium Oxide Custom Parts Selection Notes
Beryllium Oxide Custom Parts belongs to the beryllium oxide ceramic component range and is selected for high thermal conductivity with electrical insulation, controlled BeO grade, density, dimensions and machined surface quality. It is commonly used in RF and microwave electronics, power semiconductor assemblies, heat spreaders, high-power resistors, vacuum electronics and electrically insulating thermal management. When requesting a quote, confirm drawings, dimensions, tolerances, material grade, surface finish, quantity and working environment, BeO grade and purity, density, thermal-conductivity requirement, dimensional tolerance, surface finish, metallization or drawing, cleaning, packaging and quantity.
Related Materials and Product Forms
For material comparison or adjacent product forms, browse beryllium oxide ceramics, technical ceramics and alumina ceramics.
FAQ
What BeO specifications are needed for Beryllium Oxide Custom Parts? Please provide BeO grade, dimensions and tolerances, density or thermal-conductivity requirement, surface finish, metallization or drawing, cleaning, packaging, documentation and quantity.
Beryllium Oxide Custom Parts Data Sheet
| Color: | White |
| Chemical Formula: | BeO |
| Dimension: | customized |
| Machining Accuracy: | 0.01 mm |
| Surface Roughness: | 0.1 μm |
Beryllium Oxide Custom Parts Chemical Compositions
| Element | Content (ppm) |
|---|---|
| Boron (B) | 2 |
| Aluminum (Al) | 46 |
| Chromium (Cr) | 8 |
| Iron (Fe) | 32 |
| Magnesium (Mg) | 1000 |
| Manganese (Mn) | 2 |
| Nickel (Ni) | 9 |
| Titanium (Ti) | 5 |
| Sodium (Na) | 173 |
| Calcium (Ca) | 31 |
| Silicon (Si) | 2100 |
Beryllium Oxide Custom Parts Key Features
- Exceptional Thermal Conductivity: Beryllium oxide custom parts offer thermal conductivity up to 285 W/m·K, significantly higher than most ceramics, enabling efficient heat dissipation in compact designs.
- High Electrical Resistivity: Despite excellent thermal performance, BeO maintains high electrical resistivity, making it ideal for high-voltage insulating parts in advanced electronics.
- Excellent Mechanical Strength: With superior hardness and strength, these custom parts resist cracking and wear, providing long-term reliability in demanding environments.
- Low Dielectric Constant: BeO parts exhibit a low dielectric constant (~6.5), ensuring minimal signal loss in high-frequency RF and microwave applications.
- Outstanding Thermal Stability: BeO maintains structural and functional integrity under extreme thermal cycling, supporting applications in aerospace, defense, and power electronics.

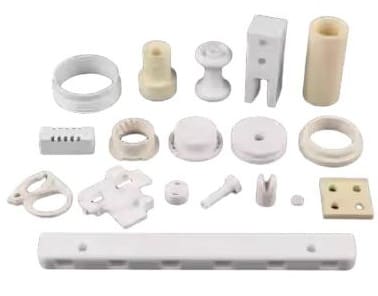

Beryllium Oxide Custom Parts Applications
Beryllium Oxide Custom Parts Packing
The Beryllium Oxide Custom Parts will be carefully placed in wooden cases or cartons, with additional support from soft materials, to prevent shifting during transportation. This packaging method guarantees the integrity of the products throughout the delivery process.
Where to Buy Beryllium Oxide Custom Parts in Bulk?
Heeger Materials Inc., a professional supplier and manufacturer of high-quality Beryllium Oxide (BeO) Ceramics products, including Beryllium Oxide Custom Parts, leverages extensive expertise in supply and export to offer competitive prices. We provide customized solutions to meet specific requirements, ensuring exceptional quality and customer satisfaction.
Heeger Materials Inc. was established in 2016 in Colorado, USA. We are a specialized supplier of premium-grade metals, alloys, ceramics, powders, and various other materials catering to research, development, and large-scale industrial production in scientific and industrial sectors.
