View larger

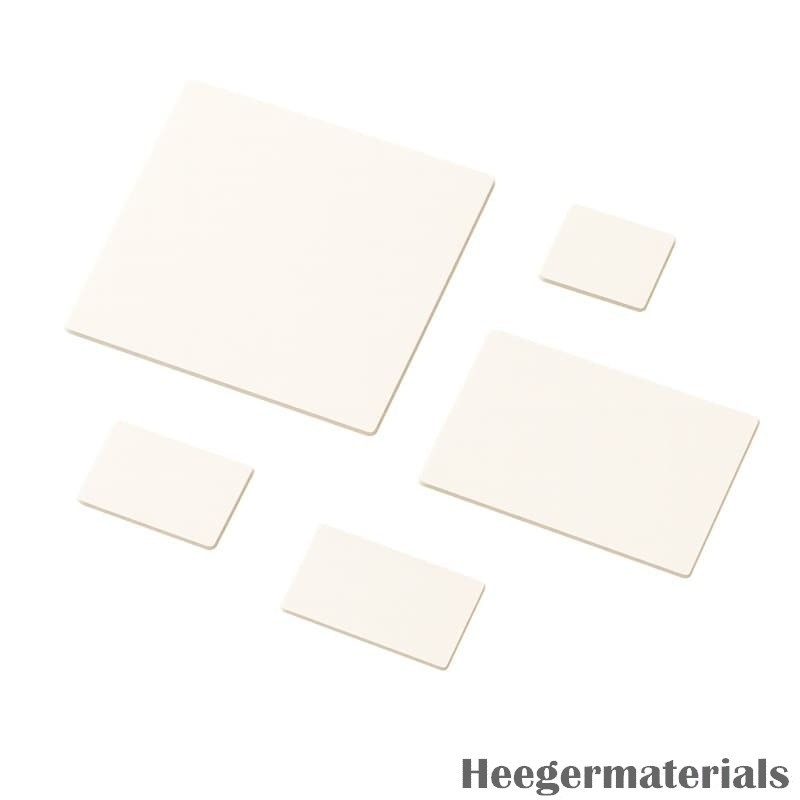

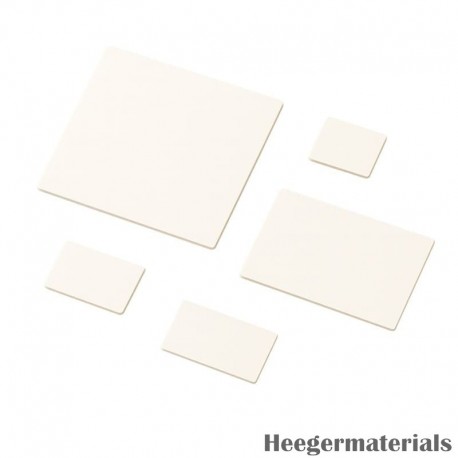

Beryllium Oxide Substrate
New product
Please contact us if you need customized services. We will contact you with the price and availability in 24 hours.
Data sheet
| Thick | customized |
| Color | White |
| Molecular Formula | BeO |
| Size | customized |
More info
Beryllium Oxide Substrate offers exceptional thermal conductivity, electrical insulation, and high-temperature stability, making it ideal for demanding electronic and microwave applications. Its thermal performance is close to that of metals like aluminum, while still functioning as a strong electrical insulator, which is crucial for power electronics, LED packaging, and advanced communication systems. With excellent resistance to thermal shock and corrosion, Beryllium Oxide Substrate maintains reliable performance in harsh environments. Heeger Materials (HM) provides high-quality Beryllium Oxide Substrate with consistent performance for precision electronic and thermal management needs.
Beryllium Oxide Substrate Selection Notes
Beryllium Oxide Substrate belongs to the beryllium oxide ceramic component range and is selected for high thermal conductivity with electrical insulation, controlled BeO grade, density, dimensions and machined surface quality. It is commonly used in RF and microwave electronics, power semiconductor assemblies, heat spreaders, high-power resistors, vacuum electronics and electrically insulating thermal management. When requesting a quote, confirm thickness, length, width, surface finish, flatness, tolerance and thermal or electrical requirements, BeO grade and purity, density, thermal-conductivity requirement, dimensional tolerance, surface finish, metallization or drawing, cleaning, packaging and quantity.
Related Materials and Product Forms
For material comparison or adjacent product forms, browse beryllium oxide ceramics, technical ceramics and alumina ceramics.
FAQ
What BeO specifications are needed for Beryllium Oxide Substrate? Please provide BeO grade, dimensions and tolerances, density or thermal-conductivity requirement, surface finish, metallization or drawing, cleaning, packaging, documentation and quantity.
Beryllium Oxide Substrate Data Sheet
| Color: | White |
| Chemical Formula: | BeO |
| Dimension: | customized |
| Machining Accuracy: | 0.01 mm |
| Surface Roughness: | 0.1 μm |
Beryllium Oxide Substrate Chemical Compositions
| Element | Content (ppm) |
|---|---|
| Boron (B) | 2 |
| Aluminum (Al) | 46 |
| Chromium (Cr) | 8 |
| Iron (Fe) | 32 |
| Magnesium (Mg) | 1000 |
| Manganese (Mn) | 2 |
| Nickel (Ni) | 9 |
| Titanium (Ti) | 5 |
| Sodium (Na) | 173 |
| Calcium (Ca) | 31 |
| Silicon (Si) | 2100 |
Beryllium Oxide Substrate Key Features
- Exceptional Thermal Conductivity: Offers high thermal conductivity (up to 285 W/m·K), enabling efficient heat dissipation in high-power electronic applications.
- Excellent Electrical Insulation: Combines thermal conductivity with strong electrical insulation, ideal for semiconductor and microwave device substrates.
- High Mechanical Strength: Maintains structural integrity under mechanical and thermal stress, making it suitable for demanding environments.
- Chemical Stability: Resistant to most chemicals and does not react with molten metals, ensuring long-term durability in corrosive environments.
- Low Dielectric Constant: Supports low-loss signal transmission at high frequencies, critical for RF and microwave electronics.
Beryllium Oxide Substrate Applications
Beryllium Oxide Substrate Packing
The Beryllium Oxide Substrate will be carefully placed in wooden cases or cartons, with additional support from soft materials, to prevent shifting during transportation. This packaging method guarantees the integrity of the products throughout the delivery process.
Where to Buy Beryllium Oxide Substrate in Bulk?
Heeger Materials Inc., a professional supplier and manufacturer of high-quality Beryllium Oxide (BeO) Ceramics products, including Beryllium Oxide Substrate, leverages extensive expertise in supply and export to offer competitive prices. We provide customized solutions to meet specific requirements, ensuring exceptional quality and customer satisfaction.
Heeger Materials Inc. was established in 2016 in Colorado, USA. We are a specialized supplier of premium-grade metals, alloys, ceramics, powders, and various other materials catering to research, development, and large-scale industrial production in scientific and industrial sectors.
