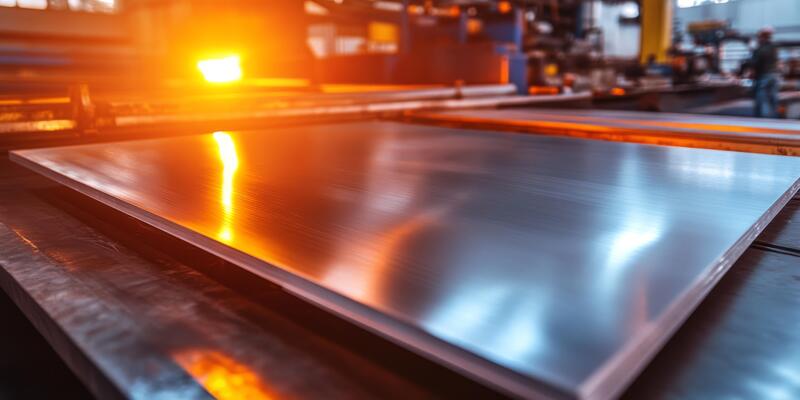

High-density tungsten sheets are engineered for applications that demand exceptional material performance in terms of mass, mechanical strength, temperature resistance, and dimensional stability. With a density close to 19.3 g/cm³, tungsten is among the heaviest and most robust materials used in the commercial and industrial sectors. This article explores the comprehensive characteristics, performance data, and applications of high-density tungsten sheets, with technical depth and engineering relevance.
At Heeger Materials Inc., we specialize in High-density tungsten sheets, ensuring optimal performance for industrial and scientific applications.
Physical and Mechanical Properties
High-density tungsten sheets possess a unique combination of properties that differentiate them from other metallic materials. Below is a detailed comparison of key properties:
Property | Typical Value | Units | Notes |
Density | 19.25–19.30 | g/cm³ | One of the highest among metals |
Melting Point | 3422 | °C | The highest melting point of any metal |
Boiling Point | 5555 | °C | Demonstrates outstanding thermal endurance |
Tensile Strength | 1670–3900 | MPa | Increases with alloying and processing method |
Yield Strength | 750–900 | MPa | Material hardening improves yield limits |
Vickers Hardness | 450–850 | HV | High hardness ensures wear resistance |
Elastic Modulus (Young’s) | ~411 | GPa | High stiffness, essential in load-bearing applications |
Electrical Resistivity | 5.4–6.0 × 10⁻⁸ | Ω·m | Lower than most non-metal conductors |
Thermal Conductivity | 170–175 | W/m·K | Efficient heat dissipation in high-temp environments |
Coefficient of Thermal Expansion | 4.2–4.6 × 10⁻⁶ | /K | Minimal expansion under temperature variation |
Chemical Properties and Environmental Stability
- Tungsten exhibits strong chemical stability under normal atmospheric conditions. Key chemical characteristics include:
- Oxidation Resistance: Stable up to 400°C in air. Oxidizes slowly to form WO3 at higher temperatures.
- Acid Resistance: Resistant to most acids, including HCl and H2SO4, but reacts with HF.
- Alkali Resistance: Resists weak alkalis but may react under high temperature with molten alkali.
Looking for high-purity tungsten sheet materials? Heeger Materials offers a broad range of custom-sized tungsten products to suit your specific application.
Manufacturing Techniques and Processing
High-density tungsten sheets are typically manufactured using powder metallurgy followed by various mechanical processes. The primary steps include:
- Powder Preparation: High-purity tungsten powder is produced through hydrogen reduction of WO3.
- Compaction: The powder is cold-isostatically pressed (CIP) into green compacts.
- Sintering: Compacts are sintered in vacuum or hydrogen furnaces at temperatures above 2000°C.
- Rolling & Machining: Sintered billets are hot rolled and/or cold rolled to desired sheet thickness.
- Annealing: Post-deformation annealing improves ductility and stress relief.
- Typical thickness ranges from 0.05 mm to 20 mm, depending on application.
Advantages of High-Density Tungsten Sheets
- Extreme Density: Ideal for compact mass applications (e.g., counterweights, radiation shields).
- High Strength-to-Weight Ratio: Excellent mechanical integrity in compact forms.
- Thermal Endurance: Unmatched stability in high-temperature environments.
- Wear Resistance: Durable under sliding and abrasive conditions.
- Dimensional Stability: Minimal thermal expansion enables precision under thermal cycles.
Request a custom quote for High-Density Tungsten Sheets.
High-Density Tungsten Sheets Common Applications
Industry | Application |
Aerospace | Control surface counterweights, satellite ballasts, gyroscope rotors |
Medical | Radiation shielding, collimators for imaging devices, and cancer therapy shields |
Electronics | Heat sinks for power semiconductors, vacuum contact assemblies |
Defense | Armor-piercing projectiles, kinetic energy penetrators, protective linings |
Industrial Tooling | EDM electrodes, high-temp molds, welding electrodes |
Nuclear | Gamma ray shielding, neutron absorbers, waste storage containers |
Tungsten Alloys in Sheet Form
While pure tungsten sheets are widely used, tungsten alloys are also available to enhance machinability and ductility. Common alloys include:
Alloy | Composition | Advantages |
~90-97% W, balance Ni, Fe | High density + ductility | |
W-Ni-Cu | ~90-95% W, balance Ni, Cu | Non-magnetic version for sensitive environments |
W-Re | W with 3-26% Rhenium | Improved ductility, high-temperature applications |
WC-Co (cemented) | Tungsten carbide with cobalt binder | Excellent hardness, wear resistance |
Comparison with Other High-Performance Metals
Material | Density (g/cm³) | Melting Point (°C) | Thermal Conductivity (W/m·K) | Common Use |
19.3 | 3422 | 170 | Shielding, aerospace | |
10.2 | 2623 | 138 | Furnace parts, glass melting | |
16.7 | 3017 | 57 | Capacitors, medical implants | |
Lead | 11.3 | 327 | 35 | Radiation shielding |
High-Density Tungsten: Common Challenges Engineers Should Know
- Despite its strengths, tungsten presents several processing and handling challenges:
- Brittleness at low temperatures in pure form.
- High cost of raw material and processing.
- Limited ductility, especially in fine-grain or unalloyed forms.
- Difficult machining, requiring specialized tools and techniques.
Conclusion
High-density tungsten sheets offer a powerful combination of mass efficiency, mechanical strength, and thermal stability. These characteristics make them indispensable in sectors that demand reliable performance under extreme conditions. Although processing complexity and cost present challenges, the benefits of tungsten in advanced engineering and technology applications far outweigh the drawbacks.
