Comparison of Barium Strontium Titanate With Other Dielectric Materials

Overview

Dielectric materials are non-conductive substances that do not allow the flow of electric current. Instead, they can store and release electrical energy when subjected to an electric field. This ability to store energy is known as dielectric polarization, which is critical in the functioning of capacitors, insulators, and various electronic devices. Dielectric materials are widely used in electronic components such as capacitors, sensors, and actuators, where they play a crucial role in controlling and managing electrical energy.

In addition to their ability to store electrical energy, dielectric materials are characterized by their dielectric constant (relative permittivity), which measures how easily a material polarizes in response to an applied electric field. The higher the dielectric constant, the more charge a material can store. Dielectrics also exhibit unique properties, such as insulation resistance, which indicates how well they resist electrical conduction, and their breakdown voltage, which refers to the maximum voltage they can withstand before becoming conductive.

Common dielectric materials include ceramics, plastics, and composites, each with its specific applications. Some materials, like Barium Strontium Titanate (BST), also exhibit piezoelectric and ferroelectric properties, making them especially valuable for specific applications. This blog post will explore the unique characteristics of BST in comparison to other dielectric materials commonly used in electronics.

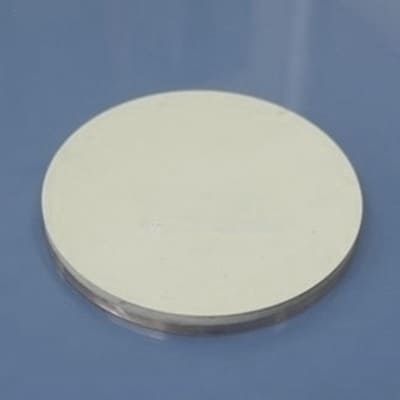

At Heeger Materials Inc., we specialize in high-quality barium strontium titanate products, ensuring optimal performance for industrial and scientific applications.

What is Barium Strontium Titanate (BST)?

Barium Strontium Titanate (BST) is a ceramic material that belongs to the perovskite family of compounds. It is composed of barium (Ba), strontium (Sr), and titanium (Ti), which gives it a highly versatile crystal structure ideal for a wide range of technological applications. BST is known for its high dielectric constant and its ability to exhibit both ferroelectric and piezoelectric properties.

Barium Strontium Titanate (BST) has the formula BaₓSr₁₋ₓTiO₃, where x adjusts its dielectric/ferroelectric properties.

Composition-Dependent Properties

Key Functional Properties

• Dielectric Constant: High, ranging from 100 to 500 depending on composition.
• Ferroelectricity: Ability to exhibit spontaneous polarization, which can be reversed by an applied electric field.
• Piezoelectricity: Ability to convert mechanical stress into electrical energy.

Dielectric Constant Comparison: BST vs. Key Materials

The dielectric constant (also known as the relative permittivity) is one of the most important properties of dielectric materials, as it dictates the material’s ability to store electrical energy. BST is known for its high dielectric constant, often surpassing other commonly used dielectric materials like Barium Titanate and Strontium Titanate. The dielectric constant of BST can range from 100 to 500, depending on the specific formulation and the temperature at which it is used. This high value is particularly beneficial for capacitors, which store energy in the form of electric fields.

Room-Temperature Dielectric Properties

Note:

• BST offers an optimal balance of tunability and low loss.
• Pure BaTiO₃ has higher εᵣ but negligible tunability.
• SrTiO₃ shows lower loss but reduced tunability.

Ferroelectric Properties: BST vs. Competing Materials

Ferroelectric materials like BST have the ability to retain their polarization even after an external electric field is removed, which is a crucial property for non-volatile memory devices. When compared to other ferroelectric materials like Barium Titanate (BaTiO3), BST has a unique advantage due to its high tunability. The substitution of barium with strontium in the BST crystal lattice allows for adjustments to its ferroelectric properties, such as the polarization strength and the temperature at which the ferroelectric-to-paraelectric phase transition occurs.

In comparison, other ferroelectric materials such as BaTiO3 exhibit excellent ferroelectric properties but can be more sensitive to temperature variations, leading to a decrease in polarization. This makes BST a better choice in applications requiring stable ferroelectric behavior at higher temperatures or varying environmental conditions.

 Fundamental Ferroelectric Parameters

Note:

• BST shows moderate Pᵣ but tunable T꜀ via Ba/Sr ratio
• PZT/BaTiO₃ exhibits stronger polarization but fixed T꜀
• PVDF offers flexibility but low thermal stability

Ferroelectricity in BST is particularly valuable for applications like FeRAM (Ferroelectric RAM), where the material’s ability to maintain polarization is essential for storing data without the need for a continuous power supply. This property also makes BST useful in sensors and actuators that require memory or precise control over electric fields.

Piezoelectric Properties: BST vs. Lead Zirconate Titanate (PZT)

Piezoelectric materials like BST and Lead Zirconate Titanate (PZT) convert mechanical energy into electrical energy, which is useful in a wide range of applications such as actuators, sensors, and energy harvesting devices. While both BST and PZT are known for their strong piezoelectric properties, they differ in their performance and applications.

PZT is one of the most widely used piezoelectric materials due to its high piezoelectric coefficients and ability to generate significant electrical output under mechanical stress. However, PZT contains lead, which raises environmental concerns and limits its use in certain applications. On the other hand, BST, while slightly less efficient in piezoelectric energy conversion than PZT, offers a lead-free alternative, making it more environmentally friendly.

1. Key Piezoelectric Coefficients

2. Frequency Response

Note: BST offers superior high-frequency performance for RF-MEMS applications.

3. Environmental & Processing

Emerging Trend: BST gains traction in wearables/IoT due to lead-free composition and tunability.

4. Application Comparison

Temperature Stability: How BST Compares to Traditional Dielectrics

Temperature stability is a critical factor in the performance of dielectric materials, especially in high-performance electronics. BST is known to exhibit a strong temperature dependence, with its dielectric constant and polarization behavior changing significantly as the temperature increases. At higher temperatures, BST may transition from a ferroelectric phase to a paraelectric phase, which can reduce its effectiveness in certain applications.

1. Dielectric Constant (εᵣ) Variation with Temperature

Note: BST offers engineerable stability by adjusting the Ba/Sr ratio, unlike fixed-response materials.

2. Curie Temperature (T꜀) Comparison

Design Advantage: BST's adjustable T꜀ allows customization for specific operating environments.

3. High-Temperature Performance

Trade-off: BST provides functional tunability but requires thermal management vs. inert ceramics.

4. Low-Temperature Behavior

Critical Note: Sr-rich BST (x<0.3) remains paraelectric down to cryogenic temps, avoiding abrupt property changes.

Cost-Effectiveness and Manufacturing of BST vs. Other Dielectrics

While BST offers superior performance in many areas, its cost and manufacturing process are important considerations. The production of BST can be more expensive compared to other dielectric materials, particularly due to the need for precise control over the barium-to-strontium ratio and the sintering process required to achieve the desired properties.

1. Cost Structure Comparison

Note:

• BST requires high-purity Ba/Sr precursors ($$) and high-temp sintering (800–1200°C).
• Al₂O₃/SiO₂ benefits from CMOS-compatible low-temp deposition (≤400°C).

2. Manufacturing Complexity

Yield Impact: BST films suffer from cracking/stress (20–30% yield loss vs. 5–10% for PZT).

The future of BST’s use in industry will depend on advancements in manufacturing techniques that lower its production costs, making it a more viable option for a wider range of applications.

BST in Capacitors: Performance vs. Other Dielectrics

BST is increasingly being used in capacitors due to its high dielectric constant, which allows for higher energy storage in a smaller physical volume. In comparison to traditional dielectric materials like Teflon or Aluminium Oxide, BST provides superior performance in applications where high capacitance is required, such as in power management systems, signal processing, and memory storage devices.

Key Performance Metrics Comparison:

The high dielectric constant of BST allows capacitors to achieve greater capacitance values while reducing the size of the capacitor. This is particularly advantageous in industries like telecommunications and electronics, where miniaturization is essential. However, the temperature dependence of BST, as mentioned earlier, can be a limiting factor in some applications. While materials like Teflon offer more stable performance in varying temperatures, BST’s superior energy storage capacity makes it an attractive option for high-performance capacitors that operate in controlled environments.

At Heeger Materials, we supply high-performance barium strontium titanate products in various forms and specifications for multiple industrial and research applications.

The Role of BST in Energy Harvesting Technologies

Energy harvesting involves capturing small amounts of energy from the environment and converting it into usable electrical energy. BST, with its piezoelectric properties, plays an important role in this technology. When subjected to mechanical vibrations or other forms of mechanical stress, BST generates an electrical charge that can be used to power low-energy devices.

In comparison to other materials used in energy harvesting, such as PZT or PVDF (Polyvinylidene Fluoride), BST offers several advantages. Its lead-free composition makes it more environmentally friendly, and its tunable piezoelectric properties allow for optimization based on the specific energy harvesting application. Additionally, BST's high dielectric constant allows for more efficient energy storage and conversion, making it a promising material for future energy harvesting systems.

1. BST for Piezoelectric Energy Harvesting

Advantages:
✔ Tunable resonance frequency via DC bias (unlike fixed PZT).
✔ Lead-free (vs. PZT) for eco-friendly devices.

2. Pyroelectric Energy Harvesting

BST Optimization:

✔Graded Ba/Sr layers broaden operational temperature range.

✔Nanostructuring enhances surface-area-to-volume ratio for heat capture.

3. Hybrid Piezo-Pyroelectric Harvesting

BST’s Unique Edge:

• Simultaneous vibration + thermal harvesting (unlike single-mode materials).
• Voltage output synergy: Piezo (AC) + pyro (DC) signals can be rectified/complemented.

Prototype Data:

4. Tunable RF Energy Harvesting

BST’s field-tunable εᵣ enables adaptive impedance matching for:

• Ambient RF waves (Wi-Fi, 5G)
• Wireless power transfer

Advantage: Automatically adjusts to frequency/power variations in the environment.

FAQ

In conclusion, Barium Strontium Titanate (BST) stands out as an exceptional dielectric material due to its high dielectric constant, tunability, and ferroelectric properties. When compared to other dielectric materials like Aluminum Oxide, Titanium Dioxide, and Strontium Titanate, BST offers superior performance in energy storage, memory devices, and sensors. Its unique properties make it an ideal choice for applications that require high efficiency and precision. The ability to tailor its characteristics by adjusting the barium-to-strontium ratio further enhances its versatility, solidifying its role in cutting-edge technological advancements.
