High-temperature insulation is a critical component in industries where extreme heat is a constant challenge, such as in furnaces, kilns, aerospace, and power generation. The choice of insulation material can significantly impact operational efficiency, safety, and cost-effectiveness. Two prominent materials in this domain are alumina foam and ceramic wool, each offering unique properties suited to specific applications.
This article aims to provide a comprehensive comparison of these materials to help readers make informed decisions based on their project requirements.
At Heeger Materials Inc., we specialize in high-quality alumina foam products with various specifications, ensuring optimal performance for industrial and scientific applications.
Overview of Alumina Foam
Alumina foam is a highly porous ceramic material composed primarily of aluminum oxide (Al₂O₃), characterized by its unique cellular structure that combines the inherent properties of alumina with the advantages of a foam architecture. This versatile material has gained significant attention across industries due to its exceptional thermal stability, mechanical strength at low density, and customizable porosity.
1. Fundamental Characteristics
- Composition: >95% α-Al₂O₃ (corundum phase)
- Porosity Range: Typically 70-95% (controllable during manufacturing)
- Pore Structure: Open-cell (interconnected) or closed-cell (isolated) configurations
- Density: 0.3-1.5 g/cm³ (vs. 3.98 g/cm³ for dense alumina)
- Temperature Resistance: Stable up to 1600-1700°C in oxidizing atmospheres
2. Manufacturing Methods
Process | Porosity Range | Pore Size | Key Advantages |
Replica Technique | 80-95% | 100μm-2mm | High porosity, low cost |
Direct Foaming | 60-90% | 50μm-1mm | Tunable pore size |
Gel Casting | 70-85% | 10-500μm | Excellent strength |
3D Printing | 50-90% | 100μm-1mm | Complex geometries |
3. Key Functional Properties of Alumina Foam
Property Category | Specific Property | Typical Value Range | Porosity Dependence | Measurement Standard |
Thermal | Thermal Conductivity | 0.1 - 1.5 W/m·K | Increases with lower porosity | ASTM C177 |
Maximum Service Temperature | 1600 - 1700°C | Independent | ISO 13765 | |
Thermal Shock Resistance | 100+ cycles (RT to 1400°C) | Improves with moderate porosity | ASTM C1525 | |
Mechanical | Compressive Strength | 1 - 50 MPa | Exponential decrease with porosity | ASTM C773 |
Flexural Strength | 3 - 20 MPa | Linear decrease with porosity | ISO 14704 | |
Young's Modulus | 1 - 30 GPa | Strong porosity dependence | ASTM C1198 | |
Physical | Density | 0.3 - 1.5 g/cm³ | Directly proportional to solid fraction | ISO 18754 |
Porosity | 50 - 95% | Controlled during manufacturing | ASTM C20 | |
Chemical | Acid/Alkali Resistance | pH 1 - 14 stable | Slightly reduced at high porosity | ISO 28706 |
Oxidation Resistance | Excellent in air up to 1700°C | Independent | ASTM C863 | |
Electrical | Dielectric Strength | 10 - 30 kV/cm | Increases with porosity | IEC 60672 |
Volume Resistivity | 10¹² - 10¹⁴ Ω·cm | Increases with porosity | ASTM D257 | |
Surface | Specific Surface Area | 5 - 50 m²/g | Increases with porosity | ISO 9277 (BET) |
Pore Size Distribution | 50 μm - 2 mm | Manufacturing-dependent | ASTM D4284 |
4. Advantages Over Competing Materials
Property | vs. Ceramic Wool | vs. Polymer Foams | vs. Metal Foams |
Temperature Limit | +500°C higher | +1000°C higher | +300°C higher |
Chemical Resistance | Comparable | Superior | Superior |
Strength-to-Weight | 2-3× better | 5-10× better | Comparable |
Cost | 2-3× higher | 3-5× higher | Comparable |
4. Current Applications
- Energy: SOFC electrolytes, battery thermal barriers
- Industrial: High-temperature furnace linings, molten metal filters
- Aerospace: Thermal protection systems, acoustic damping
- Biomedical: Bone scaffolds, dental implants
- Chemical: Catalyst supports, filtration membranes
Looking for high-quality alumina foam products? Explore Heege Materials’ selection.
Overview of Ceramic Wool
Ceramic wool, also known as refractory ceramic fiber (RCF), is a fibrous insulation material made from aluminosilicate or other refractory fibers. It is produced by spinning or blowing molten raw materials into fine fibers, which are then formed into blankets, boards, or modules. Ceramic wool is prized for its flexibility and ease of use in high-temperature insulation.
1. Fundamental Characteristics
Property | Typical Value | Notes |
Composition | Al₂O₃ (40-60%) + SiO₂ (40-60%) | May include ZrO₂ or Cr₂O₃ for higher performance |
Fiber Diameter | 2-6 μm | Fine fibers enhance insulation |
Density | 64-128 kg/m³ (loose) | Lower density = better insulation |
Temperature Limit | 1260-1600°C (depending on grade) | Long-term use typically 200°C below max rating |
Classification | Bio-soluble (newer) vs. Traditional RCF | Health and safety considerations |
2. Manufacturing Process
- Raw Material Melting: Alumina-silica mixture melted at ~2000°C
- Fiber Formation: Centrifugal spinning or blown fiber process
- Bonding: Needle-punching or organic binders for blanket formation
- Heat Treatment: Curing at 600-900°C to remove volatiles
3. Key Functional Properties of Ceramic Wool
Property Category | Specific Property | Typical Value Range | Measurement Standard |
Thermal | Thermal Conductivity | 0.03 - 0.12 W/m·K (at 500°C) | ASTM C201 |
Maximum Service Temperature | 1260 - 1600°C | ASTM C892 | |
Heat Capacity | 0.8 - 1.1 kJ/kg·K | ISO 11357 | |
Mechanical | Tensile Strength | 50 - 150 kPa | ASTM C1338 |
Compression Recovery | 70 - 95% after 50% compression | ASTM C165 | |
Flexural Rigidity | 1 - 10 N·m (for boards) | ISO 2493 | |
Physical | Bulk Density | 64 - 320 kg/m³ | ASTM C167 |
Fiber Diameter | 2 - 6 μm | SEM analysis | |
Chemical | Chemical Stability | pH 2 - 12 resistant | ASTM C795 |
Moisture Regain | 0.2 - 1.5 wt% (at 50% RH) | ASTM C1104 |
4. Common Product Forms
- Blankets/rolls: 10-50 mm thickness, needle-punched reinforcement
- Modules: Pre-folded panels for furnace linings
- Papers/boards: Thin, rigid forms for gasketing
- Vacuum-formed shapes: Custom components
5. Key Advantages
- Lowest thermal conductivity among refractory materials
- Easy to install/cut to shape
- Excellent thermal shock resistance
- Lower heat storage than dense refractories
6. Primary Applications
- Industrial Furnaces: Lining for steel, glass, and petrochemical industries
- Power Generation: Insulation for boilers and exhaust systems
- Automotive: Exhaust heat shields
- Fire Protection: Passive fire barriers in buildings

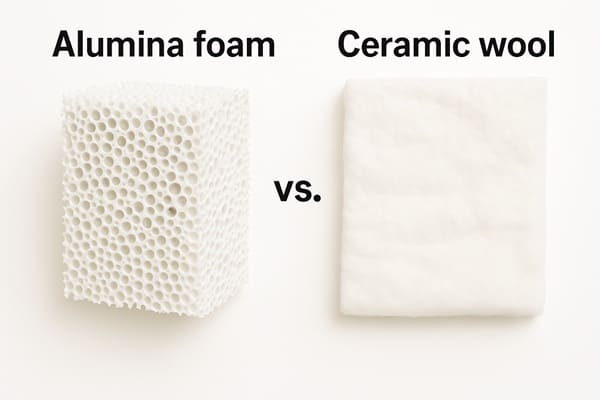

Comparison: Alumina Foam vs. Ceramic Wool
1. Thermal Performance
Category | Alumina Foam | Ceramic Wool | Key Takeaways |
Thermal Conductivity | 0.1–1.5 W/m·K (higher) | 0.03–0.12 W/m·K (lower) | Ceramic wool insulates 3–5× better |
Max Service Temp | 1600–1700°C | 1260–1600°C | Foam handles extreme heat better |
Thermal Shock | Good (50–100 cycles) | Excellent (unlimited cycles) | Wool survives rapid cooling better |
2. Mechanical Properties
Category | Alumina Foam | Ceramic Wool | Key Takeaways |
Compressive Strength | 1–50 MPa (structural) | 10–50 kPa (non-structural) | Foam is 100–1000× stronger |
Flexural Strength | 3–20 MPa | Minimal (fibrous mat) | Foam supports loads; wool cannot |
Durability | 5–10+ years | 2–5 years (degrades faster) | Foam lasts longer in harsh conditions |
3. Installation & Handling
Category | Alumina Foam | Ceramic Wool | Key Takeaways |
Form | Rigid blocks/sheets | Flexible blankets/rolls | Wool is easier to cut/shape |
Machining | Requires diamond tools | Scissors/knife sufficient | Wool installs faster |
Anchoring | Mechanical fasteners | Push-pins or adhesives | Foam needs robust support |
4. Cost & Availability
Category | Alumina Foam | Ceramic Wool | Key Takeaways |
Price | $50–300/kg | $5–20/kg | Wool is 5–10× cheaper |
Lead Time | Weeks (often custom-made) | Days (standard stock) | Wool is more readily available |
5. Health & Safety
Category | Alumina Foam | Ceramic Wool | Key Takeaways |
Dust/Fibers | Non-friable (safe) | Airborne fibers (requires PPE) | Foam is safer to handle |
Carcinogenicity | None | Category 1B (suspected carcinogen) | Bio-soluble wool reduces risk |
High-Temp Off-Gassing | None | Binders may release VOCs | Foam is cleaner at high temps |
Explore our optimized alumina foam products.
Advantages and Disadvantages
Alumina Foam:
Advantages:
- Superior Thermal Stability: Can operate at temperatures up to 1800°C, surpassing most other insulation materials.
- Reusable: Its rigid structure allows for repeated use without significant degradation.
- Chemical Resistance: Highly resistant to corrosion, making it suitable for harsh chemical environments.
- Structural Support: Provides both insulation and mechanical strength, reducing the need for additional support structures.
Disadvantages:
- Higher Cost: The specialized manufacturing process increases costs, limiting its use in budget-sensitive projects.
- Limited Flexibility: Pre-formed shapes make it less adaptable to complex geometries, potentially increasing installation complexity.
- Brittleness: Susceptible to cracking under mechanical stress, requiring careful handling.
Ceramic Wool:
Advantages:
- Cost-Effective: Lower production costs make it an economical choice for large-scale applications.
- Flexible Installation: Easily cut and shaped to fit irregular surfaces, reducing installation time and costs.
- Lightweight: Its low density minimizes structural load, ideal for applications where weight is a concern.
- Widely Available: Readily available from multiple suppliers, ensuring accessibility for most projects.
Disadvantages:
- Lower Temperature Limit: Limited to 1400°C–1600°C, making it unsuitable for ultra-high-temperature applications.
- Durability Concerns: Fibers may degrade or settle over time, reducing insulation performance.
- Health Risks: Respirable fibers require strict safety protocols during handling and installation.
Discover our high-quality alumina foam products.
Choosing the Right Material for Specific Applications
When to Choose Alumina Foam
✅ Structural integrity (e.g., furnace supports, aerospace components)
✅ Extreme temperature resistance (>1500°C)
✅ Long-term durability (minimal degradation)
✅ Safer handling (no airborne fibers)
When to Choose Ceramic Wool
✅ Best insulation (lowest thermal conductivity)
✅ Thermal shock resistance (frequent heating/cooling cycles)
✅ Easy installation (flexible, lightweight)
✅ Lower cost (high-value for large-scale applications)
Request a custom quote for high-quality alumina foam products.
At Heeger Materials, we supply optimized-grade ceramic products that comply with ASTM, ISO, and AMS standards, ensuring outstanding quality and reliability.
In conclusion, both Alumina Foam and Ceramic Wool offer distinct advantages depending on the specific requirements of your high-temperature insulation project. Alumina foam excels in extreme heat conditions and environments where mechanical strength is critical. It is best suited for applications that demand maximum thermal efficiency and durability. On the other hand, ceramic wool provides a flexible, cost-effective solution for moderate to high-temperature applications, offering easy installation and a balance of performance and affordability.
Ultimately, the decision between Alumina Foam and Ceramic Wool depends on your specific needs, such as the maximum operating temperature, mechanical stresses, flexibility requirements, and budget. By understanding these factors, you can select the right material that will ensure optimal insulation performance for your high-temperature applications.
