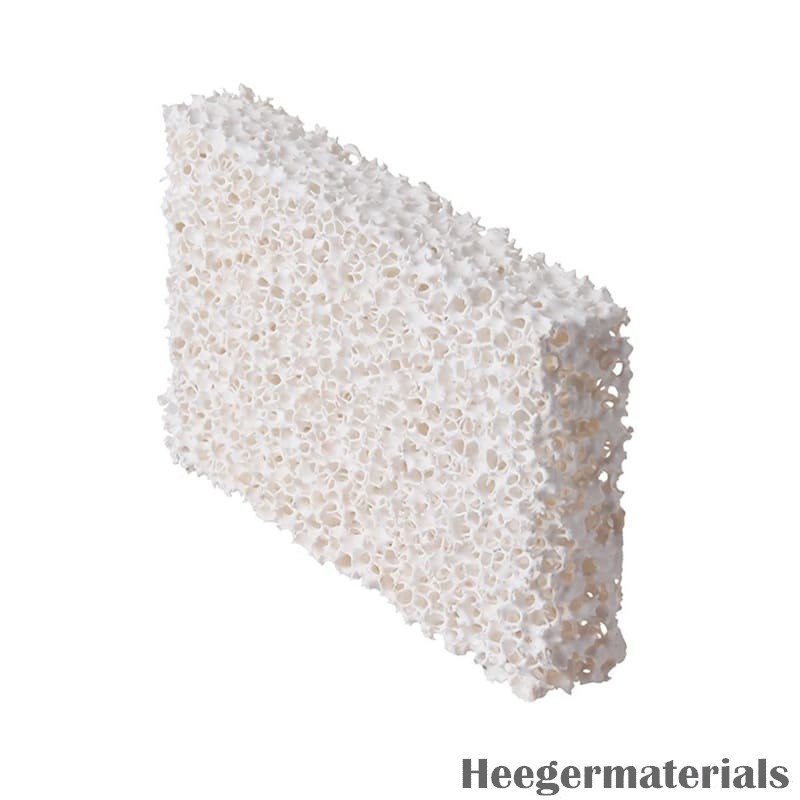

Alumina Ceramic Foam Filter-Al2O3 Foam

Data sheet

Shape	Round, Square
Molecular Formula	Al2O3

More info

Alumina (Al2O3) Ceramic Foam Filter is designed for filtering molten aluminum and aluminum alloys in continuous casting, semi-continuous casting, gravity casting, and low-pressure casting processes. We offer two types: Large - Plate Alumina Ceramic Foam Filter, which is suitable for high-volume aluminum filtration and is also used in non-ferrous precision casting, high-temperature gas filtration, sound absorption, and as a catalyst carrier; and Small - Block Alumina Ceramic Foam Filter, which effectively captures both large and micron-sized impurities to enhance surface finish, optimize mechanical properties, and improve the microstructure of aluminum products. These filters are widely used in the production of aluminum profiles, aluminum foil, and other aluminum-based applications. Heeger Materials provides high-quality Alumina (Al2O3) Ceramic Foam Filter with stable performance and reliable results.

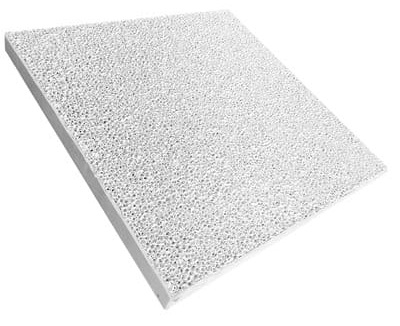

Large - Plate Alumina Ceramic Foam Filter

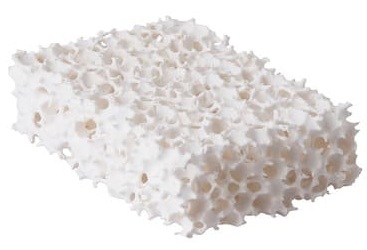

Large-Plate Al2O3 Ceramic Foam Filter Small-Block Al2O3 Ceramic Foam Filter

Alumina Ceramic Foam Filter Properties

Product	Large-Plate Al2O3 Ceramic Foam Filter	Small-Block Al2O3 Ceramic Foam Filter
Chemical Composition	Al2O3
Porosity (%)	80–90%
Pore Density (PPI)	10PPI–70PPI
Operating Temperature (°C)	≤1100°C
Room Temperature Bending Strength (MPa)	0.6 MPa
Room Temperature Compression Strength (MPa)	0.8 MPa
Thermal Shock Resistance	750°C to room temperature: 6 times	1100°C to room temperature: 5 times
Bulk Density (g/cm³)	0.35–0.45 g/cm³	0.4–0.5 g/cm³

Alumina Ceramic Foam Filter Specifications

Specification	Ceramic Filter Radius (R)	Ceramic Filter Height (H)	Edge Thickness (T)
Φ40×20	20	20	2
Φ50×20	25	20	2
Φ65×20	32.5	20	2
Φ80×20	40	20	2
Φ100×20	50	20	2
Φ40×25	20	25	2
Φ50×25	25	25	2
Φ65×25	32.5	25	2
Φ80×25	40	25	2
Φ100×25	50	25	2

Notes：

Custom Dimensions: Sizes can be customized to specific requirements.
Tolerances: Ceramic filter radius R tolerance is 0.75–0.25, height H tolerance is 1.5–0.5, and edge thickness T tolerance is 0.5–0.5.
Restrictions: Depth greater than 5mm of missing angles/edges or deformation with curvature exceeding 2mm is not allowed.

Large-Plate Alumina Ceramic Foam Filter Filtration Capacity

Product Specification (mm)	Filtration Flow Range (kg/min)	Total Filtration Capacity (t)
7 inch (178×178×50)	25–50	3
10 inch (254×254×50)	45–100	7
12 inch (305×305×50)	90–170	15
15 inch (381×381×50)	147–280	20
17 inch (432×432×50)	193–367	25
20 inch (508×508×50)	274–521	30
23 inch (584×584×50)	369–700	35

Small-Block Alumina Ceramic Foam Filter Filtration Capacity

Size (mm)	Flow Rate (kg/s)	Flow (kg)
30×50×22	5	90
40×40×22	5	96
50×50×22	7	150
75×50×22	10	225
100×50×22	13	300
75×75×22	15	338
100×75×22	20	450
100×100×22	26	600
150×100×22	40	900
150×150×22	60	1350
200×200×40	100	2400
Φ40×11	5	75
Φ50×22	6	118
Φ60×22	8	170
Φ70×22	10	231
Φ80×22	12	301
Φ90×22	16	382
Φ100×22	18	471
Φ150×22	40	1060
Φ200×30	70	1884

Alumina Ceramic Foam Filter Key Features

High porosity enables the effective filtration of inclusions in molten aluminum.
Reduces defect rates and improves casting quality.
Enhances surface quality and overall product performance.
Refines the microstructure and shortens the solidification time.
Improves mechanical properties and reduces rework.
Boosts product yield and economic efficiency.

Alumina Ceramic Foam Filter Usage Precautions

Avoid direct impact of molten metal on the filter. If unavoidable, pouring height should not exceed 300mm.
Preheat the filter together with the riser or pouring spout to prevent the steel liquid from solidifying and blocking the filter.
Before usage, remove surface slag from the filter with air blowing.
It is recommended to use an open pouring system to prevent air entrapment.

Alumina Ceramic Foam Filter Applications

Aluminum and Aluminum Alloy Casting: Effectively filters molten aluminum during continuous, semi-continuous, gravity, and low-pressure casting processes to remove micron-sized inclusions and stabilize metal flow.
Improving Casting Quality: Enhances surface finish and internal structure by capturing both large and fine impurities, leading to improved mechanical properties and higher product yield.
Non-Ferrous Metal Precision Casting: Used in the filtration of other non-ferrous metals due to its excellent thermal resistance and fine-pore structure.
High-Temperature Gas Filtration: Acts as a ceramic membrane for high-temperature filtration systems, providing thermal stability and chemical resistance.
Catalyst Support and Acoustic Applications: Its unique porous structure makes it suitable for use as a catalyst carrier and in sound-absorbing materials in industrial or environmental applications.

Alumina Ceramic Foam Filter Packing And Shipping

Alumina (Al2O3) Ceramic Foam Filter will be securely packaged in sturdy containers with cushioning materials to prevent movement or damage during shipping. This careful packaging ensures the product arrives in perfect condition, maintaining its high-quality standards throughout delivery.

Where to Buy Alumina (Al2O3) Ceramic Foam Filter in Bulk?

Heeger Materials Inc., a professional supplier and manufacturer of high-quality Alumina Ceramics (Al2O3) products including Alumina (Al2O3) Ceramic Foam Filter, leverages extensive expertise in supply and export to offer competitive prices. We provide customized solutions to meet specific requirements, ensuring exceptional quality and customer satisfaction.

Heeger Materials Inc. was established in 2016 in Colorado, USA. We specialize in premium-grade metals, alloys, ceramics, powders, and other materials catering to research, development, and large-scale industrial production in scientific and industrial sectors.
