Alumina Ceramics (Al2O3)

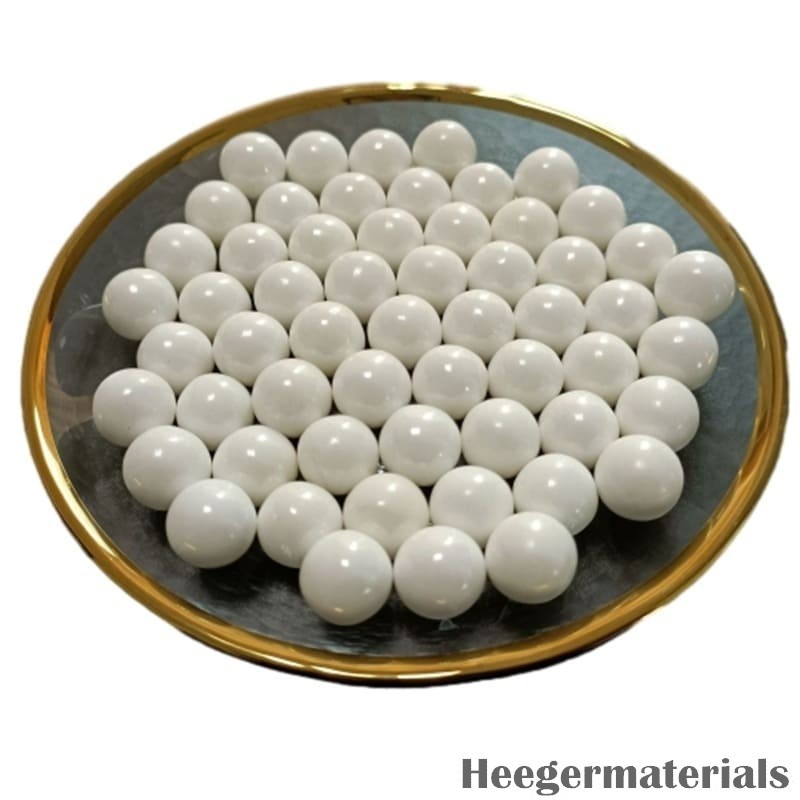

Zirconia Toughened Alumina Ball View larger

Zirconia Toughened Alumina Ball

HM3075

Zirconia toughened alumina ball features strong impact resistance, wear durability, and excellent performance in corrosive or high-temperature settings. Heeger Materials is a professional supplier and manufacturer of high-quality zirconia toughened alumina balls, offering customized solutions and competitive prices.

More details

Inquiry

Please contact us if you need customized services. We will contact you with the price and availability in 24 hours.

Secure payment methods

Data sheet

DiameterCustomized
ColorWhite or off white
MaterialsZTA (Alumina/Zirconia)

More info

Zirconia toughened alumina ball is a high-performance ceramic component made by integrating zirconia into an alumina matrix to enhance fracture toughness and mechanical strength. This composite structure offers excellent wear resistance, low thermal conductivity, and outstanding chemical stability. These balls are widely used in grinding media, mechanical bearings, valve systems, and high-load structural components exposed to corrosive or abrasive environments. Their dense microstructure ensures minimal wear and long service life, even under extreme operating conditions. Heeger Materials provides high-quality zirconia toughened alumina balls with reliable performance and customizable sizes.

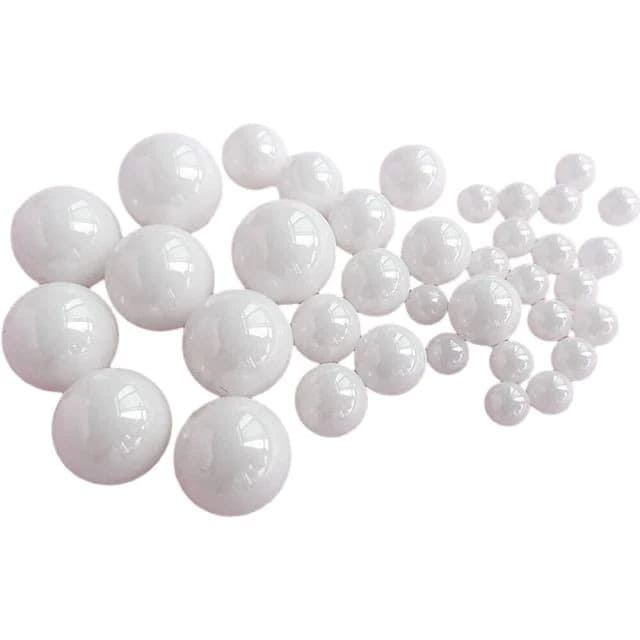

Zirconia Toughened Alumina Ball

Zirconia Toughened Alumina Ball Selection Notes

Zirconia Toughened Alumina Ball belongs to the alumina ceramics range and is selected for high hardness, electrical insulation, wear resistance and thermal stability. It is commonly used in bearing, valve, grinding, wear, measurement and precision ceramic applications as well as insulators, substrates, tubes, rods, plates, wear parts and precision ceramic components. When requesting a quote, confirm diameter, grade, tolerance, surface finish, quantity and working environment.

Related Materials and Product Forms

For material comparison or adjacent product forms, browse alumina rods, alumina plates, zirconia ceramic and alumina ceramics.

FAQ

Can Zirconia Toughened Alumina Ball be customized? Yes. Heeger Materials can review custom sizes, purity or grade requirements, tolerances, drawings, quantities and application conditions for this product.

Zirconia Toughened Alumina Ball Specifications

Chemical Composition (wt%)ZrO₂ (Stabilized)Al₂O₃Others
73%25%2%
Specific Gravity (g/cm³)5.3
Bulk Density (kg/L)3.3
Vickers Hardness (HV1)1300
Available Sizes (mm)0.7 – 0.9
0.9 – 1.1
1.2 – 1.4
1.4 – 1.6
1.6 – 1.8
1.8 – 2.0
NoteCustom sizes are available upon request

Zirconia Toughened Alumina Ball Advantages

  • Enhanced fracture toughness: Combines alumina’s hardness with zirconia’s toughness to resist cracking under stress.
  • Superior wear resistance: Maintains shape and performance over long periods of abrasive use.
  • Chemical inertness: Performs reliably in corrosive media like acids, alkalis, and solvents.
  • Thermal stability: Suitable for high-temperature environments with minimal expansion or degradation.
  • High density and uniformity: Ensures consistent grinding efficiency and mechanical balance.

Zirconia Toughened Alumina Ball Applications

  • Grinding media: Widely used in ball mills for fine powder processing in ceramics, coatings, and electronics industries.
  • Mechanical bearings: Serve in precision bearing systems where durability and low friction are required.
  • Valve and pump components: Applied in check valves, seal balls, and pump seats in aggressive chemical environments.
  • Wear-resistant structural parts: Function in mechanical systems exposed to repetitive friction and impact.
  • Aerospace and energy sectors: Used in critical assemblies requiring strength, thermal resistance, and dimensional stability.

Zirconia Toughened Alumina Ball Packing

The Zirconia toughened alumina ball is securely packed in wooden crates or cartons, reinforced with cushioning materials to prevent movement during transit. This packaging approach ensures that the products remain intact and protected throughout the shipping process.

Zirconia Toughened Alumina Ball Packing

Where to Buy Zirconia Toughened Alumina Ball in Bulk?

Heeger Materials Inc., a professional supplier and manufacturer of high-quality Alumina Ceramics (Al2O3) products, including Zirconia toughened alumina balls, leverages extensive expertise in supply and export to offer competitive prices. We provide customized solutions to meet specific requirements, ensuring exceptional quality and customer satisfaction.
