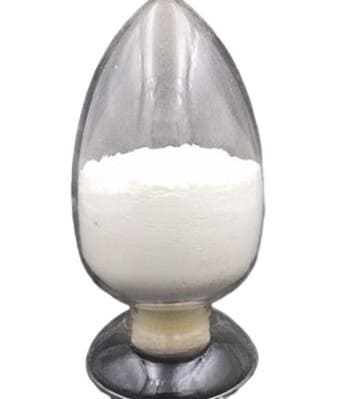

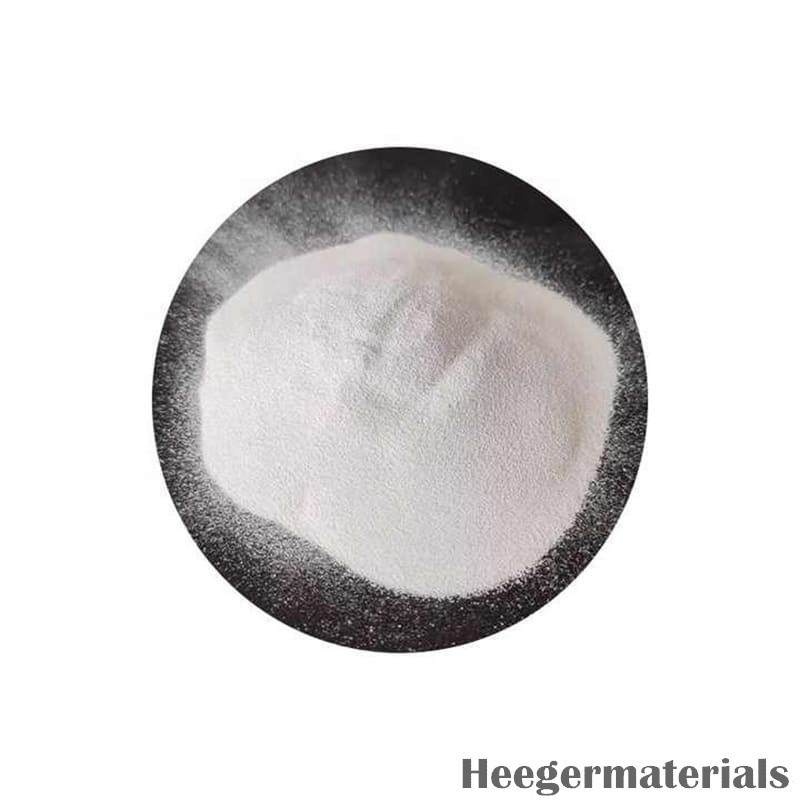

Zirconia Toughened Alumina Powder

Zirconia toughened alumina powder is a white ceramic powder composed of uniformly dispersed alumina and zirconia phases. It features a low sintering temperature, excellent formability, and smooth surface finish after firing. The resulting ceramic components exhibit reduced density, high strength, improved toughness, and excellent wear, corrosion, and thermal resistance. This powder is widely used as a raw material for producing ceramic cutting tool bases, mold parts, wear-resistant liners, valve seats, pump components, and structural parts in textile and mechanical systems. Heeger Materials provides high-quality zirconia toughened alumina powder for advanced ceramic applications.

Zirconia Toughened Alumina Powder Selection Notes

Zirconia Toughened Alumina Powder belongs to the alumina ceramics range and is selected for high hardness, electrical insulation, wear resistance and thermal stability. It is commonly used in formulation, sintering, coating, filler, catalyst, electronic material and research use as well as insulators, substrates, tubes, rods, plates, wear parts and precision ceramic components. When requesting a quote, confirm purity, particle size distribution, morphology, surface treatment, packaging and quantity.

Related Materials and Product Forms

For material comparison or adjacent product forms, browse alumina rods, alumina plates, zirconia ceramic and alumina ceramics.

FAQ

Can Zirconia Toughened Alumina Powder be customized? Yes. Heeger Materials can review custom sizes, purity or grade requirements, tolerances, drawings, quantities and application conditions for this product.

Zirconia Toughened Alumina Powder Specifications

ZrO₂(HfO₂) + Y₂O₃	19-21 wt%
Al₂O₃	78-80 wt%
Cl⁻	0.01 wt%
Fe₂O₃	0.003 wt%
BET Surface Area	8-10 m²/g
D50 Particle Size	0.6-1.0 μm or customized
Other Impurities (Si, Fe, etc.)	Controlled below 100 ppm
Suggested Forming Method	Dry Pressing & Isostatic Pressing
Recommended Sintering Temperature	1420-1450℃
Flexural Strength	＞550 MPa
Sintered Density	＞4.2 g/cm³
Customizable	Binder addition is possible upon request

Zirconia Toughened Alumina Powder Advantages

• Low sintering temperature: Reduces energy consumption during ceramic processing.
• Uniform phase dispersion: Ensures consistent mechanical properties and reliable performance.
• Excellent machinability after sintering: Allows precise shaping and finishing of ceramic parts.
• High toughness and strength: Suitable for demanding structural applications.
• Outstanding wear and corrosion resistance: Prolongs service life in harsh environments.

Zirconia Toughened Alumina Powder Applications

• Ceramic cutting tool bases: Provide strength and edge retention in machining.
• Mold and die components: Used for high-wear forming surfaces.
• Wear-resistant bushings and liners: Resists abrasion in mechanical systems.
• Pump and valve parts: Withstands corrosive fluids and high pressures.
• Textile machinery components: Offers reliable performance in high-friction operations.

Zirconia Toughened Alumina Powder Packing

The zirconia toughened alumina powder is securely packed in wooden crates or cartons, reinforced with cushioning materials to prevent movement during transit. This packaging approach ensures that the products remain intact and protected throughout the shipping process.

Where to Buy Zirconia Toughened Alumina Powder in Bulk?

Heeger Materials Inc., a professional supplier and manufacturer of high-quality Alumina Ceramics (Al2O3) products, including zirconia toughened alumina powder, leverages extensive expertise in supply and export to offer competitive prices. We provide customized solutions to meet specific requirements, ensuring exceptional quality and customer satisfaction.

Heeger Materials Inc. was established in 2016 in Colorado, USA. We specialize in premium-grade metals, alloys, ceramics, powders, and other materials catering to research, development, and large-scale industrial production in scientific and industrial sectors.
