Zirconia Toughened Alumina Crucible

Reference: HM3076

Zirconia toughened alumina crucible offers strong thermal and chemical durability and comes in cylinder, conical cylinder, rectangular, T-shape, or custom forms. Heeger Materials is a professional supplier and manufacturer of high-quality zirconia toughened alumina crucibles, offering customized solutions and competitive prices.

More details

Inquiry

Please contact us if you need customized services. We will contact you with the price and availability in 24 hours.

Data sheet

Shape	Cylinder, Conical Cylinder, Rectangular, T-shape, or customized.
Color	White or off white
Materials	ZTA (Alumina/Zirconia)

More info

Zirconia toughened alumina crucible is made from a composite ceramic material that combines the hardness of alumina with the toughness of zirconia, offering excellent resistance to thermal shock, corrosion, and mechanical stress. These crucibles are suitable for demanding high-temperature applications in metal melting, material synthesis, and chemical processing. A wide range of shapes is available, including cylinder, conical cylinder, rectangular, T-shape, or fully customized designs to meet specific laboratory and industrial requirements. Heeger Materials provides high-quality zirconia toughened alumina crucibles with reliable performance and flexible specifications.

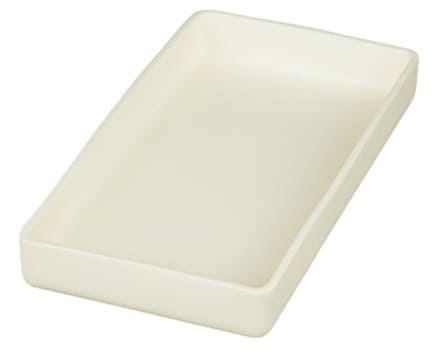

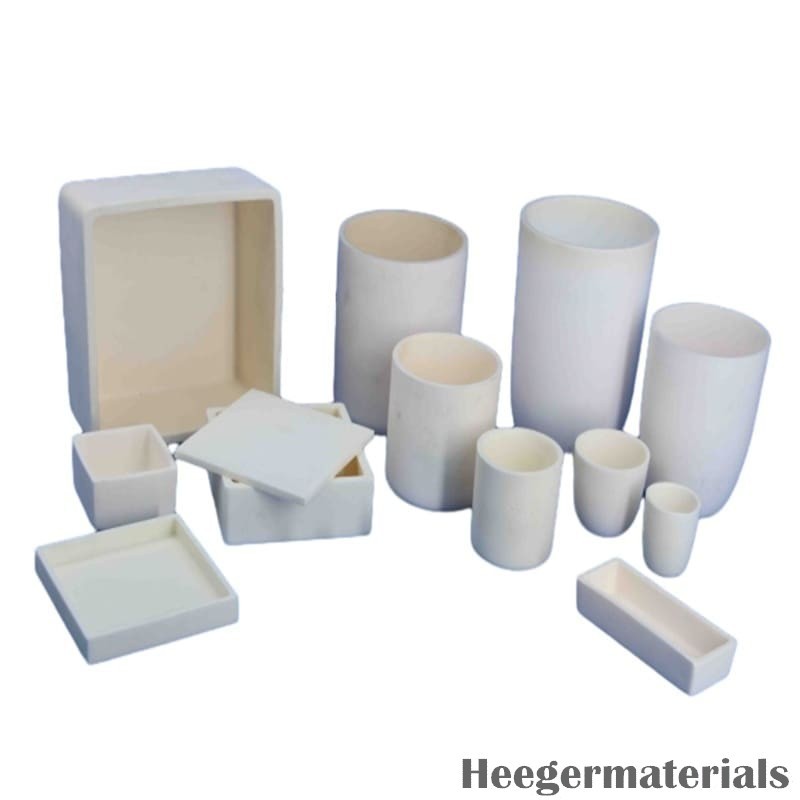

Zirconia Toughened Alumina Crucible

Zirconia Toughened Alumina Crucible Specifications

Shape	Capacity (ml)	Max Outer Diameter (mm)	Approx. Inner Diameter (mm)	Length (mm)	Width (mm)	Height (mm)
Cylindrical	830	98	90	—	—	128
Cylindrical	1450	112	103	—	—	190
Conical	700	96	90	—	—	145
Rectangular	450	—	—	208	111	25
Note	Size and shape can be customized based on specific requirements

Zirconia Toughened Alumina Crucible Advantages

High thermal shock resistance: Withstands rapid heating and cooling without cracking.
Excellent mechanical strength: Maintains structural integrity under high-temperature loading.
Corrosion and chemical resistance: Stable in harsh chemical environments, including acids and alkalis.
Multiple shape options: Available in cylinder, conical cylinder, rectangular, T-shape, or fully custom forms.
Long service life: Dense microstructure reduces wear and degradation over time.

Zirconia Toughened Alumina Crucible Applications

Metal melting and casting: Suitable for processing reactive and high-purity metals at elevated temperatures.
Material research and synthesis: Used in labs and R&D centers for ceramic and alloy development.
High-temperature chemical reactions: Ideal for corrosive and thermally intensive reaction environments.
Crystal growth and sintering: Serves as containers for growing crystals or sintering advanced materials.
Thermal analysis and testing: Reliable for TGA, DSC, and other thermal characterization methods.

Zirconia Toughened Alumina Crucible Packing

The Zirconia toughened alumina crucible is securely packed in wooden crates or cartons, reinforced with cushioning materials to prevent movement during transit. This packaging approach ensures that the products remain intact and protected throughout the shipping process.

Zirconia Toughened Alumina Crucible Packing

Where to Buy Zirconia Toughened Alumina Crucible in Bulk?

Heeger Materials Inc., a professional supplier and manufacturer of high-quality Alumina Ceramics (Al2O3) products, including zirconia toughened alumina crucible, leverages extensive expertise in supply and export to offer competitive prices. We provide customized solutions to meet specific requirements, ensuring exceptional quality and customer satisfaction.

Heeger Materials Inc. was established in 2016 in Colorado, USA. We specialize in premium-grade metals, alloys, ceramics, powders, and other materials catering to research, development, and large-scale industrial production in scientific and industrial sectors.
