Alumina foam has emerged as a versatile and valuable material in industries such as filtration, thermal insulation, catalysis, and biomedical engineering. Its porous structure and chemical stability make it ideal for a wide range of applications where heat resistance and mechanical integrity are critical. However, alumina foam is not the only ceramic foam available on the market. Silicon carbide, zirconia, and mullite foams each offer unique properties that suit specific uses. Understanding how alumina foam compares to these alternatives in terms of mechanical strength, thermal performance, chemical stability, and cost is essential for engineers, designers, and purchasers. This article explores these factors with data-driven insights to guide informed material selection for industrial and scientific purposes.
At Heeger Materials Inc., we specialize in high-quality alumina foam products, ensuring optimal performance for industrial and scientific applications.
What Is Alumina Foam and What Are Its Key Characteristics?

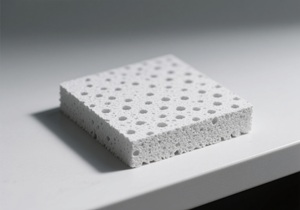

Alumina foam is a porous ceramic primarily composed of aluminum oxide (Al₂O₃). It is characterized by its lightweight structure, high porosity, and excellent thermal and chemical resistance. The manufacturing process—often involving replication or foaming techniques—controls pore size and distribution, which directly influence the foam’s properties. Alumina foam’s unique combination of features allows it to perform well in high-temperature environments while maintaining mechanical stability and chemical inertness.
Key Characteristics of Alumina Foam:
Property | Typical Value/Range | Impact on Applications |
Max Operating Temp | ~1600°C | Suitable for high-temperature use |
Porosity | 60–90% | Lightweight, high internal surface area |
Thermal Conductivity | 1–5 W/m·K | Effective thermal insulation |
Mechanical Strength | Medium | Adequate for filtration and insulation roles |
Chemical Stability | Excellent | Resistant to corrosion and oxidation |
These properties position alumina foam as a balanced ceramic foam choice, combining thermal resistance and mechanical strength at a competitive price point.
Explore our high-quality alumina foam products.
What Are the Main Types of Ceramic Foams?
In addition to alumina foam, other ceramic foams widely used in industrial and scientific applications include silicon carbide foam, zirconia foam, and mullite foam. Each material has distinct characteristics suited to different environments and requirements.
Overview of Ceramic Foam Types:
Material | Max Temp (°C) | Strength | Thermal Conductivity (W/m·K) | Cost | Typical Applications |
Alumina Foam | 1600 | Medium | Low (1–5) | Low | Filtration, insulation, catalysis |
1500 | High | Moderate (10–20) | Medium | High-temp filters, wear-resistant parts | |
2200 | Low | Very Low (<1) | High | Thermal barriers, aerospace | |
Mullite Foam | 1400 | Medium | Low | Low | Furnace linings, refractory insulation |
Alumina foam offers a well-rounded profile with a high maximum operating temperature and moderate strength, making it suitable for many mainstream industrial applications.
How Does Alumina Foam's Mechanical Strength Compare to Other Ceramic Foams?
Mechanical strength is vital for ensuring structural integrity in demanding conditions. Alumina foam’s compressive and flexural strengths place it in a medium range compared to other ceramic foams.
Mechanical Strength Comparison of Ceramic Foams:
Material | Compressive Strength (MPa) | Flexural Strength (MPa) | Typical Application Impact |
Alumina Foam | 3.5–8 | 1.0–1.5 | Supports moderate load-bearing roles |
Silicon Carbide | 10–25 | 5–10 | Suitable for extreme mechanical stress |
Zirconia Foam | 1–3 | <1 | Brittle, limited mechanical use |
Mullite Foam | 3–7 | 0.8–1.2 | Moderate durability |
Alumina foam's mechanical strength is sufficient for many applications, such as filtration and insulatio,n but falls short in environments requiring high mechanical loads, where silicon carbide foam excels.
How Does the Thermal Performance of Alumina Foam Stack Up Against Other Ceramic Foams?
Thermal conductivity and maximum operating temperature critically influence ceramic foam selection. Alumina foam offers a favorable balance of thermal insulation and heat tolerance.
Thermal Properties of Ceramic Foams:
Material | Max Operating Temp (°C) | Thermal Conductivity (W/m·K) | Thermal Shock Resistance |
Alumina Foam | 1600 | 1–5 | Good |
Silicon Carbide | 1500 | 10–20 | Moderate |
Zirconia Foam | 2200 | <1 | Excellent |
Mullite Foam | 1400 | 2–5 | Good |
Alumina foam’s thermal conductivity range ensures effective insulation in kilns and reactors, while its high operating temperature makes it durable for many high-heat industrial uses.
How Do Chemical Stability and Corrosion Resistance of Alumina Foam Compare to Other Ceramic Foams?
Chemical inertness is especially important for filtration and catalytic processes where exposure to aggressive chemicals is common.
Chemical Stability Ratings:
- Alumina Foam: Exhibits excellent resistance to acids, alkalis, and oxidation, making it highly durable in corrosive environments.
- Silicon Carbide Foam: Good chemical resistance, but can oxidize at very high temperatures.
- Zirconia Foam: Highly inert, but its brittleness and cost limit wider use.
- Mullite Foam: Good stability but may degrade in strongly acidic conditions.
Alumina foam stands out for its combination of chemical robustness and cost efficiency.
How do the cost and Availability of Alumina Foam Compare to Other Ceramic Foams?
Cost and supply reliability often dictate material selection, especially for large-scale industrial use.
Cost and Availability of Ceramic Foams:
Material | Relative Cost | Availability | Market Trends |
Alumina Foam | Low | Widely available | Increasing demand, especially in insulation |
Silicon Carbide | Medium | Moderate | Growing in specialized applications |
Zirconia Foam | High | Limited | Niche aerospace and defense uses |
Mullite Foam | Low | Widely available | Traditional refractory market |
Alumina foam’s affordable price and broad availability make it a preferred choice for many industries.
What Are Typical Applications That Highlight Alumina Foam’s Advantages Over Other Ceramic Foams?
Alumina foam’s balance of properties allows it to excel in diverse applications where other foams may be less suitable.
Key Applications of Alumina Foam:
- Filtration media for molten metals and gases due to chemical and thermal stability
- Thermal insulation in kilns, furnaces, and heat exchangers for energy efficiency
- Catalyst support structures offering high surface area and durability
- Biomedical scaffolds with tunable porosity promoting tissue growth
- Lightweight structural components in aerospace demand thermal and mechanical resilience
These applications demonstrate how alumina foam’s versatility outperforms specialized foams in many scenarios.
Request a custom quote for our alumina foam products.
What Are Emerging Trends in Alumina Foam Compared to Other Ceramic Foams?
Innovation continues to drive alumina foam's evolution, enhancing its capabilities beyond traditional limits.
Emerging Trends:
- Additive Manufacturing: Custom pore structures and complex geometries optimize performance.
- Hybrid Composites: Alumina combined with other ceramics for improved thermal and mechanical traits.
- Surface Functionalization: Coatings enhance catalytic activity or hydrophobicity.
- AI-Guided Design: Machine learning models predict sintering and pore evolution for precise control.
- Nano-Engineering: Enhances strength, durability, and thermal resistance at the microscopic scale.
These advancements position alumina foam at the forefront of ceramic foam technology.
FAQ
Question | Answer |
Is alumina foam suitable for high-temp use? | Yes, up to approximately 1600°C, meeting many industrial requirements. |
How does alumina foam’s strength compare? | It has medium strength—better than zirconia foam but less than silicon carbide. |
Is alumina foam cost-effective? | Yes, it is among the most affordable ceramic foams available. |
Can alumina foam be 3D printed? | Increasingly, yes, enabling tailored pore structures for specific uses. |
What industries prefer alumina foam? | Filtration, insulation, catalysis, biomedical, and aerospace sectors. |
Conclusion
Alumina foam combines thermal insulation, mechanical strength, chemical stability, and cost advantages better than many other ceramic foams. Its balanced profile suits a wide array of applications, from industrial filtration to aerospace components. Coupled with ongoing innovations such as additive manufacturing and nano-engineering, alumina foam continues to evolve as a reliable, scalable, and versatile ceramic material. For engineers and decision-makers seeking a cost-effective and high-performance solution, alumina foam remains an excellent choice among ceramic foams.
