In the rapidly evolving world of electronics, where devices are becoming smaller, faster, and more powerful, effective thermal management has emerged as a critical challenge. Thermal Interface Materials (TIMs) play a pivotal role in bridging the gap between heat-generating components, such as CPUs and GPUs, and heat-dissipating elements like heat sinks or cooling systems. These materials ensure efficient heat transfer, preventing overheating that could lead to performance throttling, reduced lifespan, or even catastrophic failure of electronic devices.
Fillers, which are particulate additives incorporated into the base matrix of TIMs, have revolutionized this field by significantly enhancing key properties such as thermal conductivity, mechanical stability, and long-term reliability. Without fillers, TIMs would often suffer from poor heat conduction paths, leading to inefficiencies in thermal dissipation. This article delves into why fillers are not just additives but true game-changers, transforming TIMs from basic thermal bridges into high-performance solutions tailored for demanding applications like data centers, electric vehicles, and high-performance computing.
At Heeger Materials Inc., we specialize in high-quality thermally conductive fillers with various materials and specifications, ensuring optimal performance for industrial and scientific applications.
Basics of Thermal Interface Materials
Thermal Interface Materials (TIMs) are specialized substances designed to fill microscopic air gaps and surface irregularities between two mating surfaces, thereby improving heat transfer efficiency. In essence, TIMs act as thermal bridges that minimize thermal resistance at interfaces, which is crucial in applications where heat buildup can degrade performance. Common scenarios include microprocessors in computers, power electronics in electric vehicles, and LED lighting systems, where even a slight improvement in thermal conductivity can yield significant benefits.
TIMs come in various forms, each suited to different needs:
- Thermal Grease: A paste-like material often composed of a silicone or non-silicone base loaded with conductive particles. It offers high conformability but can dry out over time.
- Phase-Change Materials (PCMs): These soften or melt at operating temperatures, providing excellent wetting and low thermal resistance.
- Thermal Pads: Pre-formed sheets that are easy to apply, ideal for large surfaces, though they may have higher thermal resistance compared to greases.
- Adhesives and Gels: These provide both thermal conduction and mechanical bonding, useful in vibration-prone environments.
Key performance metrics for TIMs include:
- Thermal Conductivity (W/m·K): Measures how well the material transfers heat (higher = better).
- Thermal Resistance (°C·cm²/W): Lower resistance means better heat flow.
- Viscosity/Compliance: Ability to conform to surface irregularities.
- Electrical Insulation: Some TIMs must be electrically insulating to prevent short circuits.
- Stability: Should resist drying out, cracking, or degrading over time/under temperature cycles.
Without adequate TIMs, air pockets—being poor conductors—can increase thermal resistance by orders of magnitude, leading to hotspots and inefficiency.
The Role and Importance of Fillers
Fillers are critical components in Thermal Interface Materials (TIMs), enhancing their thermal conductivity, mechanical properties, and stability. They are typically solid particles dispersed within a polymer or grease matrix to improve heat transfer efficiency.
Primary Roles of Fillers in TIMs
(A) Enhancing Thermal Conductivity
- Base polymers/greases alone have poor thermal conductivity (~0.1–0.3 W/m·K).
- Fillers (e.g., metals, ceramics, carbon-based materials) boost conductivity (up to 10–100+ W/m·K).
(B) Improving Mechanical Properties
- Pads & adhesives require structural integrity.
- Fillers reinforce the matrix, preventing cracking or deformation under pressure.
- Example: Boron nitride (BN) improves stiffness in silicone-based TIMs.
(C) Reducing Thermal Resistance
- Fillers create percolation pathways for heat flow.
- Optimal filler loading (~60–90% by volume) maximizes heat transfer without making the TIM too brittle or viscous.
(D) Enhancing Stability & Reliability
- Some fillers (e.g., Al₂O₃, BN) resist oxidation and thermal degradation.
- Prevent pump-out (separation under thermal cycling) by improving adhesion.
Types of Fillers and Their Properties
Fillers are crucial for enhancing the thermal conductivity, mechanical strength, and reliability of TIMs. Below is a detailed comparison of common filler types, their properties, and applications.
1. Metal-Based Fillers
High thermal conductivity, but often electrically conductive.
Filler | Thermal Conductivity (W/m·K) | Electrical Conductivity | Key Properties | Common Applications |
Silver (Ag) | 429 | Highly conductive | Best thermal performance, expensive, oxidation-resistant | High-end CPUs, GPUs, and aerospace |
Copper (Cu) | 398 | Highly conductive | Cheaper than Ag, but oxidizes easily | Heat sinks, power electronics |
Aluminum (Al) | 237 | Conductive | Lightweight, low cost, prone to oxidation | Consumer electronics, LED cooling |
Pros:
✔ Ultra-high thermal conductivity
✔ Effective for high-power applications
Cons:
✖ Risk of electrical shorts (unless insulated)
✖ Copper/Aluminum can oxidize over time
2. Ceramic Fillers
Electrically insulating with moderate thermal conductivity.
Filler | Thermal Conductivity (W/m·K) | Electrical Conductivity | Key Properties | Common Applications |
30–300 (anisotropic) | Insulating | Chemically stable, high thermal conductivity in-plane | TIM pads, high-voltage electronics | |
150–220 | Insulating | High thermal conductivity, expensive | Power modules, RF devices | |
30–35 | Insulating | Low cost, widely available | Consumer electronics, automotive | |
Zinc Oxide (ZnO) | 20–30 | Insulating | Piezoelectric properties, moderate cost | Flexible TIMs, wearable devices |
Pros:
✔ Electrically insulating (safe for electronics)
✔ Chemically stable (no oxidation)
Cons:
✖ Lower thermal conductivity than metals
✖ BN and AlN are expensive
3. Carbon-Based Fillers
Lightweight, high conductivity, but often electrically conductive.
Filler | Thermal Conductivity (W/m·K) | Electrical Conductivity | Key Properties | Common Applications |
Graphite | 150–400 (in-plane) | Conductive | Anisotropic (conducts better in-plane), lightweight | Smartphones, laptops |
Graphene | 2000–5000 | Conductive | Ultra-high conductivity, expensive | Advanced electronics, aerospace |
Carbon Nanotubes (CNTs) | 3000–6000 (axial) | Conductive | High aspect ratio improves mechanical strength | High-performance TIMs, flexible electronics |
Pros:
✔ Exceptional thermal conductivity (especially graphene/CNTs)
✔ Lightweight and mechanically strong
Cons:
✖ Usually electrically conductive (risk of shorts)
✖ High cost (especially graphene/CNTs)
Choosing the Right Filler
Filler Type | Advantages | Disadvantages | Typical Conductivity (W/m·K) |
Metallic (Ag, Cu) | High conductivity, good dispersibility | Electrically conductive, costly | 200-400 |
Ceramic (Al₂O₃, BN) | Electrically insulating, stable | Lower conductivity than metals | 20-200 |
Carbon-based (Graphene, CNTs) | Ultra-high conductivity, lightweight | Poor dispersion, expensive | 1000-500 |
What Are the Factors that Influence the Thermal Conductivity of Fillers?
Different Morphologies Result in Different Thermal Conductivities

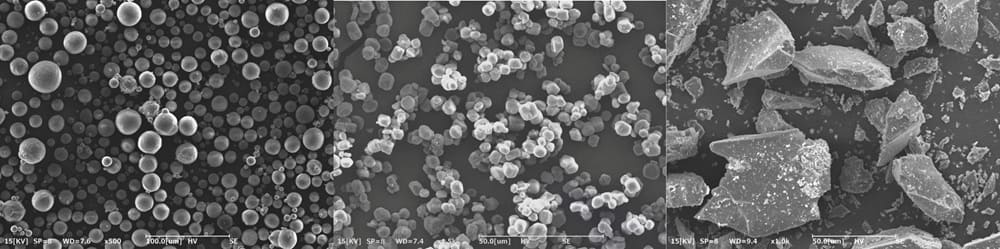

Thermal conductive fillers come in various shapes, including spherical, irregular, fibrous, and sheet-like forms. Compared to zero-dimensional materials, one-dimensional materials with ultra-high aspect ratios (such as carbon nanotubes and carbon fibers) and two-dimensional materials (like graphene, hexagonal boron nitride, and platelet-shaped alumina) can create a larger contact area between the fillers, providing a wider pathway for phonon transfer, reducing interfacial thermal resistance, and facilitating the construction of the thermal conduction network within the system. However, spherical fillers are most widely used in industry because they do not cause a dramatic increase in viscosity at high filler concentrations.
Different Particle Sizes Result in Different Thermal Conductivities
The size of thermal conductive fillers also has a significant impact on the thermal conductivity of the composite material.
When the fillers are of a single size, for the same filler content, composites filled with larger particles typically have higher thermal conductivity than those filled with smaller particles. This is because larger particles have fewer interfacial contacts, resulting in lower interfacial thermal resistance. However, the particle size should not be too large, as excessively large particles prevent dense packing between the fillers, hindering the formation of thermal conduction pathways.

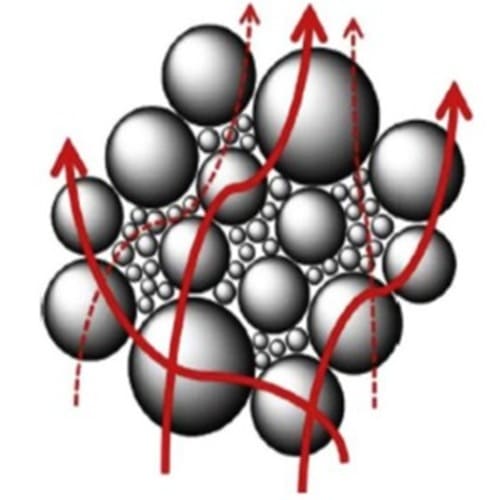

Currently, the industry often uses a combination of fillers with different particle sizes to achieve higher thermal conductivity. By selecting particles of different sizes as mixed fillers and incorporating them into the matrix material, larger particles form the main thermal conduction pathways, while smaller particles fill the gaps between the larger ones, creating a more complex thermal conduction network. This approach enhances the thermal conductivity of the composite material.
Different Filler Contents Result in Different Thermal Conductivities
When the filler content is insufficient, the fillers are dispersed within the matrix in an isolated state and cannot form continuous thermal conduction pathways. In this case, the improvement in the composite's thermal conductivity mainly depends on the increase in filler content. Once the filler content exceeds the percolation threshold, the thermal conductive fillers form a continuous permeable structure with high thermal conductivity in the matrix, and the thermal conductivity of the composite increases exponentially with the filler content. When the filler content exceeds 60-70 vol.%, a continuous and abundant thermal conduction path is formed within the matrix.
However, a high filler content can lead to increased costs, higher weight, and reduced mechanical properties, all of which can degrade the performance of electronic devices. Therefore, there is a need to develop high-performance composites that achieve high thermal conductivity with a low filler content to meet the demands of modern industrial development.
Different Surface Modification Methods Result in Different Thermal Conductivities
Interfacial thermal resistance partially arises from the thermal flow barrier at the interface, caused by mechanical or chemical mismatches between the two constituent phases of the composite material. Another source of interfacial thermal resistance is the imperfect physical contact and weak interfacial bonding between the thermal conductive fillers and the matrix. To address this issue, surface chemical functionalization of the fillers is considered an effective approach. Surface functionalization can form covalent bonds, thereby improving interfacial adhesion. By interconnecting the particle-resin and particle-particle interfaces, phonon scattering at the interface can be minimized. To enhance the thermal conductivity of polymer composites, surface treatments have been applied to various fillers, such as boron nitride nanotubes, graphene, and others. Thermal conductive fillers can be functionalized using different reagents such as acetone, amines, nitric acid, sulfuric acid, and silanes.
Common Processing Agents and Methods:
- Coupling Agents: The most commonly used, such as silane coupling agents (for SiO2, Al2O3, etc.), titanates, and aluminates. One end of the molecule has affinity for the inorganic filler, and the other end has affinity for the organic matrix.
- Surfactants: Provide a physical adsorption layer to improve dispersion.
- Polymer Grafting: Grafting polymer chains onto the filler surface significantly enhances compatibility.
- Inorganic Coating: Forming a thin inorganic layer (e.g., SiO2 coating on Al2O3) on the filler surface to alter surface properties.
- Processing Methods: Dry processing (direct mixing), wet processing (conducted in solvents), and in-situ processing (during the filler synthesis process).
Different Purity Levels Result in Different Thermal Conductivities
The purity level of thermal conductive fillers significantly impacts their thermal performance in composites. Higher-purity fillers generally exhibit better intrinsic thermal conductivity due to fewer defects and impurities that scatter phonons or electrons. However, ultra-high-purity materials often come with increased costs, making purity optimization crucial for balancing performance and economics.
Purity Levels and Typical Performance
Filler Type | Purity Grade | Thermal Conductivity Range | Key Impurities | Impact on Performance |
Boron Nitride (h-BN) | 98% | 20–50 W/m·K | B₂O₃, C | ~30% lower than high-purity grades |
99.5% | 50–100 W/m·K | Trace metals | Balanced cost/performance | |
99.99% | 100–300 W/m·K | <100 ppm impurities | Near-theoretical conductivity | |
Aluminum Nitride (AlN) | 96% | 80–120 W/m·K | Al₂O₃, C | Limited to low/mid-range TIMs |
99% | 150–200 W/m·K | Oxygen | Preferred for power electronics | |
Silver (Ag) Powder | 99.9% (3N) | 350–400 W/m·K | Cu, Pb, S | Suitable for standard pastes |
99.99% (4N) | 410–425 W/m·K | <100 ppm metals | High-end TIMs (e.g., CPU liquid metal) | |
Graphene | 85% | 500–1,500 W/m·K | Oxygen groups, defects | Requires functionalization |
99% | 2,000–5,000 W/m·K | <1% defects | Near-ideal phonon transport |
Fillers have undeniably transformed Thermal Interface Materials into indispensable tools for modern thermal management, elevating performance metrics and enabling innovations across industries. Their ability to enhance conductivity, reduce resistance, and ensure reliability positions them as game-changers in an era of escalating heat challenges.
