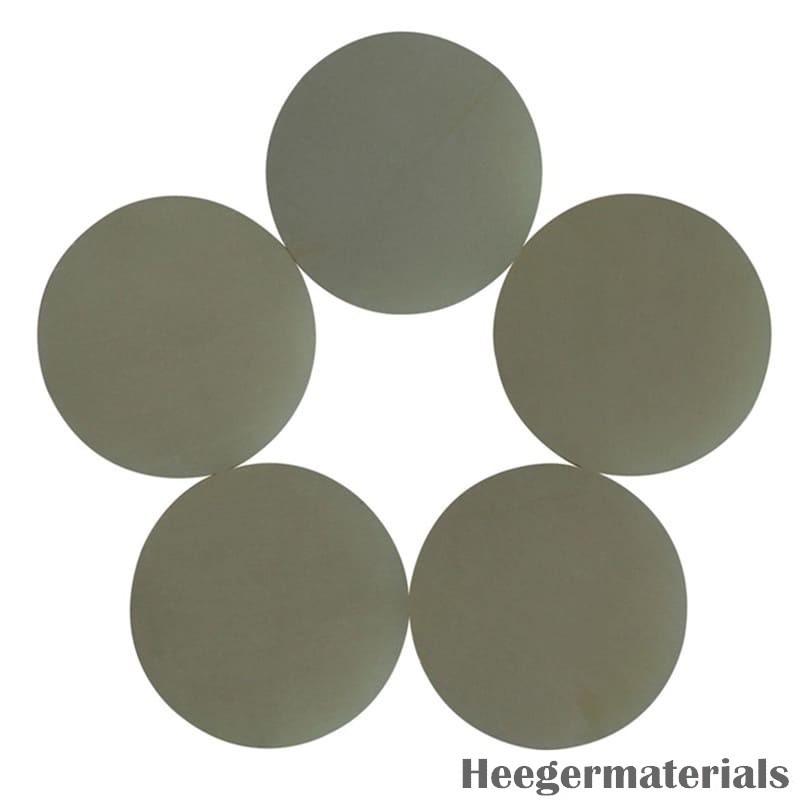

Lead Magnesium Niobate-Lead Titanate Crystal Substrate | PMNT Substrate
HM2916
New product
Lead Magnesium Niobate-Lead Titanate (PMNT) Substrate is a high-performance crystal material used in piezoelectric and ferroelectric applications. It provides excellent electromechanical properties, making it ideal for sensors, actuators, and transducers. HM is a professional supplier and manufacturer of high-quality PMNT Substrate, offering customized solutions and competitive prices.
Please contact us if you need customized services. We will contact you with the price and availability in 24 hours.
Data sheet
| Density | 8.1 g/cm3 |
| Materials | PNNT/PIMNT Substrate |
More info
Lead Magnesium Niobate-Lead Titanate Crystal Substrate | PMNT Substrate Selection Notes
Lead Magnesium Niobate-Lead Titanate Crystal Substrate | PMNT Substrate belongs to the magnetic and ferroelectric thin-film substrate range and is selected for controlled substrate composition, orientation, dopant, lattice characteristics, dimensions, miscut, roughness and polishing quality. It is commonly used in ferroelectric, magnetic, multiferroic and oxide thin-film growth, epitaxy, microwave research and functional device development. When requesting a quote, confirm substrate composition and dopant, orientation, dimensions, thickness, miscut, polishing sides, roughness, flatness, termination, packaging and quantity.
Related Materials and Product Forms
For material comparison or adjacent product forms, browse wafers and substrates, single crystal substrates, crystals and substrates and Magnetic and Ferroelectricity Thin Film Substrates.
FAQ
What film-growth details are needed for Lead Magnesium Niobate-Lead Titanate Crystal Substrate | PMNT Substrate? Please provide target film, substrate orientation, dimensions, thickness, miscut, polishing, roughness, flatness, termination, thermal process, packaging and quantity.
PMNT/PIMNT Substrate Properties
Property | PMNT | PIMNT |
Growth Method | Bridgman method | Bridgman method |
Density (g/cm3) | 8.1 | 8.1 |
Structure, Lattice Constant | Tetragonal (Pseudo-cubic), a=4.024Å | Tetragonal (Pseudo-cubic), a=4.024Å |
Curie Temperature (℃) | 135–150 | 160–220 |
Piezoelectric Coefficient (pC/N) | Type A: d₃₃ = 1200–1500 | Type A: d₃₃ = 1200–1500 |
Type B: d₃₃ = 1500–2000 | Type B: d₃₃ = 1500–2000 | |
Type C: d₃₃ = 2000–2500 | Type C: d₃₃ = 2000–2500 | |
Dielectric Constant | 4000–5500 | 4000–5500 |
PMNT Substrate Specifications
| Crystal Orientation | <100>, <001>, <111> ±0.5° |

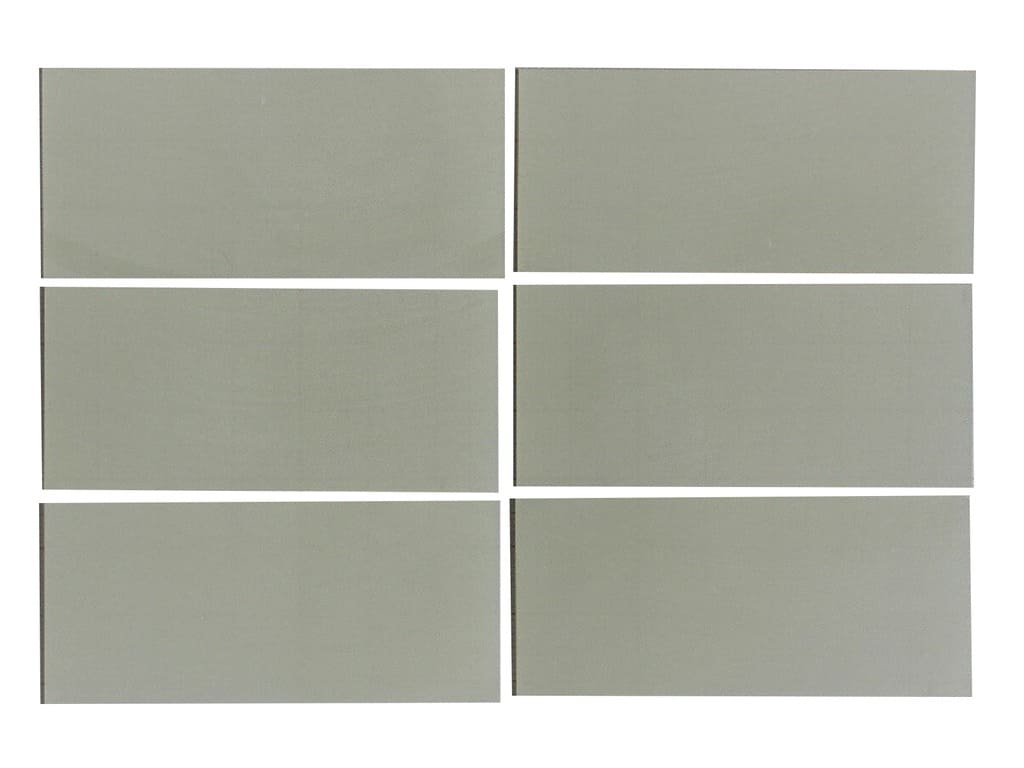

| Dimensions | 10×10×0.5mm, 10×5×0.5mm, 5×5×0.5mm, Ø101.6mm. Custom substrate sizes and orientations are available upon request. |
| Polishing | Single-side polished, double-side polished |
| Surface Roughness (Ra) | ≤5Å |
PMNT Substrate Applications
- Piezoelectric Sensors and Actuators: PMNT and PIMNT substrates provide excellent electromechanical properties, making them ideal for precision sensors and actuators in industrial and medical applications.
- Ultrasonic Transducers: Used in high-frequency ultrasonic devices for medical imaging, non-destructive testing, and underwater sonar systems.
- Tunable Microwave Devices: Enable the development of tunable filters, phase shifters, and other microwave components for advanced communication systems.
- Energy Harvesting Systems: Applied in energy harvesting technologies to efficiently convert mechanical vibrations into electrical energy for self-powered devices.
- High-Sensitivity Ferroelectric Devices: Support next-generation ferroelectric memory, electro-optic modulators, and high-precision signal processing applications.
PMNT Substrate Packing And Shipping
Lead Magnesium Niobate-Lead Titanate (PMNT) Substrate will be securely packaged in sturdy containers with cushioning materials to prevent movement or damage during shipping. This careful packaging ensures that the product arrives in perfect condition, maintaining its high-quality standards throughout delivery.
Where to Buy PMNT Substrate in Bulk?
Heeger Materials Inc., a professional supplier and manufacturer of high-quality Magnetic and Ferroelectricity Thin Film Substrates products including Lead Magnesium Niobate-Lead Titanate (PMNT) Substrate, leverages extensive expertise in supply and export to offer competitive prices. We provide customized solutions to meet specific requirements, ensuring exceptional quality and customer satisfaction.
Heeger Materials Inc. was established in 2016 in Colorado, USA. We specialize in premium-grade metals, alloys, ceramics, powders, and other materials catering to research, development, and large-scale industrial production in scientific and industrial sectors.
