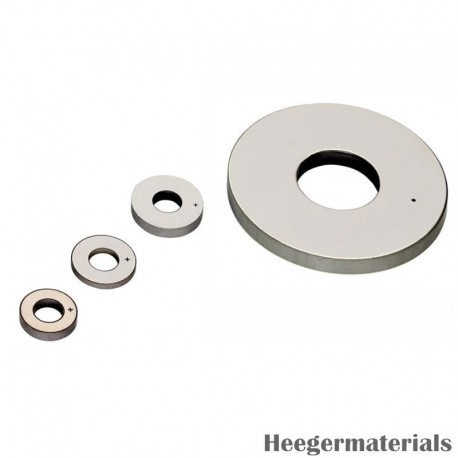

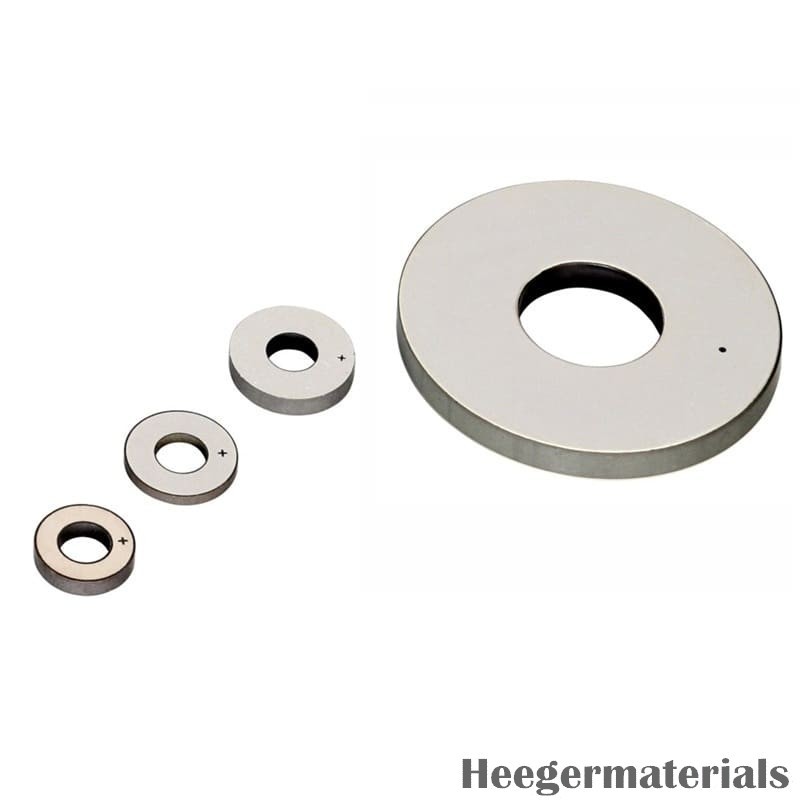

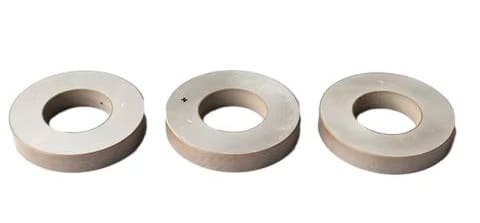

PZT Ring
New product
Please contact us if you need customized services. We will contact you with the price and availability in 24 hours.
Data sheet
| Diameter | Standard or customized |
| Thick | customized |
| Shape | Ring |
| Color | White to off white |
| Materials | Lead Zirconate Titanate (PZT) |
More info
PZT Ring is a disc-shaped piezoelectric ceramic with a central hole, engineered for efficient energy conversion in radial or axial vibration modes. Due to its geometry and material properties, it is ideal for applications requiring uniform acoustic distribution, such as ultrasonic transducers, pressure sensors, and piezoelectric actuators. The ring structure enhances mechanical coupling while minimizing stress concentration, making it suitable for high-performance and long-life operation. Heeger Materials offers PZT Rings in various sizes and polarizations to meet the specific requirements of medical, industrial, and research-grade piezoelectric systems.
PZT Ring Selection Notes
PZT Ring belongs to the PZT piezoelectric ceramic range and is selected for controlled PZT composition, piezoelectric response, dielectric properties, geometry, electrode pattern and polarization direction. It is commonly used in ultrasonic transducers, actuators, sensors, buzzers, vibration control, energy harvesting and piezoelectric device research. When requesting a quote, confirm PZT grade, dimensions and tolerance, resonance or frequency target, piezoelectric and dielectric requirements, polarization direction, electrode material and pattern, surface finish, lead attachment and quantity.
Related Materials and Product Forms
For material comparison or adjacent product forms, browse piezoelectric ceramics, technical ceramics and photoelectric crystals.
FAQ
What electrical and poling details are needed for PZT Ring? Please provide PZT grade, dimensions, target frequency or resonance, piezoelectric and dielectric requirements, poling direction, electrode material and pattern, lead or assembly needs and quantity.
PZT Ring Properties
| Properties | Materials | |||||||||||
| PZT4 | PZT5 | PZT8 | ||||||||||
| 840 | 841 | 842** | 844** | 850 | 851** | 854 | 855 | 860 | 880 | 881** | ||
| Relative Permittivity | KT | 1275 | 1375 | 1375 | 1500 | 1900 | 1950 | 2750 | 3300 | 1200 | 1050 | 1030 |
| Dielectric Loss Factor (%) | tan δ | 0.60 | 0.40 | 0.45 | 0.40 | ≤ 2.00 | 1.50 | ≤ 2.00 | ≤ 2.50 | ≤2.00 | 0.40 | 0.40 |
| Curie Temperature (°C) | Tc | 325 | 320 | 325 | 320 | 360 | 360 | 250 | 200 | 360 | 310 | 310 |
| Electromechanical Coupling Coefficient | kp | 0.59 | 0.60 | 0.65 | 0.68 | 0.63 | 0.71 | 0.66 | 0.68 | 0.50 | 0.50 | 0.58 |
| k33 | 0.72 | 0.68 | – | – | 0.72 | – | 0.68 | 0.76 | 0.45 | 0.62 | – | |
| k31 | 0.35 | 0.33 | – | – | 0.36 | – | – | 0.40 | – | 0.30 | – | |
| k15 | 0.70 | 0.67 | – | – | 0.68 | – | – | 0.66 | – | 0.55 | – | |
| kt | – | – | 0.48 | 0.48 | – | 0.51 | – | – | – | – | 0.46 | |
| Piezoelectric Charge Constant (10⁻¹² C/N or 10⁻¹² m/V) | d33 | 290 | 300 | 300 | 300 | 400 | 400 | 600 | 630 | 380 | 215 | 220 |
| -d31 | 125 | 109 | – | – | 175 | – | 260 | 276 | – | 95 | – | |
| d15 | 480 | 450 | – | – | 590 | – | 625 | 720 | – | 330 | – | |
| Piezoelectric Voltage Constant (10⁻³ Vm/N or 10⁻³ m²/C) | g33 | 26.5 | 25.5 | 26.3 | 24.5 | 24.8 | 24.8 | 25.5 | 21.0 | 38.0 | 25.0 | 26.7 |
| -g31 | 11.0 | 10.5 | – | – | 12.4 | – | – | 9.0 | – | 10.0 | – | |
| g15 | 38.0 | 35.0 | – | – | 36.0 | – | – | 27.0 | – | 28.0 | – | |
| Young’s Modulus (10¹⁰ N/m²) | YE11 | 8.0 | 7.6 | 8.0 | 7.6 | 6.3 | 6.3 | 6.0 | 5.9 | – | 9.0 | 9.0 |
| YE33 | 6.8 | 6.3 | 6.8 | 6.3 | 5.4 | 5.4 | 5.2 | 5.1 | – | 7.2 | 7.2 | |
| Frequency Constant (Hz·m or m/s) | NL (Length Direction) | 1524 | 1700 | – | – | 1500 | – | – | 1390 | – | 1725 | – |
| NT (Thickness Direction) | 2005 | 2005 | 2050 | 2050 | 2040 | 2040 | 2000 | 2079 | 1390 | 2110 | 2050 | |
| NP (Planar Direction) | 2130 | 2055 | 2230 | 2250 | 1980 | 2080 | 1972 | 1920 | 1900 | 2120 | 2300 | |
| Density (g/cm³) | ρ | 7.6 | 7.6 | 7.6 | 7.7 | 7.6 | 7.6 | 7.6 | 7.6 | 6.6 | 7.6 | 7.6 |
| Mechanical Quality Factor | Qm | 500 | 1400 | 600 | 1500 | 80 | 80 | 70 | 65 | 50 | 1000 | 1000 |
| Acoustic Impedance (Mrayl) | – | – | – | – | 31.5 | – | – | – | 16.5 | – | – | |
Note:
- @1 kHz, low electric field
- 842, 844, 851, and 881 are material parameter references for stock products and cannot be used for custom materials.
PZT Ring Specifications
| Parameter | Specification |
|---|---|
| Outer Diameter | 5 mm – 140 mm |
| Height | 1 mm – 60 mm |
| Inner Diameter | 1 mm |
| Wall Thickness | 1 mm |
| Customization | Available for dimensions and materials |
PZT Ring Key Features
- Efficient Radial and Axial Vibration Modes: The ring geometry enables strong electromechanical coupling in both radial and axial directions, ideal for ultrasonic and acoustic applications.
- High Mechanical Strength and Stability: Engineered to withstand mechanical stress and thermal cycling, ensuring long-lasting performance in demanding environments.
- Excellent Piezoelectric and Dielectric Properties: Offers high sensitivity, strong piezoelectric constants, and stable dielectric behavior across a wide frequency range.
- Customizable Dimensions and Polarization: Available in various inner/outer diameters, thicknesses, and radial or axial polarization options to suit specific application needs.
- Suitable for Stacked and Composite Transducers: The ring design integrates easily into multilayer stacks or bonded assemblies, supporting uniform energy distribution and enhanced output.
PZT Ring Applications
- Ultrasonic Transducers: PZT rings are widely used in ultrasonic probes and sensors for medical imaging, non-destructive testing, and fluid level detection due to their radial vibration characteristics.
- Piezoelectric Actuators: Their circular geometry makes them ideal for actuators in precision motion systems, such as micro-positioning stages and optical alignment devices.
- Pressure and Force Sensors: The ring structure allows efficient stress distribution, making them suitable for dynamic force and pressure sensing in automotive and industrial equipment.
- Acoustic Emission Detection: PZT rings are applied in structural health monitoring systems to detect material fatigue or cracks through acoustic signal sensing.
- Underwater Sonar and Hydroacoustics: Their shape and piezoelectric efficiency are ideal for sonar systems in marine exploration, underwater communication, and fish-finding devices.
PZT Ring Packing
The PZT Ring will be carefully placed in wooden cases or cartons, with additional support from soft materials, to prevent shifting during transportation. This packaging method guarantees the integrity of the products throughout the delivery process.
