PZT Custom Parts
New product

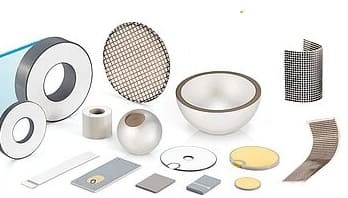

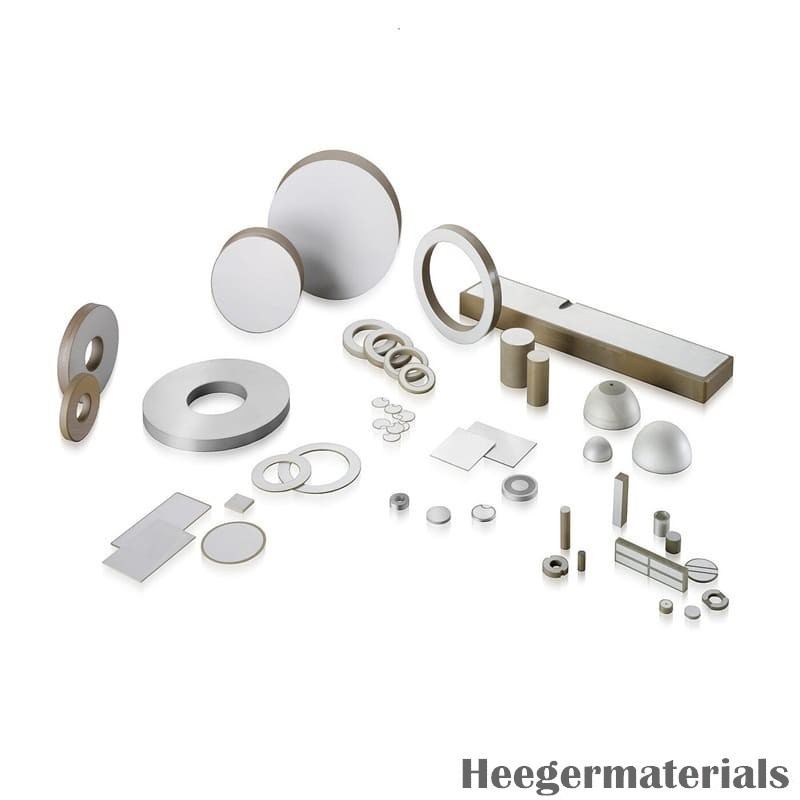

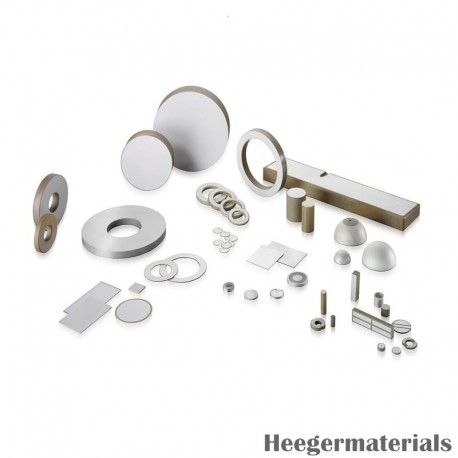

PZT Custom Parts are piezoelectric ceramic components designed for sensors, actuators, ultrasonic transducers, vibration control and energy conversion. Heeger Materials supports custom PZT grade, geometry, electrodes, poling direction, frequency target and assembly needs.
Please contact us if you need customized services. We will contact you with the price and availability in 24 hours.
Data sheet
| Diameter | Standard or customized |
| Thick | customized |
| Color | White to off white |
| Materials | Lead Zirconate Titanate (PZT) |
More info
PZT Custom Parts are designed to meet specific application needs, offering high piezoelectric coefficients, excellent dielectric properties, and dimensional precision. These parts can be manufactured in various shapes and sizes to suit complex components in ultrasonic transducers, precision actuators, energy harvesting systems, and advanced MEMS devices. Their stability under thermal and mechanical stress makes them reliable for both industrial and scientific use. Heeger Materials provides high-quality PZT Custom Parts with flexible design options and consistent performance for advanced piezoelectric applications.
PZT Custom Parts Selection Notes
PZT Custom Parts belongs to the PZT piezoelectric ceramic range and is selected for controlled PZT composition, piezoelectric response, dielectric properties, geometry, electrode pattern and polarization direction. It is commonly used in ultrasonic transducers, actuators, sensors, buzzers, vibration control, energy harvesting and piezoelectric device research. When requesting a quote, confirm PZT grade, dimensions and tolerance, resonance or frequency target, piezoelectric and dielectric requirements, polarization direction, electrode material and pattern, surface finish, lead attachment and quantity.
PZT parts are selected by piezoelectric grade, geometry, electrode design and poling direction. Browse Piezoelectric Ceramics, Technical Ceramics or the materials blog.
Customization options: Provide PZT grade, geometry, dimensions, tolerance, electrode material and pattern, poling direction, target frequency, wiring or assembly needs and quantity.
Related Materials and Product Forms
For material comparison or adjacent product forms, browse piezoelectric ceramics, technical ceramics and photoelectric crystals.
For ceramic component alternatives, compare Yttria Stabilized Zirconia Disc and Zirconia Ceramic Plate.
FAQ
What electrical and poling details are needed for PZT Custom Parts? Please provide PZT grade, dimensions, target frequency or resonance, piezoelectric and dielectric requirements, poling direction, electrode material and pattern, lead or assembly needs and quantity.
What details are needed for PZT custom parts?
Send the drawing, PZT grade, dimensions, electrode pattern, poling direction, frequency or electrical targets and quantity.
Can electrodes and poling be customized?
Yes. Electrode material, pattern and poling direction can be reviewed with the part geometry and performance requirements.
PZT Custom Parts Properties
| Properties | Materials | |||||||||||
| PZT4 | PZT5 | PZT8 | ||||||||||
| 840 | 841 | 842** | 844** | 850 | 851** | 854 | 855 | 860 | 880 | 881** | ||
| Relative Permittivity | KT | 1275 | 1375 | 1375 | 1500 | 1900 | 1950 | 2750 | 3300 | 1200 | 1050 | 1030 |
| Dielectric Loss Factor (%) | tan δ | 0.60 | 0.40 | 0.45 | 0.40 | ≤ 2.00 | 1.50 | ≤ 2.00 | ≤ 2.50 | ≤2.00 | 0.40 | 0.40 |
| Curie Temperature (°C) | Tc | 325 | 320 | 325 | 320 | 360 | 360 | 250 | 200 | 360 | 310 | 310 |
| Electromechanical Coupling Coefficient | kp | 0.59 | 0.60 | 0.65 | 0.68 | 0.63 | 0.71 | 0.66 | 0.68 | 0.50 | 0.50 | 0.58 |
| k33 | 0.72 | 0.68 | – | – | 0.72 | – | 0.68 | 0.76 | 0.45 | 0.62 | – | |
| k31 | 0.35 | 0.33 | – | – | 0.36 | – | – | 0.40 | – | 0.30 | – | |
| k15 | 0.70 | 0.67 | – | – | 0.68 | – | – | 0.66 | – | 0.55 | – | |
| kt | – | – | 0.48 | 0.48 | – | 0.51 | – | – | – | – | 0.46 | |
| Piezoelectric Charge Constant (10⁻¹² C/N or 10⁻¹² m/V) | d33 | 290 | 300 | 300 | 300 | 400 | 400 | 600 | 630 | 380 | 215 | 220 |
| -d31 | 125 | 109 | – | – | 175 | – | 260 | 276 | – | 95 | – | |
| d15 | 480 | 450 | – | – | 590 | – | 625 | 720 | – | 330 | – | |
| Piezoelectric Voltage Constant (10⁻³ Vm/N or 10⁻³ m²/C) | g33 | 26.5 | 25.5 | 26.3 | 24.5 | 24.8 | 24.8 | 25.5 | 21.0 | 38.0 | 25.0 | 26.7 |
| -g31 | 11.0 | 10.5 | – | – | 12.4 | – | – | 9.0 | – | 10.0 | – | |
| g15 | 38.0 | 35.0 | – | – | 36.0 | – | – | 27.0 | – | 28.0 | – | |
| Young’s Modulus (10¹⁰ N/m²) | YE11 | 8.0 | 7.6 | 8.0 | 7.6 | 6.3 | 6.3 | 6.0 | 5.9 | – | 9.0 | 9.0 |
| YE33 | 6.8 | 6.3 | 6.8 | 6.3 | 5.4 | 5.4 | 5.2 | 5.1 | – | 7.2 | 7.2 | |
| Frequency Constant (Hz·m or m/s) | NL (Length Direction) | 1524 | 1700 | – | – | 1500 | – | – | 1390 | – | 1725 | – |
| NT (Thickness Direction) | 2005 | 2005 | 2050 | 2050 | 2040 | 2040 | 2000 | 2079 | 1390 | 2110 | 2050 | |
| NP (Planar Direction) | 2130 | 2055 | 2230 | 2250 | 1980 | 2080 | 1972 | 1920 | 1900 | 2120 | 2300 | |
| Density (g/cm³) | ρ | 7.6 | 7.6 | 7.6 | 7.7 | 7.6 | 7.6 | 7.6 | 7.6 | 6.6 | 7.6 | 7.6 |
| Mechanical Quality Factor | Qm | 500 | 1400 | 600 | 1500 | 80 | 80 | 70 | 65 | 50 | 1000 | 1000 |
| Acoustic Impedance (Mrayl) | – | – | – | – | 31.5 | – | – | – | 16.5 | – | – | |
Note:
- @1 kHz, low electric field
- 842, 844, 851, and 881 are material parameter references for stock products and cannot be used for custom materials.
| Material | PZT piezoelectric ceramic |
|---|---|
| CAS | Not applicable for finished custom piezoelectric ceramic parts |
| Purity or grade | PZT composition and performance grade by request |
| Form | Disc, ring, plate, tube or custom machined part |
| Packaging | Protected packaging for electrodes, poled parts and precision ceramic surfaces |
PZT Custom Parts Key Features
- High Design Flexibility: Available in a wide range of shapes, sizes, and configurations to meet specific application requirements.
- Superior Piezoelectric Performance: Delivers strong electromechanical coupling for efficient sensing, actuation, and energy conversion.
- Precision Fabrication: Manufactured with tight tolerances to ensure reliable performance in demanding environments.
- Stable Electrical and Mechanical Properties: Maintains consistent function under varying thermal, mechanical, and electrical loads.
- Application-Specific Engineering: Customized to match unique functional needs in fields like medical imaging, industrial control, and microelectronics.
PZT Custom Parts Applications
- Medical Ultrasound Devices: Used in customized transducer arrays for high-resolution imaging and diagnostic equipment.
- Industrial Ultrasonic Sensors: Integrated into non-destructive testing systems and fluid-level monitoring for enhanced precision.
- Micro Actuators in MEMS: Employed in miniaturized piezoelectric actuators for optical alignment, micro-positioning, and bioMEMS applications.
- Energy Harvesting Modules: Designed for vibration-based energy conversion in wireless sensor networks and portable electronics.
- Aerospace and Defense Systems: Applied in guidance systems, smart structures, and vibration control components requiring tailored piezoelectric performance.
- Ultrasonic transducers, sensors and actuators
- Precision motion, vibration control and energy harvesting
- Research assemblies requiring custom piezoelectric response
PZT Custom Parts Packing
The PZT Custom Parts will be carefully placed in wooden cases or cartons, with additional support from soft materials, to prevent shifting during transportation. This packaging method guarantees the integrity of the products throughout the delivery process.
Where to Buy PZT Custom Parts in Bulk?
Heeger Materials Inc., a professional supplier and manufacturer of high-quality Piezoelectric Ceramics products, including PZT Custom Parts, leverages extensive expertise in supply and export to offer competitive prices. We provide customized solutions to meet specific requirements, ensuring exceptional quality and customer satisfaction.
Heeger Materials Inc. was established in 2016 in Colorado, USA. We are a specialized supplier of premium-grade metals, alloys, ceramics, powders, and various other materials catering to research, development, and large-scale industrial production in scientific and industrial sectors.
